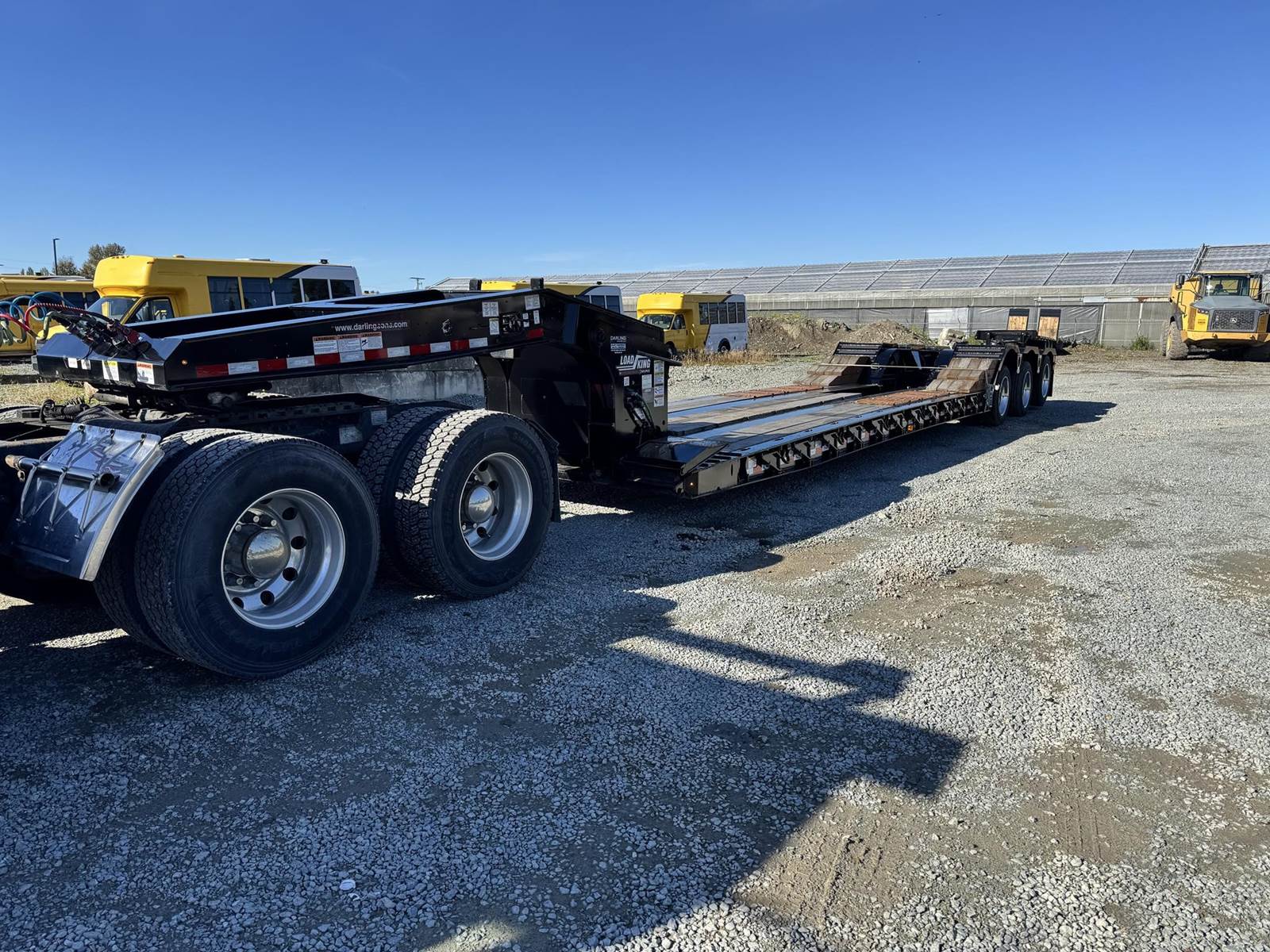

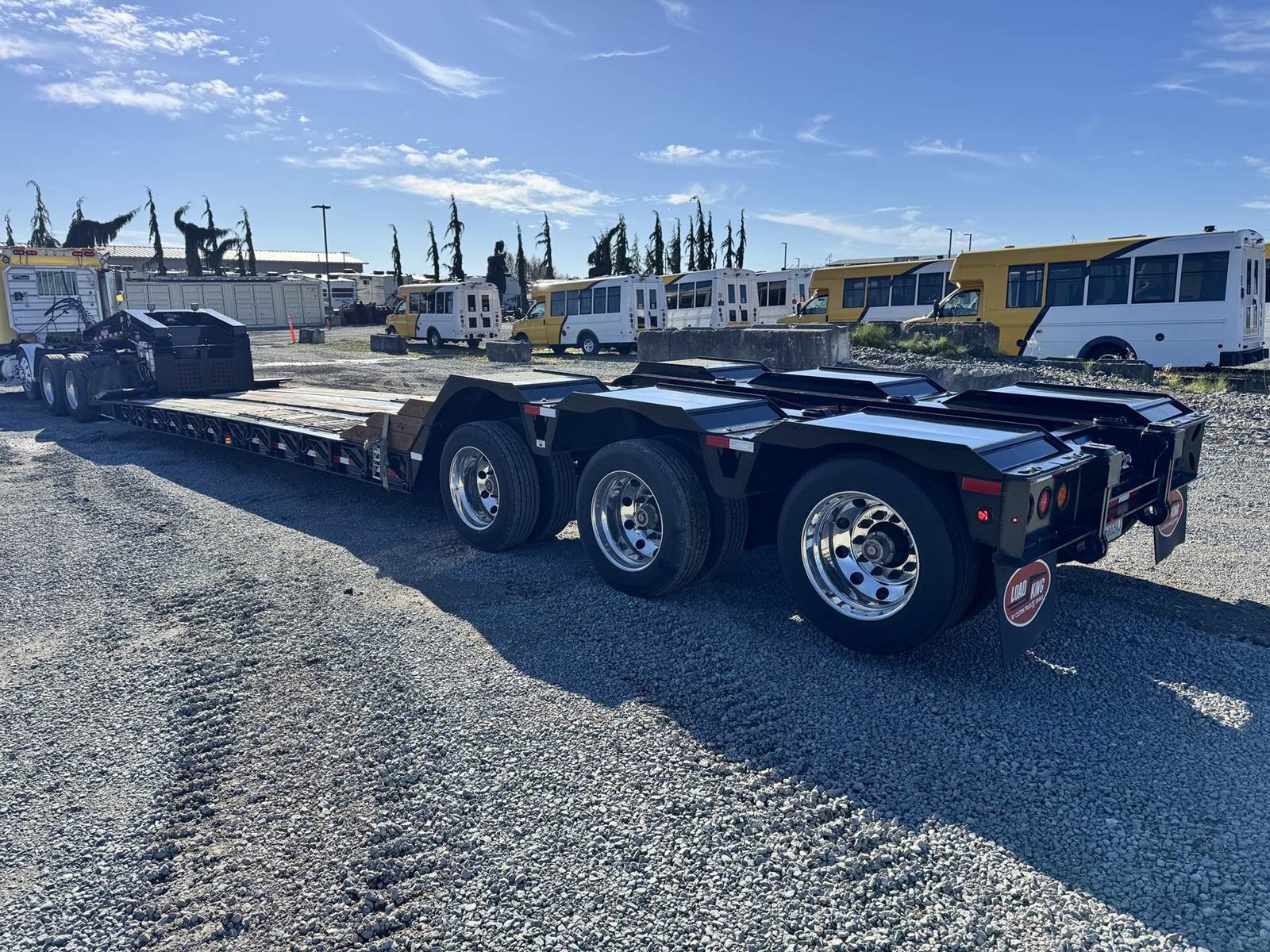

2024 Load King Tri Axle Lowboy Trailer - Fixed Spread Axle

General

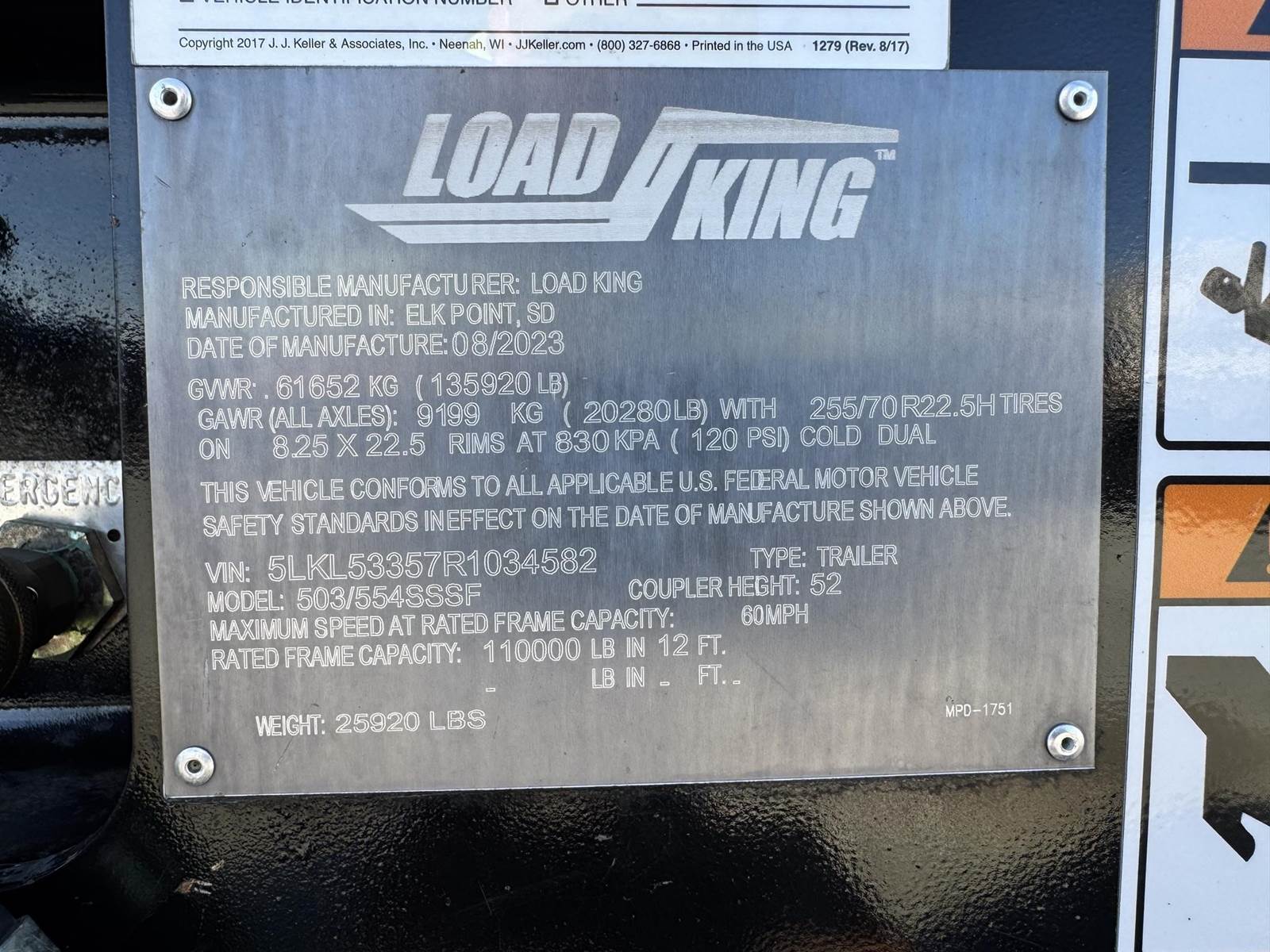

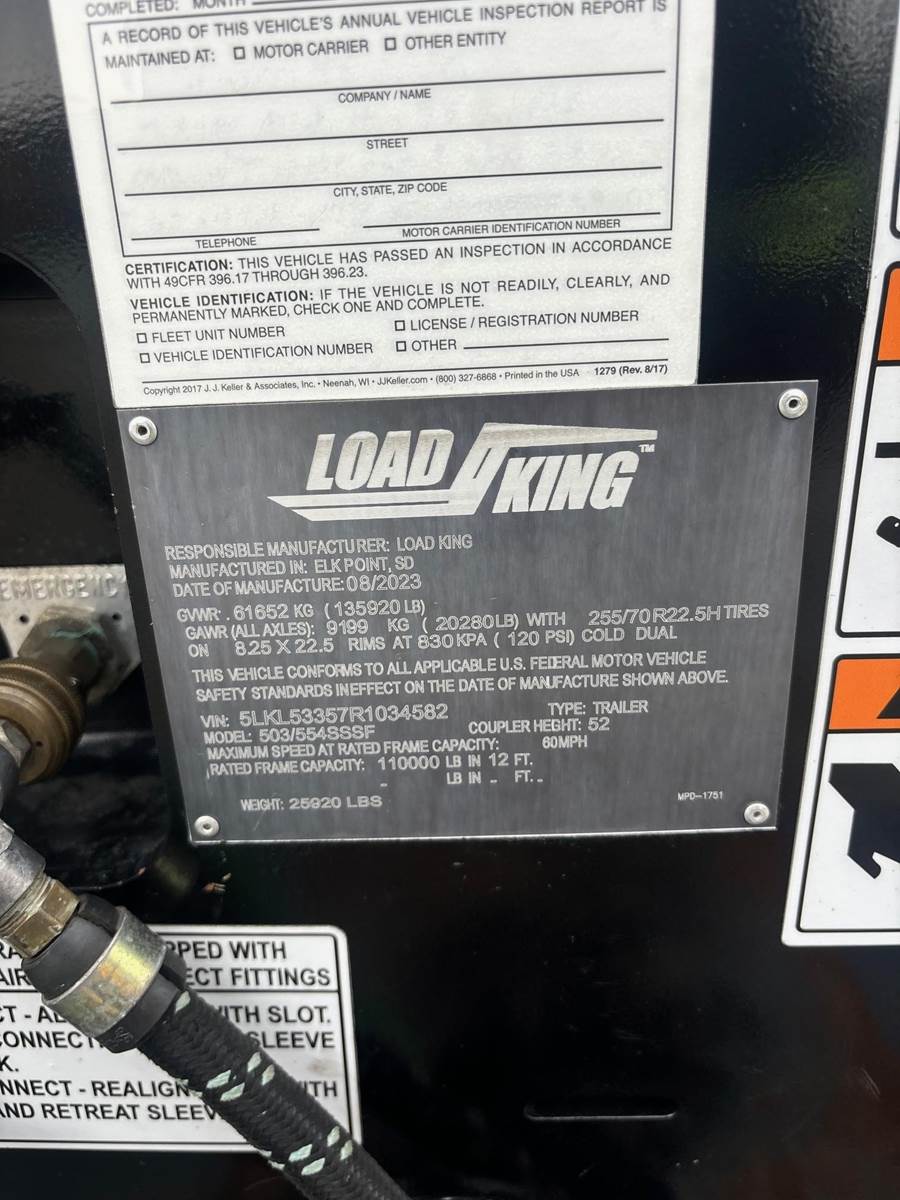

110,000# Capacity in 12′ load concentration
100,000 / 80,000 psi yield steel mainbeams
Est weight (lbs.) 22,390 not including attachments, +/- 5%
Overall Length: 53′ 0″ not including attachments
102″ wide (deck and axles) 44″ O/O inner beams
Hendrickson Air-Ride

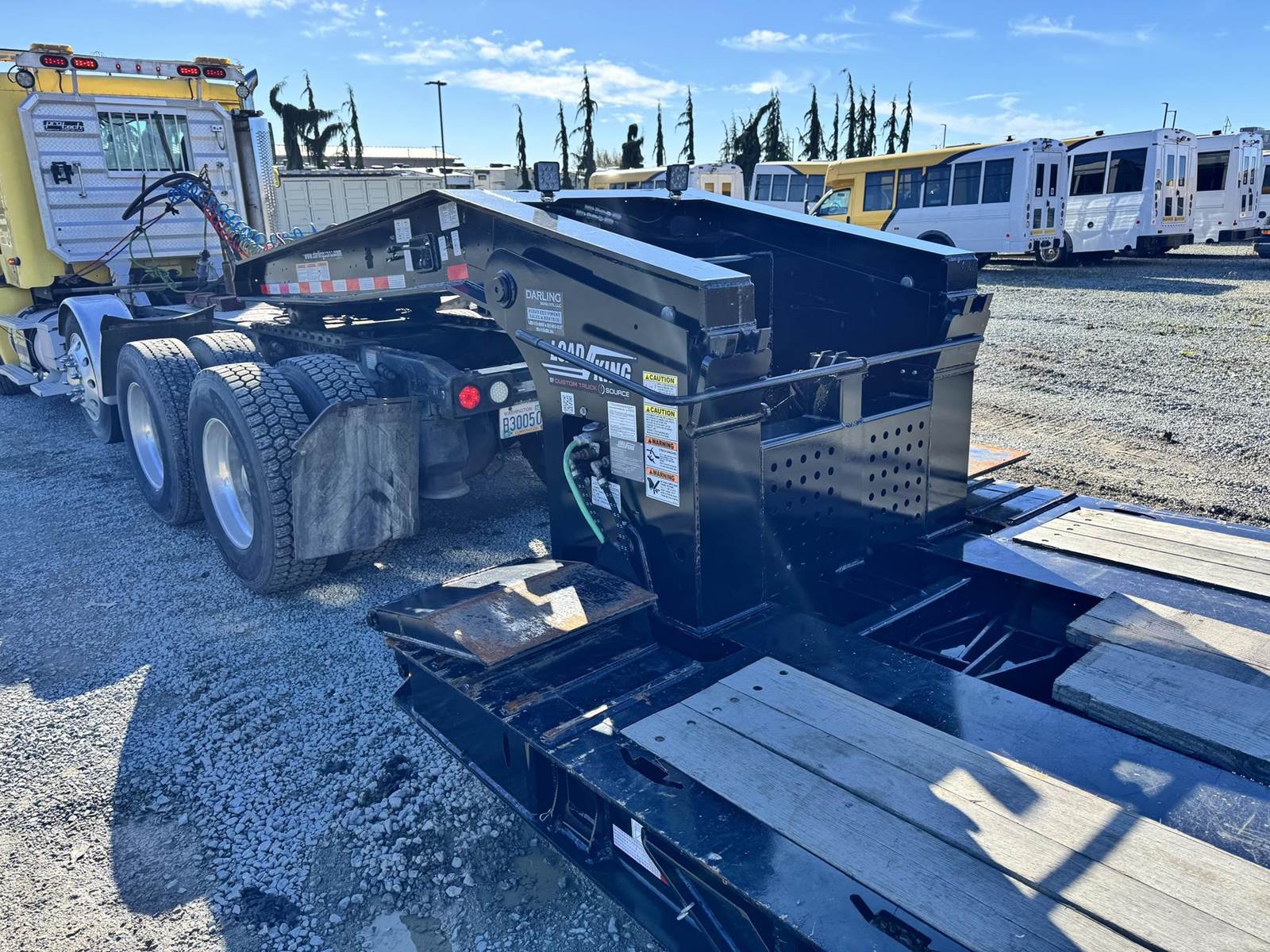

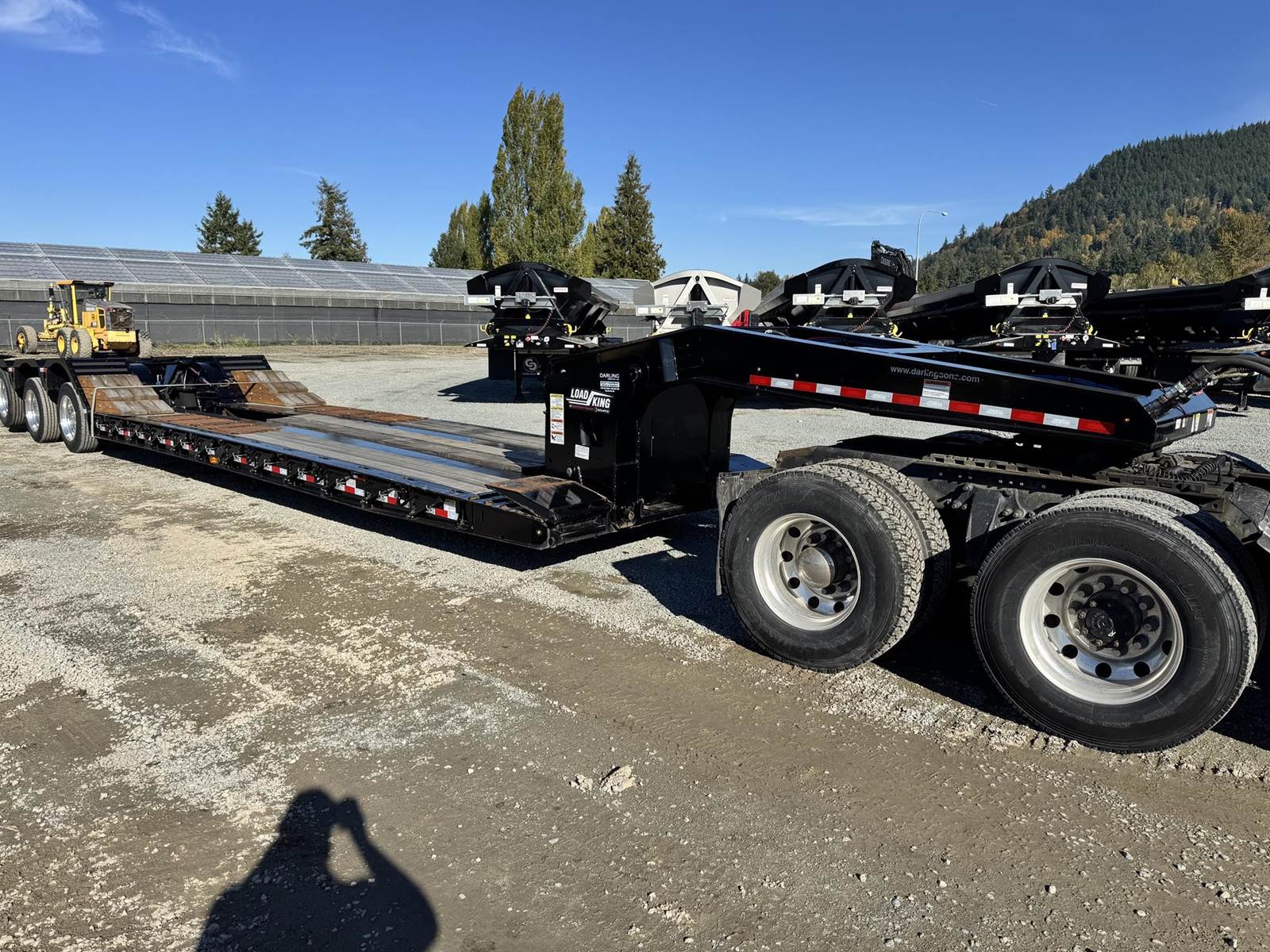

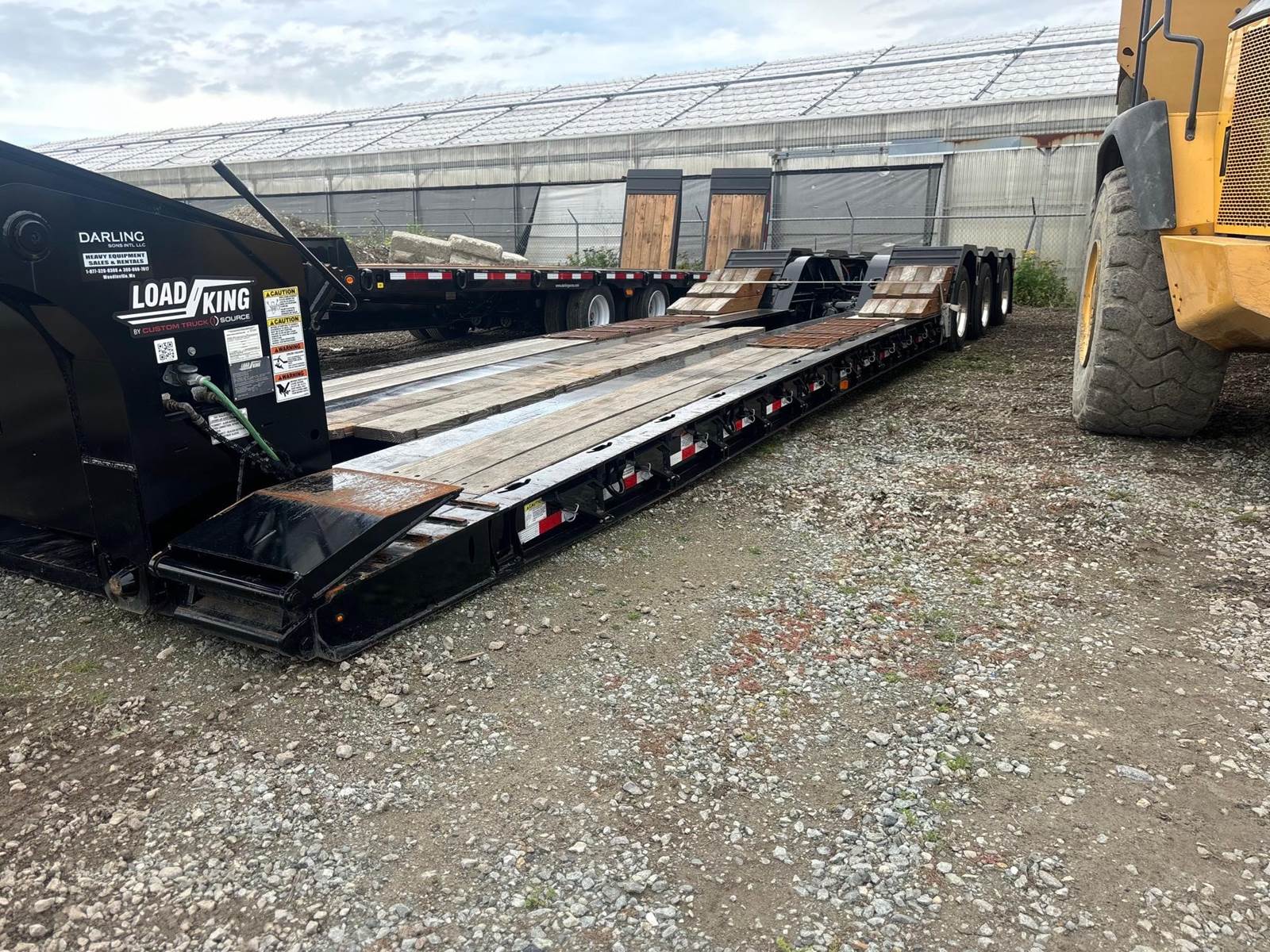

Gooseneck

Hydraulic non-ground bearing Scraper neck
12′-9″ gooseneck with 110″ & 86″ swing
51″ 5th wheel height – Adjustable 5 position ride height ratchet
High Clearance Frame Recess with Hydraulic Frame Lift Support Arm
Air activated, self-locking pin on gooseneck, positive safety lock
Hydraulic power from tractor source
LED Work Lights rear-facing on gooseneck

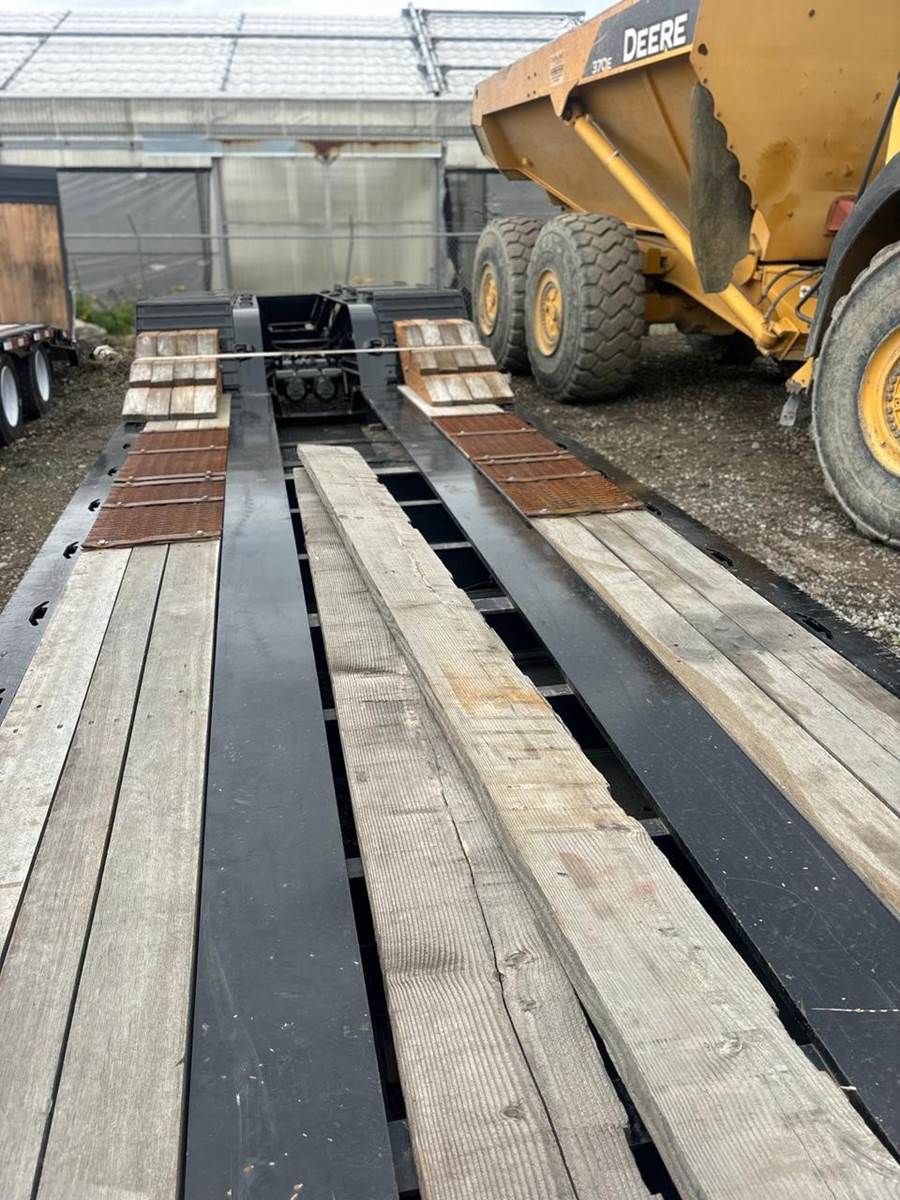

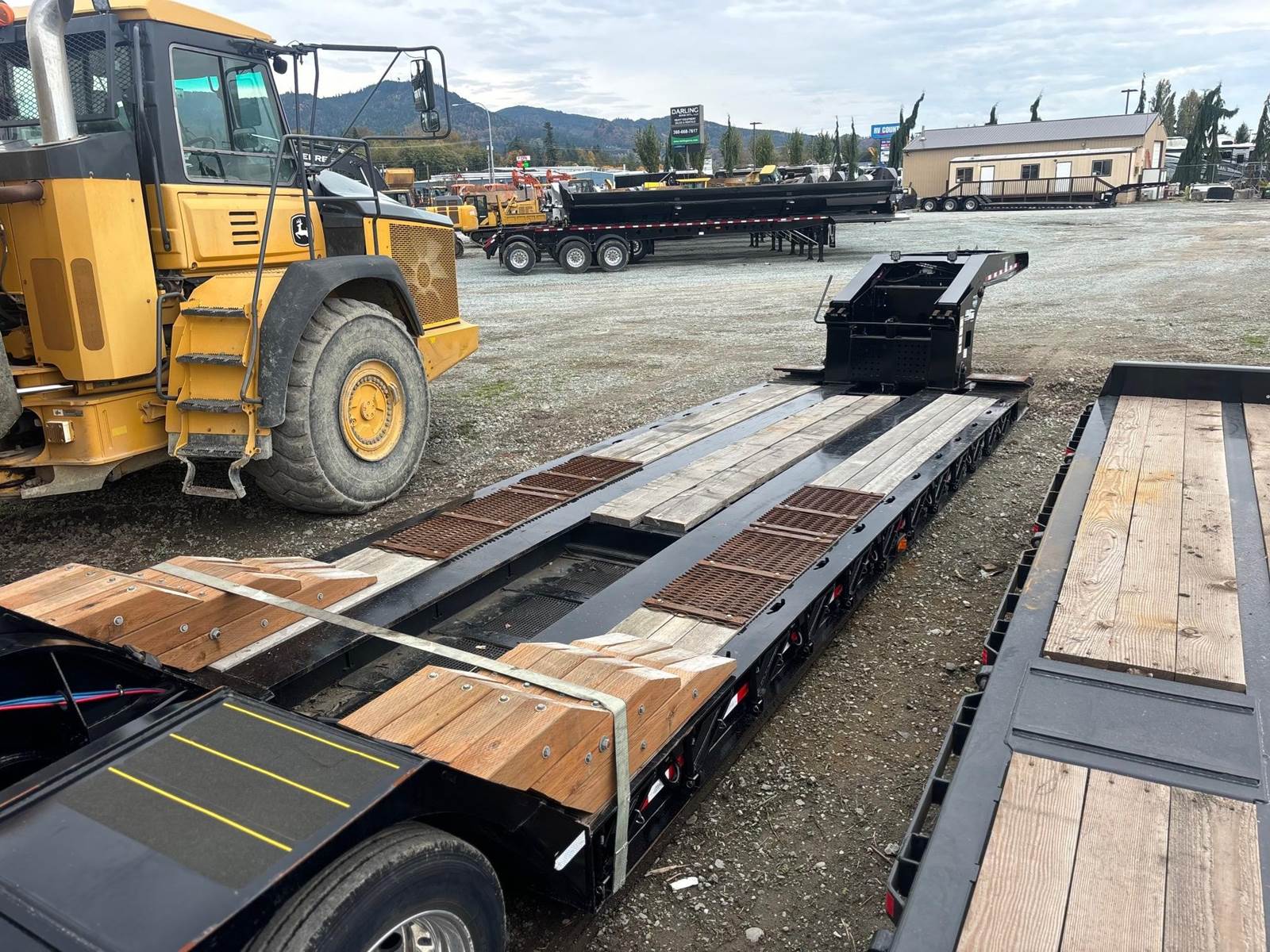

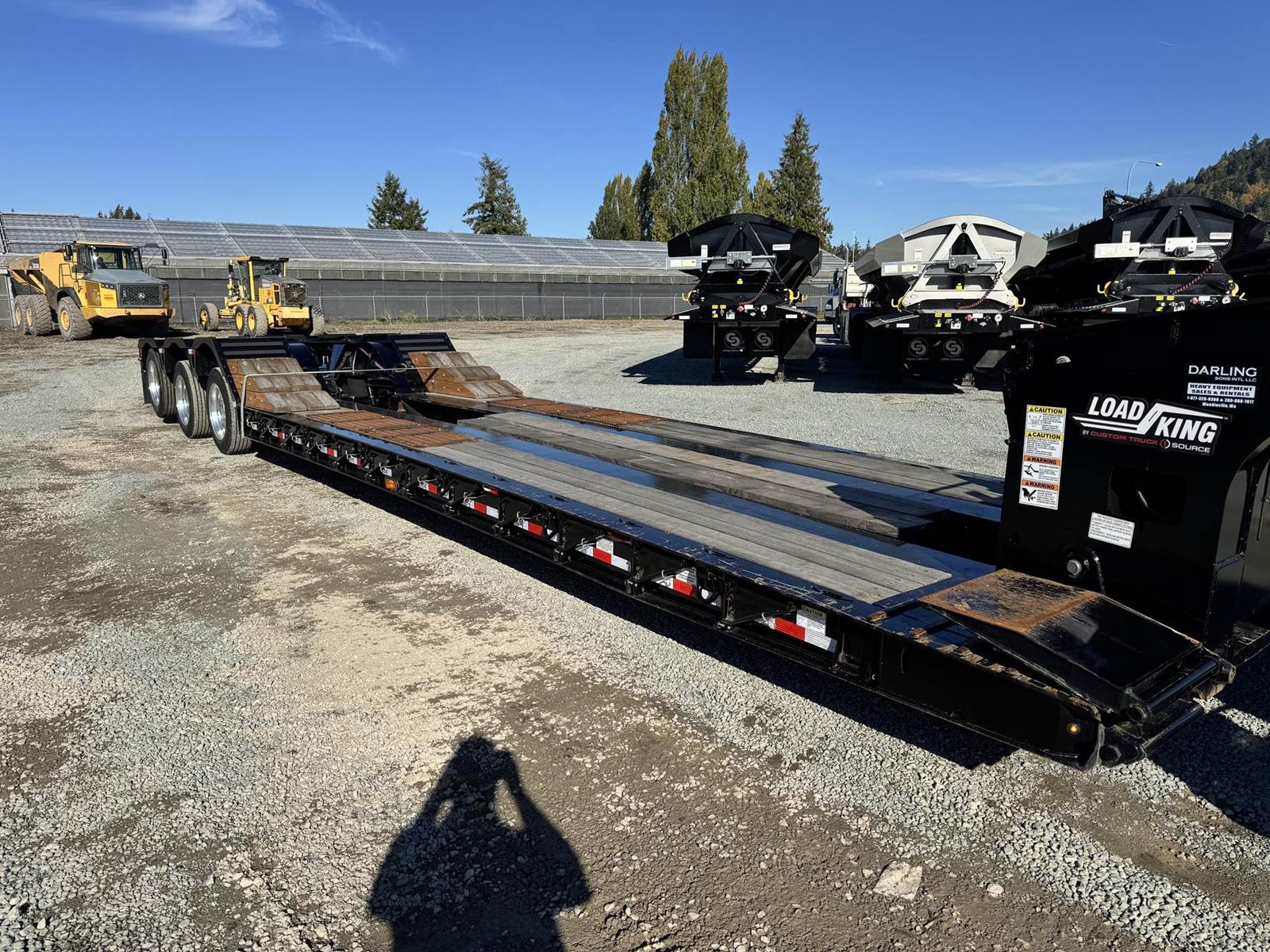

Deck

4 full depth 12″ cambered deck beams
25′ deck length – flat
13 Pair chain slots in outer flanges for 3/8″ & 1/2″ Chain
Alternating 8″ & 4″ crossmembers on 12″ centers
18″ loaded deck height with 6″ loaded ground clearance
2″ nominal intrack area bolted at all board ends
Open in center of deck

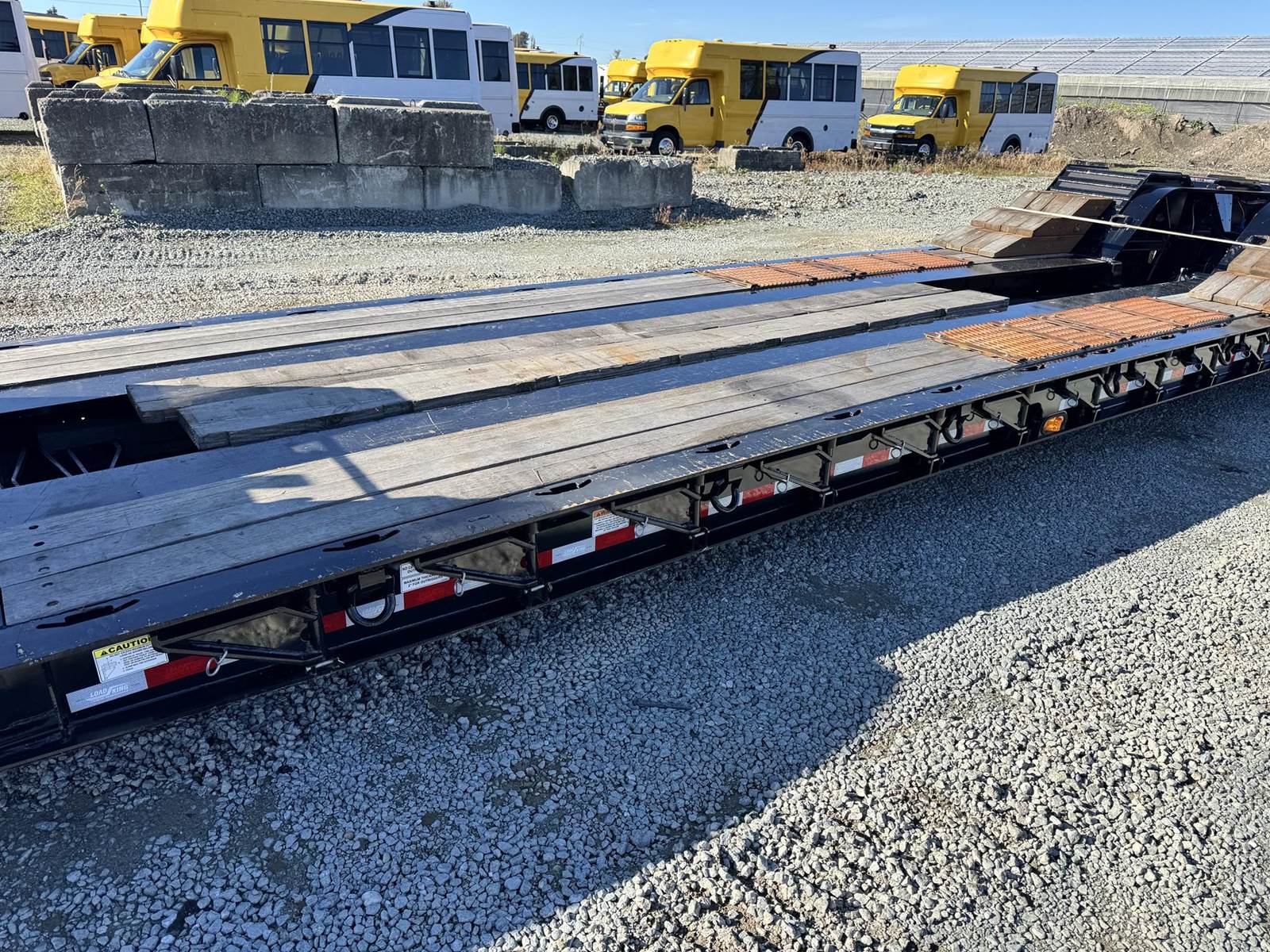

Outriggers: 13 Pair swing out – removable
Wide Load Package – gussets behind each outrigger
Boxed Front Approach & Upper Flange Reinforcement
Bent D-rings- 6 per side, mounted to reinforcement
Recessed last 8′ of deck with Pierced steel plate
Pierced Steel tool box – 60″ at front
30″ front flip ramps – bridge style spring assisted
42-degree radius to subframe – ramp to subframe

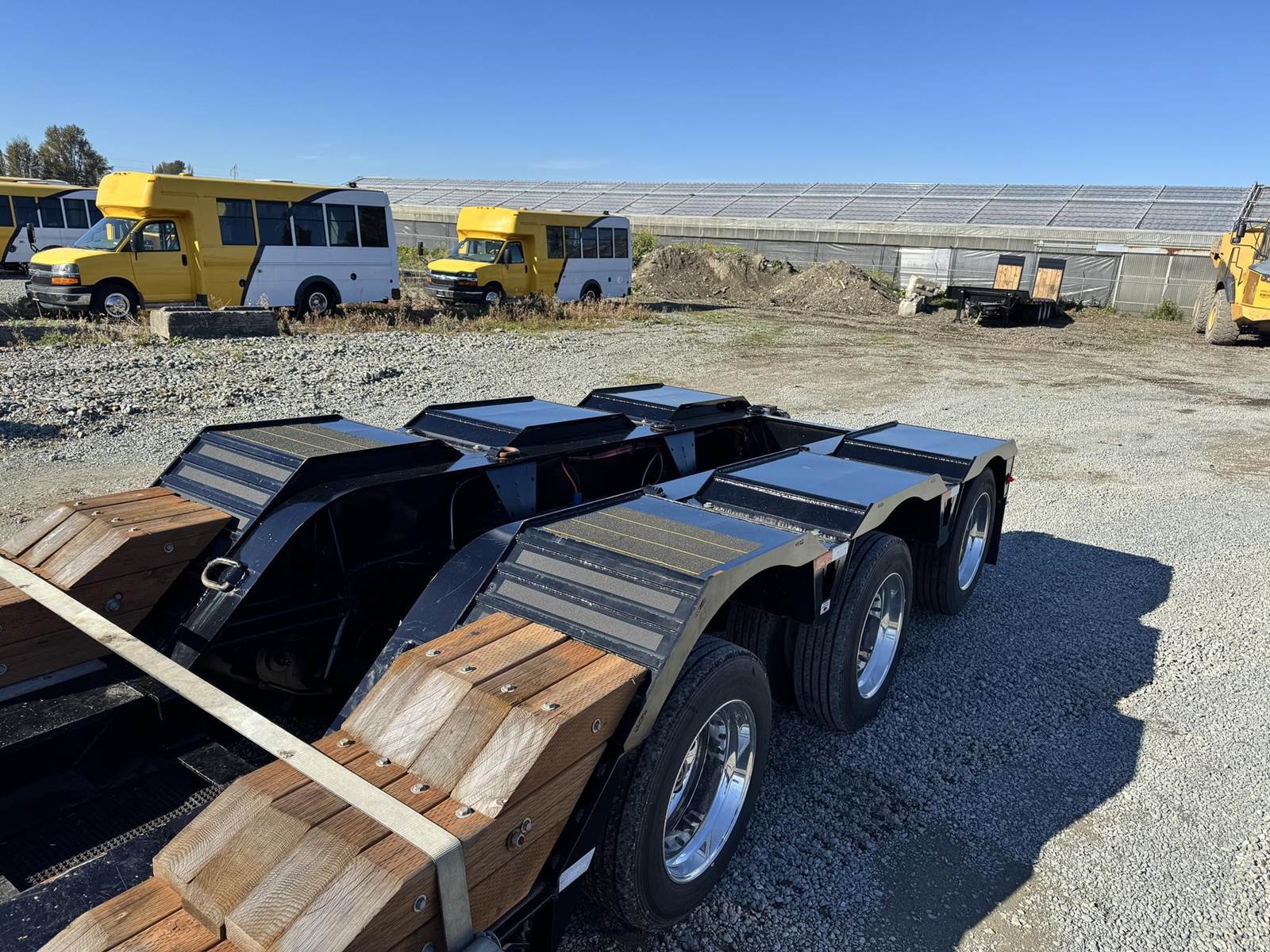

Subframe

Frame reinforcing & connections for future stinger (4 axles total)
Ail ift 3rd axle w/manual raise & lower valve, +3/-3 off leveling valve
Three 27,500 lb axles – 5″ x 3/4″ wall
Axle spacing: 60″

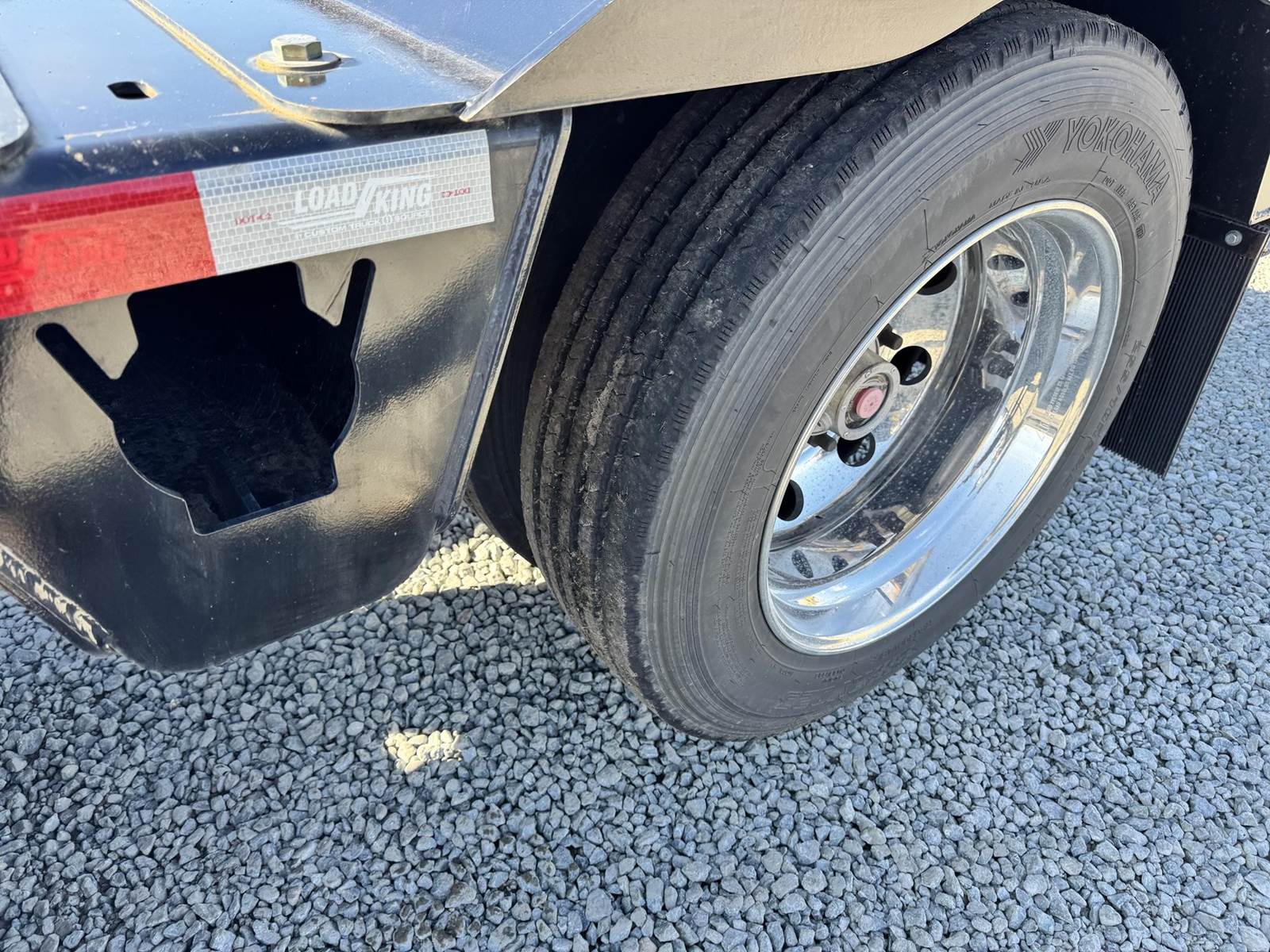

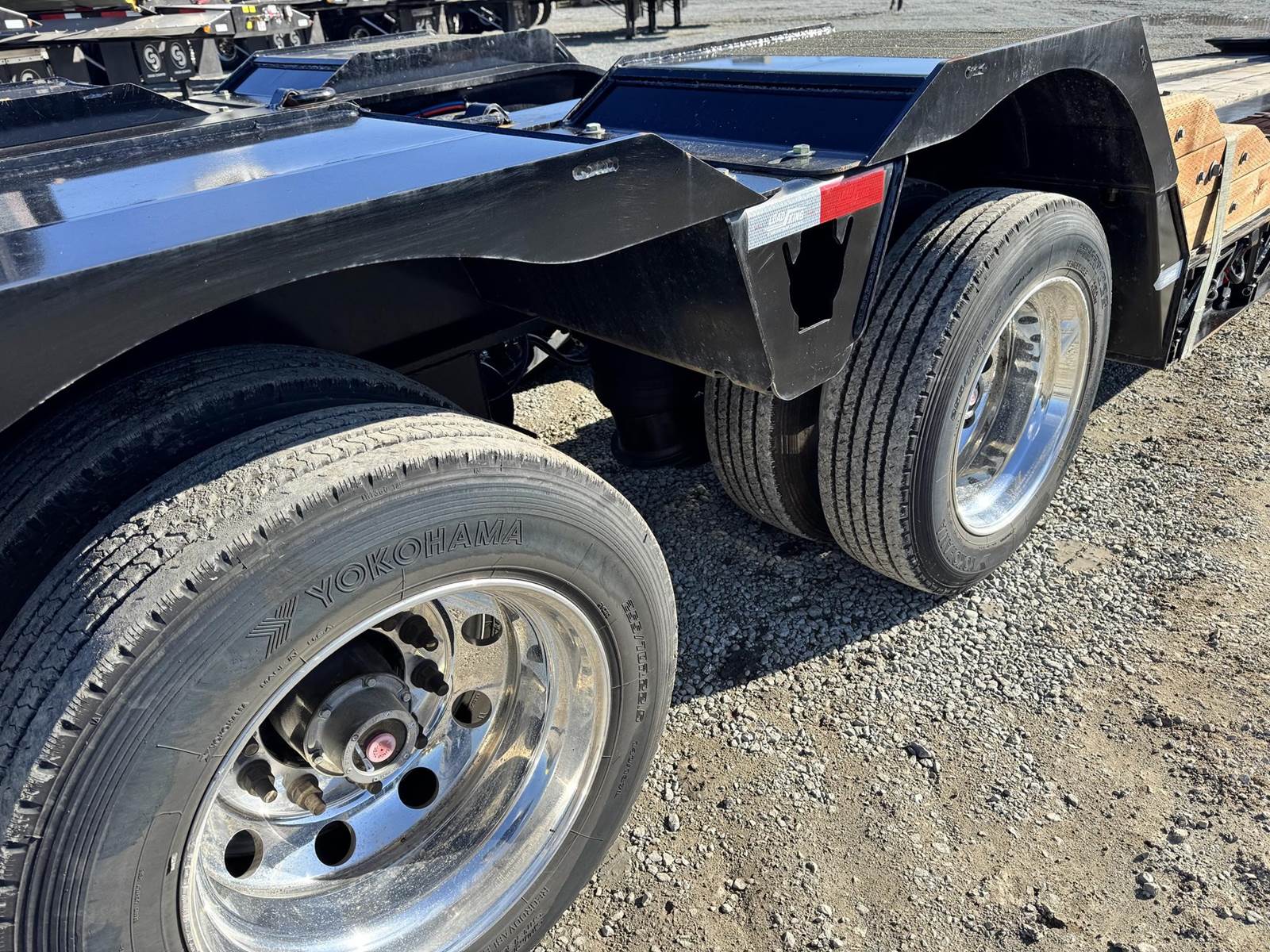

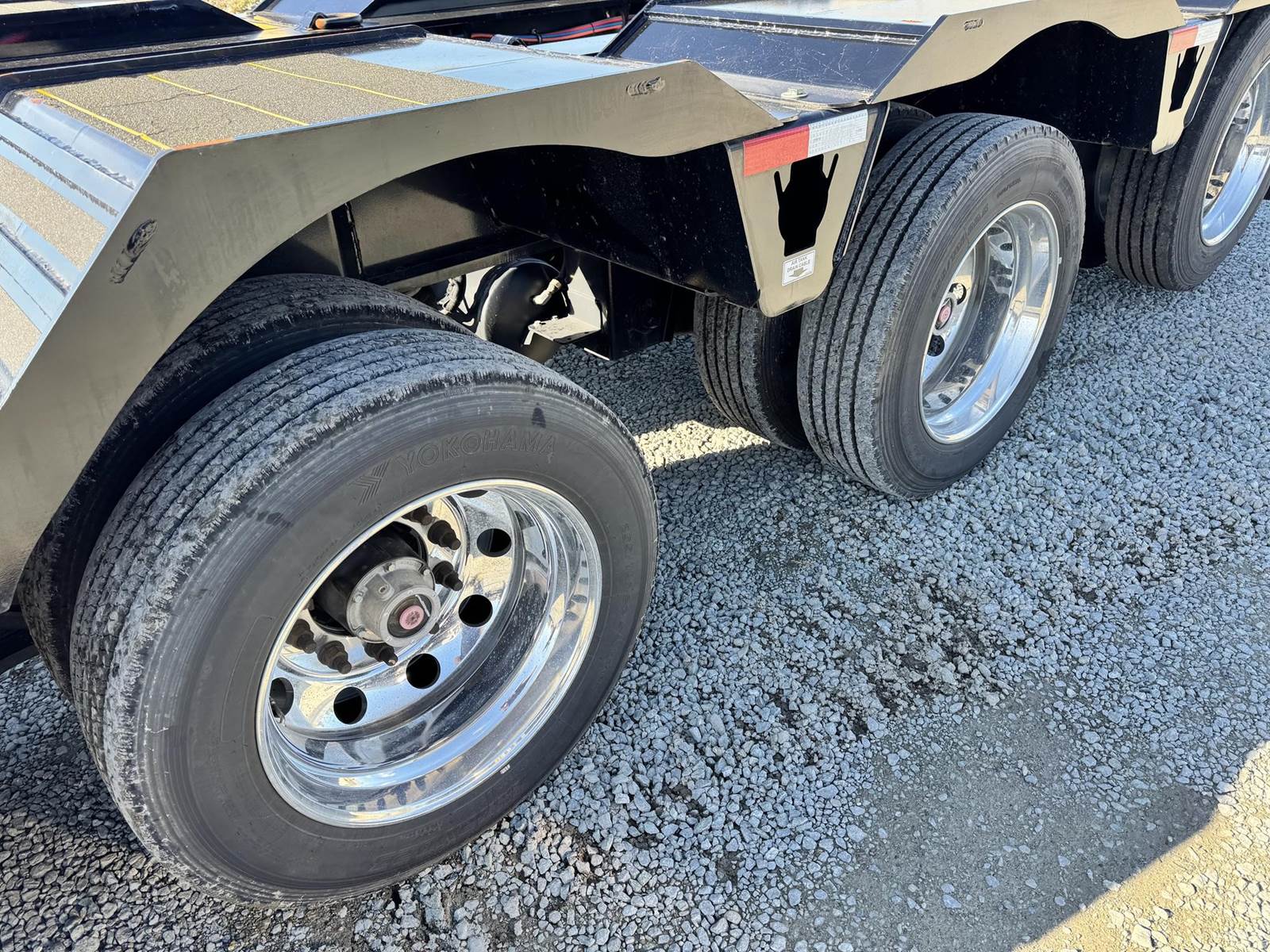

Twelve 255/70R22.5 H radials

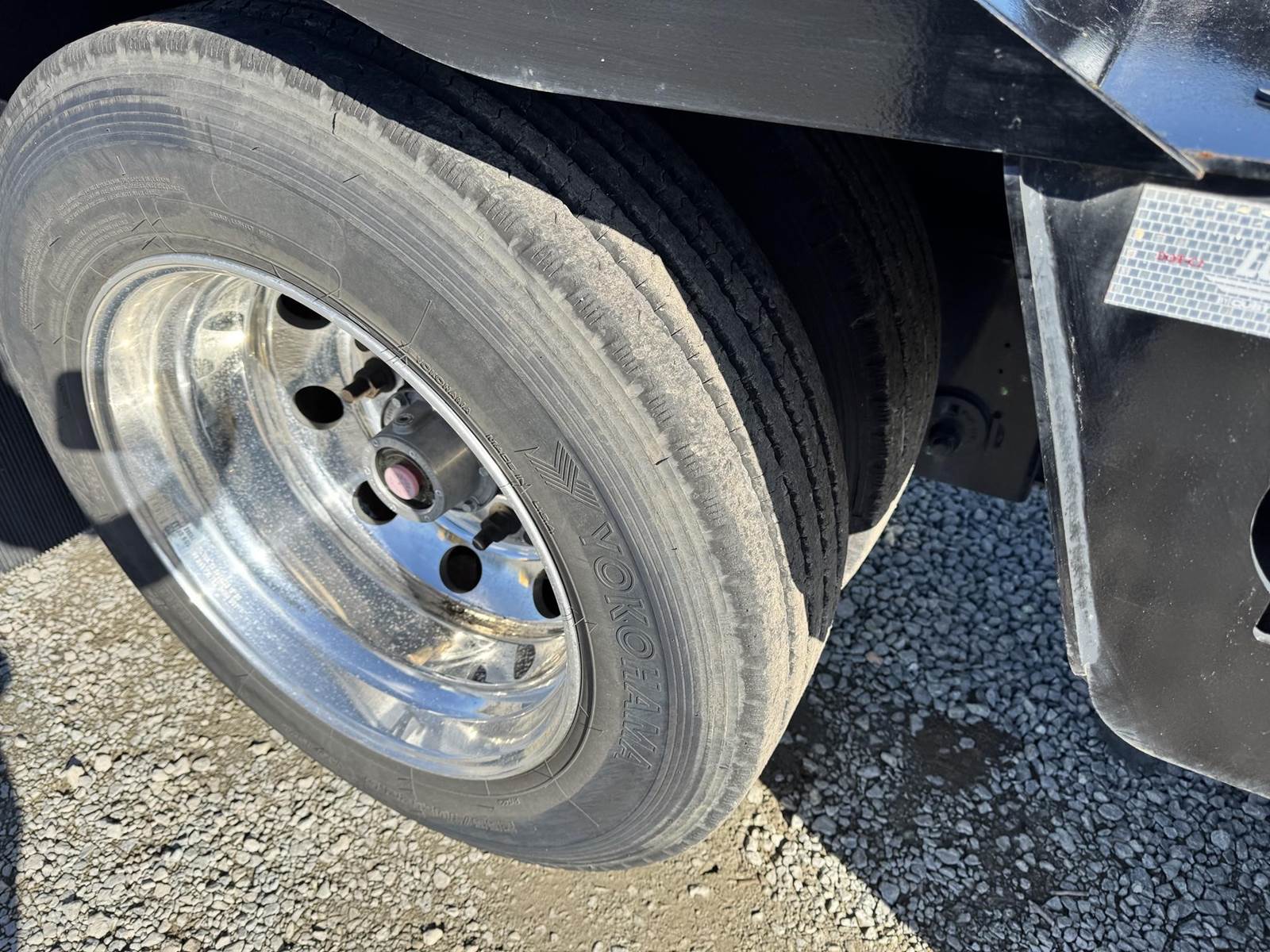

Alum/steel wheels-outside polished
16.5″ x 7″ drum brakes, no ABS
Spring brakes on 2nd axle

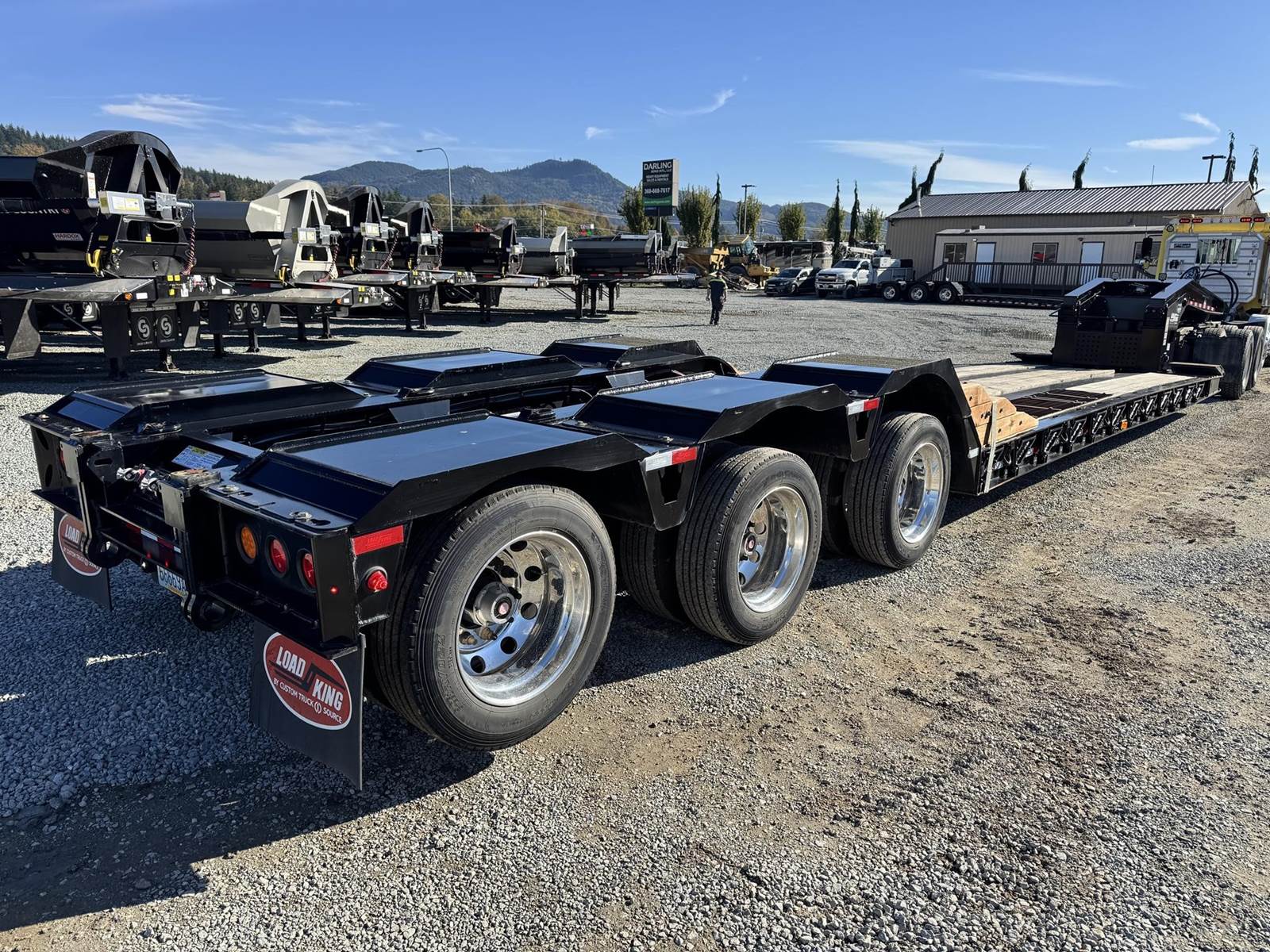

Three tail light package with strobes

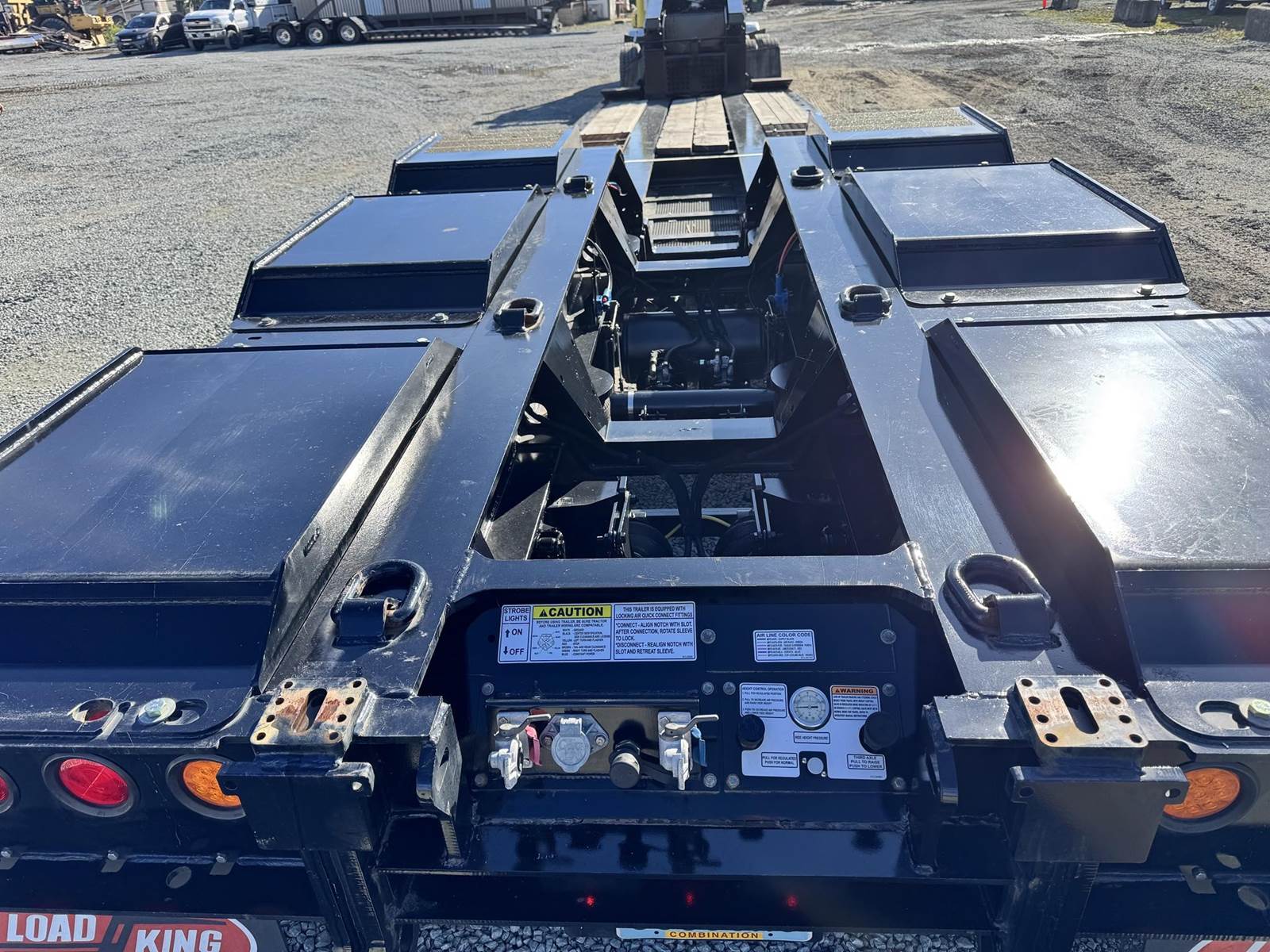

Boom trough, open to tailgate
Flush mount bolsters with open wheel wells
Wide Load sign pockets (no sign)
Lowered crossmembers in subframe
4 Pair Flat D-Rings mounted on upper flange
