Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!

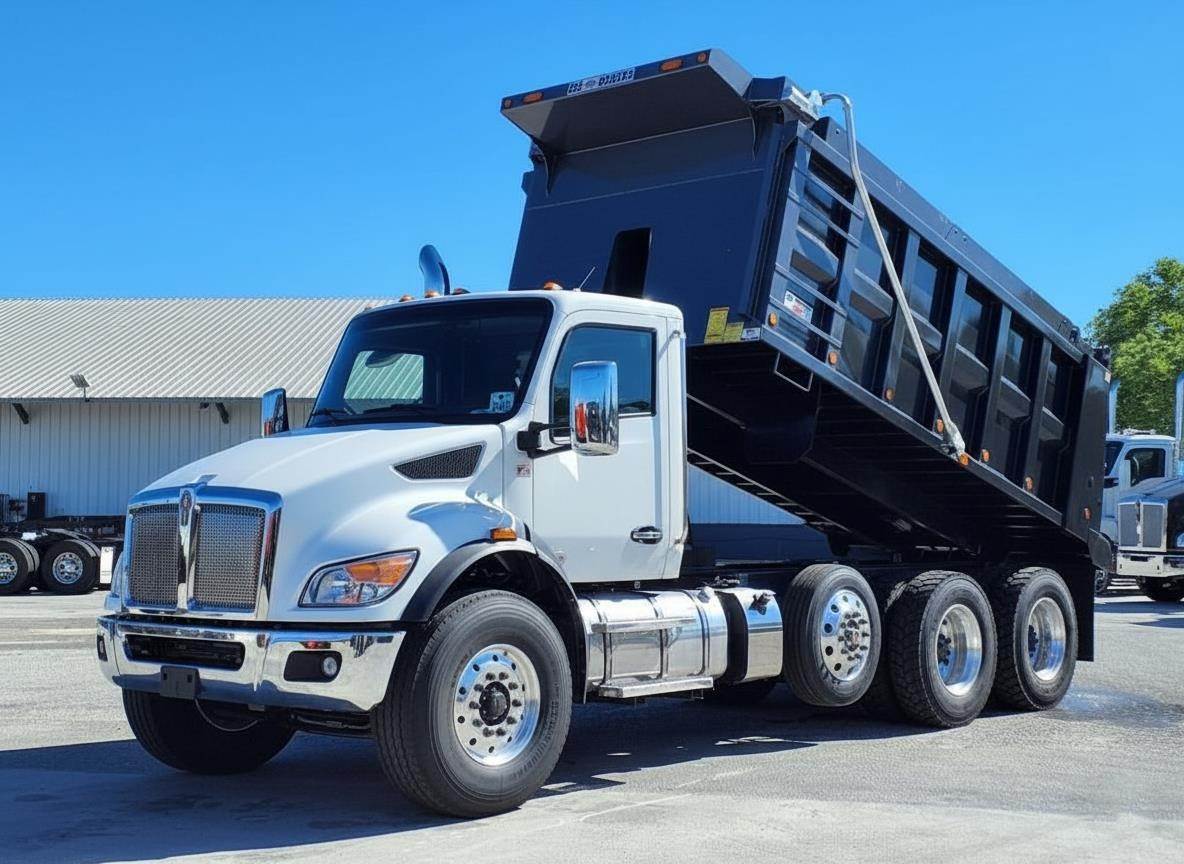

2025 Kenworth T480
Engine:
PACCAR PX-9 330 Engine with turbo exhaust brake
330 HP @ 1750 RPM, 1000 lb-ft torque @ 1200 RPM
Transmission:

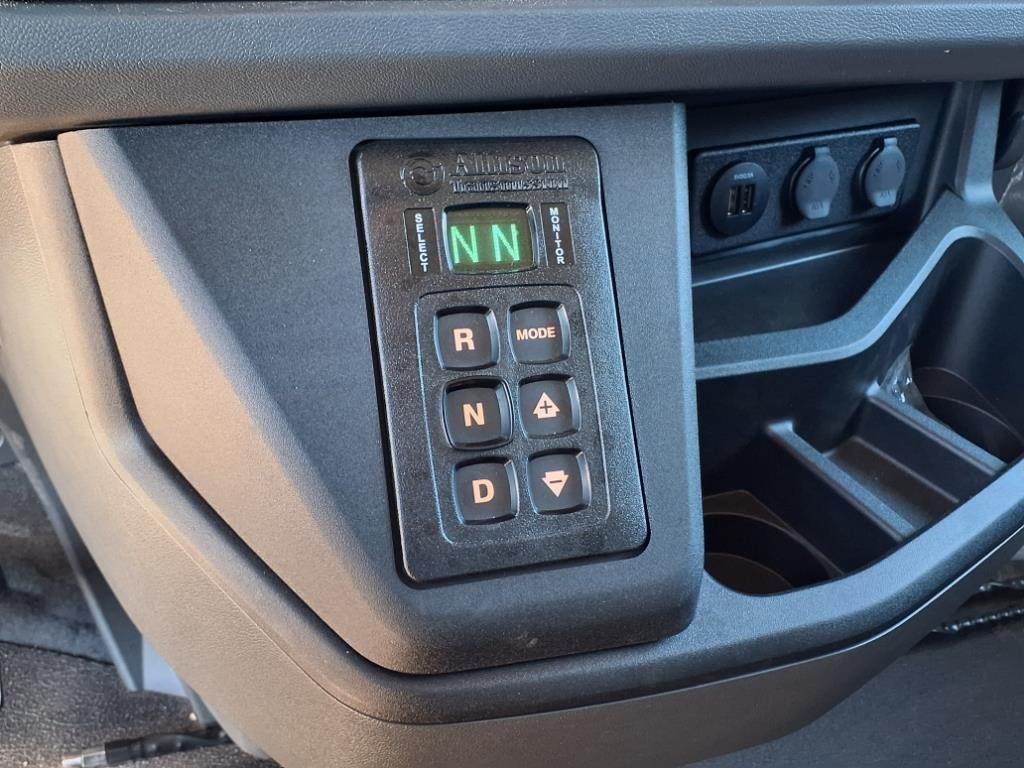

Allison 3500RDS 6-speed automatic transmission with PTO
Axles & Suspension:
Front Axle: PACCAR FX-20 Wide Track rated at 20,000 lbs
Rear Axle: Meritor RT46-160P tandem rated at 46,000 lbs
Steerable Pusher Axle: Watson & Chalin SL13 13,500 lbs
Front Suspension: Taperleaf 20,000 lbs with shocks
Rear Suspension: Hendrickson Haulmaax HMX460 46k dual 54-inch
Brakes:
Front: Meritor Q+ 16.5x6 drum brakes
Rear: Meritor Q+ 16.5x7 drum brakes
Pusher: Meritor 15x4 drum brakes
Frame & Specifications:
Full Steel Inserts / Double Frame
Rear axle ratio: 5.38 with crosslock
GVWR: 77,020 lbs
Wheels & Tires:
Front Wheels: Alcoa 82462 22.5x12.25 aluminum with Level 1 high polish
Rear Wheels: Alcoa 98565 24.5x8.25 aluminum with Level 1 high polish
Pusher Wheels: Alcoa ULA18 22.5x8.25 aluminum with high polish
Front Tires: Michelin XZE 425/65R22.5 20PR
Rear Tires: Michelin X Works D 11R24.5 16PR
Pusher Tires: Michelin XZE 255/70R22.5 16PR
Fuel & DEF:
Fuel Tank: 80 gallon D-shape aluminum rectangular with polished finish
DEF Tank: 15 gallon
Exterior & Interior:
Exterior Color: White

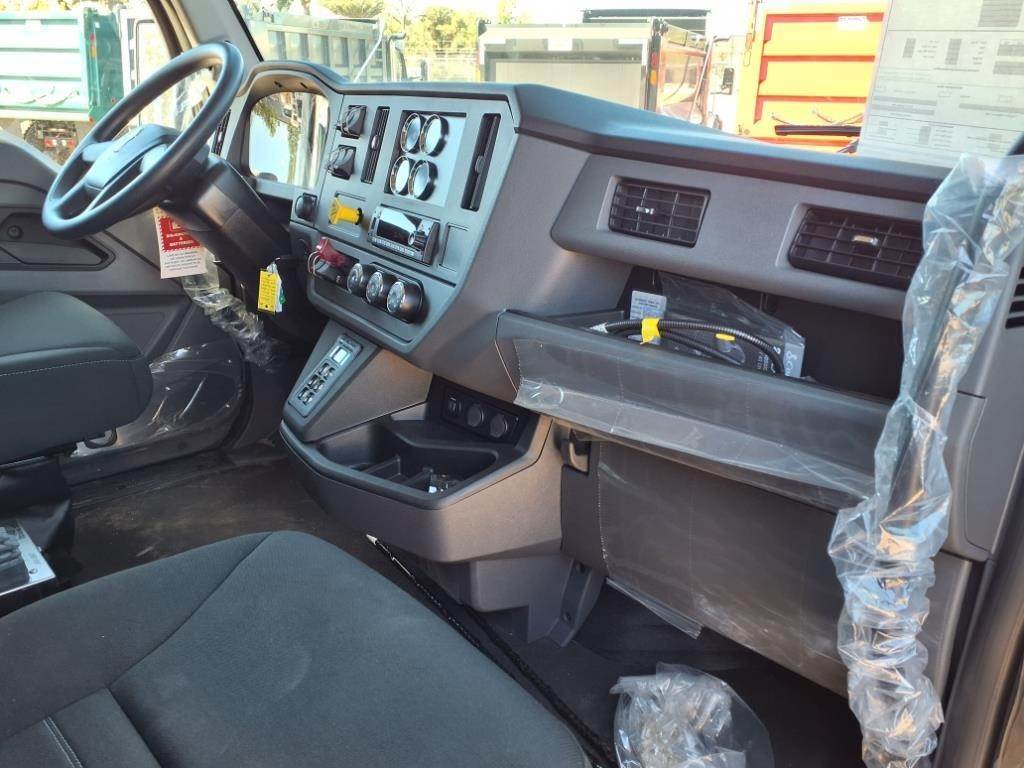

Interior: Standard with gray interior trim

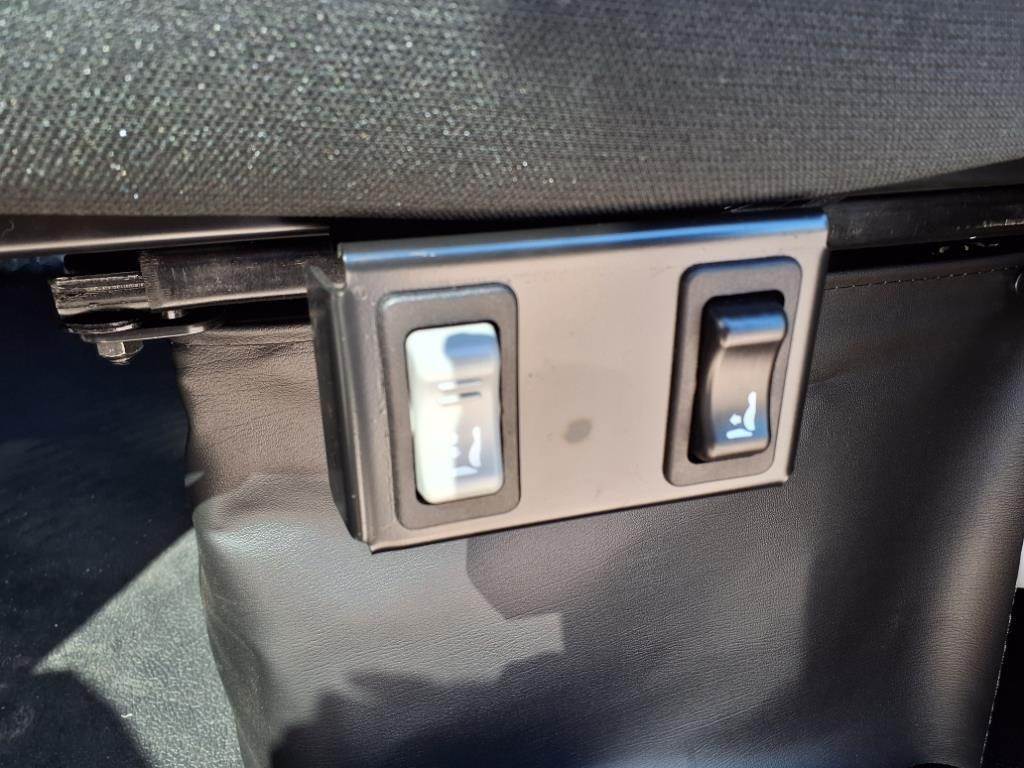

Kenworth air ride driver seat with tough cloth, dual armrests
Kenworth toolbox passenger seat with tough cloth
Additional Features:
Chrome aerodynamic bumper

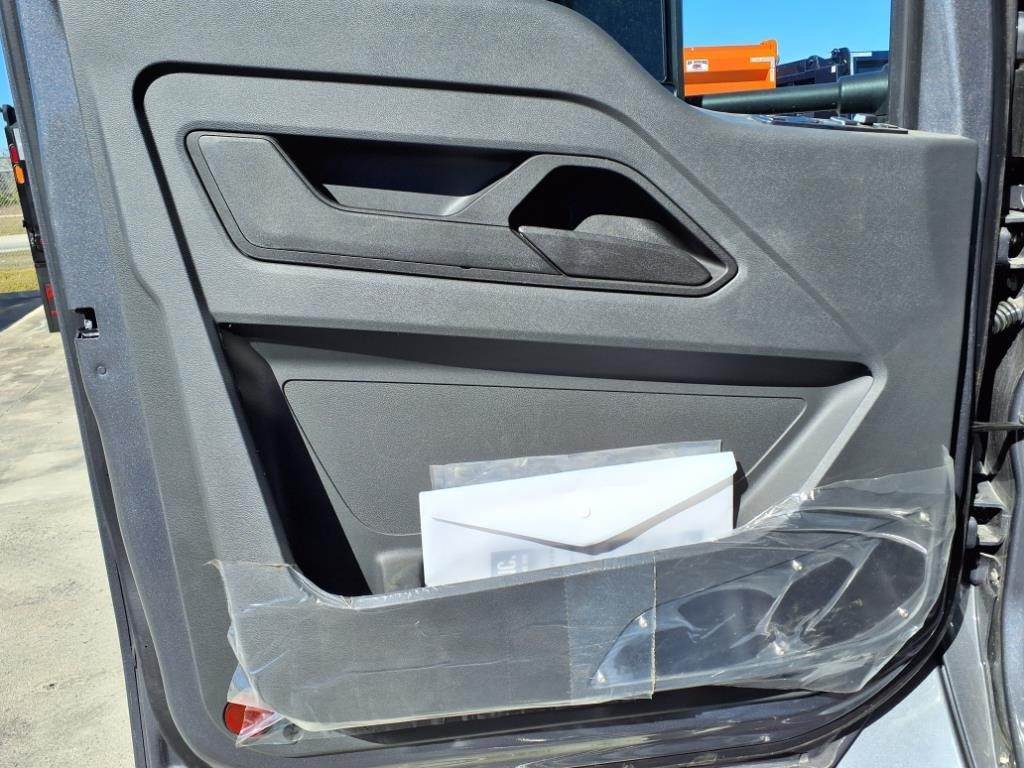

Power windows and door locks

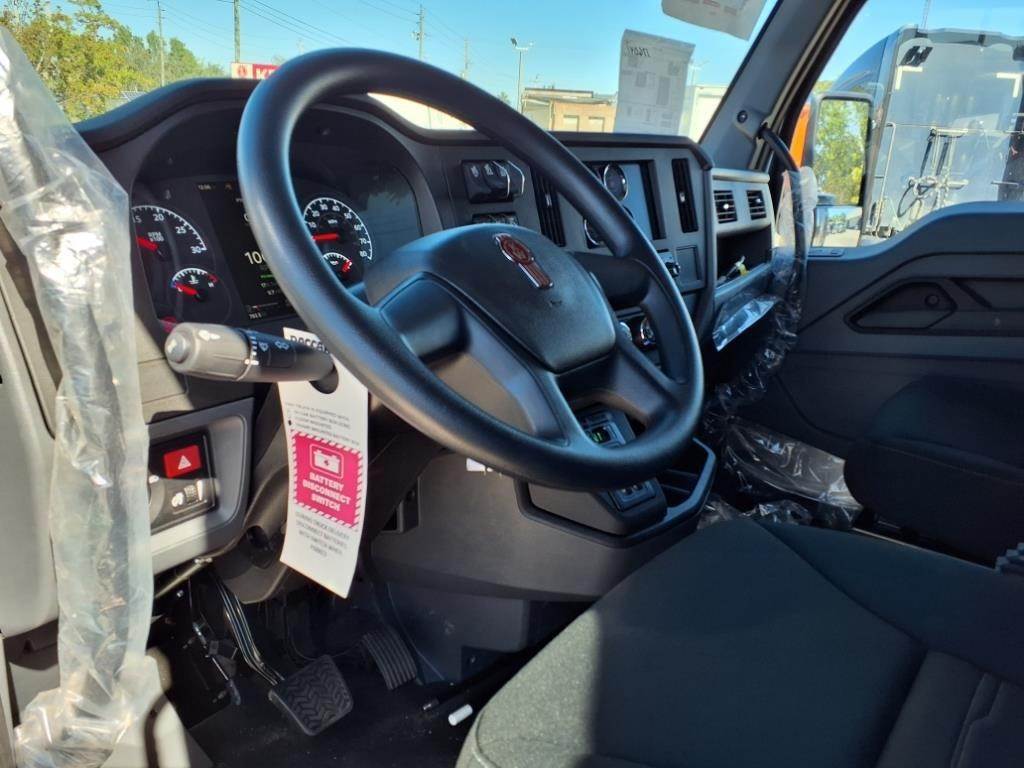

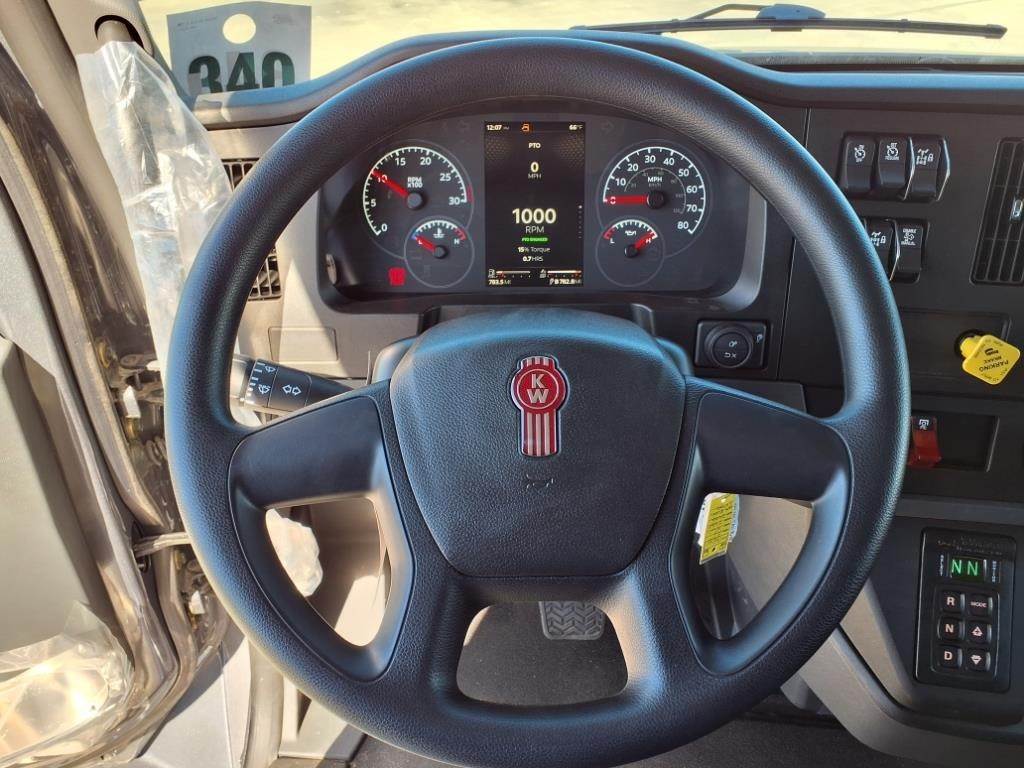

Tilt/telescoping steering wheel

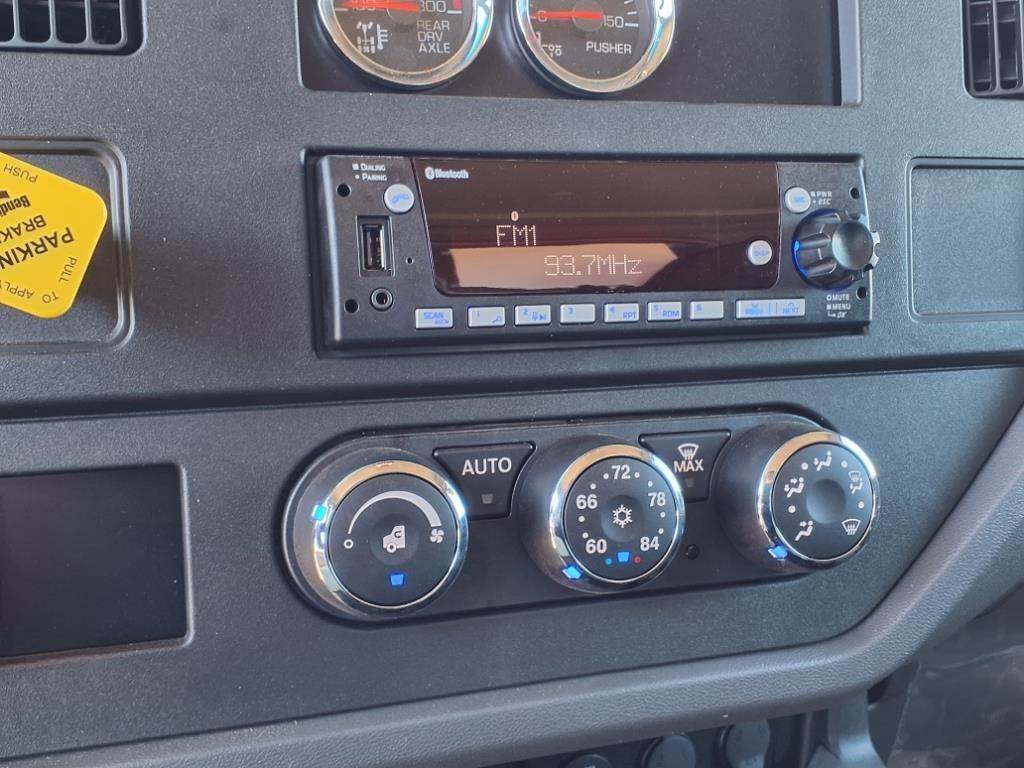

Kenworth DEA710 AM/FM/WB/USB radio with Bluetooth

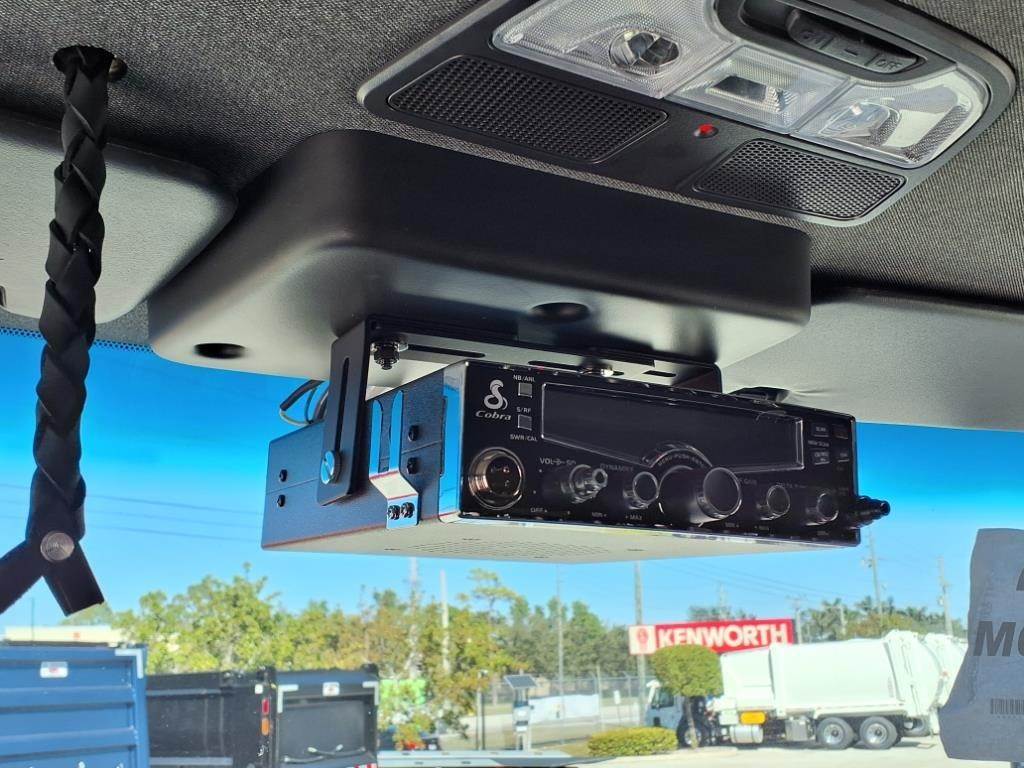

Cobra 29 CB radio with weatherband
Dual chrome Aero mirrors, heated with integral convex
OX Bodies Maverick 87 Series 16' Dump Body Specifications
Body Construction:
10-gauge A36 steel sides, 54" height
10-gauge A36 steel front, 56" height
3/16" A36 steel floor
7-gauge A36 steel tailgate, 60" height
Tube frame with channel crossmembers on 12" centers
4" x 4" x .120" wall top rail (standard)
Full horizontal side braces and line posts
6" slanted rear with air-operated high lift tailgate
Heavy duty 10" dump apron
Narrow centered cab shield, 24" projection x 72" width
Tarp System:
Mountain style tarp system with electric operation
Hydraulic System:
74133 series telescopic hoist (standard)
Nestled pyramid flat bottom hydraulic reservoir
Allison 4500 series PTO system (6610)
Auto Shift G102-D1-2.0 hydraulic pump with rotation

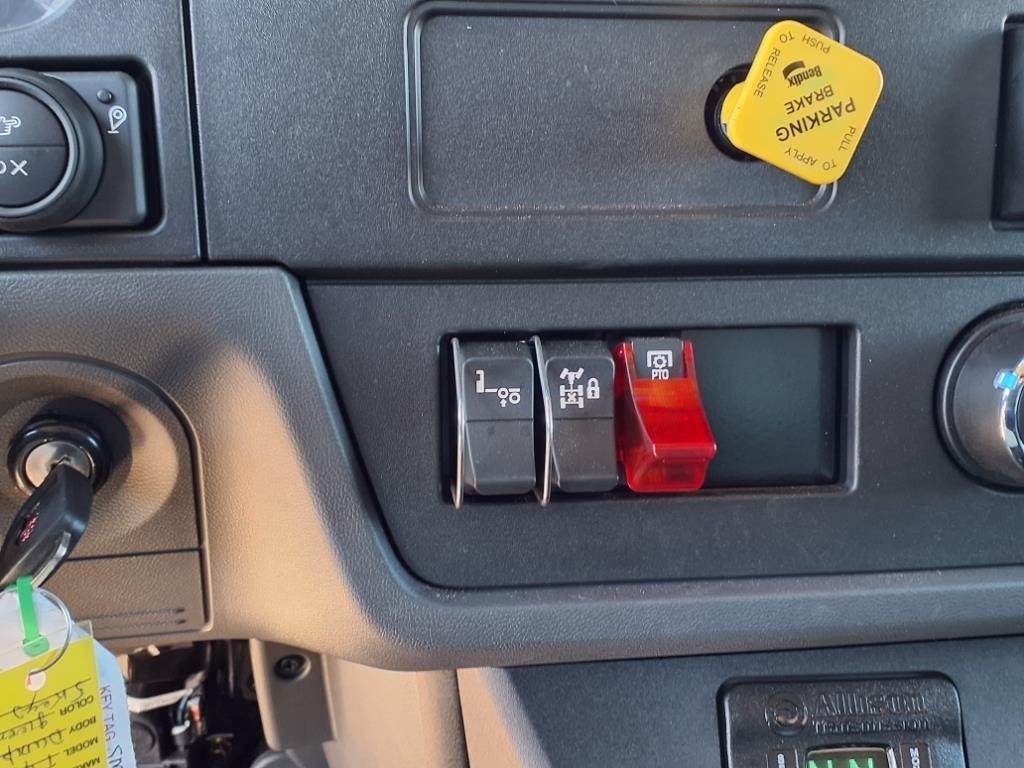

Electric shift PTO controls with air shift pump

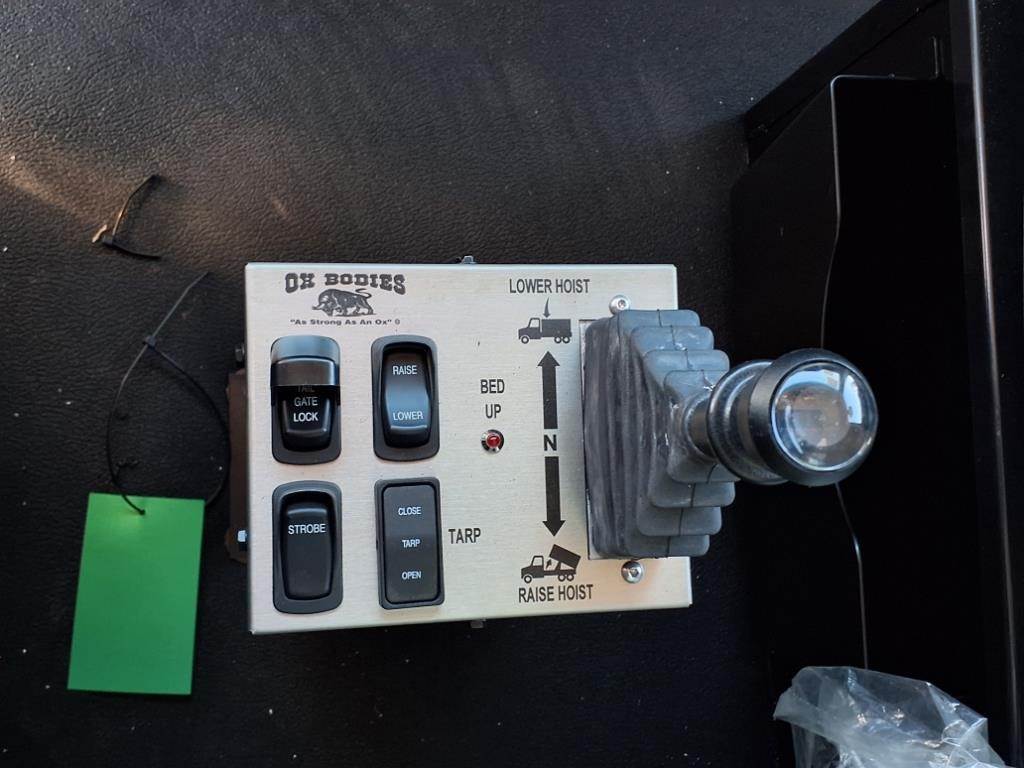

In-cab electric/air controls
Safety Features:
Single body prop
Air operated high lift tailgate system
Reversing alarm
LED Lighting Package:
2 cab shield oval clearance lights
Mid-turn lights
Lower side lights
Rear oval and Metrotech lights
Safety strobe package
Oval turn lights mounted behind tarp brackets on bottom rail
Additional Features:
8" hardwood side boards with 8" board holder height
36" Texas-style mud flaps
Steel gravel guards without flaps
5" exhaust turnout
13,500 lb. rated rear tow hooks
Standard OX logos and decals
Installation Details:
Removable pin rear hinge design (no hitch plate)
Air-operated tailgate kit
All controls and wiring included
Full lighting package installed
