Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!
Model Year: 2025

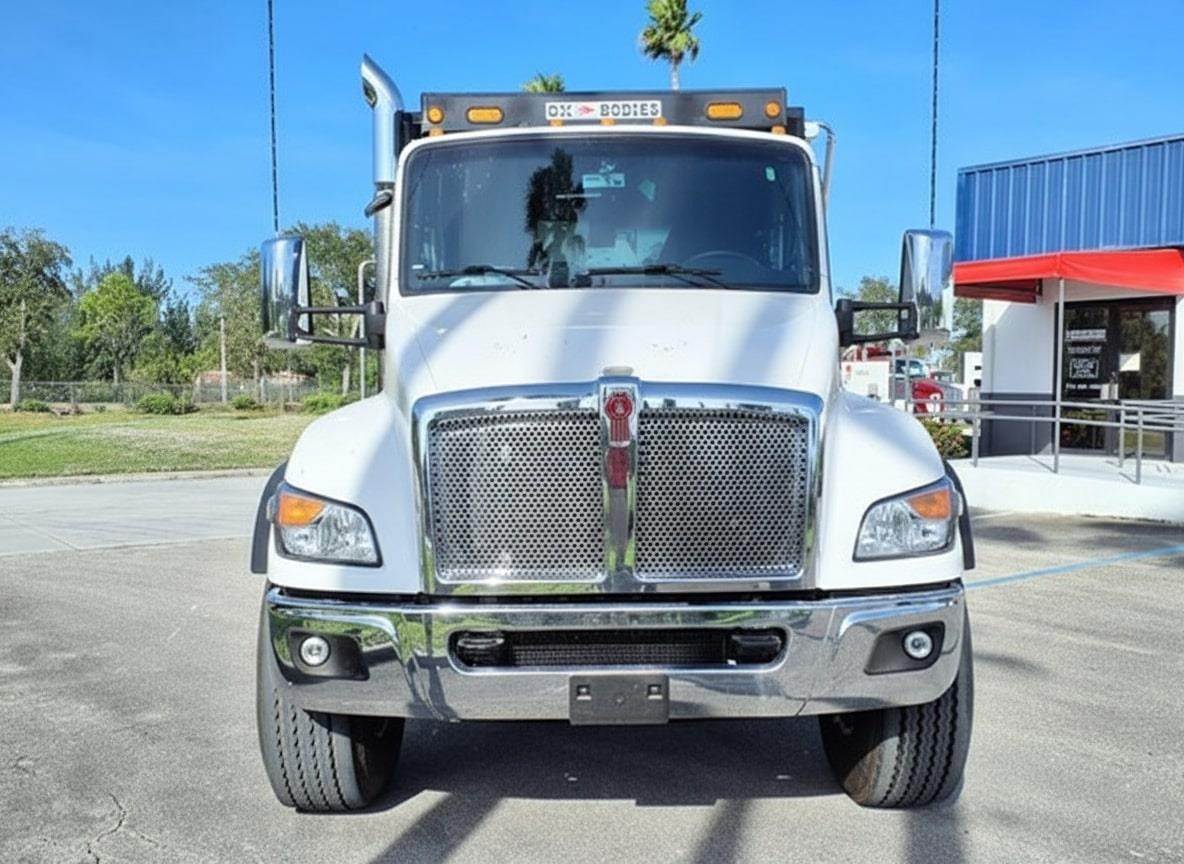

Model: T480
Exterior Color: White (L0006EY)
Interior Color: Black Seat Color
Engine: PACCAR PX-9, 330 HP @ 1750 RPM, 1000 lb-ft Torque @ 1200 RPM, Turbo Exhaust Brake
Transmission: Allison 3500RDS 6-Speed Generation 6 with PTO
Front Axle: PACCAR FX-20, 20,000 lbs
Rear Axle: Meritor RT46-160P, 46,000 lbs Dual Single Reduction with Pump

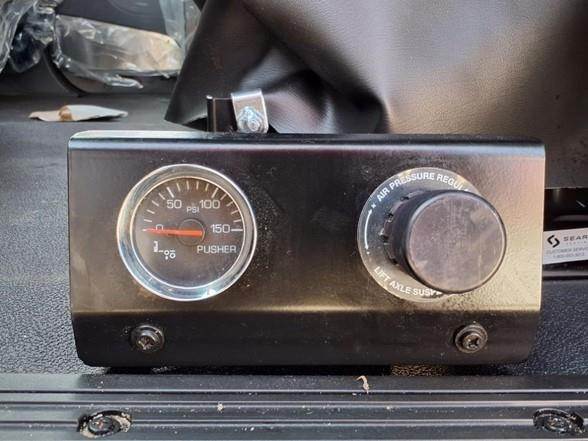

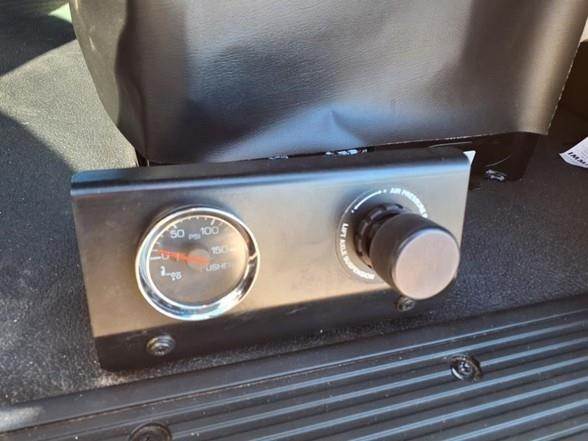

Pusher Axle: Watson & Chalin SL13, 13,500 lbs Steerable
Front Suspension: Taperleaf 20,000 lbs with Shocks
Rear Suspension: Hendrickson HaulMaxx EX (HMX) 460, 46,000 lbs Dual 54" with 17.5" Saddle Height and Shocks
GVWR: 77,020 lbs
Wheelbase: 209 inches
Cab-to-Axle: 139.5 inches
Rear Axle Ratio: 5.63
Brakes: Front: Meritor Q+ 16.5" x 6" Drum, Rear: Meritor Q+ 16.5" x 7" Drum, Pusher: Meritor 15" x 4" Drum

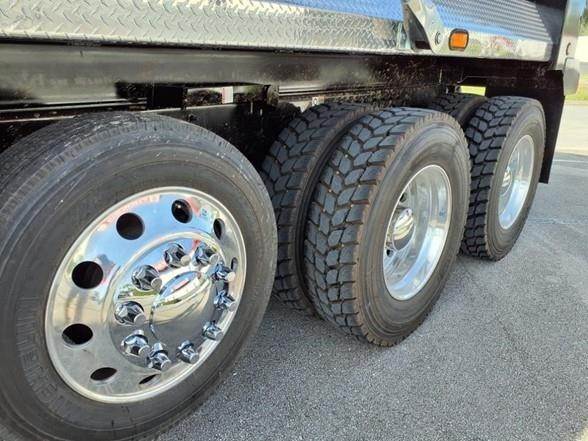

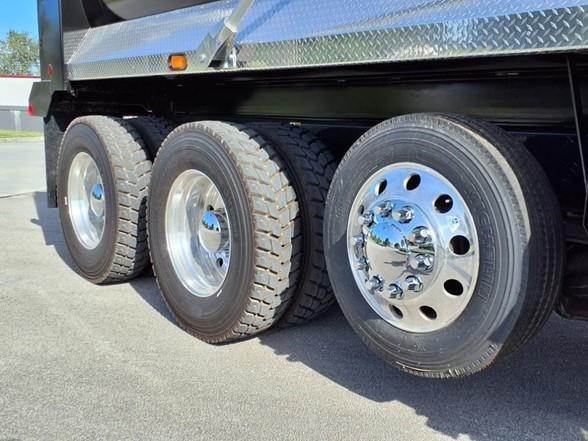

Front Wheels: Alcoa 82462 22.5" x 12.25" Aluminum Hub Piloted, High Polish

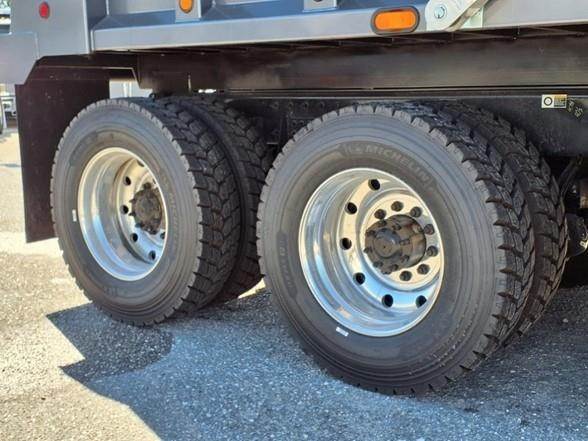

Rear Wheels: Alcoa 98565 24.5" x 8.25" Aluminum Hub Piloted, Severe Service, High Polish
Pusher Wheels: Alcoa ULA18 22.5" x 8.25" Aluminum Hub Piloted, High Polish
Front Tires: Michelin XZE 425/65R22.5 20PR
Rear Tires: Michelin X Works D 11R24.5 16PR
Pusher Tires: Michelin XZE 255/70R22.5 16PR
Fuel Tank: 80 US Gallon D-Shape Rectangular Aluminum Undercab with Non-Slip Step
DEF Tank: Large 15 Gallon
Options & Features:

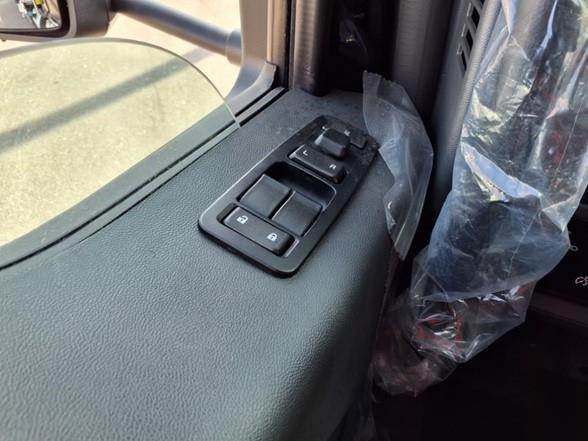

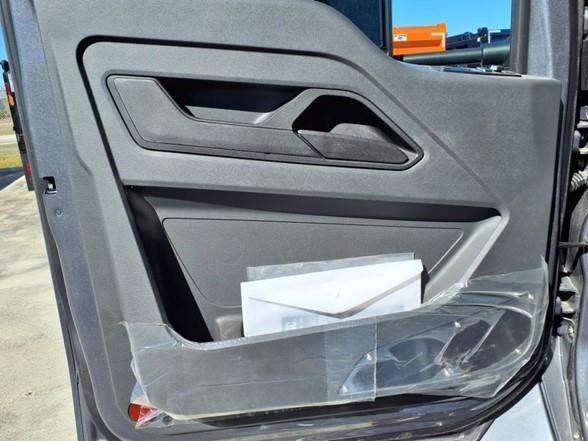

Power windows and power door locks

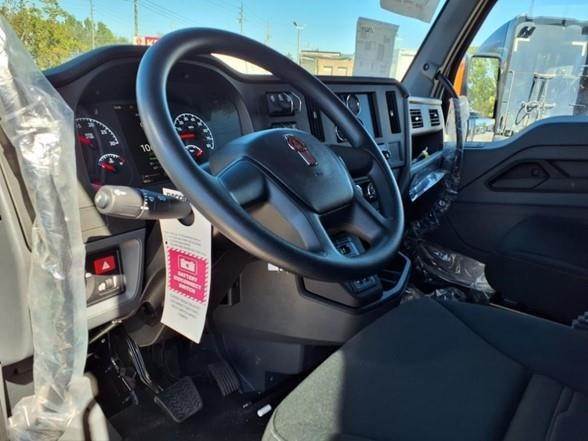

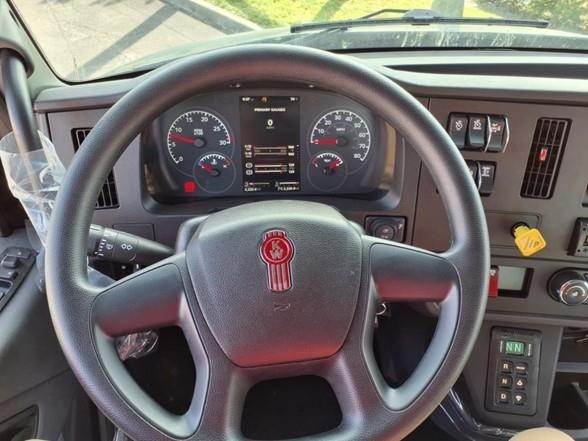

Tilt/telescoping steering wheel

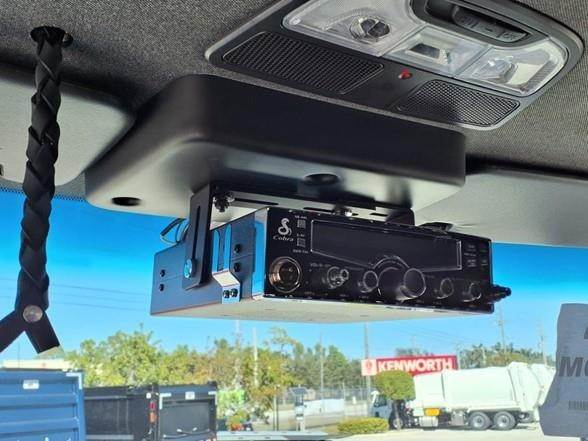

CB Radio: Cobra 29 Weatherband with Dual Antenna
Kenworth TruckTech+ Remote Diagnostics

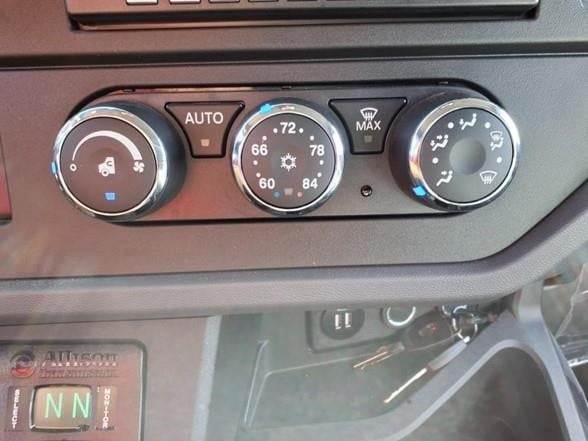

Air conditioning with auto temperature control

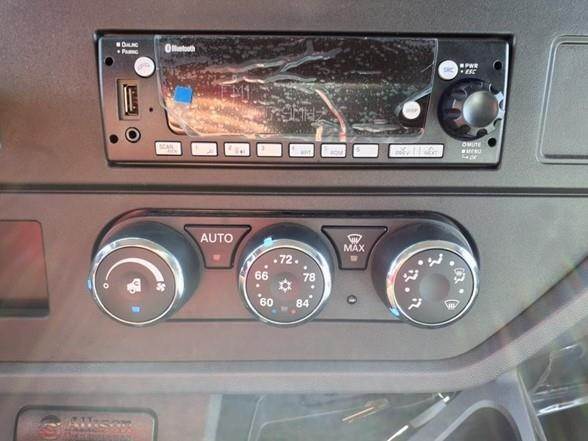

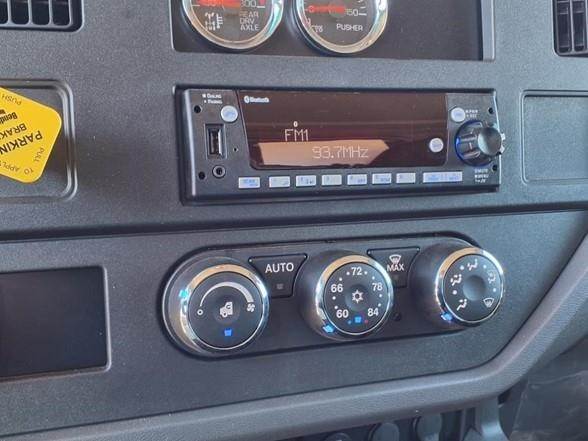

Kenworth Radio DEA710 AM/FM/WB/USB with Bluetooth

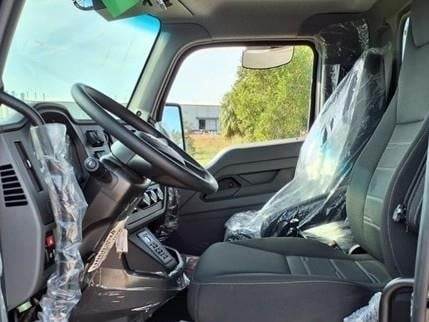

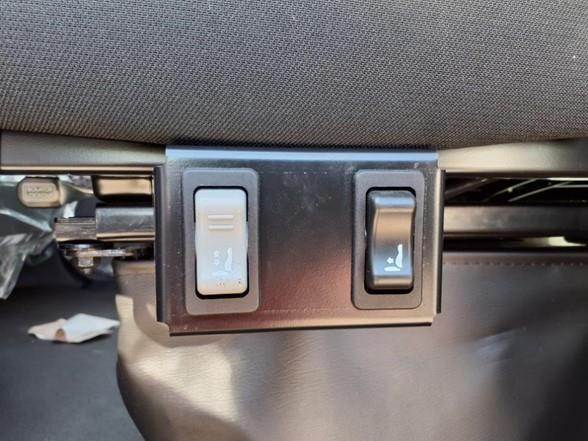

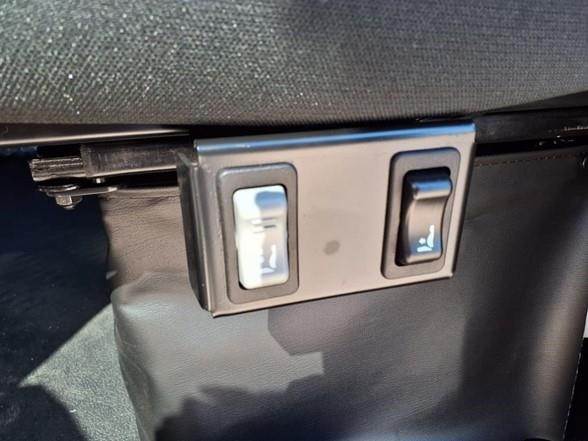

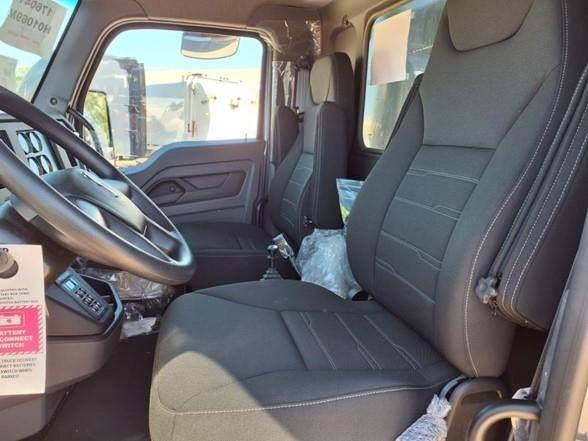

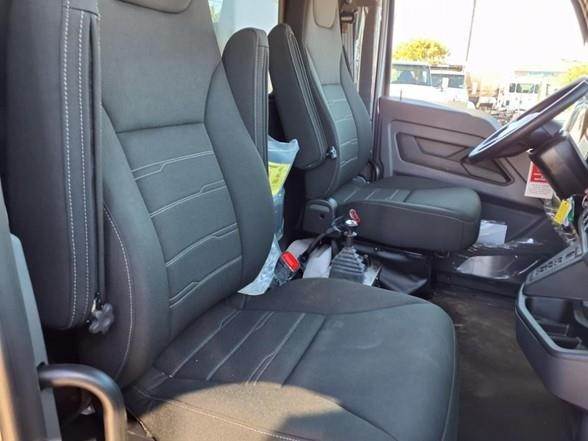

Driver Seat: Kenworth Air Seat High Back Tough Cloth with Dual Armrest
Passenger Seat: Kenworth Toolbox High Back Tough Cloth with Dual Armrest

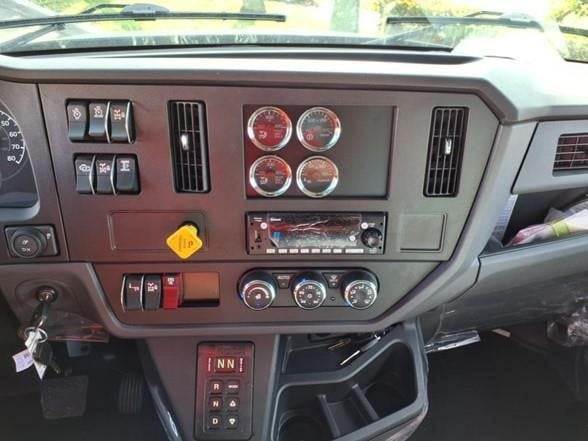

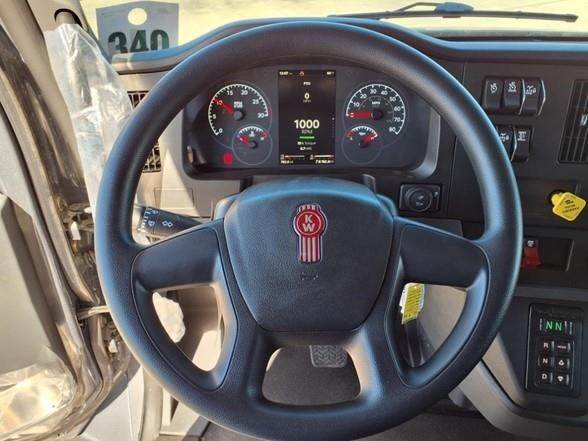

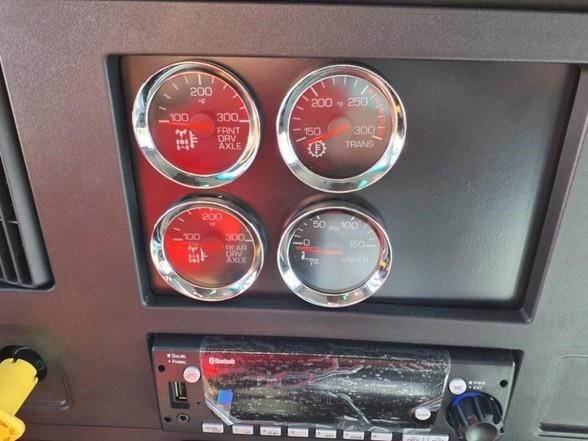

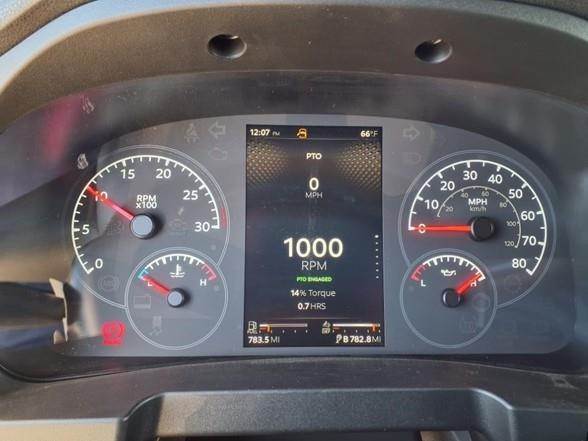

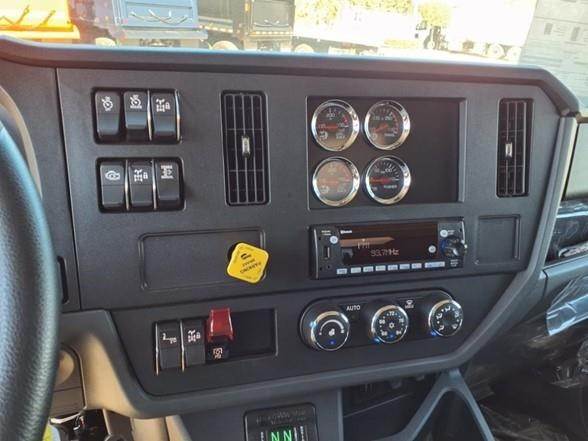

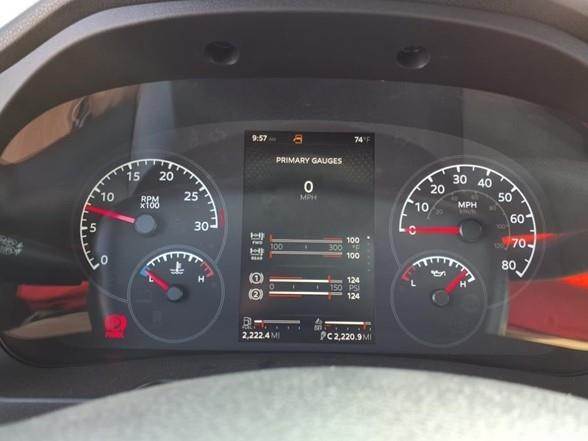

7" Main Instrument Package Display
Self-cancelling turn signals
Single air horn under cab
Battery disconnect switch

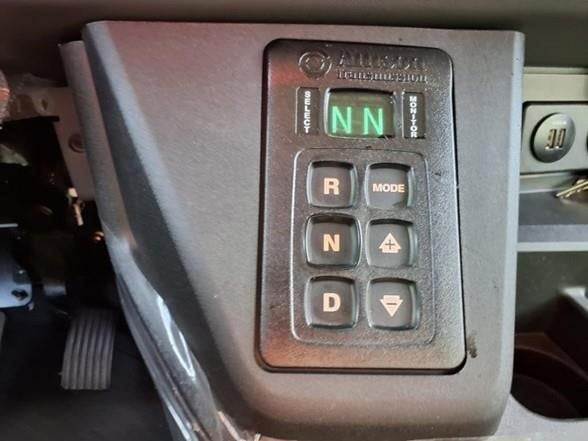

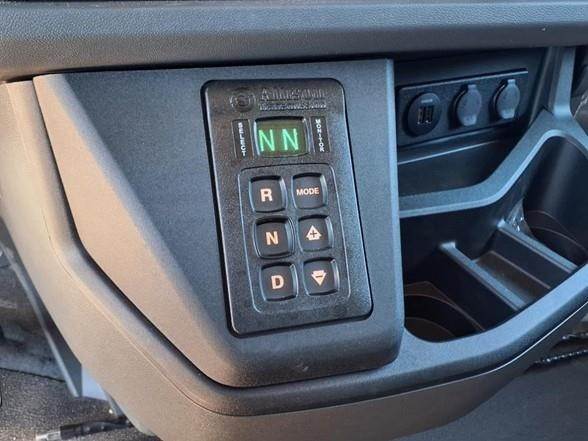

Push button control console mounted for Allison transmission

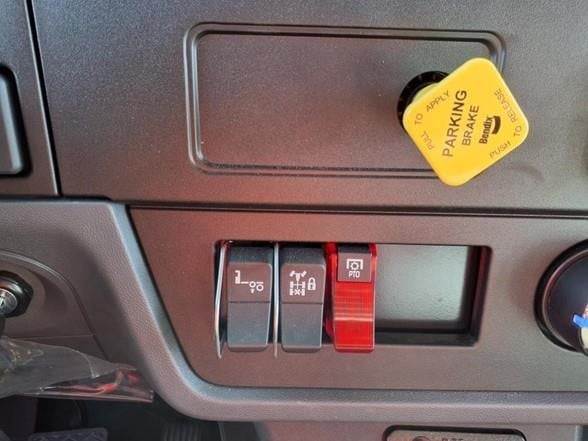

Remote PTO/Throttle provision
Exterior Chrome/Polished Items:
Aerodynamic chrome steel bumper
Chrome crown hood

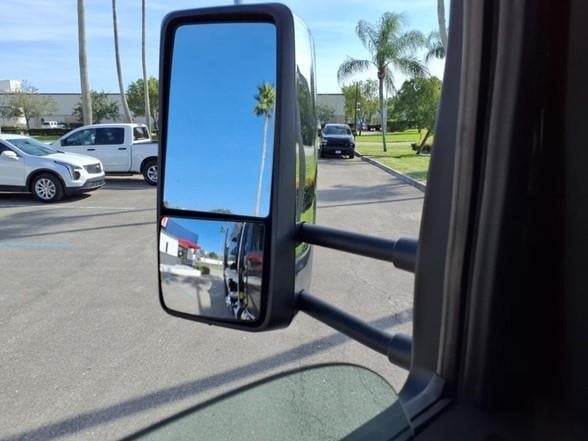

Dual aero chrome mirror shells
Polished aluminum fuel tank
Polished DEF tank cover
Polished fuel tank straps
Polished fuel tank steps
Polished DPF/SCR box end plates and cover
Mirror polish on dual rear axle wheels (outboard surface)
Dura-Bright mirror polish on front axle wheels (outboard surface)

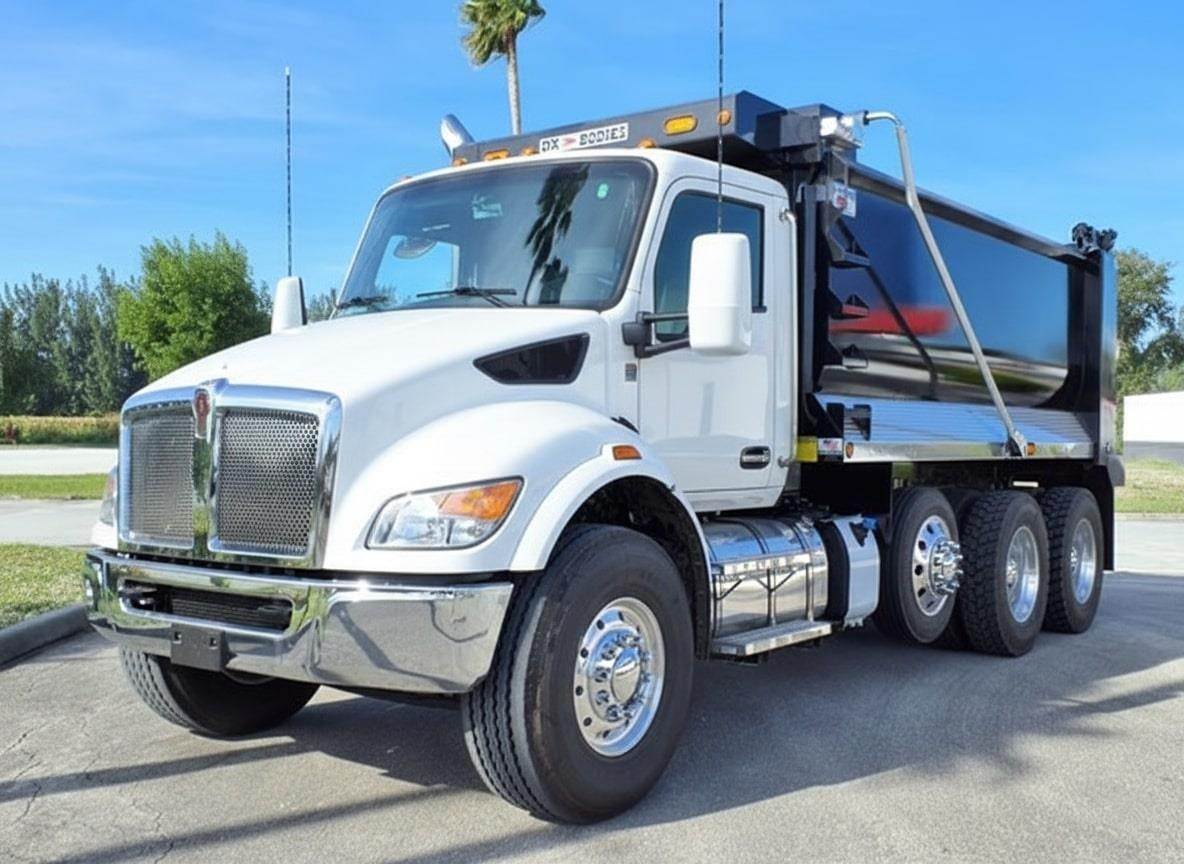

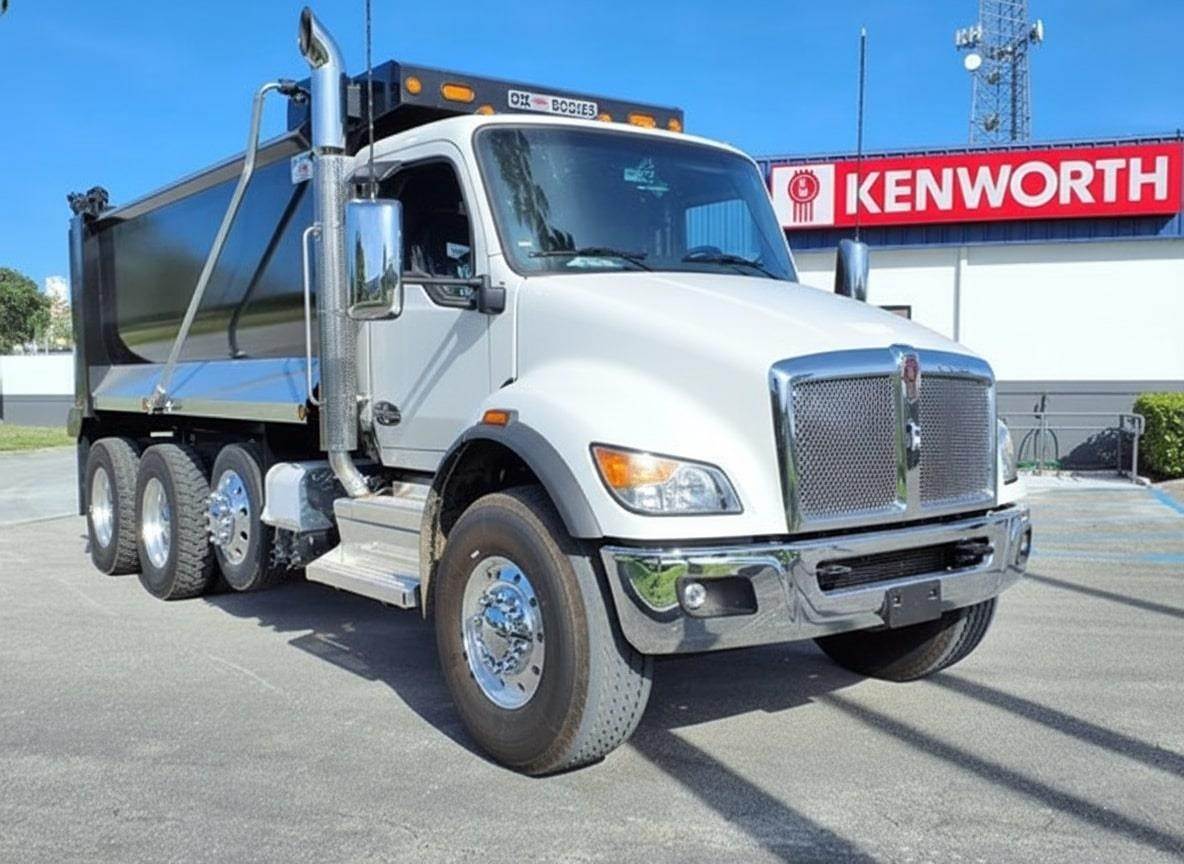

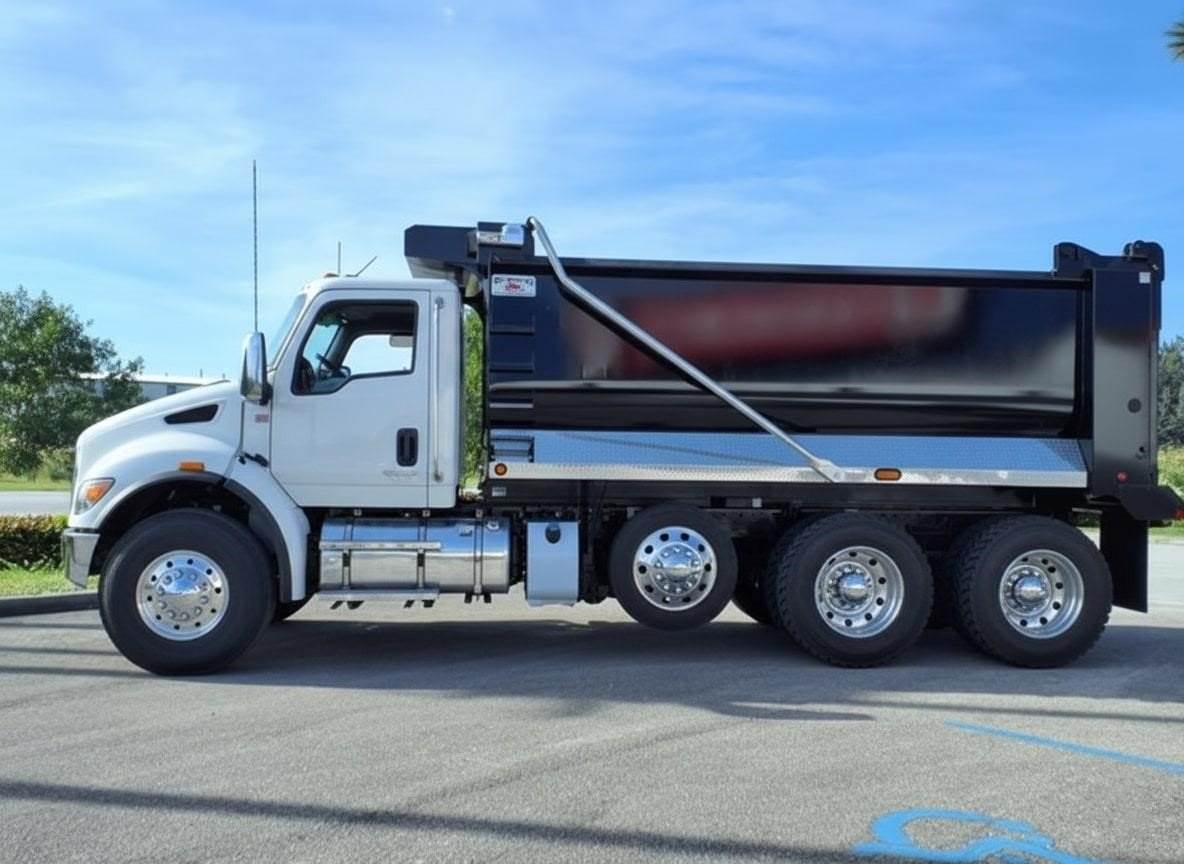

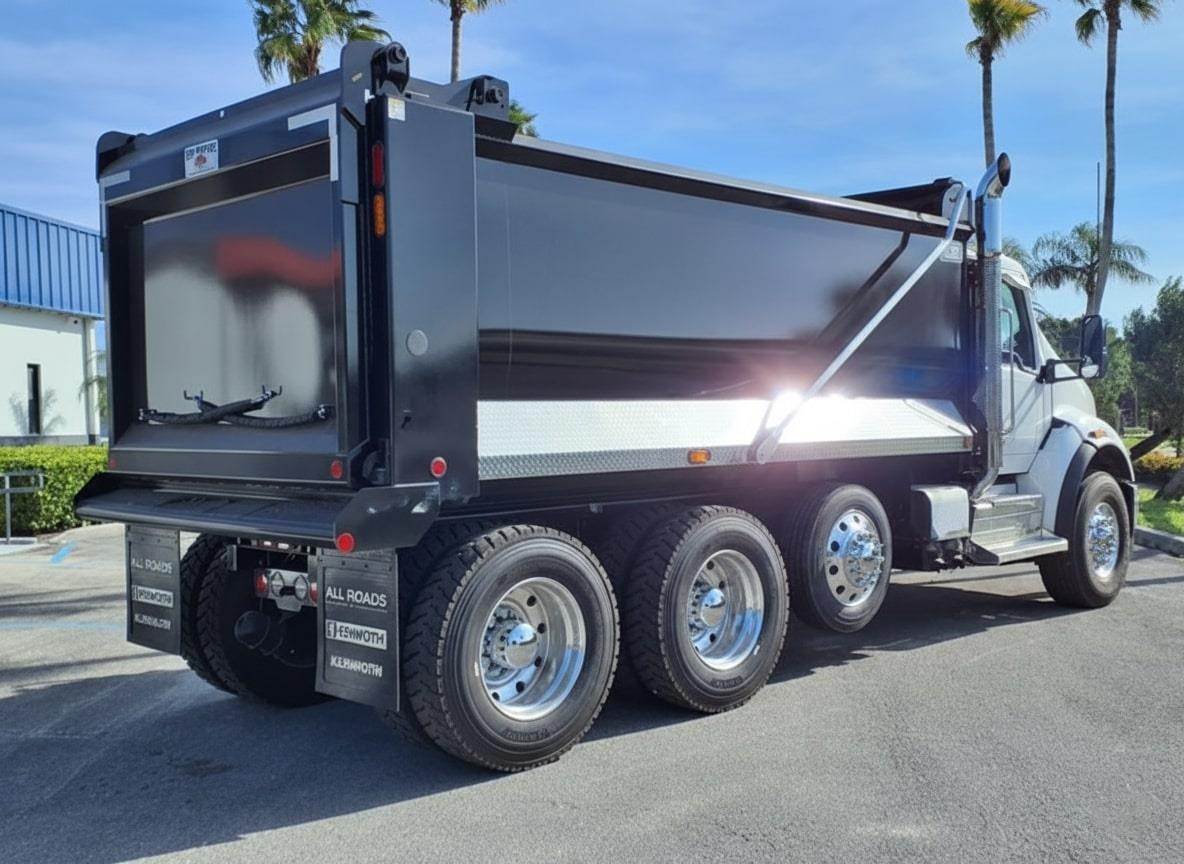

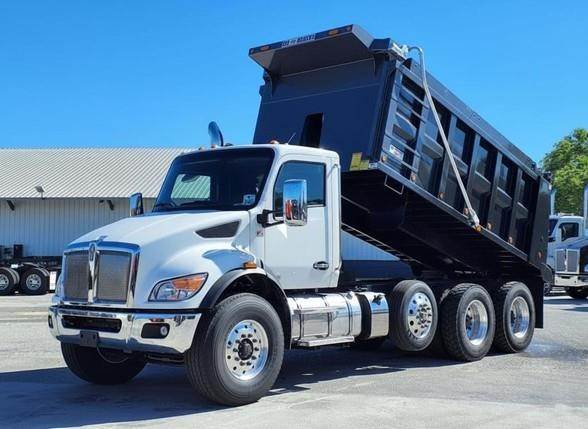

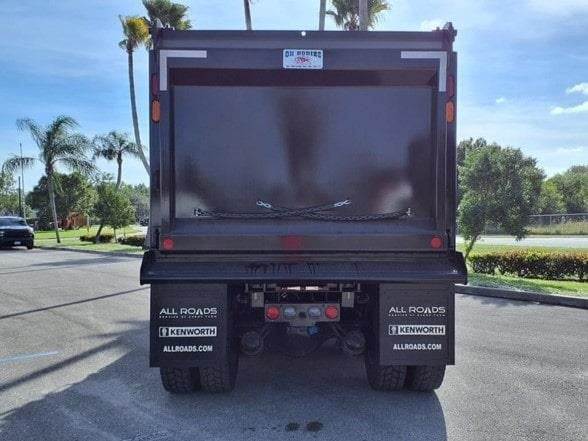

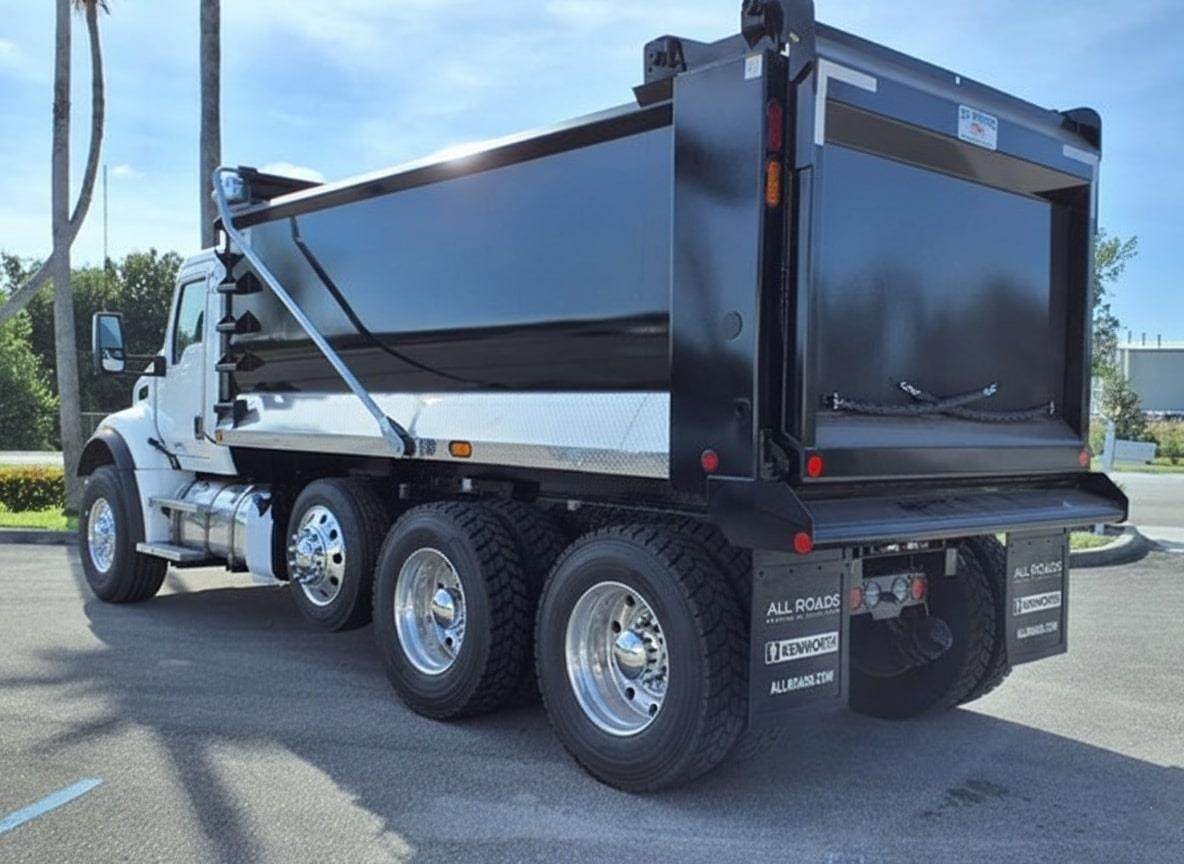

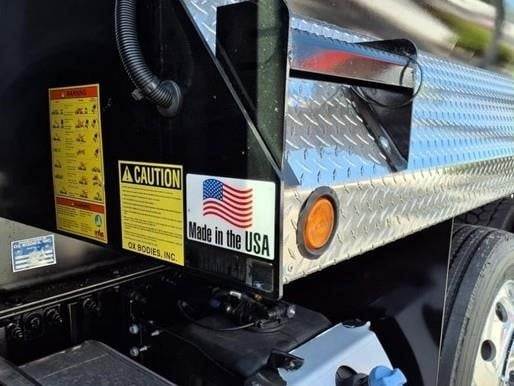

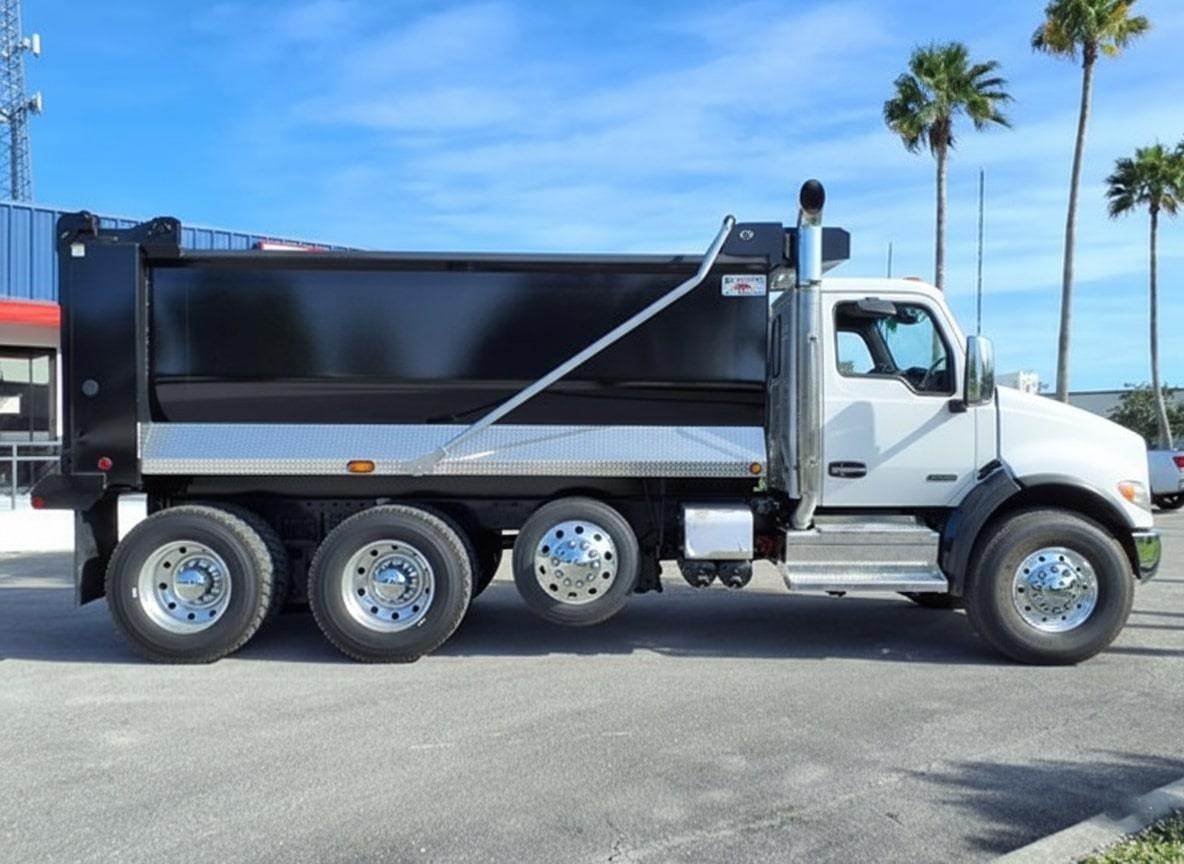

Model: OX Bodies Maverick 87 Series 16' Dump Body
Body Construction:
10-gauge A36 steel sides, 54" height
10-gauge A36 steel front, 56" height
3/16" A36 steel floor
7-gauge A36 steel tailgate, 60" height
Tube frame with channel crossmembers on 12" centers
4" x 4" x .120" wall top rail (standard)
Full horizontal side braces and line posts
6" slanted rear with air-operated high lift tailgate
Heavy duty 10" dump apron
Narrow centered cab shield, 24" projection x 72" width
Mountain style tarp system with electric operation
Hydraulic System:
74133 series telescopic hoist (standard)
Nestled pyramid flat bottom hydraulic reservoir
Allison 4500 series PTO system (6610)a
Auto Shift G102-D1-2.0 hydraulic pump with rotation

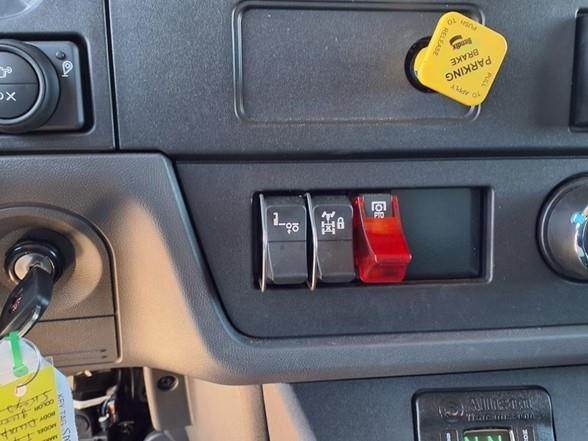

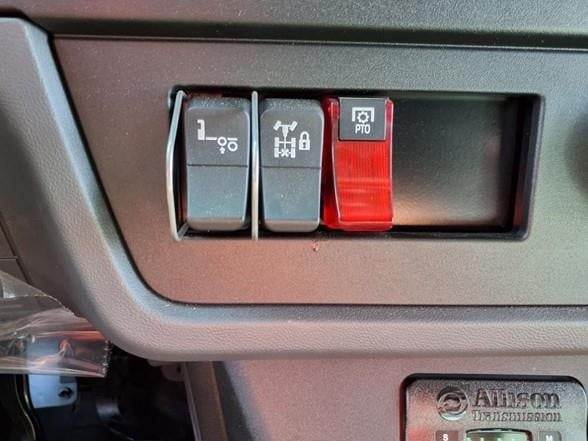

Electric shift PTO controls with air shift pump

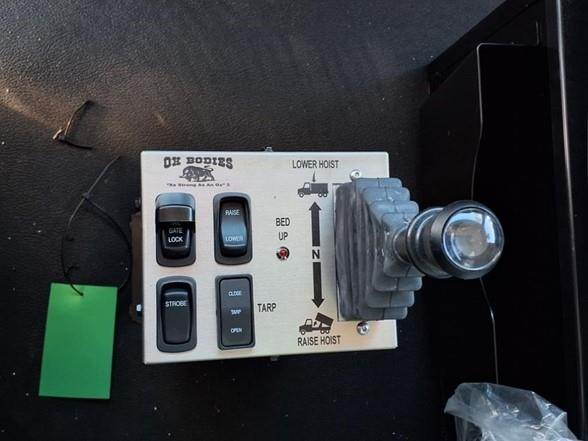

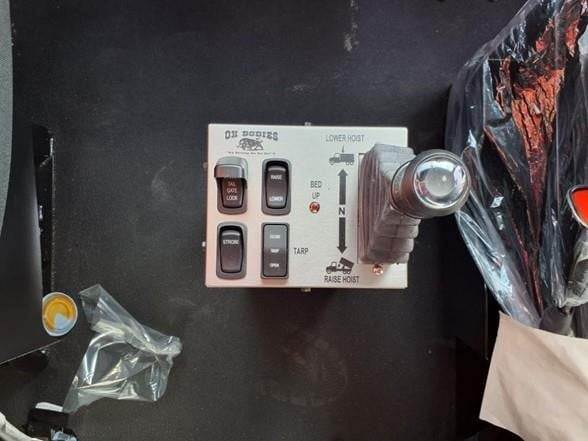

In-cab electric/air controls
Safety Features:
Single body prop
Air operated high lift tailgate system
Reversing alarm
LED lighting package including:
2 cab shield oval clearance lights
Mid-turn lights
Lower side lights
Rear oval and Metrotech lights
Safety strobe package
Additional Features:
8" hardwood side boards with 8" board holder height

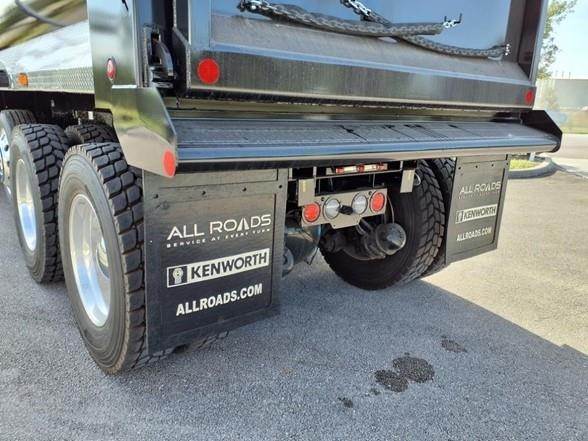

36" Texas-style mud flaps
Steel gravel guards without flaps
5" exhaust turnout
13,500 lb. rated rear tow hooks
Standard OX logos and decals
Oval turn lights mounted behind tarp brackets on bottom rail
Installation Details:
Removable pin rear hinge design (no hitch plate)
Air-operated tailgate kit
All controls and wiring included
Full lighting package installed
