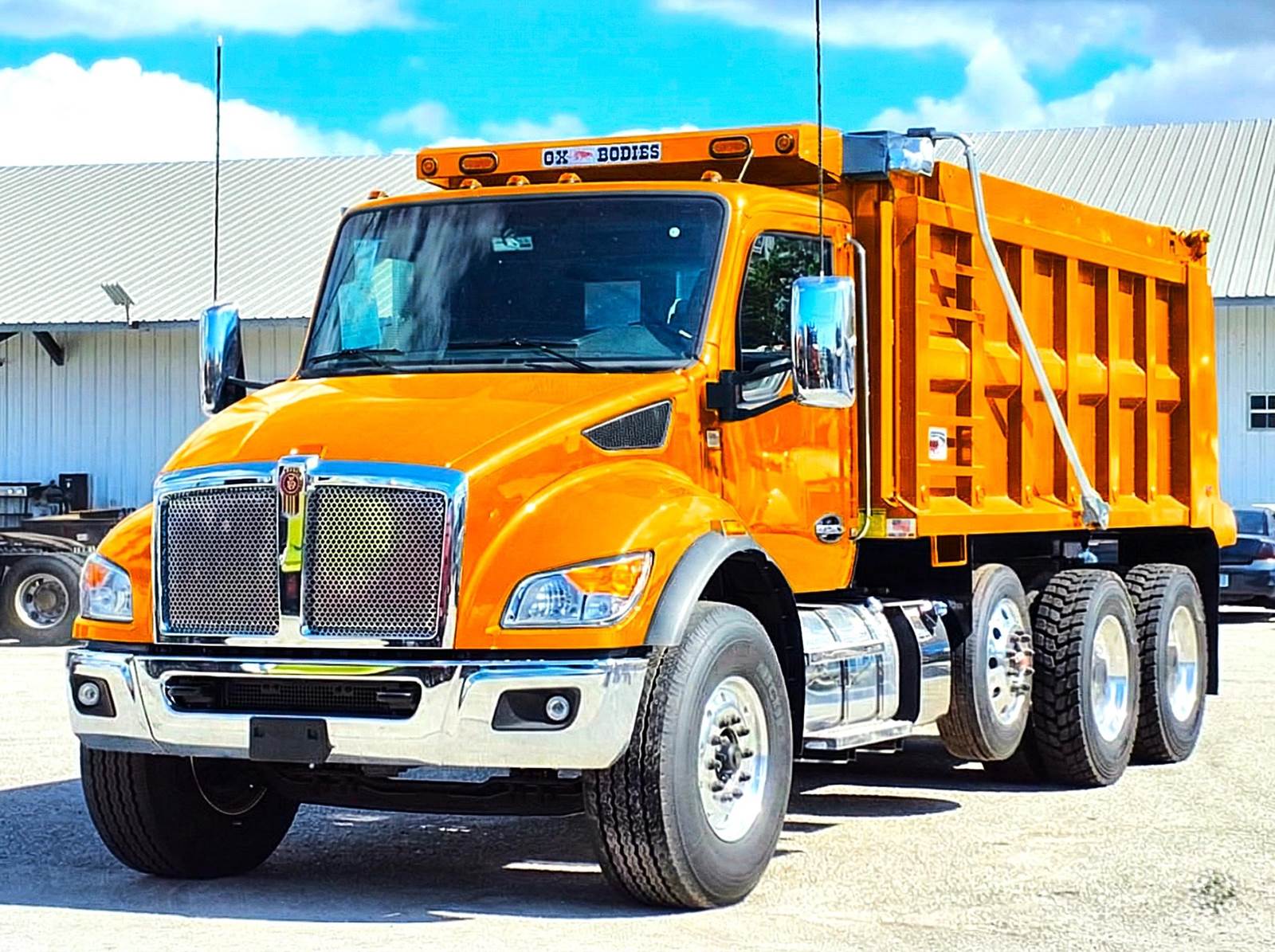

2025 Kenworth T480 Tandem Axle Dump Truck
Exterior Color: Omaha Orange
Interior Trim Level: Vantage Interior Package
Interior Color: Gray
Engine: PACCAR PX-9 330HP @ 1750 RPM, 1000 lb-ft Torque @ 1200 RPM, Turbo Exhaust Brake

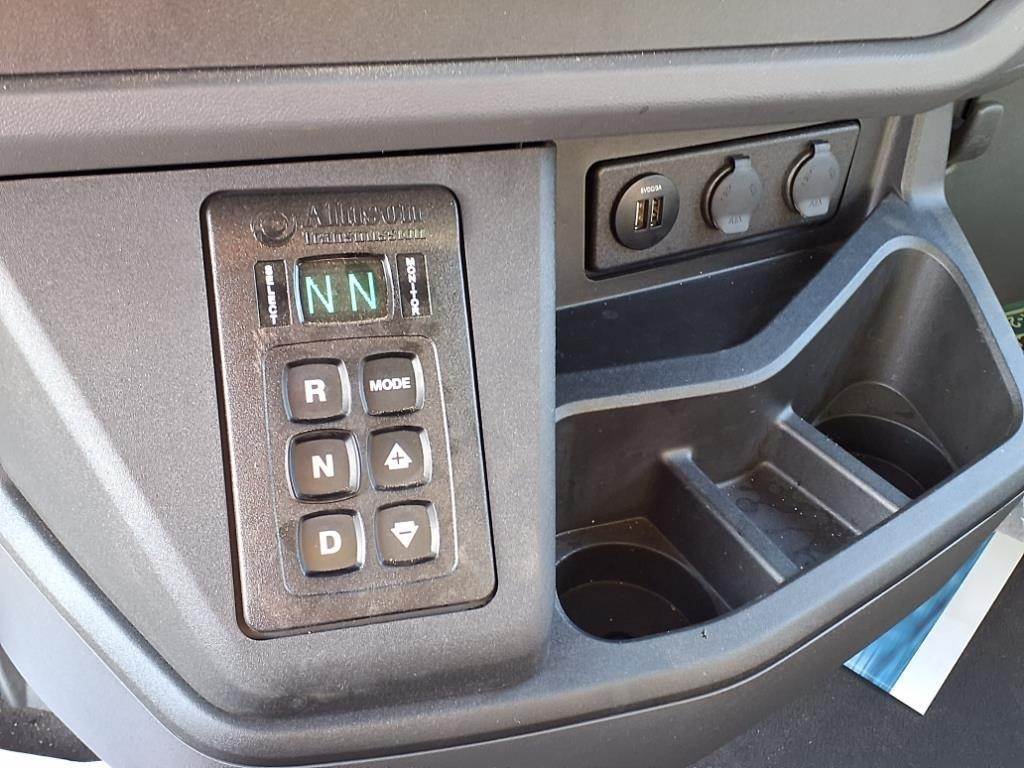

Transmission: Allison 3500 RDS 6-Speed Automatic, PTO provision at 8 o'clock position
Front Axle: PACCAR FX-20 rated at 20,000 lbs, Wide track with 4" drop
Rear Axle: Meritor RT46-160P rated at 46,000 lbs

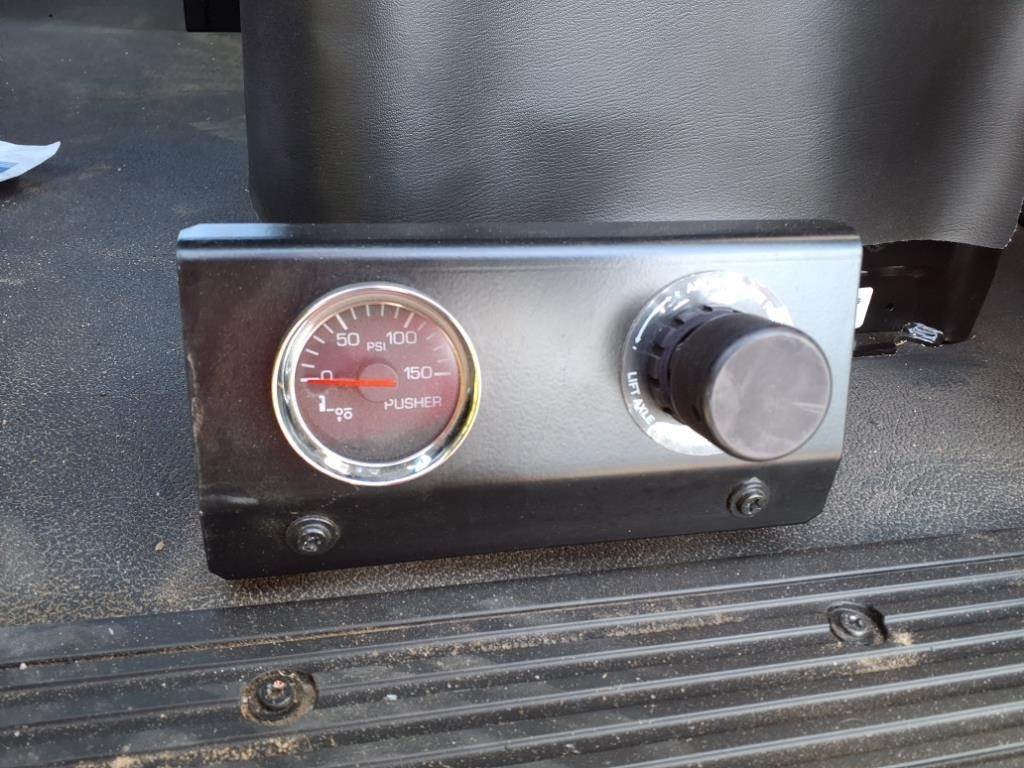

Pusher Axle: Watson & Chalin 13,500 lb steerable pusher, Located 52" from center of forward rear axle
Rear Axle Ratio: 5.38

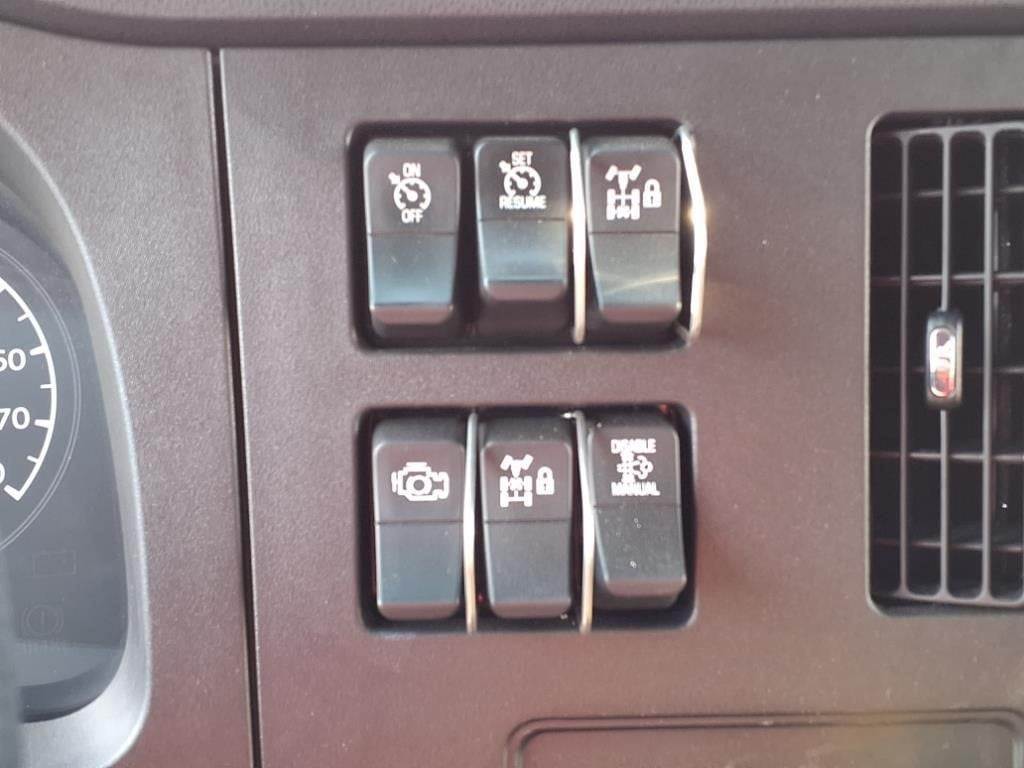

Driver-controlled differential lock/crosslock
Front Suspension: Taperleaf 20,000 lb with shocks
Rear Suspension: Hendrickson HaulMaxx EX 460 46,000 lb with 54" spread
Kenworth cab air suspension
Frame: 10-5/8" x 5/16" steel rails, Full Steel Inserts / Double Frame
Brakes: Front: Meritor Q+ 16.5" x 6" drum, Rear: Meritor Q+ 16.5" x 7" drum
Bendix 4S/4M ABS
Wheels: Front: Alcoa 22.5" x 12.25" aluminum with Level 1 high polish, Rear: Alcoa 24.5" x 8.25" aluminum with Level 1 high polish, Pusher: Alcoa 22.5" x 8.25" aluminum with high polish
Tires: Front: Michelin XZE 425/65R22.5 20PR, Rear: Michelin X Works D 11R24.5 16PR, Pusher: Michelin XZE 255/70R22.5 16PR
Fuel Tank: 80 gallon aluminum D-shaped fuel tank
DEF Tank: 15 gallon
Polished fuel tank, straps, and DEF tank cover

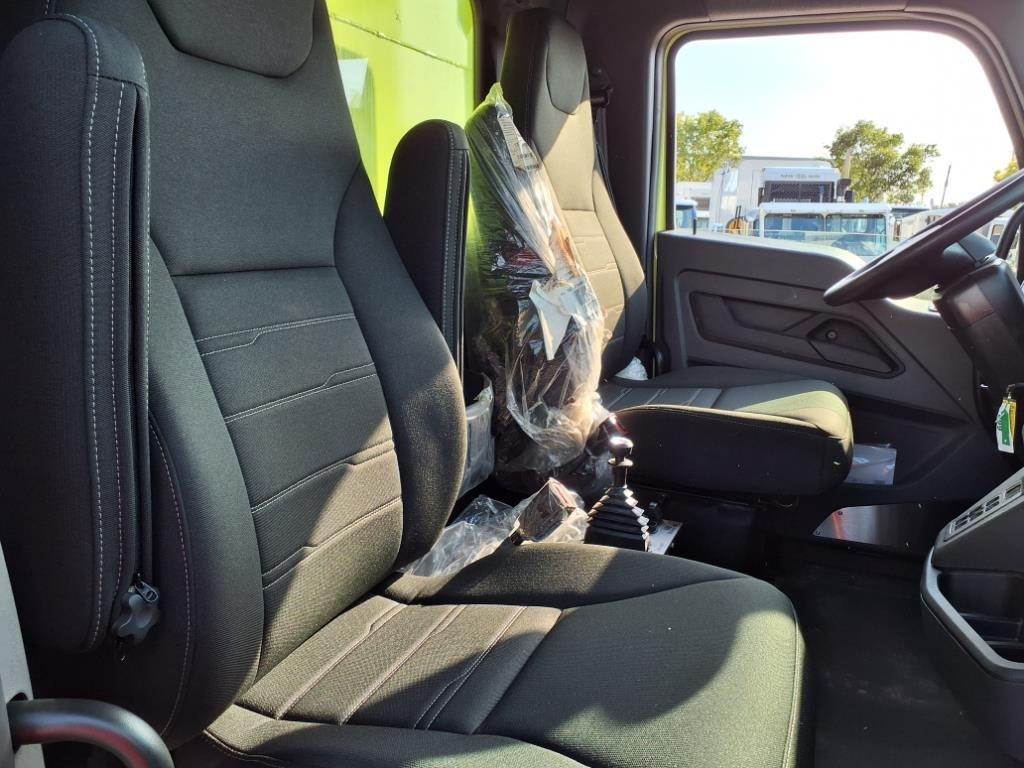

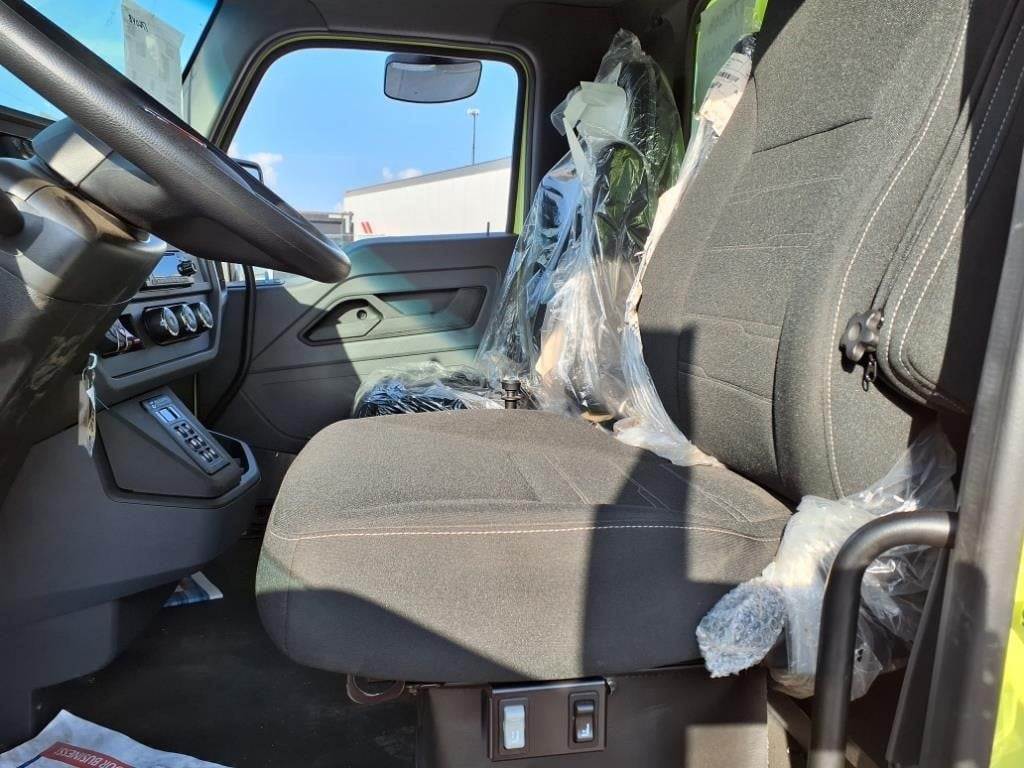

Driver Seat: Black Kenworth Air Ride with dual armrests
Passenger Seat: Black Kenworth Toolbox seat

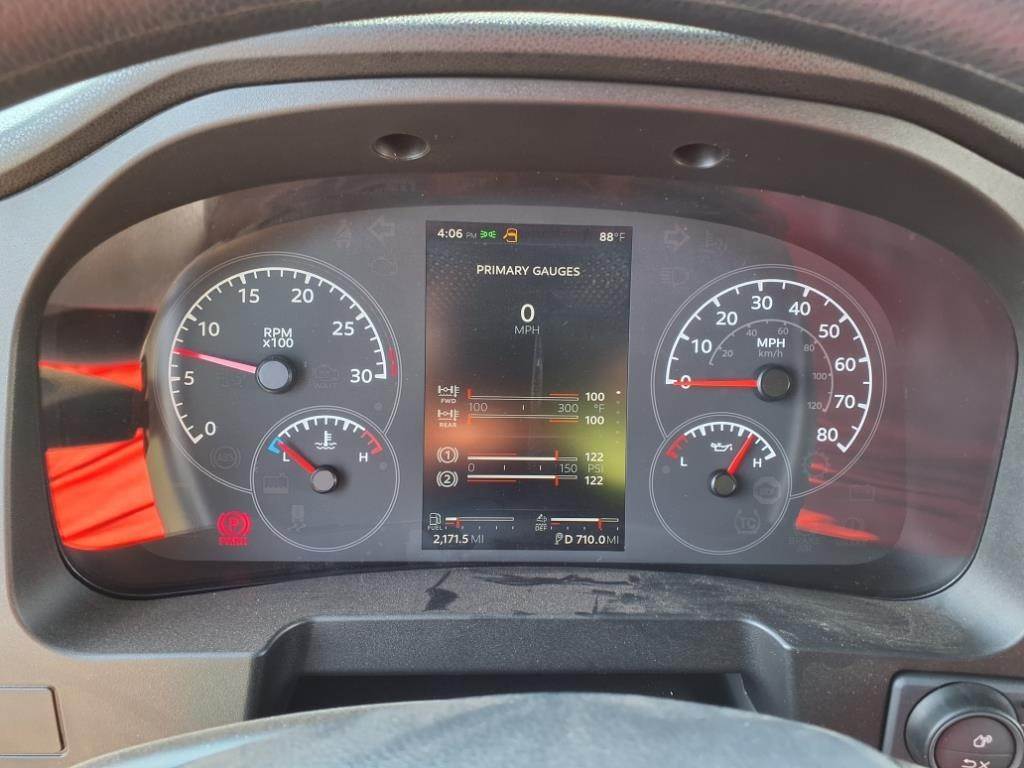

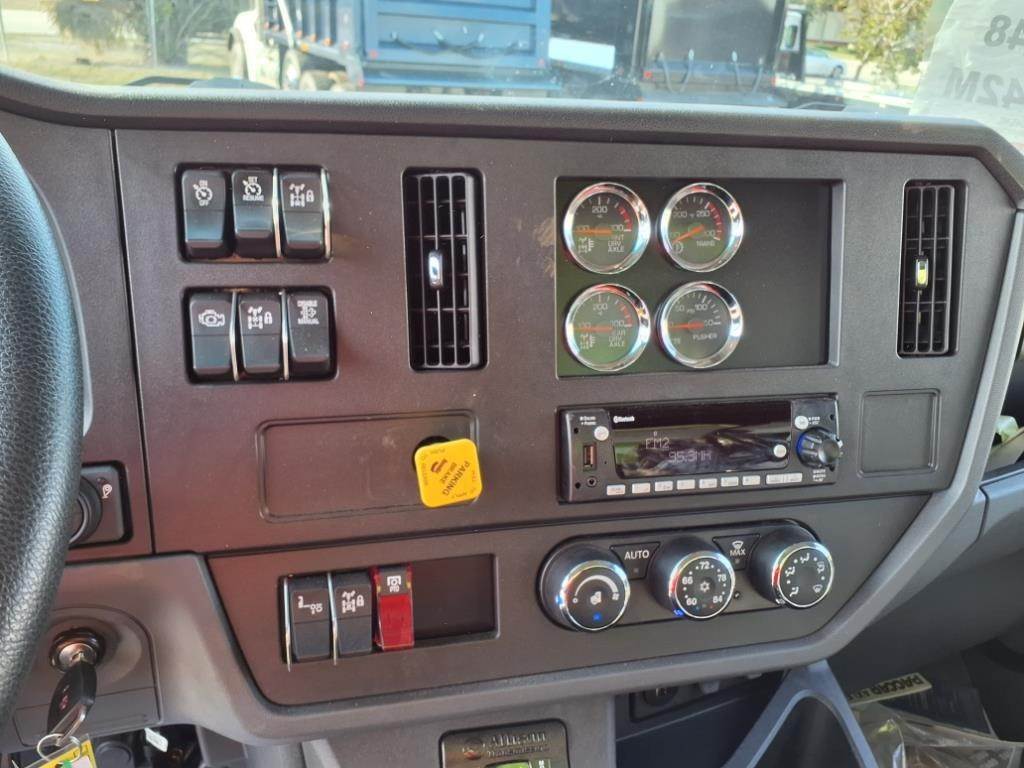

7" digital display main instrument package
Power windows and door locks

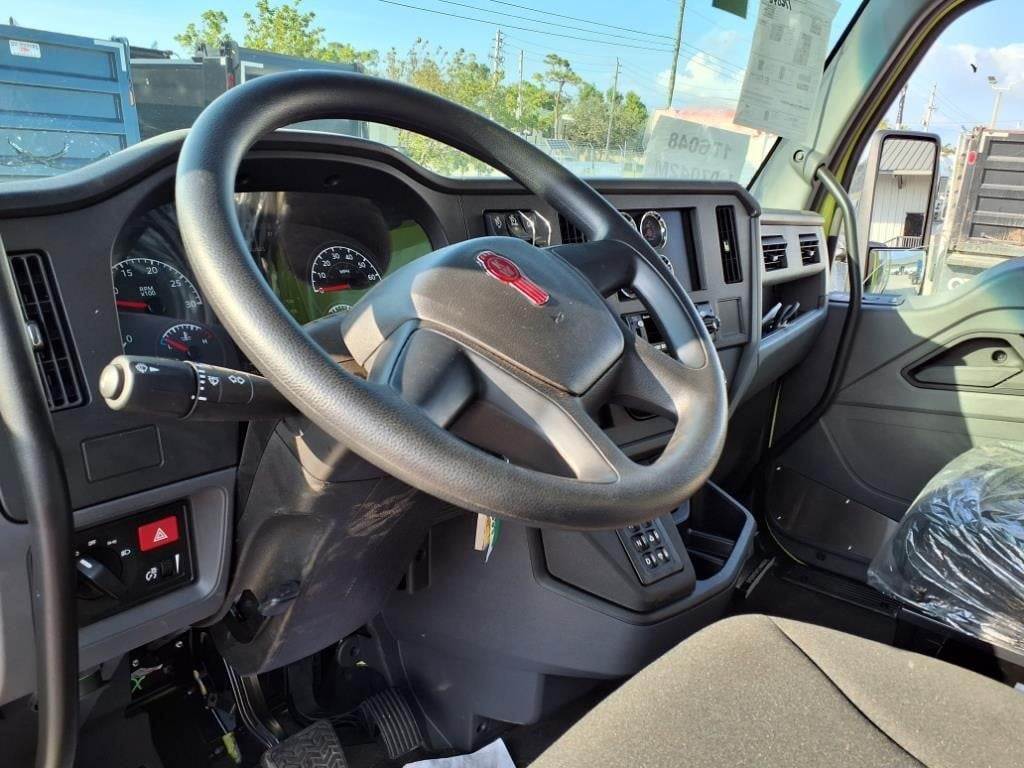

Tilt/telescoping steering wheel
Chrome aerodynamic bumper

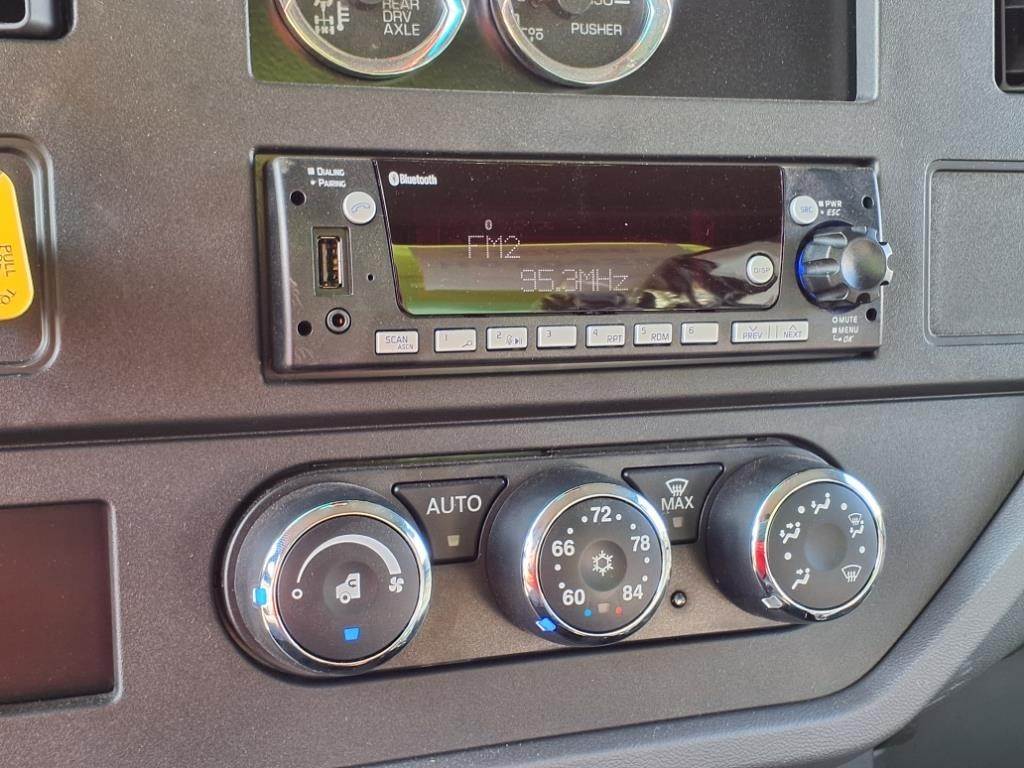

Kenworth Radio DEA710 AM/FM/WB/USB/Bluetooth

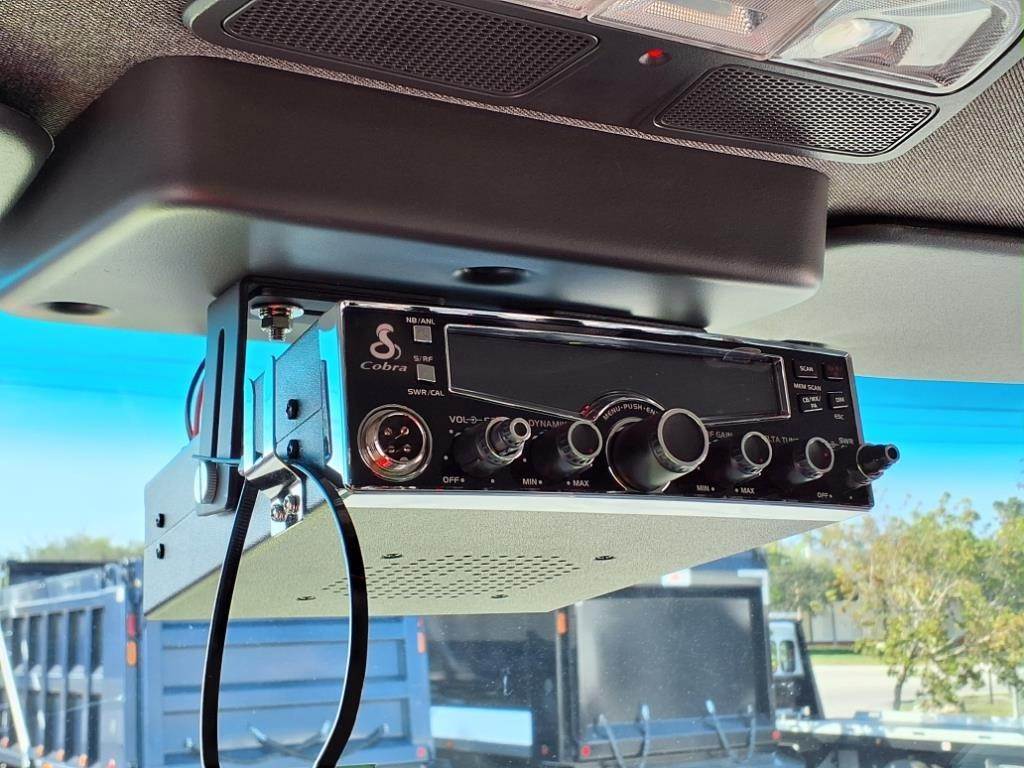

Cobra 29 CB radio with dual antennas
Heated power mirrors in chrome shells
Air conditioning with auto temperature control
Five sets of keys
BODY SPECIFICATIONS
Model: OX Bodies Maverick 87 Series 16' Dump Body
Body Construction:
10-gauge A36 steel sides, 54" height
10-gauge A36 steel front, 56" height
3/16" A36 steel floor
7-gauge A36 steel tailgate, 60" height
Tube frame with channel crossmembers on 12" centers
4" x 4" x .120" wall top rail (standard)
Full horizontal side braces and line posts
6" slanted rear with air-operated high lift tailgate
Heavy duty 10" dump apron
Narrow centered cab shield, 24" projection x 72" width
Mountain style tarp system with electric operation
Hydraulic System:
74133 series telescopic hoist (standard)
Nestled pyramid flat bottom hydraulic reservoir
Allison 4500 series PTO system (6610)a
Auto Shift G102-D1-2.0 hydraulic pump with rotation

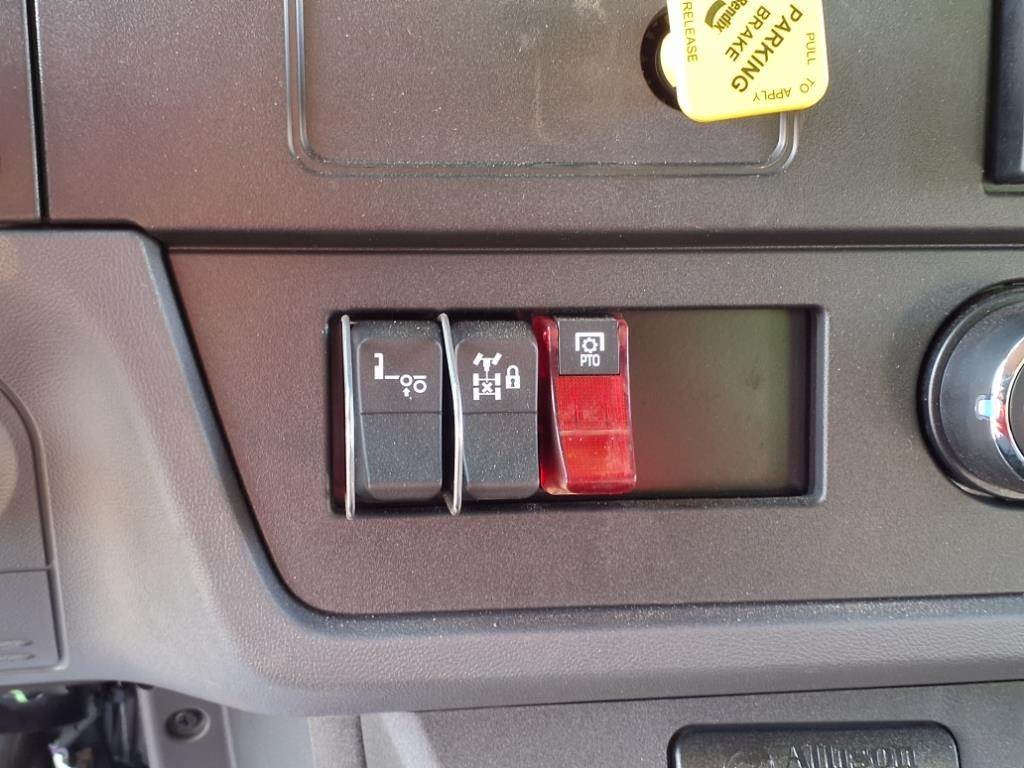

Electric shift PTO controls with air shift pump

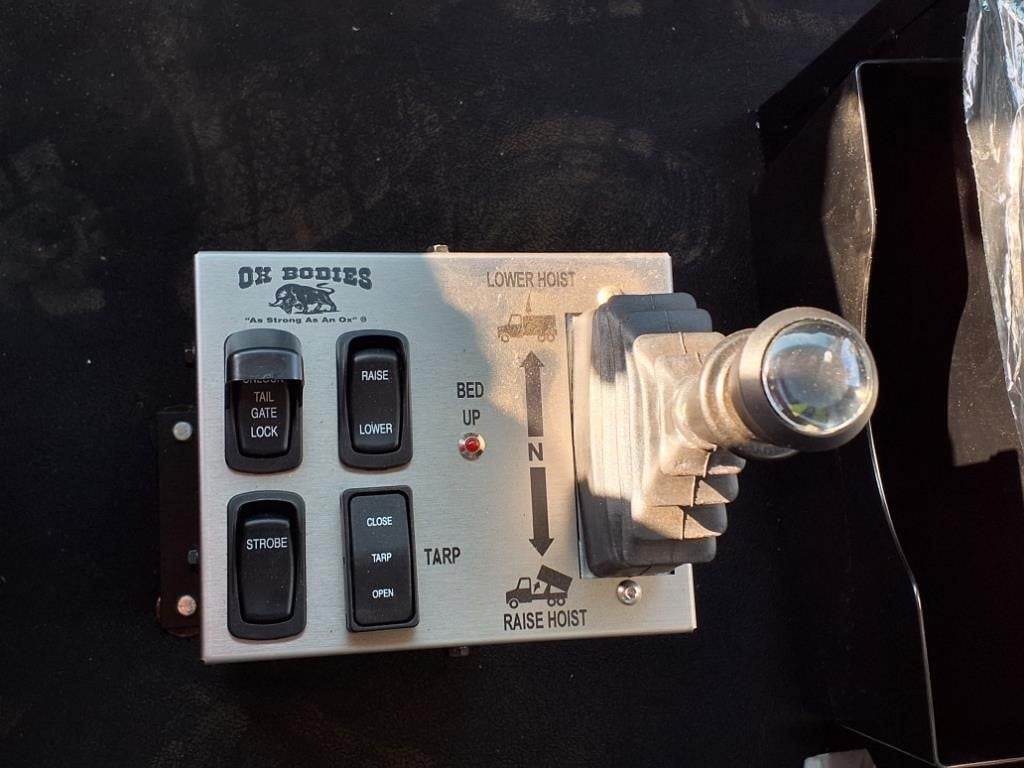

In-cab electric/air controls
Safety Features:
Single body prop
Air operated high lift tailgate system
Reversing alarm
LED lighting package including:
2 cab shield oval clearance lights
Mid-turn lights
Lower side lights
Rear oval and Metrotech lights
Safety strobe package
Additional Features:
8" hardwood side boards with 8" board holder height
36" Texas-style mud flaps
Steel gravel guards without flaps
5" exhaust turnout
13,500 lb. rated rear tow hooks
Standard OX logos and decals
Oval turn lights mounted behind tarp brackets on bottom rail
Installation Details:
Removable pin rear hinge design (no hitch plate)
Air-operated tailgate kit
All controls and wiring included
Full lighting package installed
