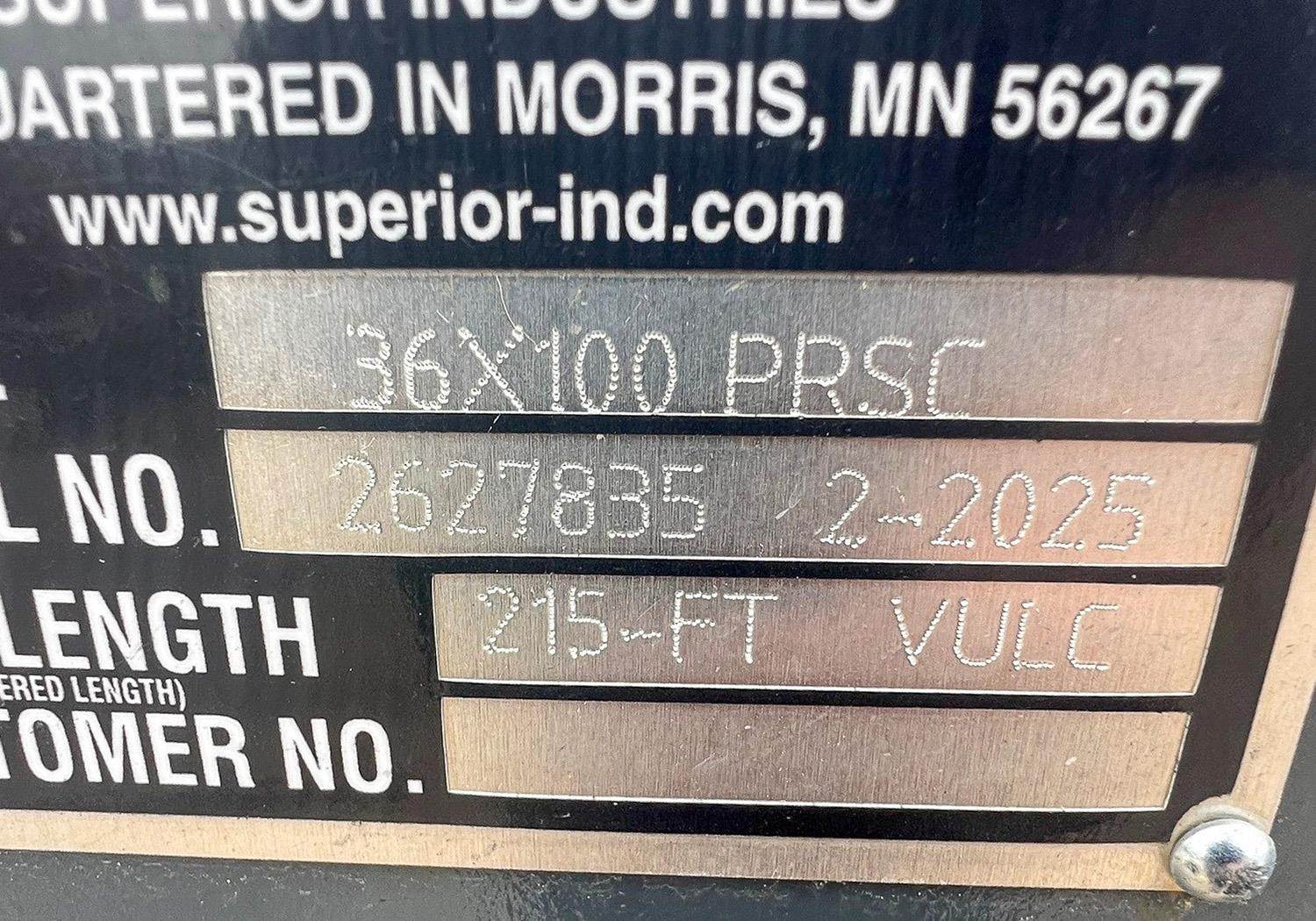

2025 Superior 36x100PRSC Conveyor

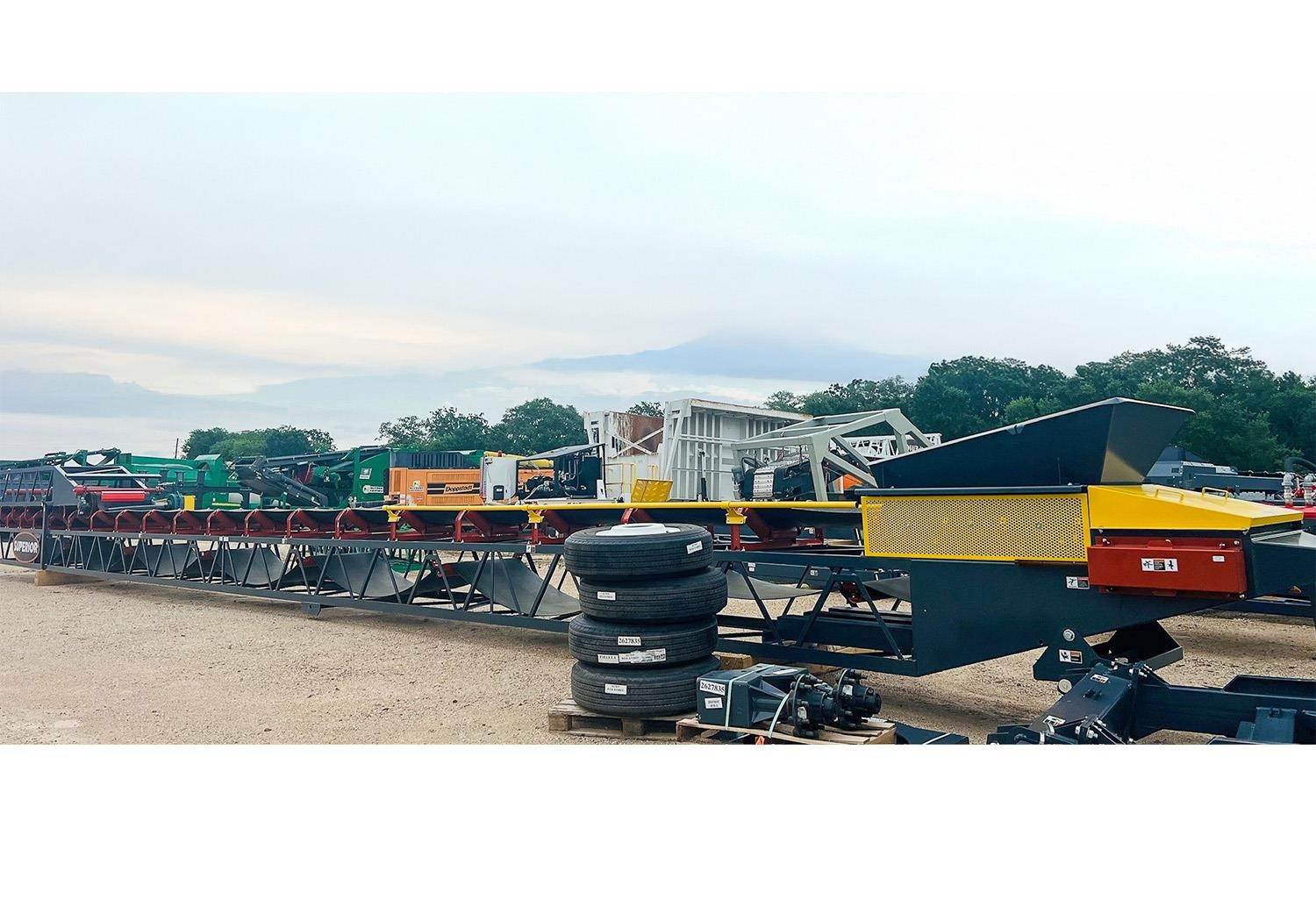

2025 SUPERIOR 36” X 100’ PORTABLE RADIAL STACKING CONVEYOR

CONVEYOR FRAME

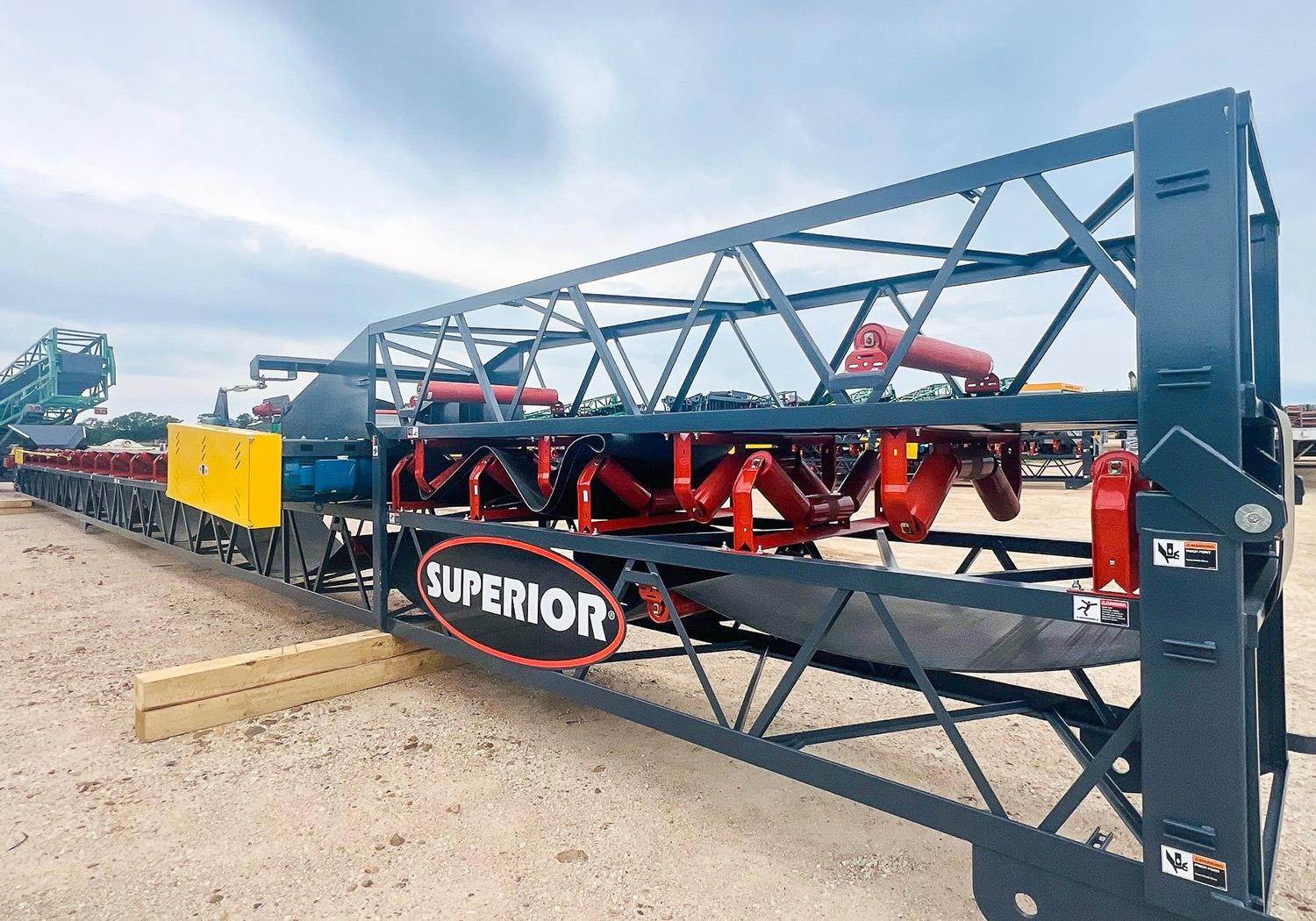

- MAIN FRAME: 30”DEEP TRUSS
- CHORD ANGLES: 3” X 3” X ¼”
- LATTICE MEMBERS: 1-1/2” X 1-1/2” X 3/16”

DRIVE SPECIFICATIONS

- DRIVE: CLASS I HEAD END
- GEAR REDUCER: SHAFT MOUNT
- BACKSTOP: INSTALLED IN REDUCER*
- MOTOR: 40 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 750 STPH OF 100 PCF MATERIAL, 25° SURCHARGE (90% FINES, 10% SPHERICAL LUMPS, 6” MINUS)
- BELT SPEED: 400 FPM
- DRIVE PULLEY: 18” DIAMETER, 3/8” HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 16” DIAMETER, CEMA CHEVRON® WING
- HEAD PULLEY: NOT APPLICABLE
- SNUB PULLEY: NOT APPLICABLE
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED
- TAKE-UP: SCREW TYPE

PORTABILITY

- CONVEYOR SPLICE: MANUAL TOP FOLDING HEAD SECTION*
- UNDERCARRIAGE: MANUAL RAISE WITH PIN LOCK ADJUSTMENT
- AXLE TYPE: TELESCOPING AXLE, ROAD PORTABLE
- TRANSPORT AXLE: DUAL (4) 11R-22.5 TIRES AND WHEELS
- RADIAL AXLE: MANUAL SWIVEL BOXES
- RADIAL TRAVEL: MANUAL
- FIFTH WHEEL: NOT INCLUDED
- ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL*
- BRAKES: NOT INCLUDED
- LIGHTS: NOT INCLUDED
- MUD FLAPS: NOT INCLUDED
- AXLE JACKS: NOT INCLUDED
- LANDING GEAR: NOT INCLUDED
- TOWING EYE: PINTLE HITCH TYPE

CONVEYOR COMPONENTS

- BELTING: 2-PLY 3/16 X 1/16 2200PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE*
- SCRAPERS: SUPERIOR CLICK TENSIONING EXTERRA® PRIMARY BELT SCRAPER*
- IDLERS: CEMA B, 5” DIA. STEEL ROLLS, SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: SUPERIOR STANDARD SPINGUARD® SEAL
- LOAD AREA: 20° TROUGH, STEEL ROLLS, 12-16” SPACING
- TROUGH: 35° TROUGH, STEEL ROLLS, ON 4’ SPACING
- RETURNS: FLAT STEEL CANS ON 10’ SPACING
- RADIAL RECEIVING HOPPER: SLOPED, 5' LONG, BOLT ON DESIGN*
- RADIAL HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: 5’ LONG WITH ADJUSTABLE RUBBER FLASHING

ADDITIONAL SPECIFICATIONS

- GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER RESPONSIBLE TO HAVE GUARDING INSPECTED

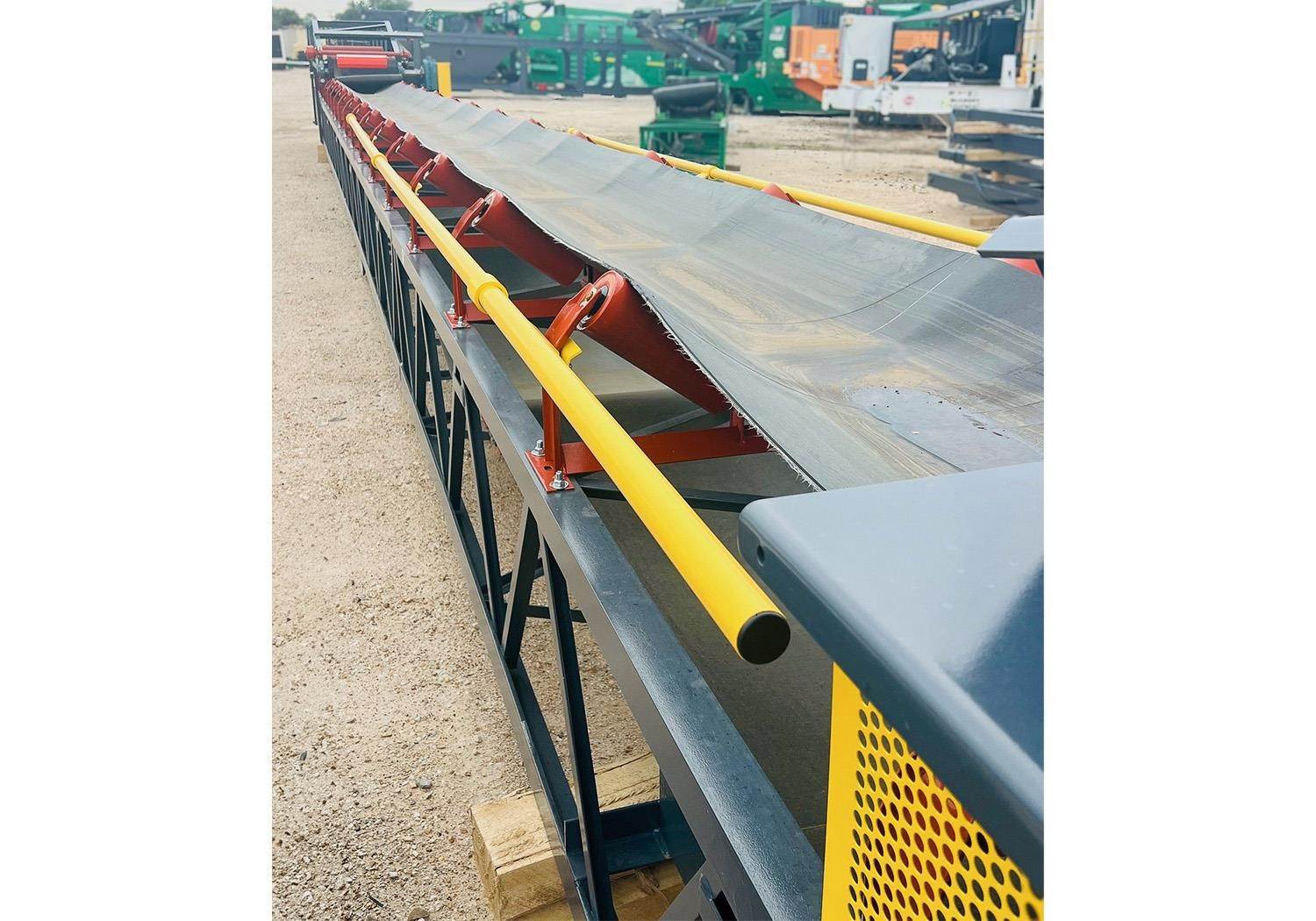

- SAFETY HANDRAIL: BOLTED TO IDLER FRAMES, COVESR BELT UP TO 8' WHEN RAISED
- VOLTAGE: 480 V / 3 PH / 60 HZ - 1800 RPM
- CORD HOLDERS: (1) SET BENT PIPE STYLE
- CONTROL PANEL PLATE: NOT INCLUDED
- CONTROL PANEL: CONTROL PANEL AND WIRING NOT INCLUDED
- PAINT: 1 COAT PRIMER, 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT: YELLOW
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
