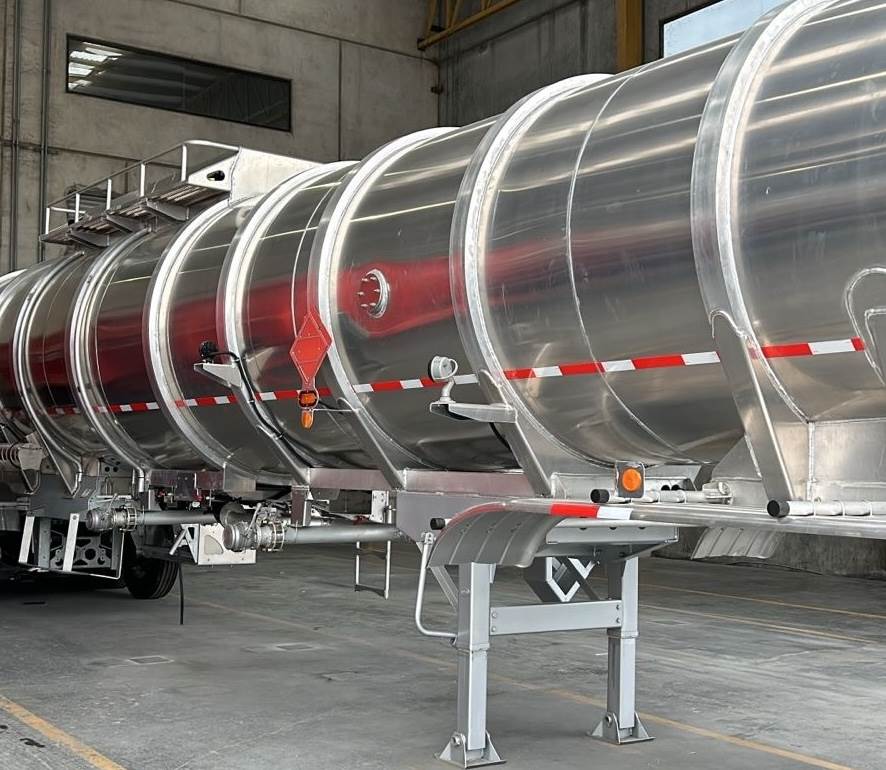

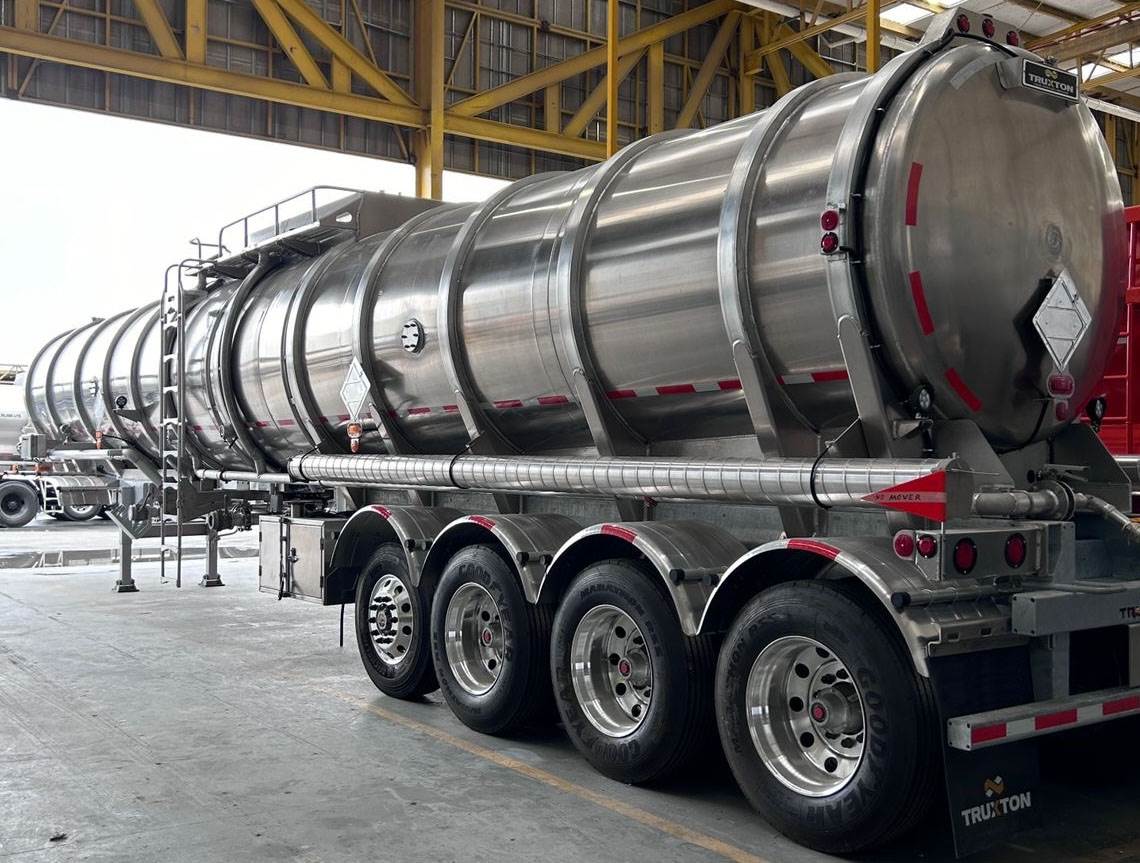

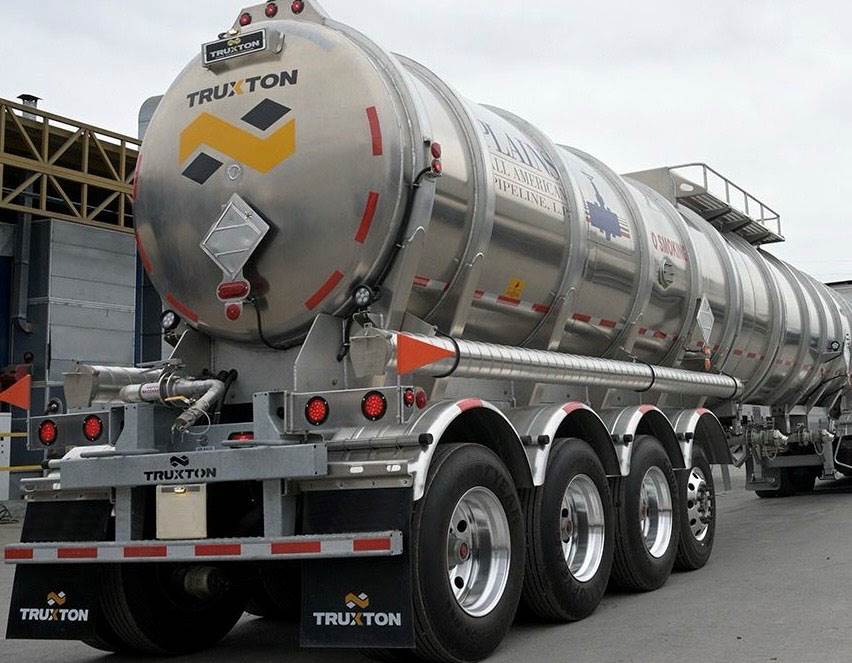

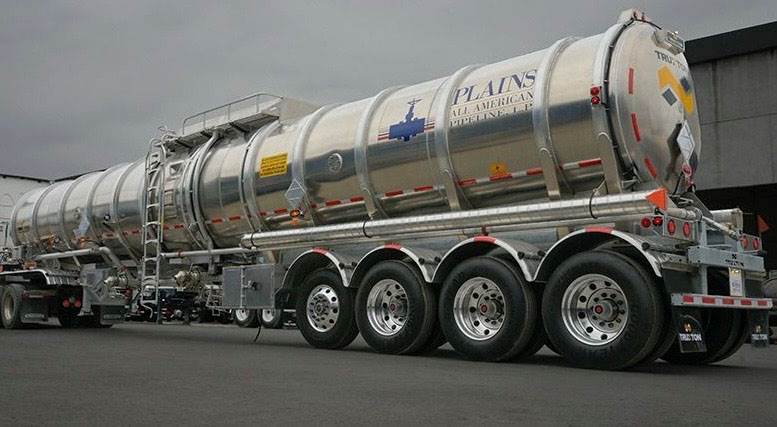

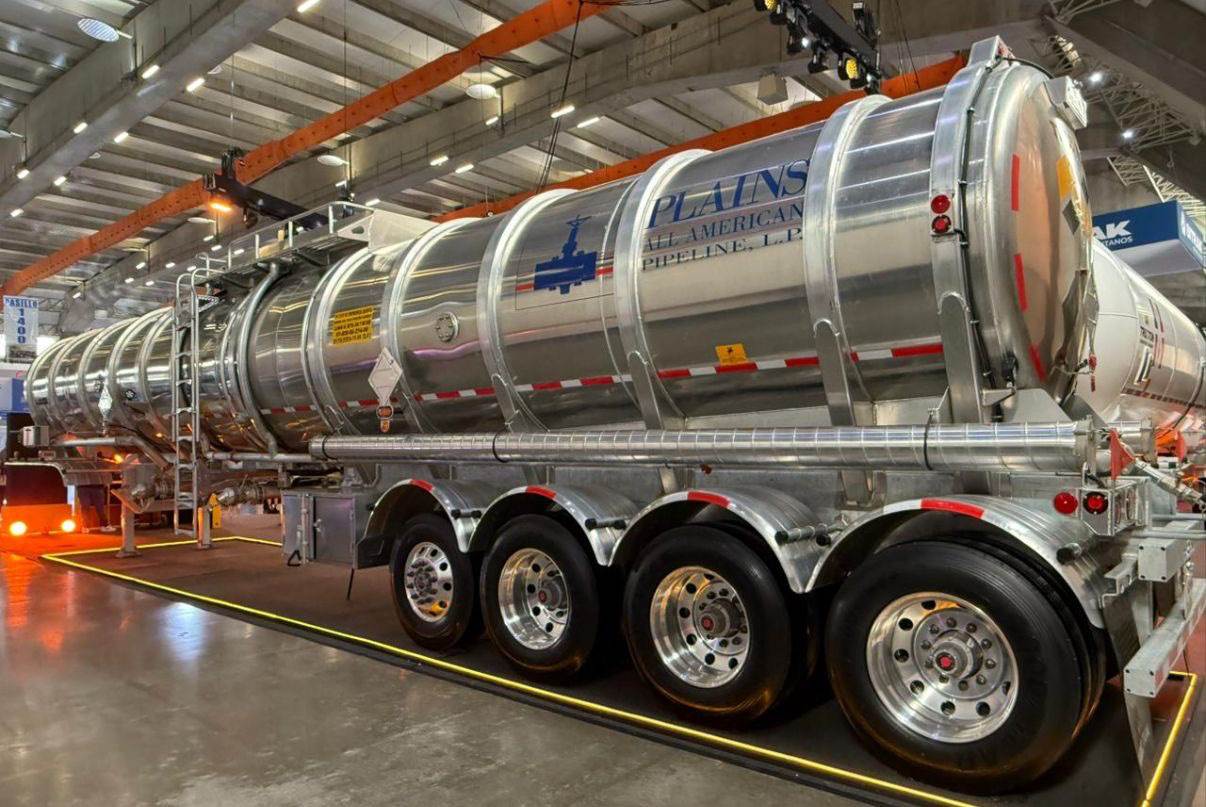

2025 TRUXTON ALUMINUM DOT407 QUAD-AXLE CRUDE OIL TANK TRAILER Code D.O.T. 407 Compartments 1 Shape Double Conical Shell Material Aluminum 5454-H32 ¼” thickness. Operating Pressure 25 PSI. Product Crude oil _________________________________________________________________________________________________ UNIT FINISH INFORMATION Material Finish Weld Finish W-0 Body, Heads Mill finish _________________________________________________________________________________________________ COMPONENTS Reinforcing Rings 5" aluminum rings Dam Drains Aluminium tube 1 ½” ø. CED. 40 Manhole 20" full opening dome with six hold downs King Pin Plate 3/8” Thick SA-572 GR-50 Carbon Steel with Wallace Forge King Pin Static line From collar to bottom to emergency valve Volume Gauge Garnet 808p2, 815uhp spillstop and garnet 815jb junction box Thermomether 0-200 °F Thermomether _________________________________________________________________________________________________ HOSE CARRIERS Hose Carrier Carrier Location Pipe Aluminum hose tubes doors at both ends Placed on roadside of the unit 8" diameter, 21' length Aluminium LIGHTS AND WIRING Grote 12-24 Volt Flange Mount LED Light System with Protective Grommet FMVSS Compliant. Combination turn signal and center marker lights, one on each side. Harness Ligths Connection UBS® Main Power Outlet Harnesses, 7 Conductors Grote Rear identification lamps 2 ½” day. Grote red color Work light 1600 lms BZ101-5 polycarbonate lens, Grote die-cast aluminum housing License plate light 60671-3 9-32 V Grote FMVSS 108 Strobe light 7747-3 SAE J595, SAE J1889, SAE J186a LED ceiling light 2 1/2 amber polycarbonate lens, Grote FMVSS 108 polycarbonate housing 2 1/2" red LED ceiling light PVC protective ring, Polycarbonate lens, Polycarbonate housing GroteFMVSS 108 4" red LED ceiling light with acrylic lens, white housing FMVSS 108 Hi Count® Grote 12V FMVSS 108 Oval LED Stop/Tail/Turn Lights Oval ceiling light Polycarbonate lens, red polycarbonate housing led G6002 stop Grote FMVSS 108 Amber reflective 3" Red reflective 3" 7 & 6 way plugs on head (2) Nose box ________________________________________________________________________________________________ COMPONENTS IN SUB-CHASSIS Upper 5th Wheel Paint N/A Landing Gear 3/8” thickness A572-50 Crank Location Tire Carrier Tire Carrier Location SAMPA 096.21411FT or Similar subject to availability (Heavy Road two speed 30 Ton HR-LGT30) Crank handle located on road side 3/8” 6061-T6 structural aluminum standar mounti Placed on road side of the unit SUSPENSION Frame Carbon Steel ¼” thick SA-572 GR-50 Suspension Pneumatic SAMPA Type HT300, ride height 15” Shock absorber SAMPA Track Track 71.5 Suspension Capacity 25,000 lbs Axle SAMPA Axle load capacity 30,000 lbs Noisemakers 28-tooth self-adjusting noisemakers Lift Axle WITH 2 TIRES Fender Front 127” aluminum powder coat and rear 49” aluminum powder coat Bumper Carbon Steel ¼” thick SA-572 GR-50 Wheels (12) 22.5” aluminum Tires (8) All Position Tires 11r22.5” Mud Flaps Pair of Truxton plastic mud flaps installed on rear fenders BRAKE SYSTEM Brake Roll Stability/Anti- lock N/A Glandhands ABS System 4S/2M (4) Sensors (2) Monitor with FMVSS-121 Phillips aluminum emergency and service sockets installed on front and rear of unit VALVING AND PIPING Sump 6" aluminum sump 12 BETTS SCREWS SU25535AL Emergency Valve 6" Pneumatic Tee valve 6" X 4" TTMA BETTS EV47066AY Loading and Unloading Valve API 4" CIVACON Adapter CV-67IA-AL40 Dust cover 5000.25 API Shut Off Emergency stop located on pilot side front of tank, Installed in valve box Discharge tube Tube aluminum 4" C-40 SEAML 6061T6 Discharge Location Both side the unit Relief Valve Pressure Vacuum Girard 25# 407 VENTING AND CLEANOUTS Cleanouts Caps N/A (6) 3" bolting rings at top center line of tank WALKWAY AND LADDER Top center Protection Walkway location Ladder Ladder location Diamond-type aluminum anti-slip sheet 1/8” thick. ¼” thick aluminum rollover protection 5454 H-32 It has a rest at the top of the unit. 1” ø aluminum tube Ced. 40 6061 T-6 with anti-slip step Installed on the curbside of the unit VALVE BOX Box Box location Aluminum (18"h x 36"w x 18"d lockable) Installed on the curbside of the unit OVERFILL SYSTEM Level Gauge (kit) Titan Logix TD100 Level Gauging and Overfill Protection ____________________________________________________________________________________________________ PUMPING SYSTEM Pump ROPER MODEL 3548 MBHFRV FOR CRUDE TANK or BEARCAT Pump Motor CHARLYNN hydraulic motor 109-1101-006 Hoses hydraulic Hydraulic hoses 1-1/4" Thermometer 3" COVER 0-290°C ____________________________________________________________________________________________________ VAPOR RECOVERY Rolled tube Venting Line Vapor Adapter 3” Ø Ced. 40 in 6061 T6 aluminum 3” pneumatic TTMA Wet-R-Dri Butterfly Valve 3” Ø tube ced. 40 in 6061 T6 aluminum VR4100 - Vapor return valve. Fuel compatibility Gasoline and diesel, up to biofuels E100 and B20 ____________________________________________________________________________________________________ ACCESSORIES Decals Safety decals Conspicuity Tape Throughout the unit marking and compliance with FMVSS/CMVSS 108 DOT Code- C2 section (49.571.108) Banners Orange Banners Placards ID According to DOT 178.345-15 Paint High solids epoxy primer and polyurethane finish paint on the skate and carbon steel areas in 6.5 mils. thickness Inner Lining High Solids Adduct-Amine Catalyzed Epoxy- Colar 25P
