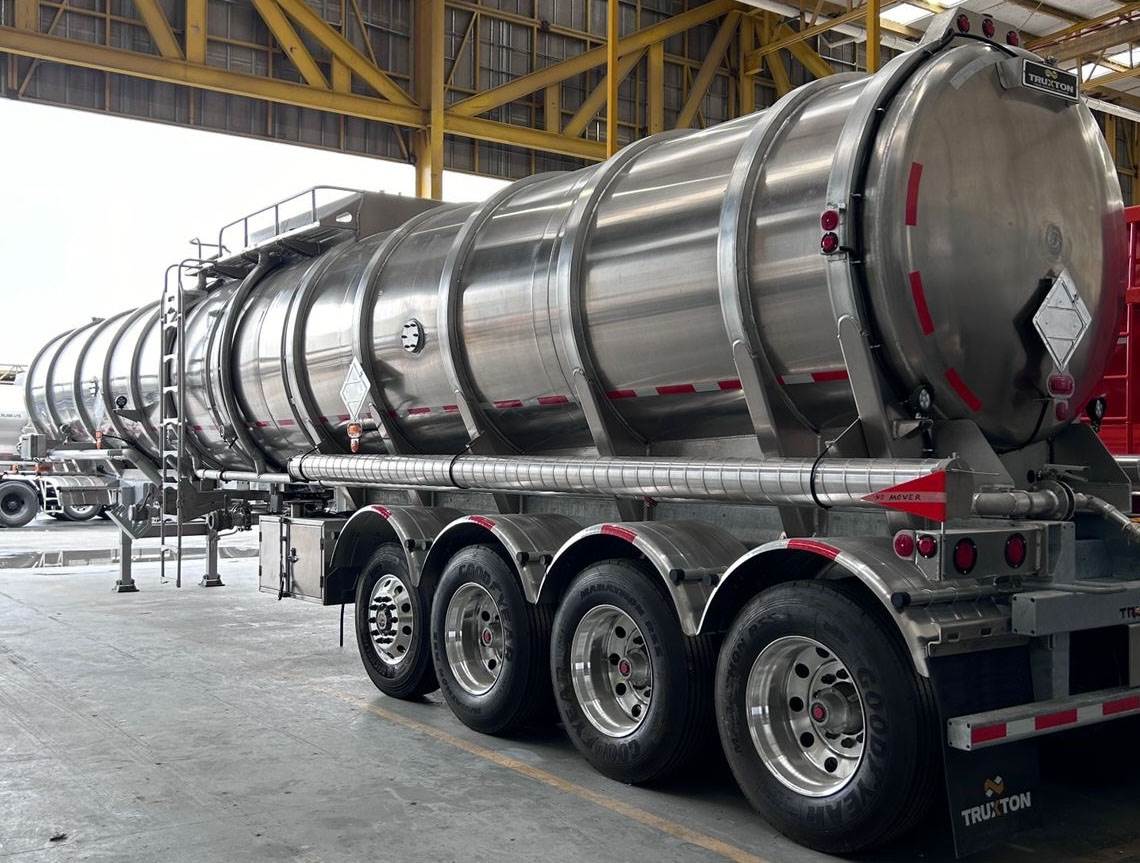

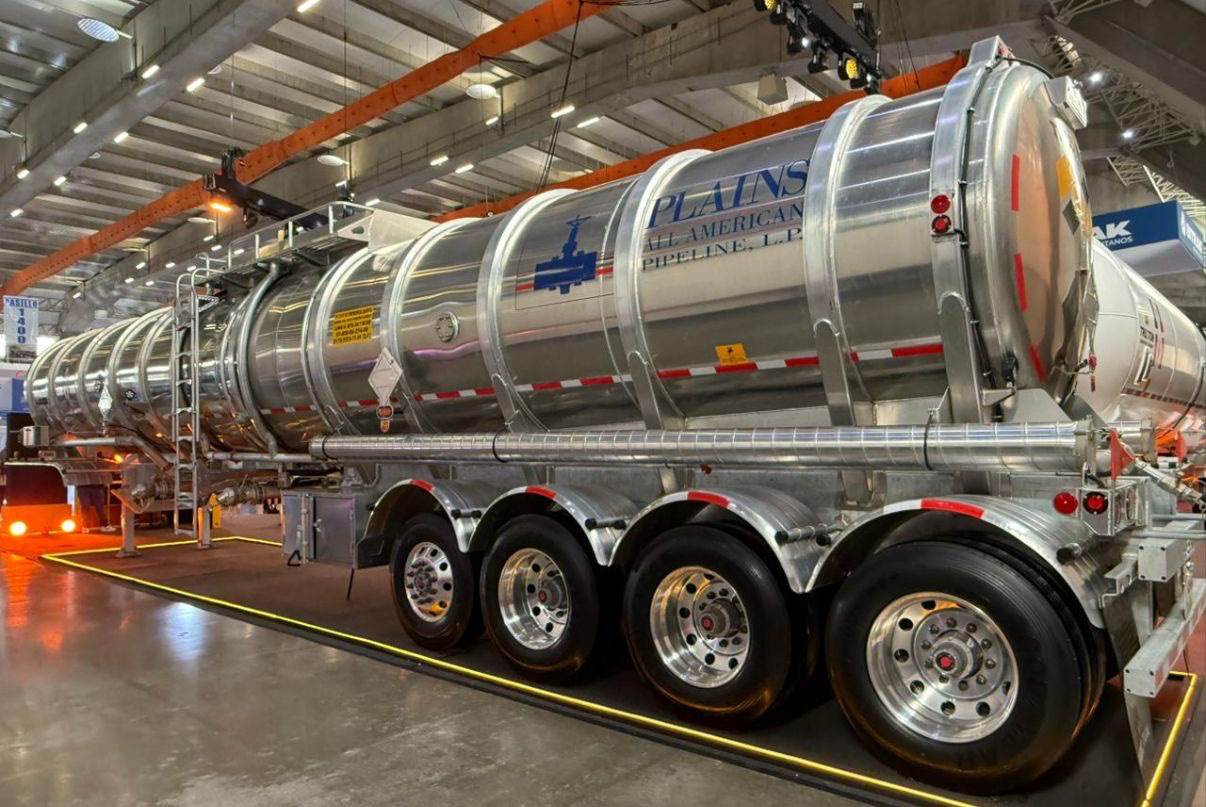

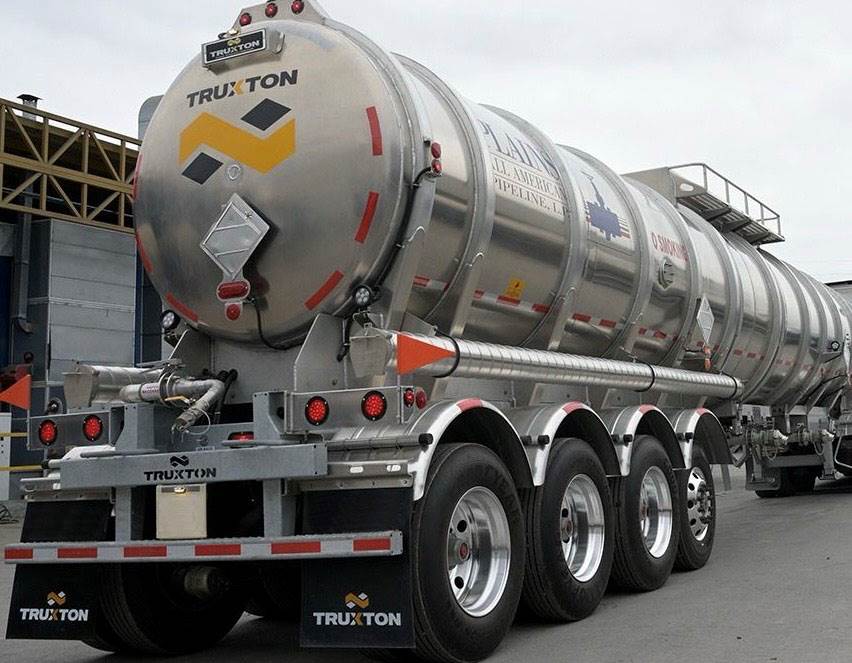

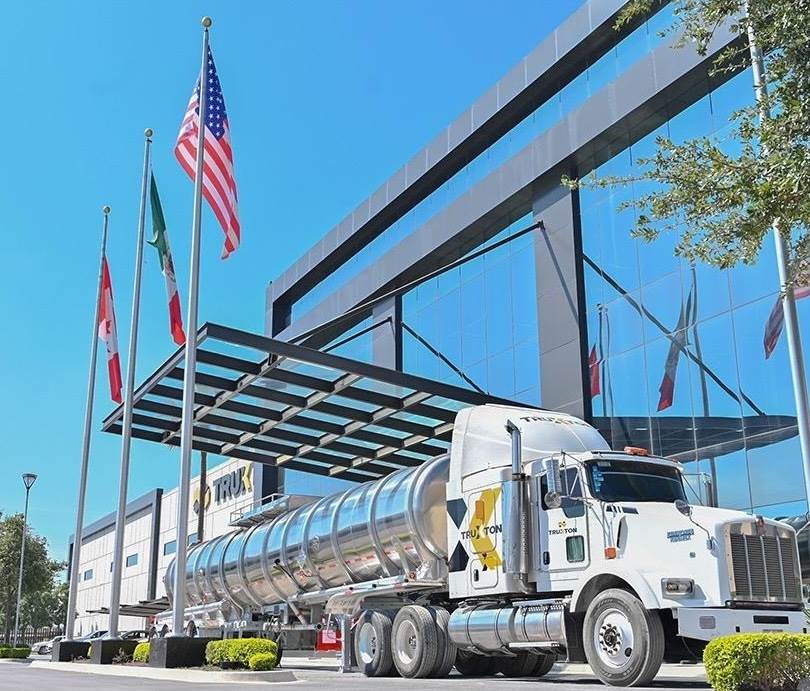

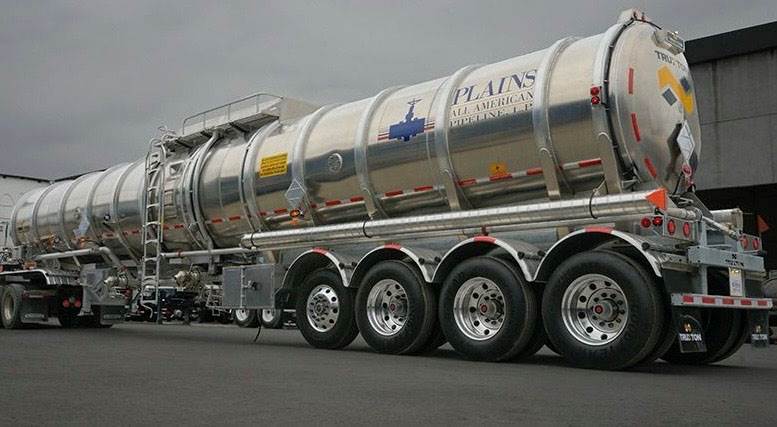

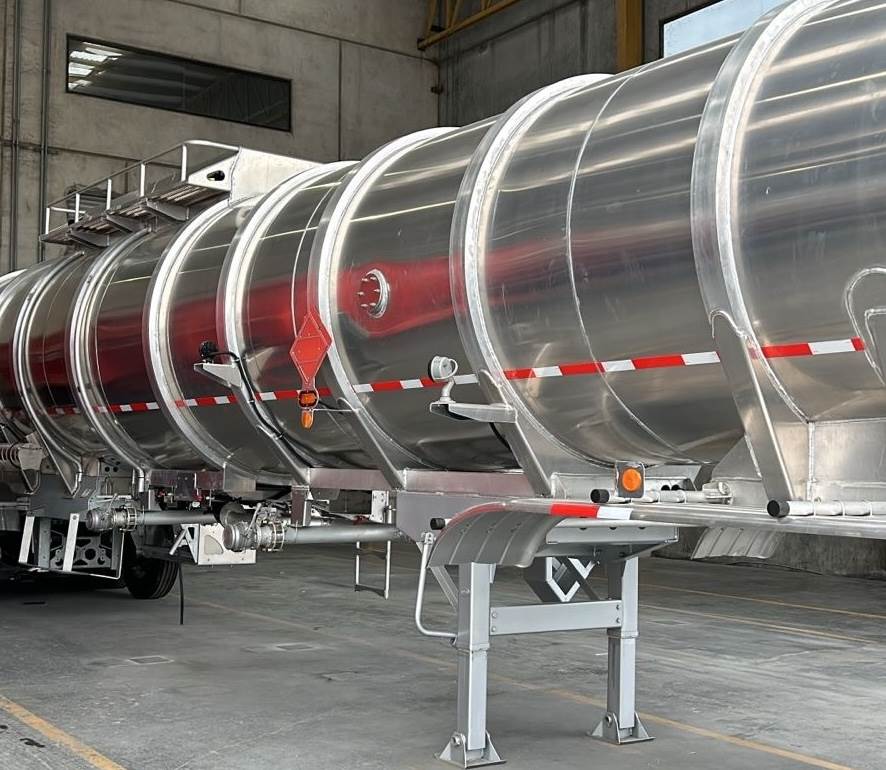

2025 TRUXTON DOT407 285BBL TRI-AXLE DOUBLE CONICAL ALUMINUM CRUDE OIL TANK TRAILER "QUALITY TECHNOLOGY AND INNOVATION” MERITOR ROLL STABILITY SYSTEM INCLUDED 2 COMPARTMENT INCLUDED TAG AXLE INCLUDED UPPER COUPLER GALVANIZED INCLUDED SUBFRAME GALVANIZED INCLUDED BUMPER GALVANIZED INCLUDED GOODYEAR TIRES INCLUDED Shell Material : Aluminum 5454-H32 ¼” thickness. Dimensions : Height: 10.58’ Width: 8.20’ Lenght: 53’ approx. Capacity: 12,000 Gal (285 barrels) + 3% exp Rear Compartment: 6500 gal Front Compartment: 5500 gal Baffles : (4) aluminum 5454-0 ¼” thickness. 6 Rings : 5” aluminum rings Relief valve: (2) Pressure Vacuum Girard 25# 407 Vapor Recovery : Two 3" air open/spring close butterfly valves Cleanouts : (4) 3" bolting aluminum sumps with blind flanges evenly spaced on top center line of tank, (4) 3" aluminum sumps with blind flanges at 3 and 9 o’clock for rellover at approx. center of vessel Gaskets : Gaskets for all flanges are cork/buna. Manhole : (2) 20" full opening dome with six hold downs Emergency valve: (2) 6" X 6” BETTS aluminum 90deg. elbow, air operated emergency valves, with API loading and unloading valves 4” Ladder : Aluminum 6061 T-6 mounted streetside at spilldam Fender: Front and rear aluminum fenders Mudflaps Truxton logo, anti-sail. Cabinet : Aluminum cabinet 24"h x 24"d x 48"l two door Tire Carrier : Aluminum tire carrier Hose Carrier : Two (2) aluminum hose tubes, 8" diameter, 21' length, doors at both ends Document Holder : Included Upper coupler : Galvanized heavy duty steel upper 3/8” thickness A572-50 Landing Gear: Holland 2-speed with handle on curbside Mark V Subframe at tandem: Galvanized carbon Steel ¼” thickness A572-50. Bumper : Galvanized carbon Steel ¼” thickness A572-50. Suspension: (3) RideWell Model RAR-266HT-7-15-25-OSW DB Part No. 266411500DB, ride Height 15”, Disc brake system and (1) RideWell Model RSS-233DLMT Part No. 2332130_(S) DLMT (Disc brake low mount trailer), 11-15 inch mounting height shown. (1) Height Control Kit 6301BFAK31 (1) Lift kit: model 260/266 under-hanger lift arm 2990500 axis 4 Lift Axel : Kit Wheel Monitor Control System (Plus P100A) axis 1 and axis 4 Anti-lock Braking system: Meritor roll stability system 4s/2m Tires : (12) 11r24.5” GOODYEAR and (2) 11r22.5” Michelin Wheels (12) 24.5” x 8.25 and (2) 22.5” Paint : Polyurethane gray on frame landing legs Nose box: 7 & 6 way plugs on head (2) Lights : Truck lite led lights Volume gauge : (2) Titan Logix TD 100 Static Line: From collar to bottom to emergency valve Inner Lining : High Solids Adduct-Amine Catalyzed Epoxy- RA-29 modified Thermomether: 0-200 F°
