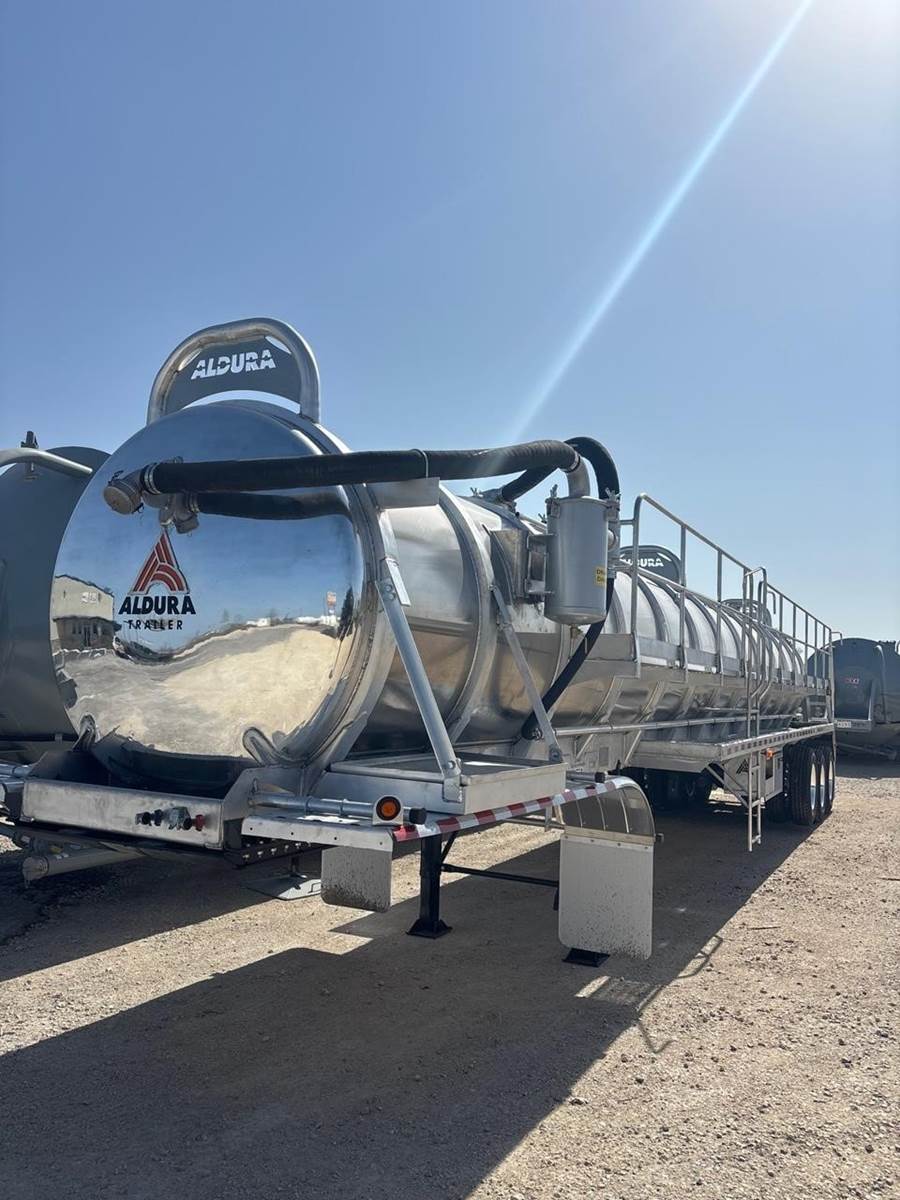

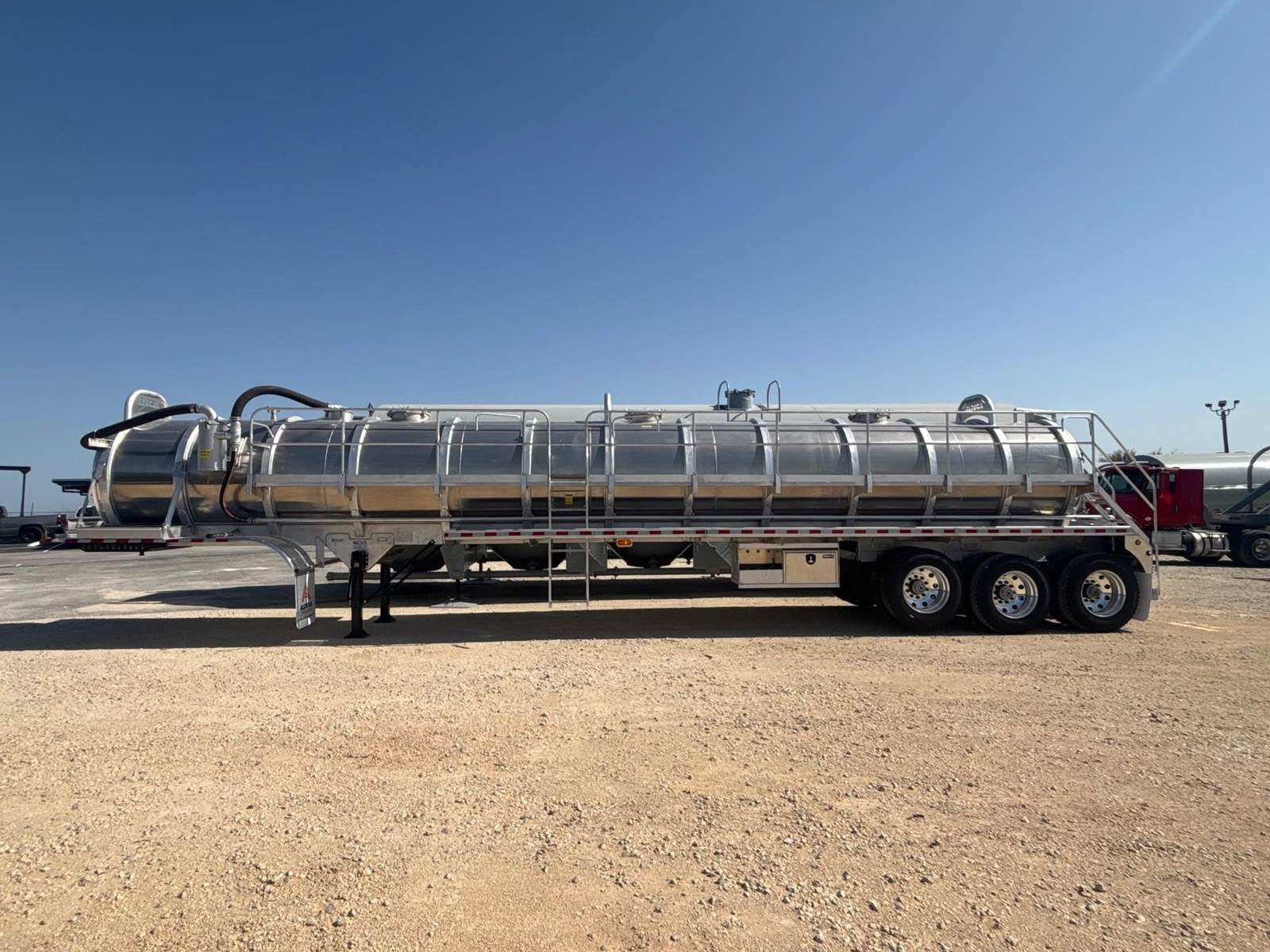

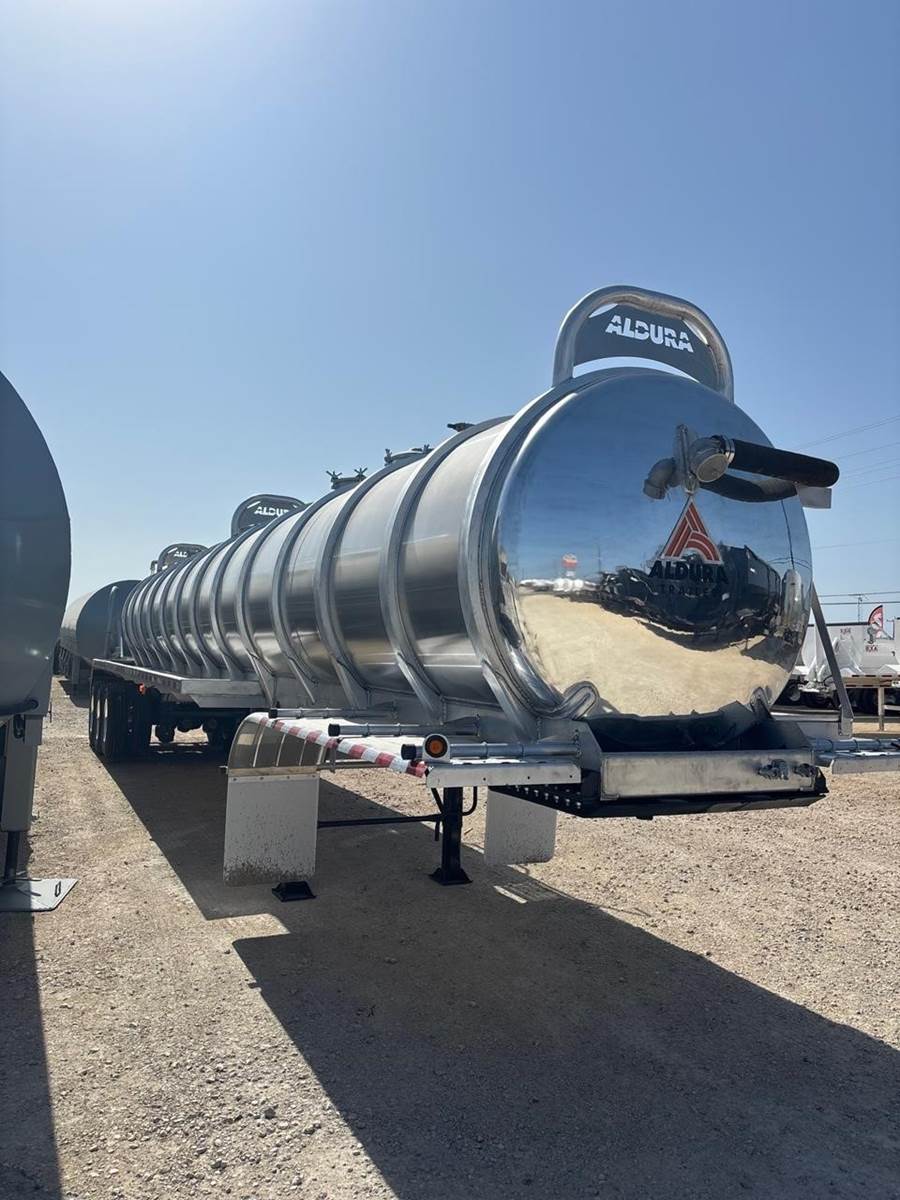

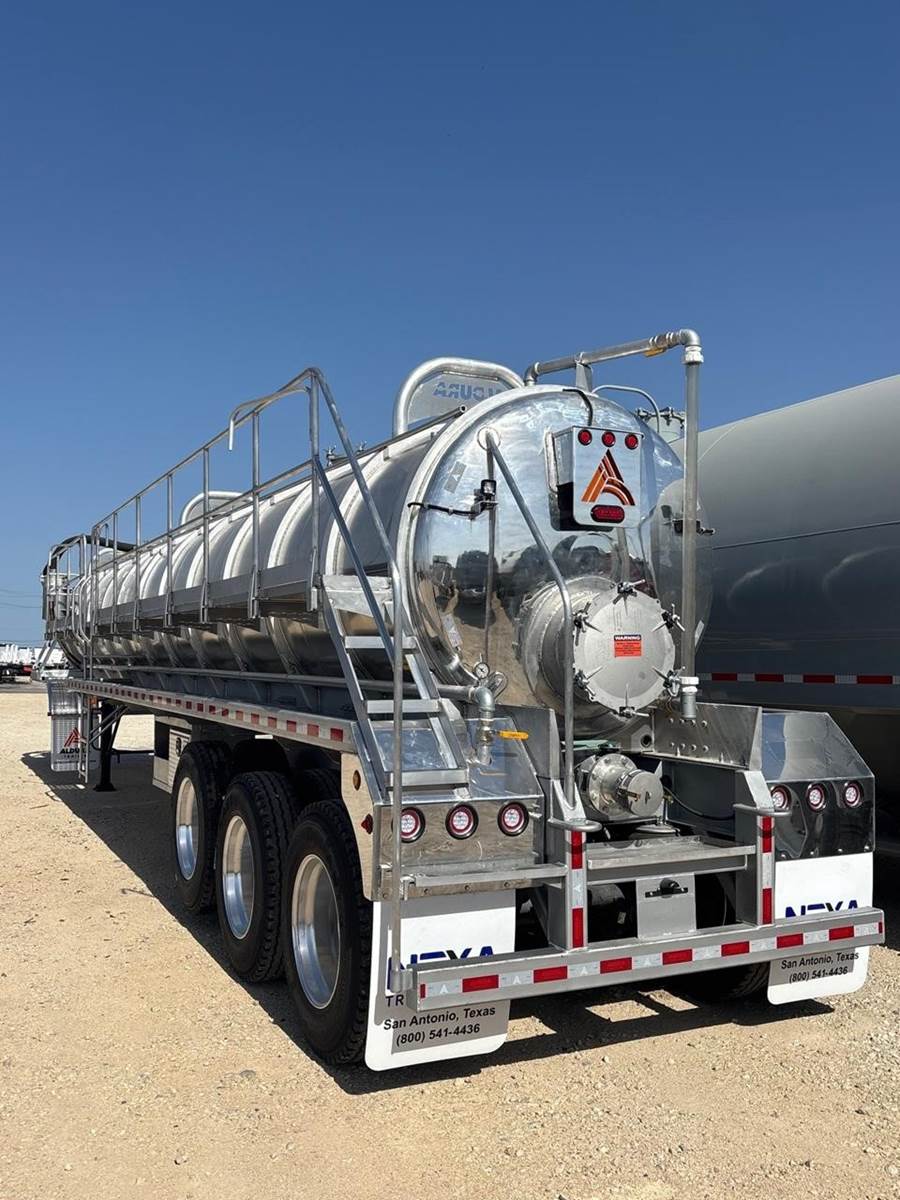

2026 ALDURA 200BBL ALUMINUM VACUUM TRAILER NON-CODE Vacuum Tank Trailer

NEW ALDURA 200BBL ALUMINUM VACUUM TRAILER NON-CODE

Capacity:
8,400 gal. + 1% Expansion
Commodity:
Transportation of oilfield fluids such as water, mud, oil field waste.
Pressure:
Tested at 23 PSI
Relief Settings:
22 IN HG External, 17 PSIG Internal
Overall Length:
49 ft.
Height:
10 ft. 9 in.
Weight:
15,880 Lbs.
Width:
102 in
Material:
Aluminum 5454 H-32
Suspension:
Three (3) Air Ride 30K lbs each
Baffles:
Three (3) of 1/4 in. Thk
Bulkheads:
3/8" Aluminum 5454 H-0 Non-code ASME Shape
Compartments:
Single
Overturn Protection:
Three (3), at front, middle and back of tank
Shell:
1/4" aluminum shell 5454 H-32
Rings:
Thirteen (13) rolled of 4"x2" C-channel profile
Welding:
Inside and out, minimal tie-ins with mig welding
Connections:
3 in. vacuum female camlock fitting on middle top front bulkhead
Outlet:
2x 4" Butterfly Valves
Shut Off:
Ball type primary in front manway and ball type secondary 12 Gal. on driver's side front with drain
Venting/Reliefs:
1-1/2 in. vacuum relief, 2 in. pressure relief, both located at the top front of barrel, 2 in. blow down line at rear
Axles:
Three (3) 2x fixed and 1x lift rear axles; 30,000lbs ea; 120 in. wide, 77.5 in. Ferrous hub, cast drum, ABS
Brakes:
Air brakes with two boosters FMVSS-121, ABS 4S/2M module anti-lock brake system
Bumper:
3 in. X 6 in. tube per DOT
Sub-frame:
High Strenght Steel painted in aluminum color
Landing Gear:
2 speed JOST Heavy Duty
Tires:
Twelve (12) 11 X 24.5 R, mixed tires
Wheels:
Twelve (12) All-Aluminum 24.5"
Upper Coupler:
Bolt on adjustable 3/8" steel plate King Pin setting:18". King Plate height: 48"
Access Ladder:
One (1) safety driver side access ladder with handrails
Manways:
Three (3) on top of the tank, and one (1) on the rear bulkhead. All of 20 in. aluminum domed style with plates swing bolts and wing nuts
Walkway:
Driver side, with handrails, middle ladder, toe kicks, thru tread anti-slip walkway full-tank length, with rear ladder.
External Coating:
Hempel two coats of polyurethane on an epoxy primer (4-6 mils DFT)
Internal Liner:
Hempel 10-15 mil DFT epoxy liner
Paint Prep:
All steel surfaces sandblasted
Conspicuity tape:
3M Per DOT
