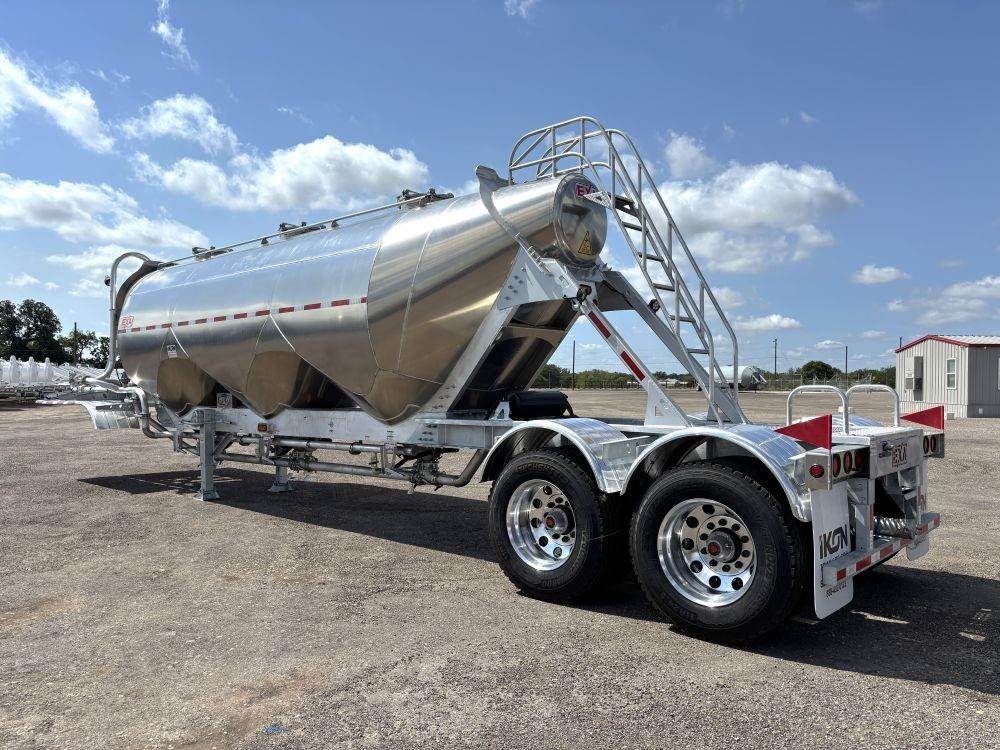

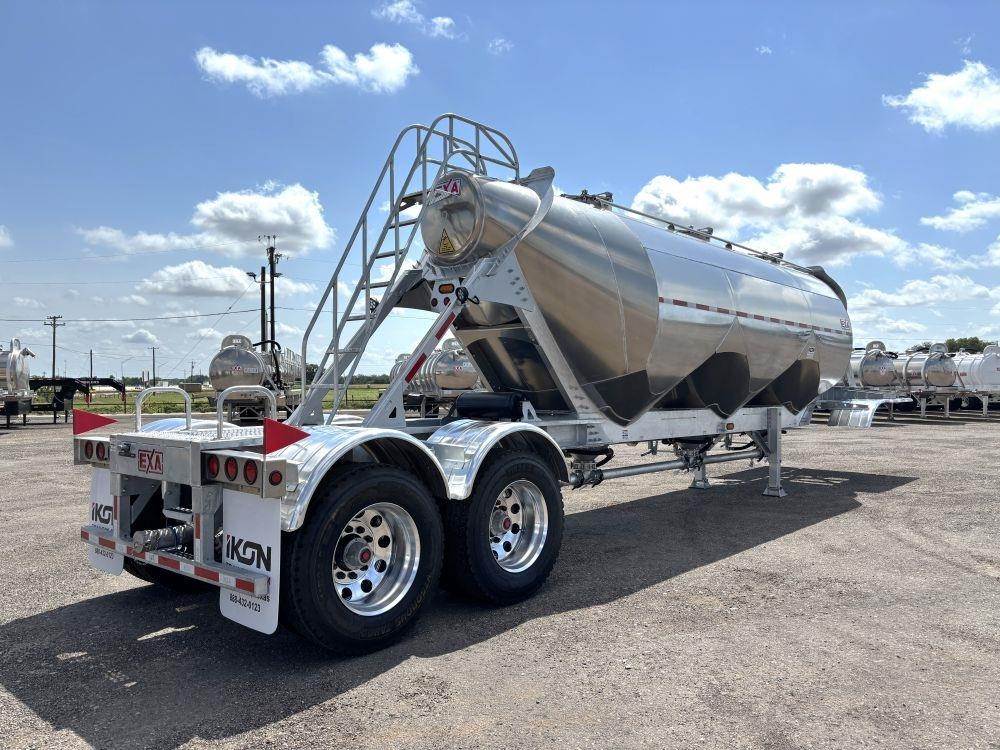

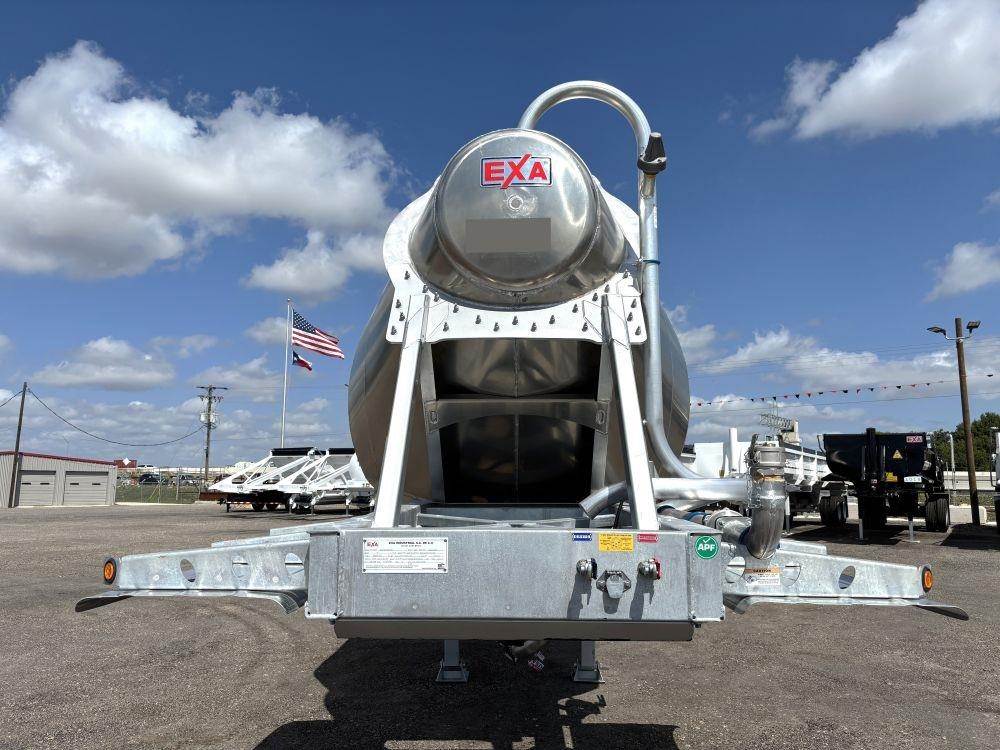

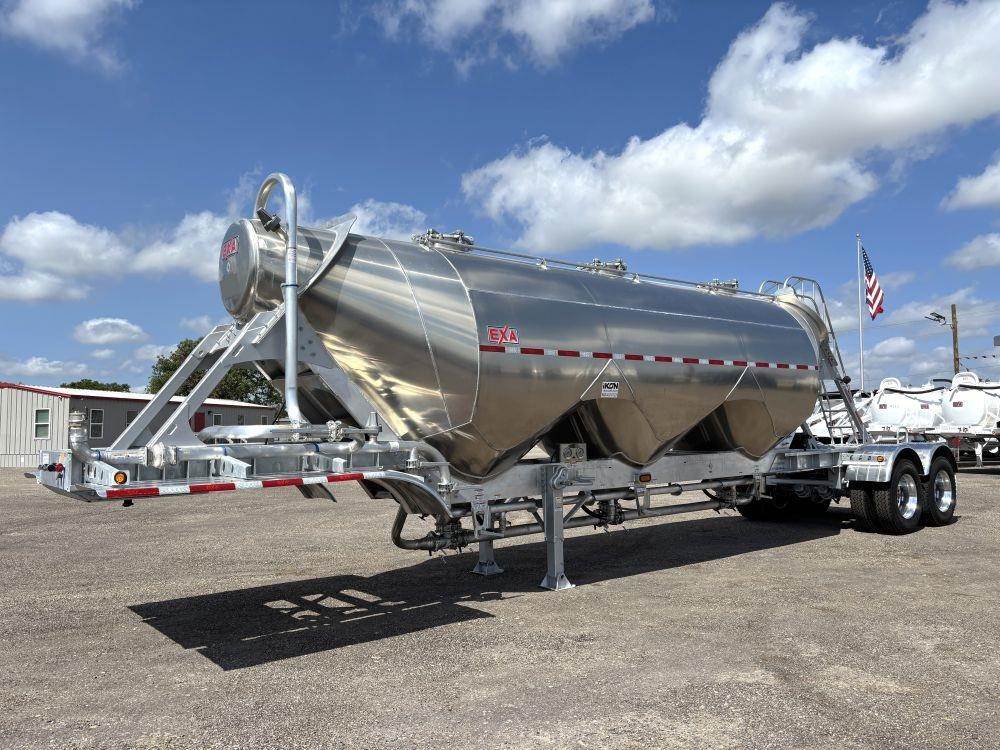

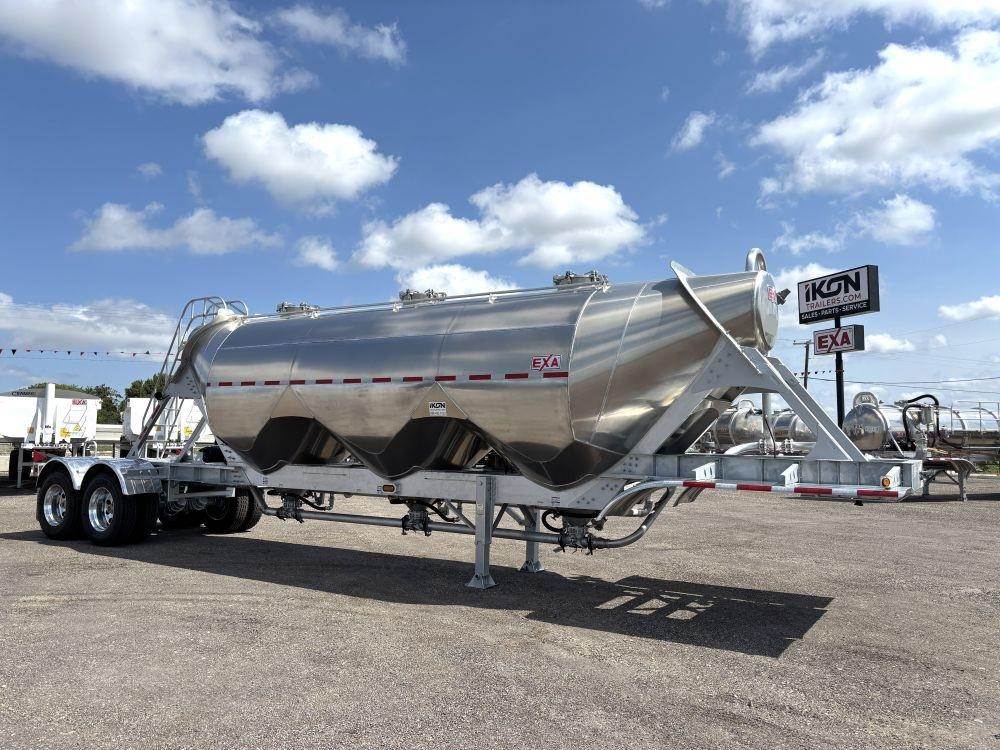

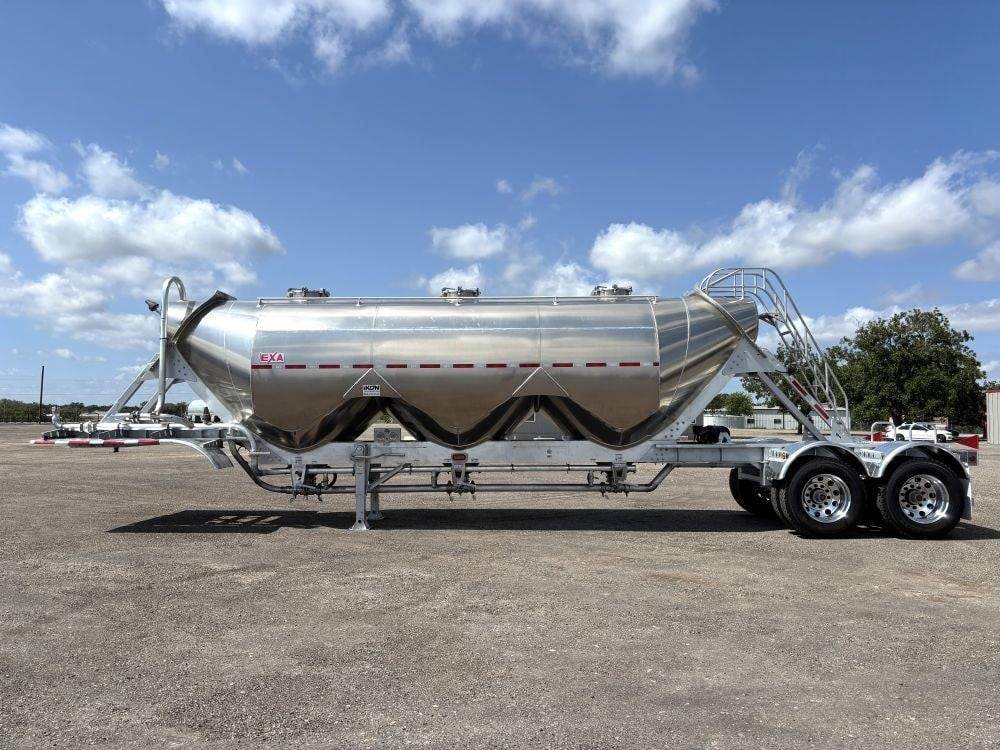

2026 EXA 1040CF Dry Bulk / Pneumatic Tank Trailer

1,040cf Pneumatic Aluminum Dry Bulk Trailer

Capacity: 1,040 cu. ft.
Commodity: Transportation of silica sand, limestone, cement and other bulk commodities.
Design Pressure: 15 PSI, tested at 23.5 PSI.
Material: Hybrid - 5454-H32 aluminum vessel with STRENX steel end frames.
Suspension: Air Hendrickson HT300 60,000 lbs. capacity.
Weight: 10,163 Lbs aprox.
Height: 12 ft. 4.5 in.
Overall Length: 41 ft. 4.5 in.
Width: 102 in.
Compartments: Single
Shell: 1/4" 5454-H32 Aluminum.
Extreme Cones: 3/16" 5454-H32 Aluminum.
End Frames: STRENX Galvanized steel, assembled on the main frame with grade 8, 3/4" Huck bolts.
Main Frame: Aluminum 6061-T6 10" C-channel.
Welding: Inside-out, minimal tie-ins with automatic welding. AL5356.

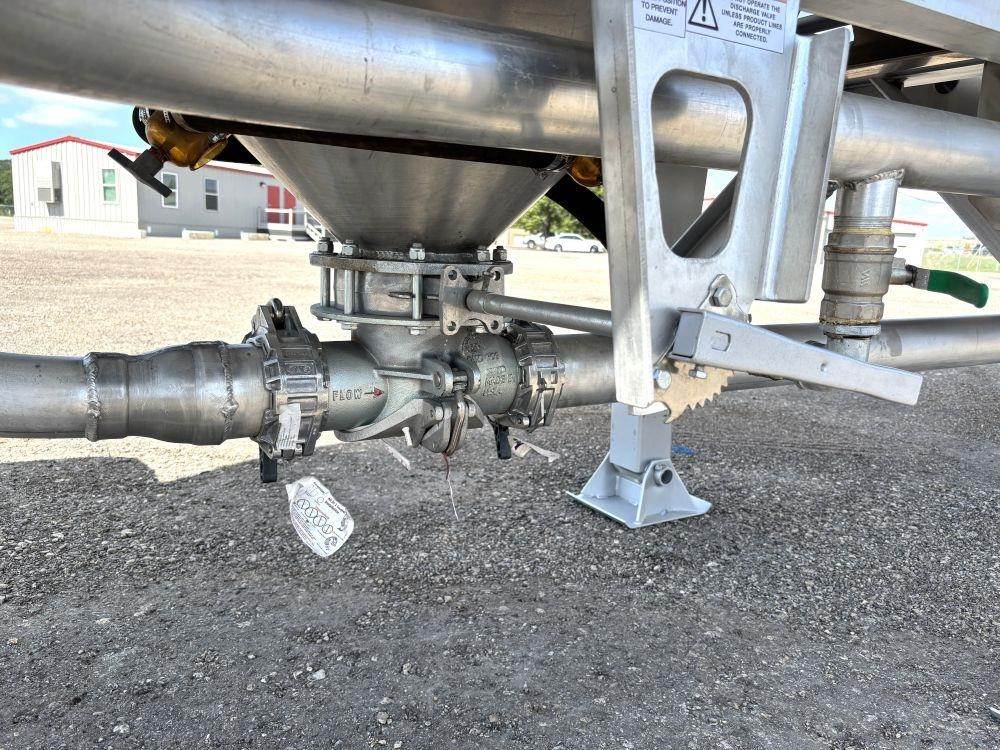

Hopper(s): Three (3) 1/4" 5454-H32 Aluminum cones with 45° slope and three aerator kits with independent ball valves. One piece cones welded on the bottom of each hopper.
Product Valves: Three (3) 6" butterfly valve, steel body, cast iron disc and steel stem.

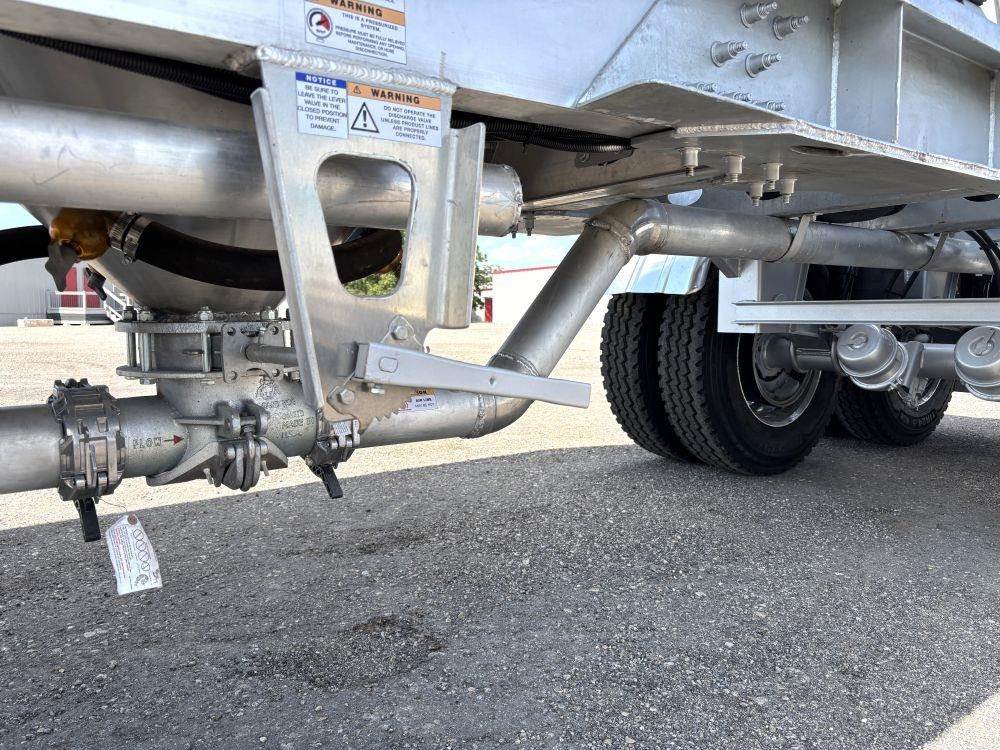

Discharge line: 4" aluminum pipe sch40 connected with cam style connectors. A sand discharge hose is attached from the third tee to the bumper level, a female coupler is included at end. Three (3) Steel bottom-drop BTI Sand hog 6"x4" Tee's.
Pressure control: 3" butterfly valve to regulate hot airflow to product discharge line
Check valves: Check valve in the hot air inlet line
Pluming: 3" inlet tubing in aluminum on curbside with ball valves to control aerators
Blow down line: (Top air) 3" alum line with 3" butterfly valve and mechanical relief valve. Top air line includes a 3" valve to relief tank air with a 3" exhaust directed to the ground.
Hose tube: Two (2) Aluminum 20ft hose tubes with lockable lids.
Axles: Two (2) 30,000 lbs. each, 102 in. wide, 77.5 in. track TP type with automatic slack adjuster.
Brakes: Air brakes with two boosters FMVSS-121, ABS 4S/2M Bendix anti-lock brake system.
Bumper: Foremed galvanized steel. DOT approved.
Landing Gear: Two (2) JOST two-speed (65,000 lbs. total) with handle on driver's side.

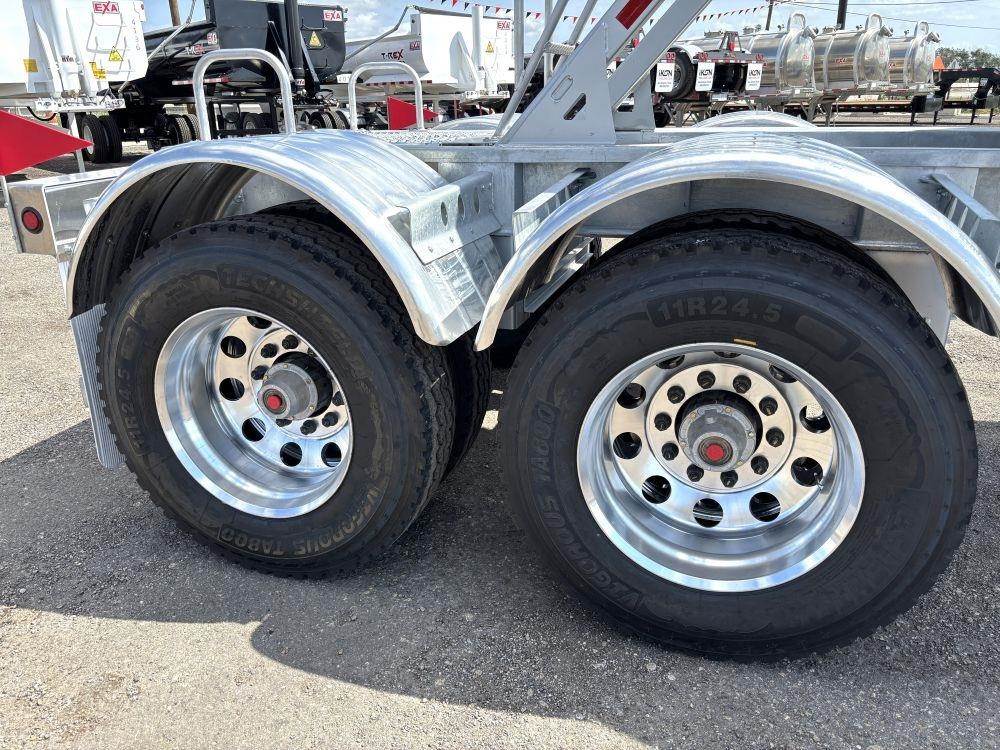

Tires: Eight (8) 24.5 x 11R 16 ply.
Upper Coupler: Adjustable 3/8 in. A572 steel plate with Holland king pin at 49" height.
Wheels: All aluminum wheels 24.5" 10 hole budd.

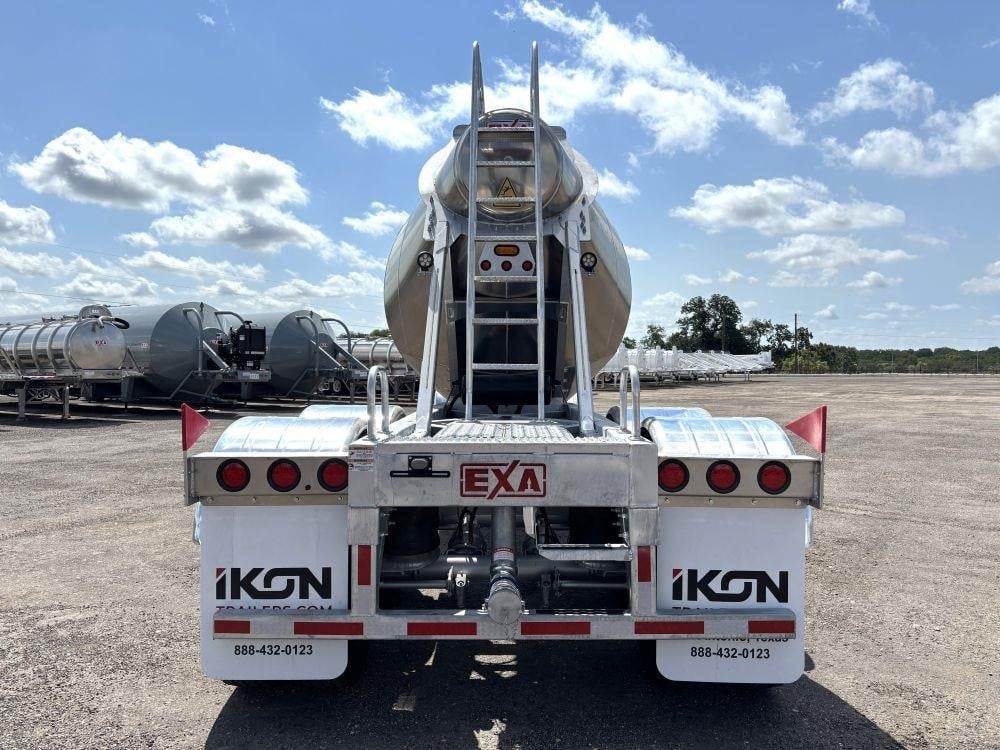

Access Ladder: One (1) in aluminum located in the rear with handrails and grab handles EX-Access® (For increased safety).

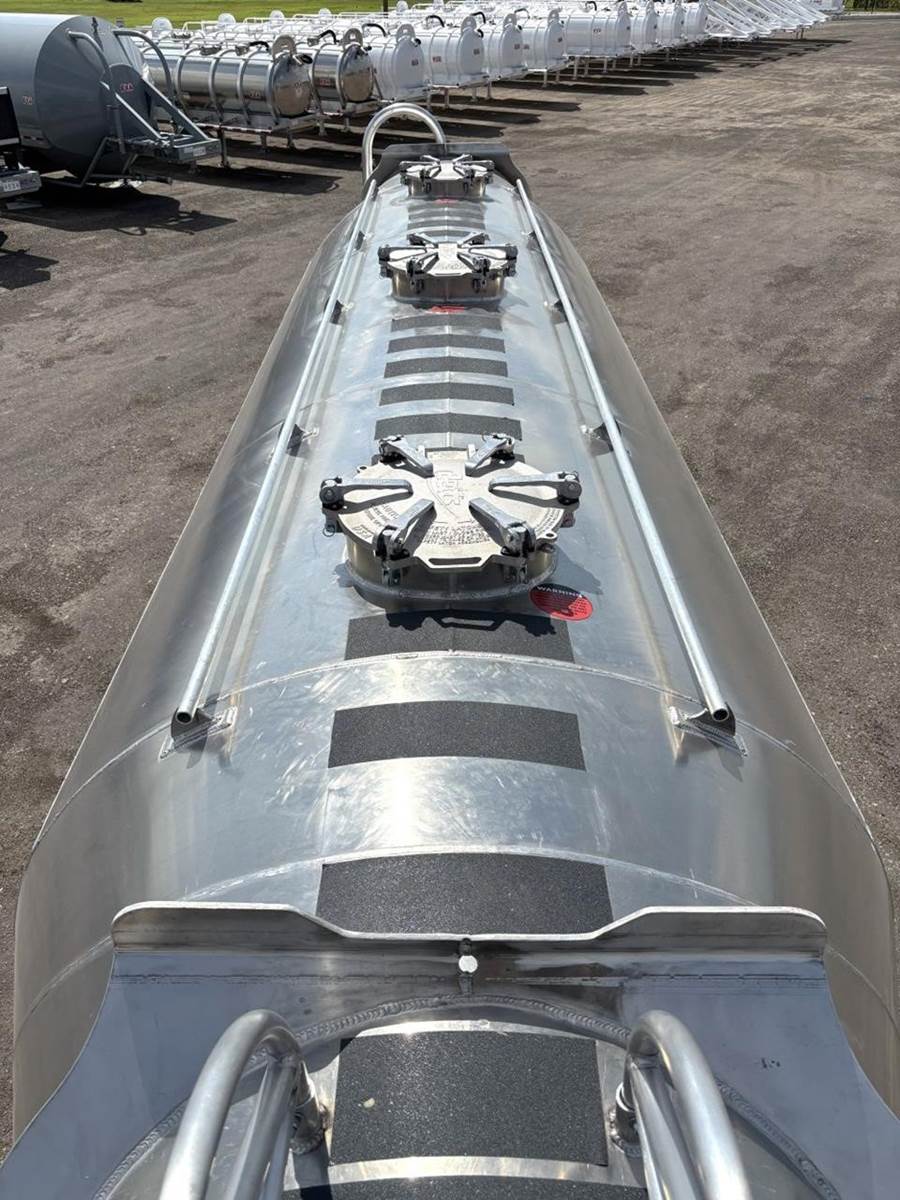

Manways: Three (3) 20 in. all-alluminum sealed manways on top of vessel (Betts or Knappco)
Walkway: Anti-slip tape and toe-kicks on top.
Paint Prep: All steel surfaces washed, degreased and sandblasted.

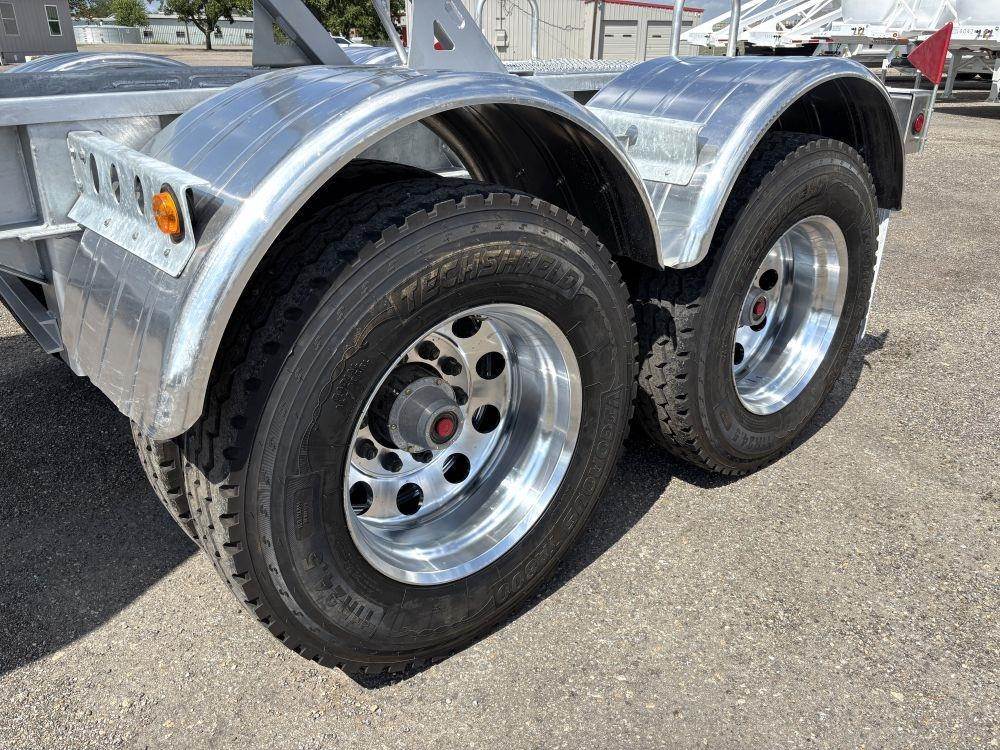

Fenders: Six (6) Aluminum (2 front and 4 rear)

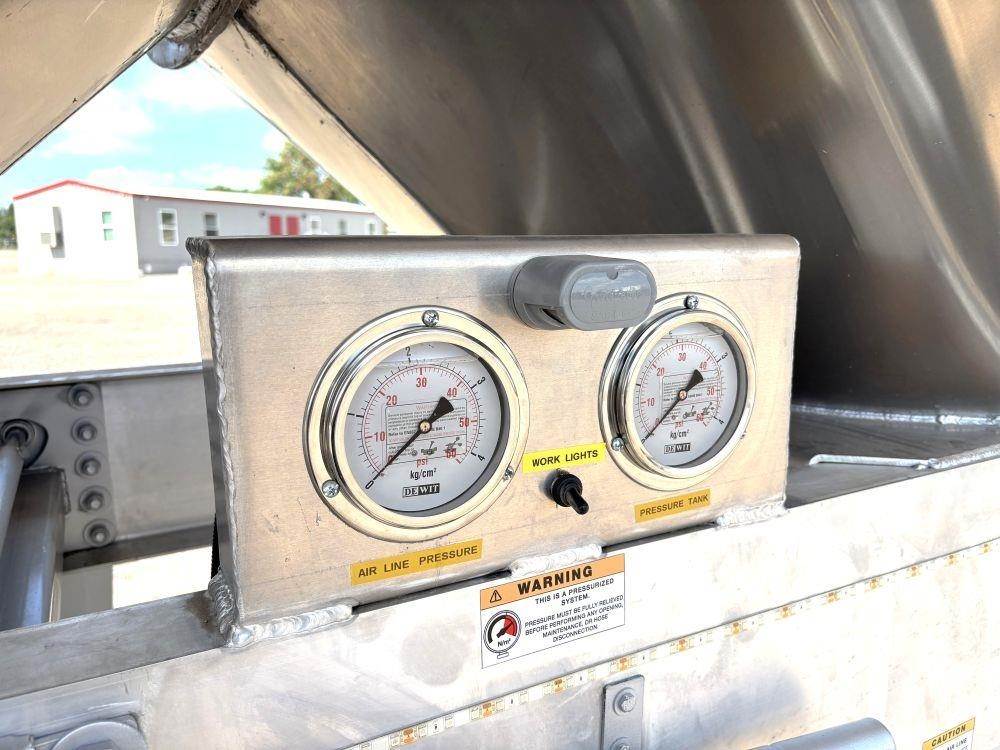

Pressure gauges: Two (2) liquid filled, pressure range 0-30 psi located on driver's side on main frame rail between first hoppers, with light
Lights: Sealed harness and recessed GROTE LED lights per DOT. Two (2) rear work lights with switch at rear
Conspicuity tape: 3M Per DOT
Mud Flaps: Two (2) Anti-sail with IKON logo
Optional Multiple configurations: A wide variety of discharge options, loading lines, piping arrangements, and multiple compartments
