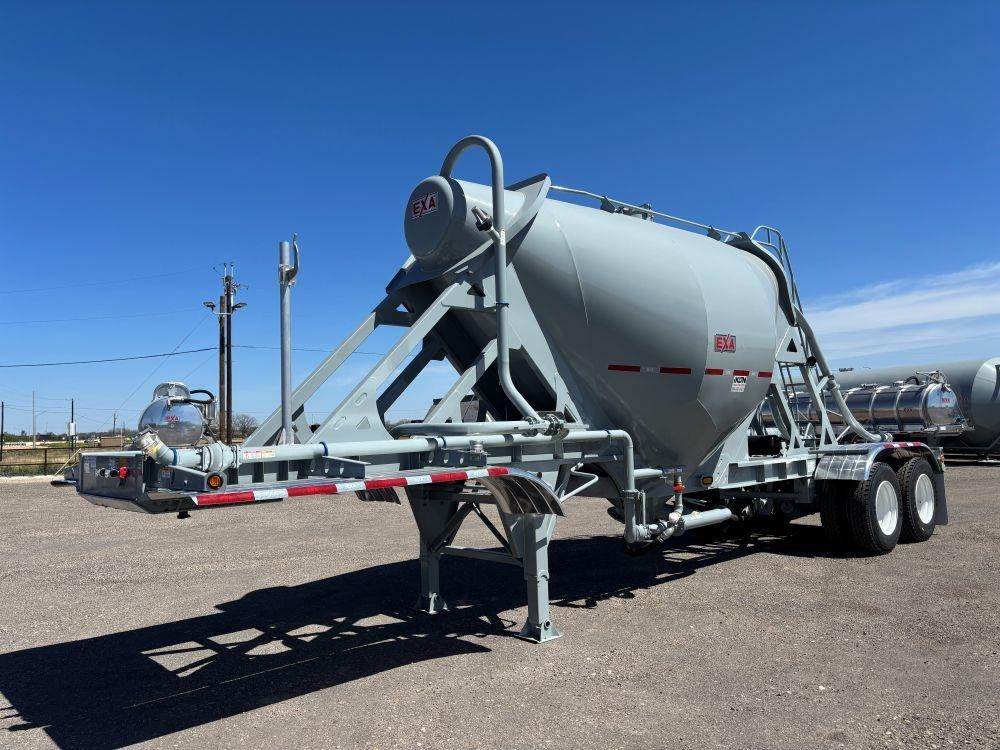

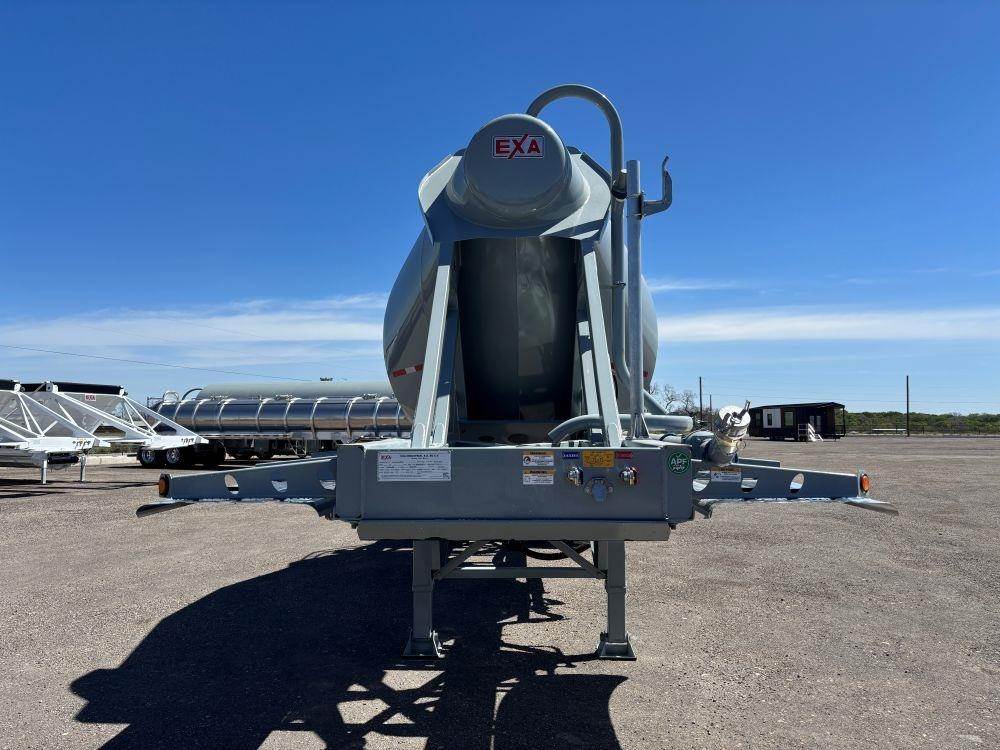

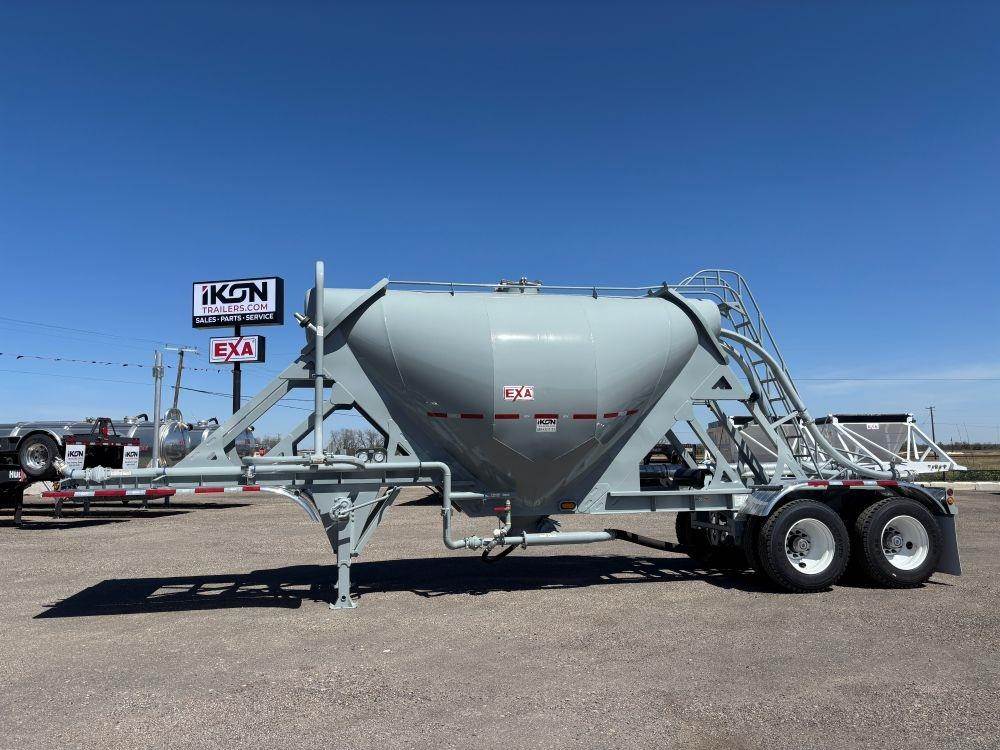

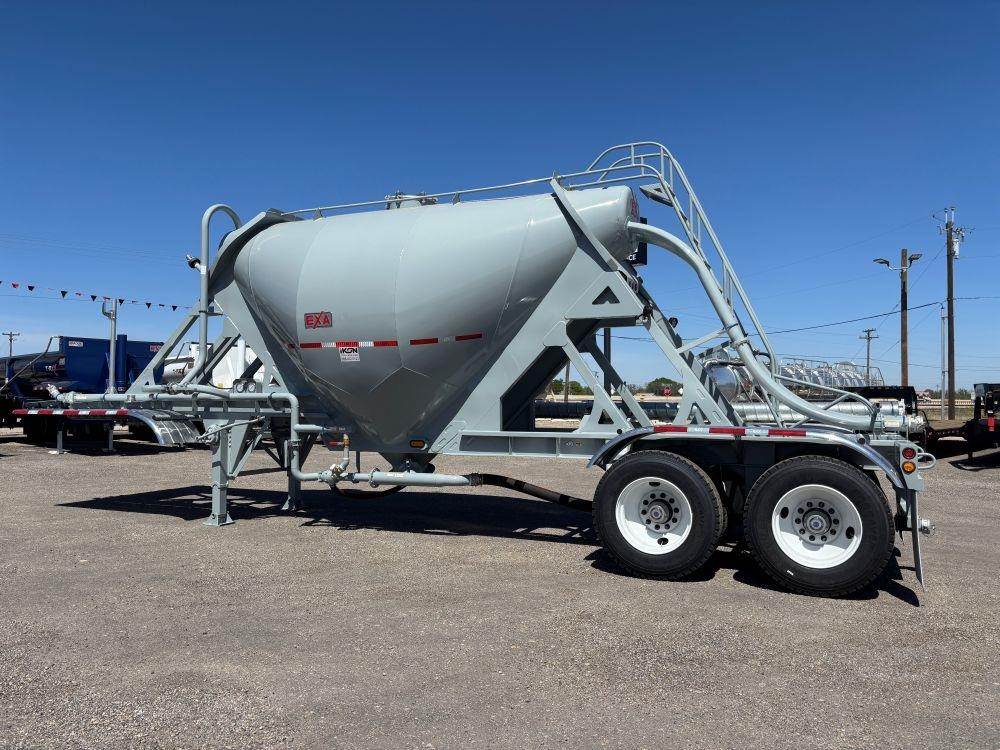

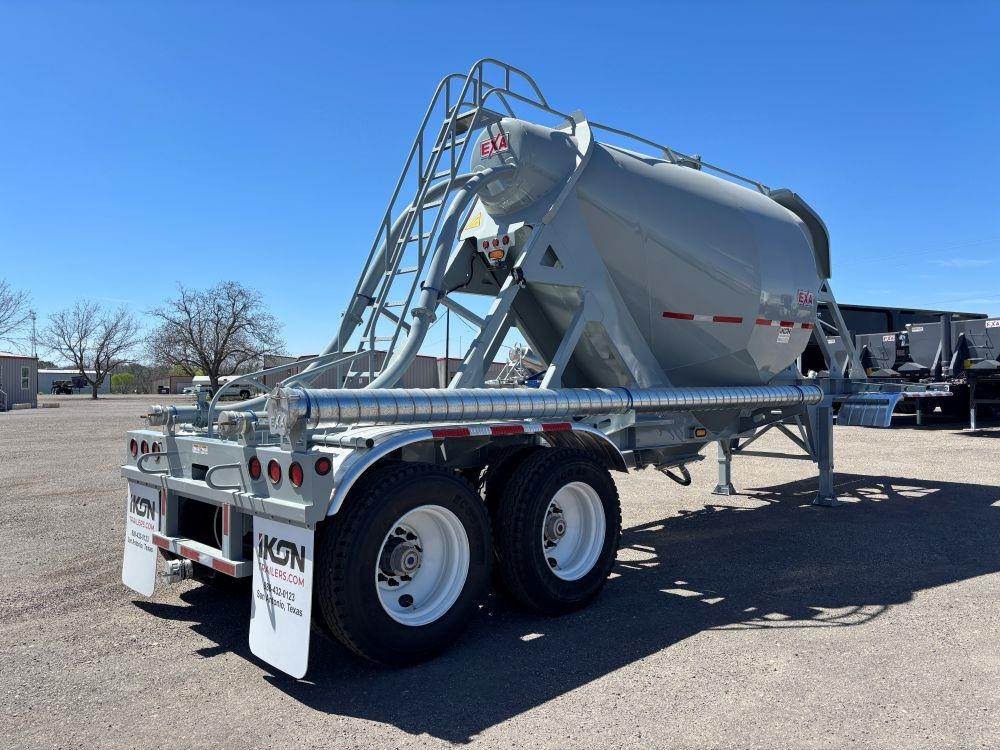

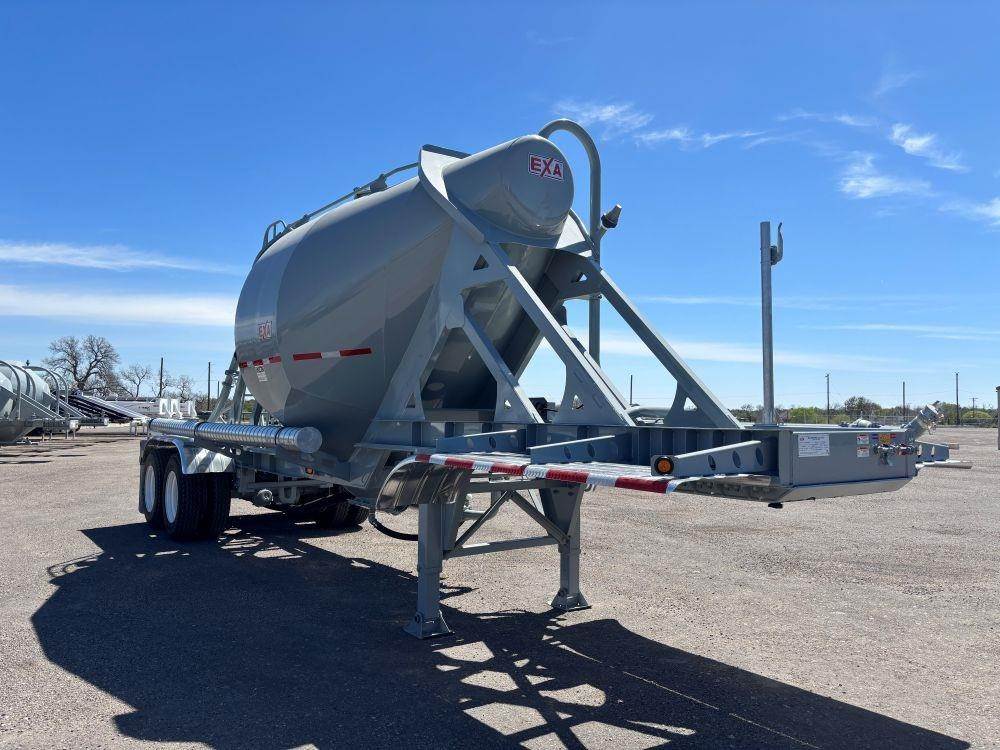

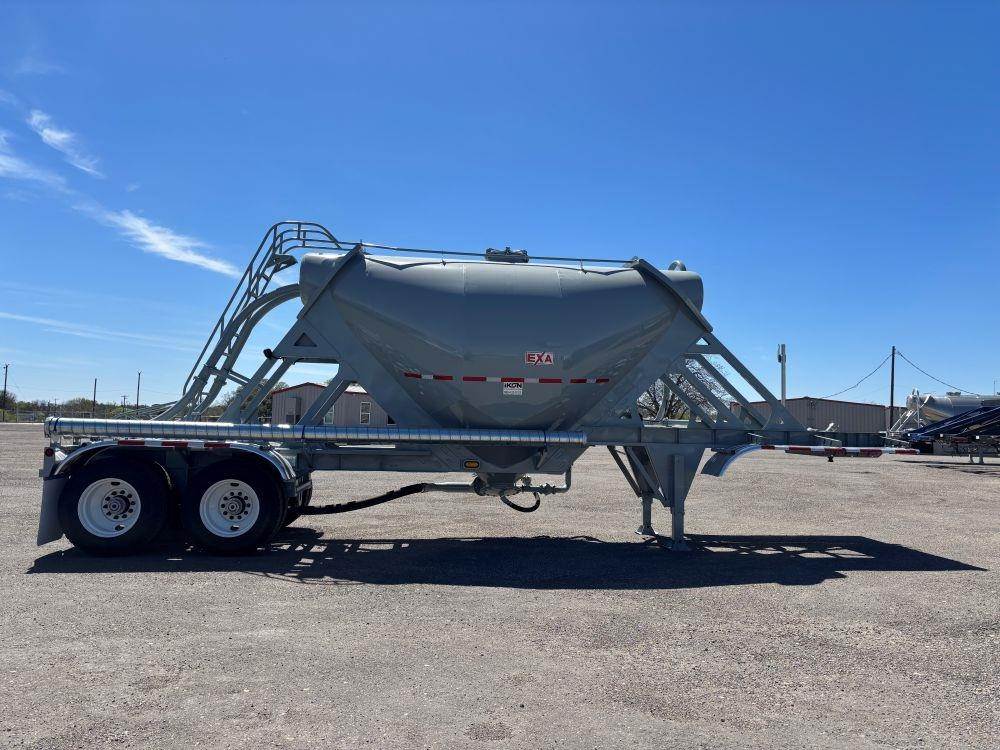

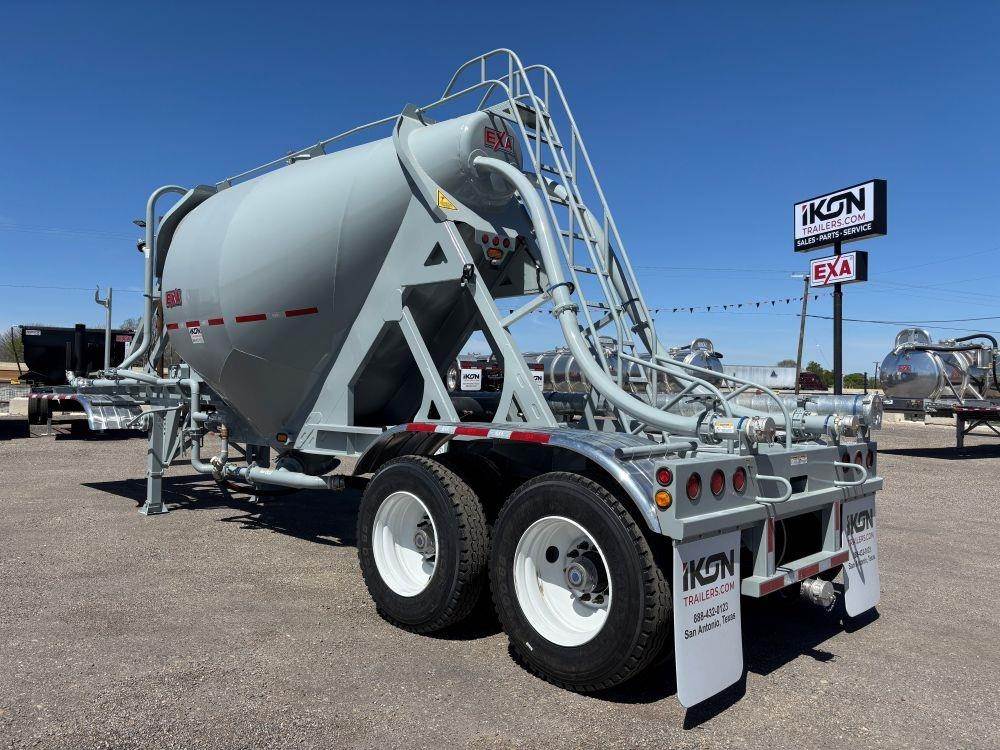

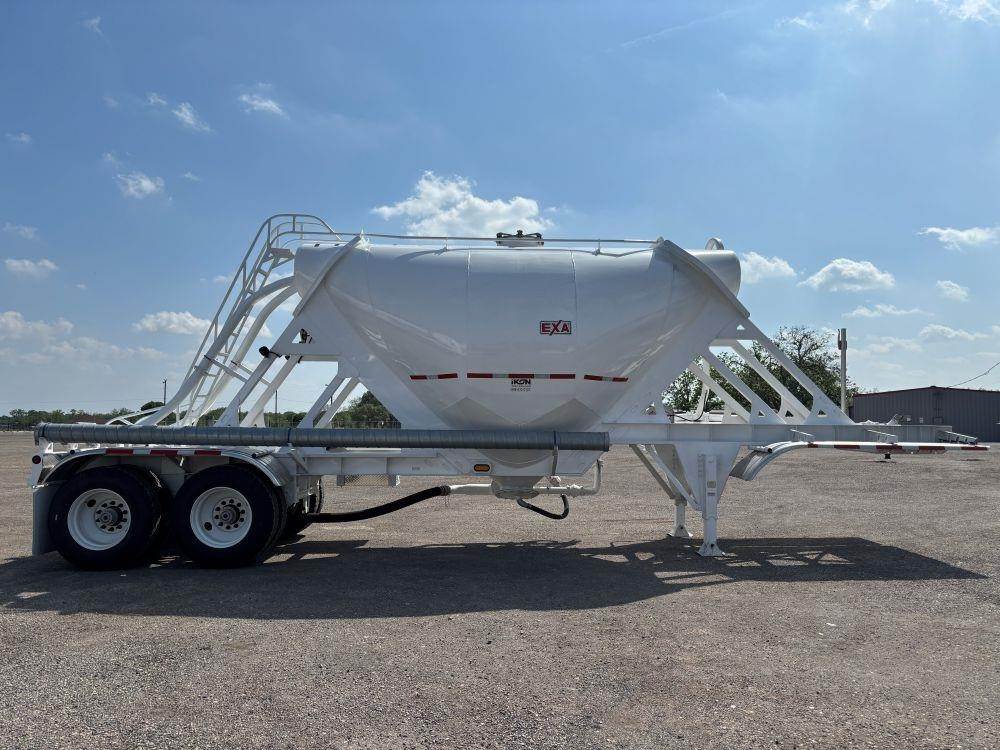

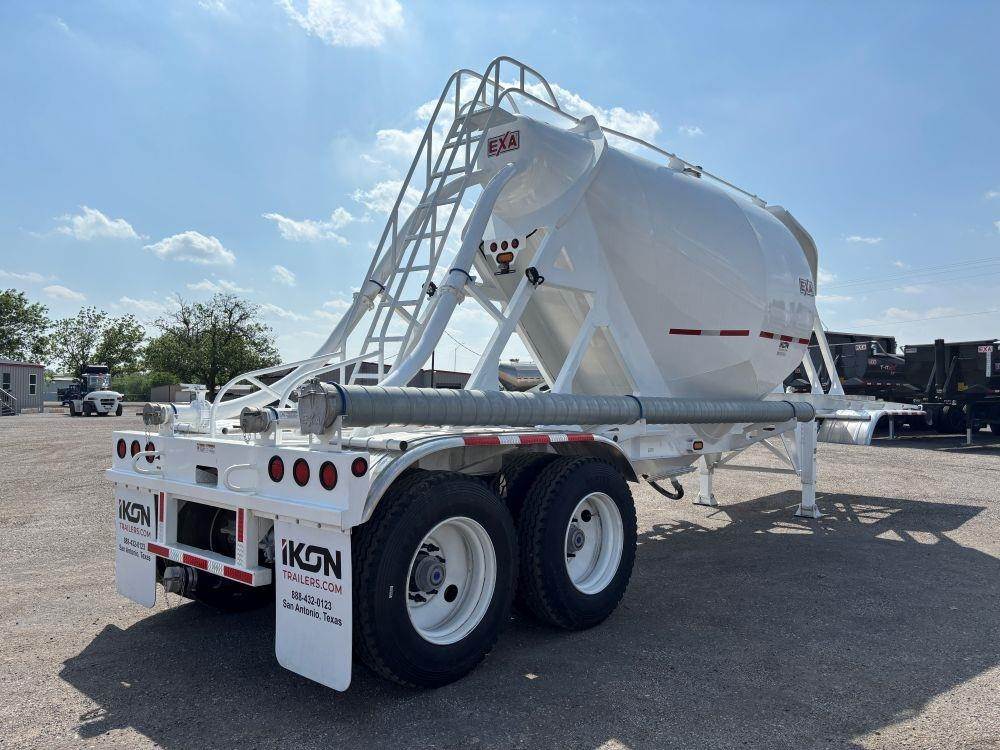

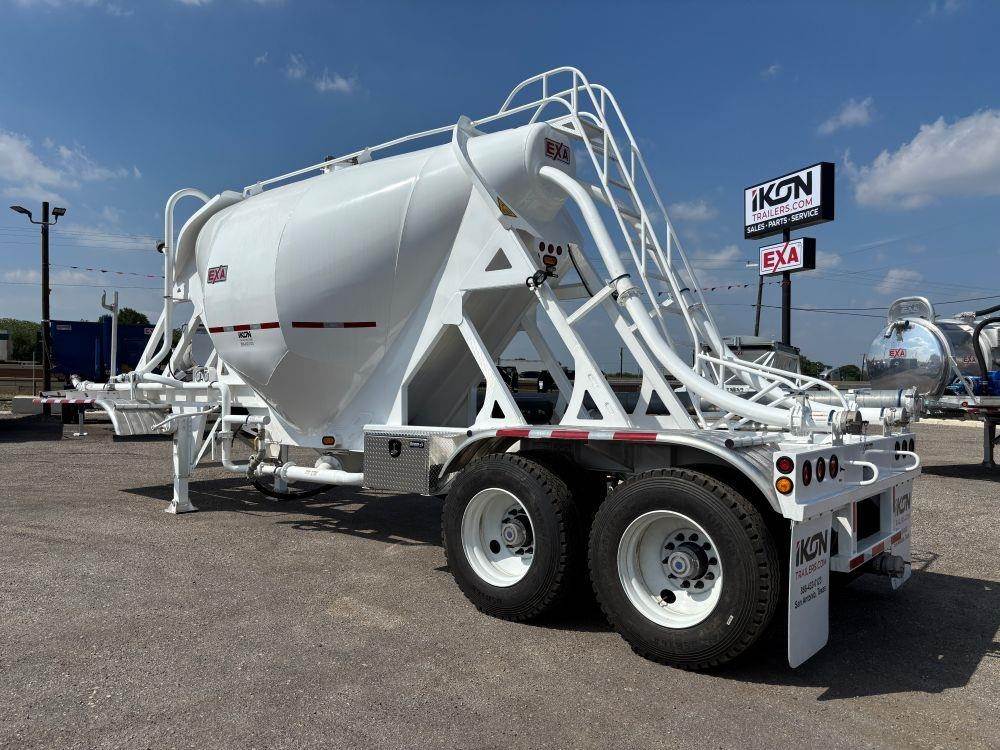

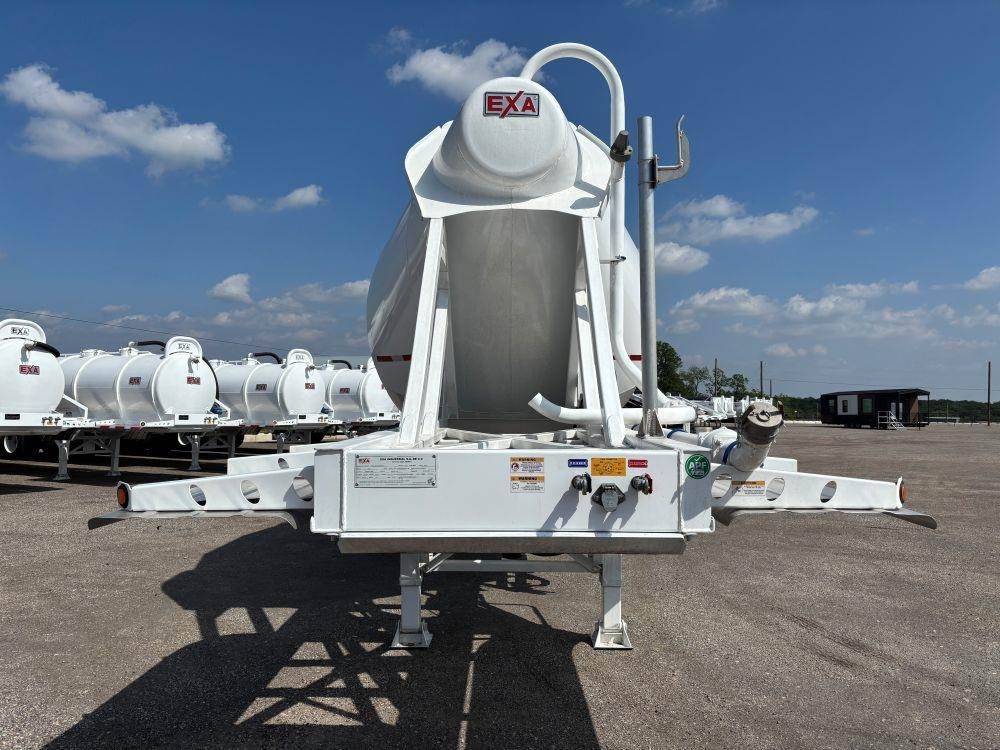

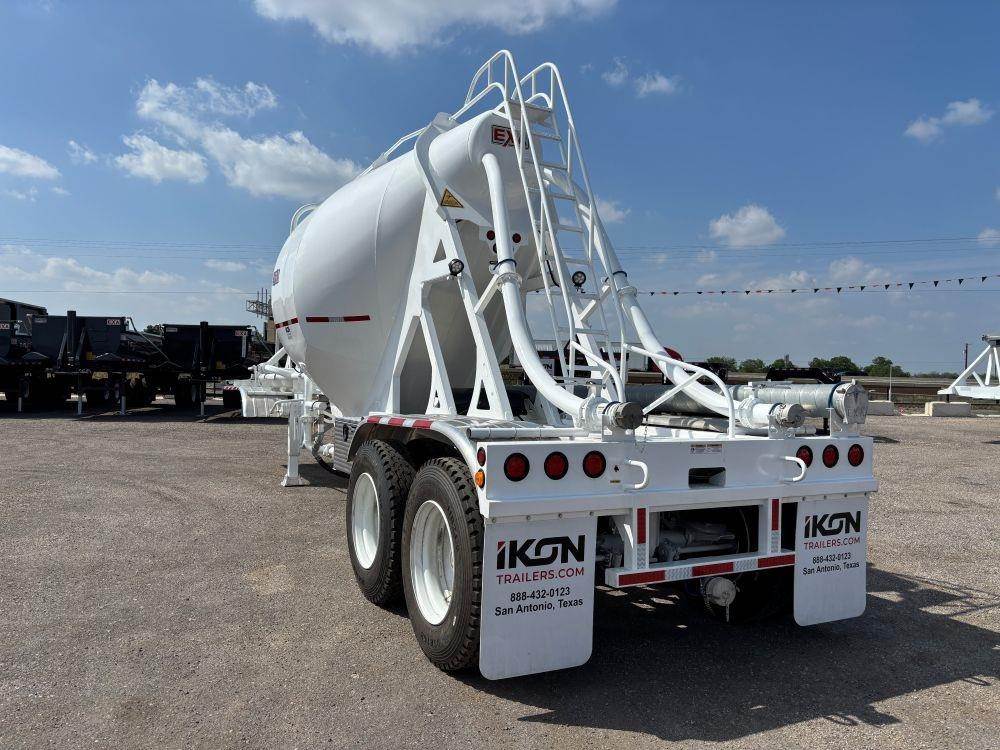

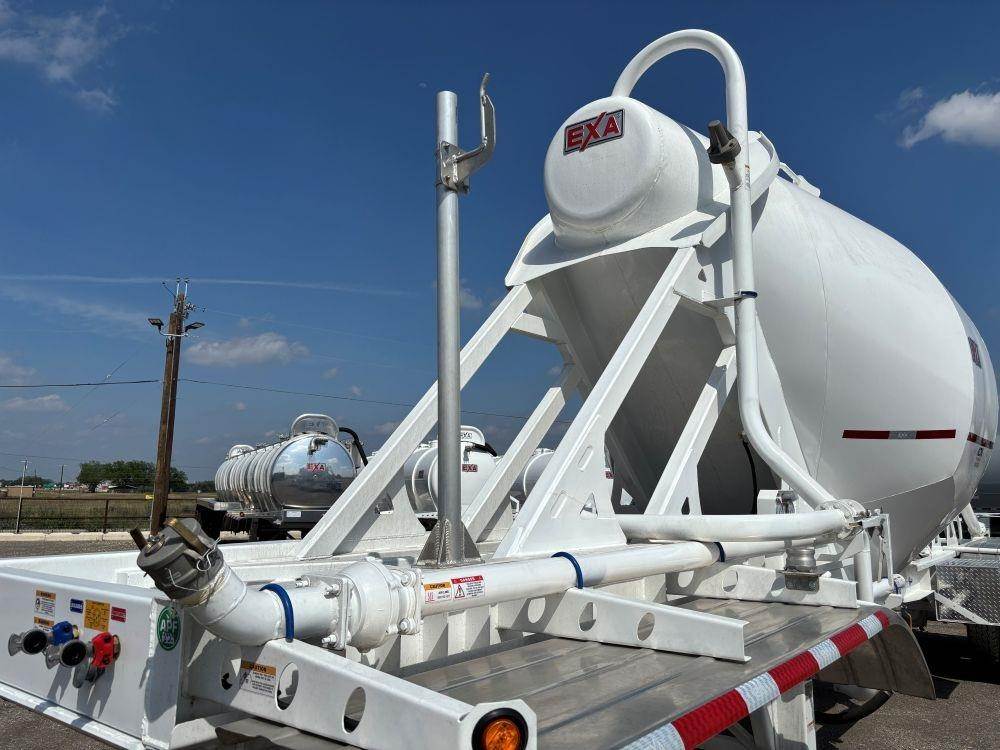

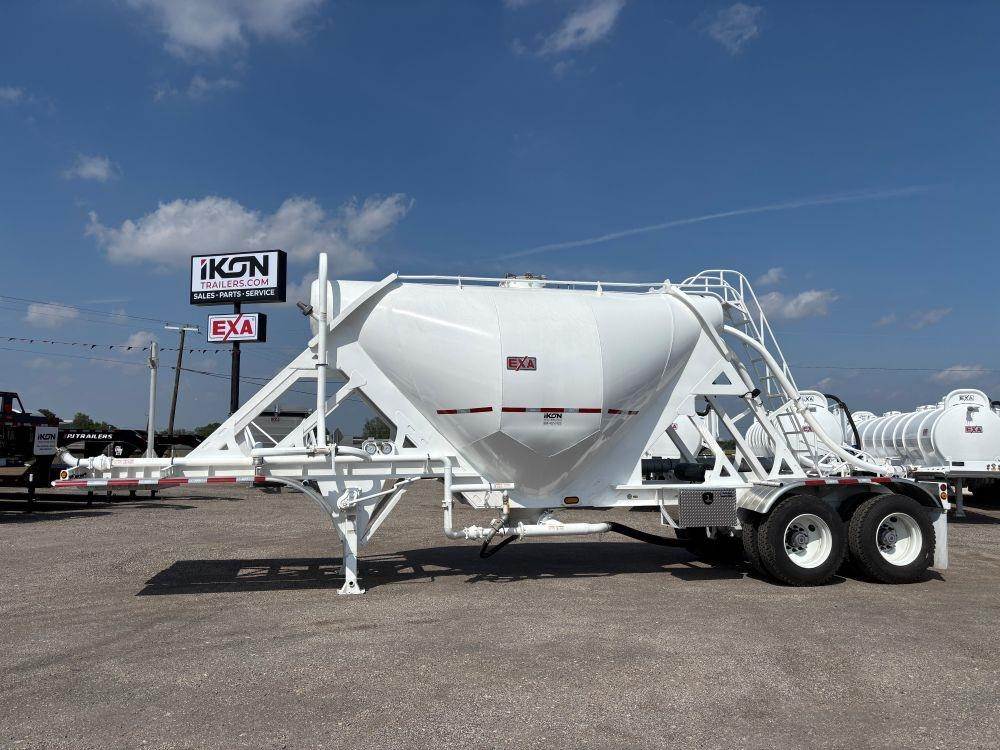

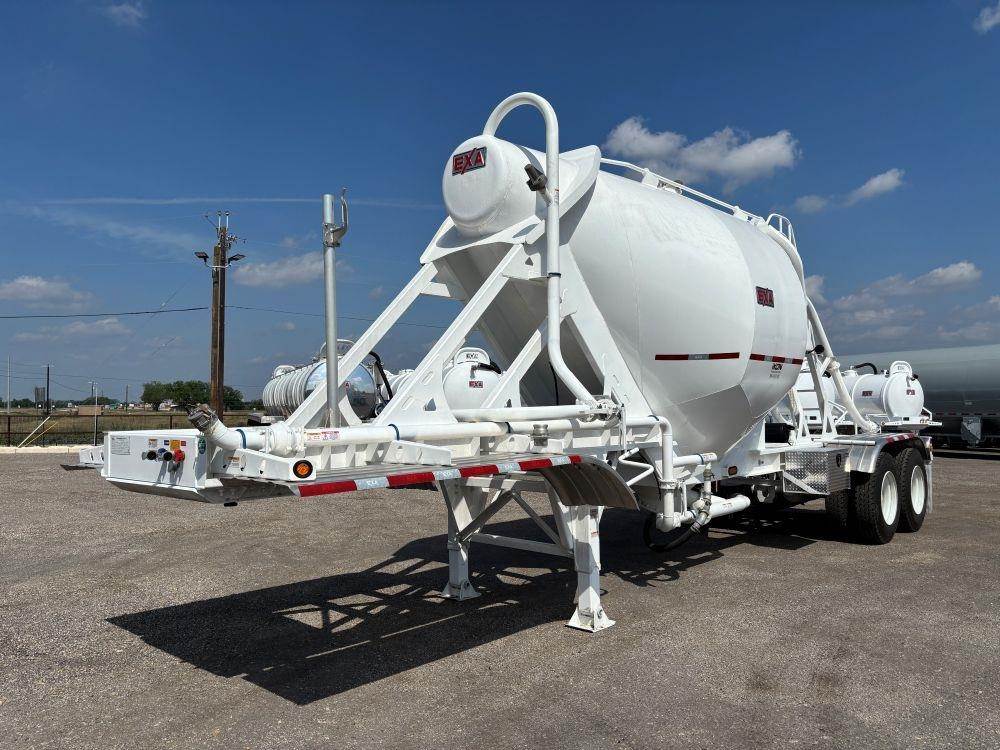

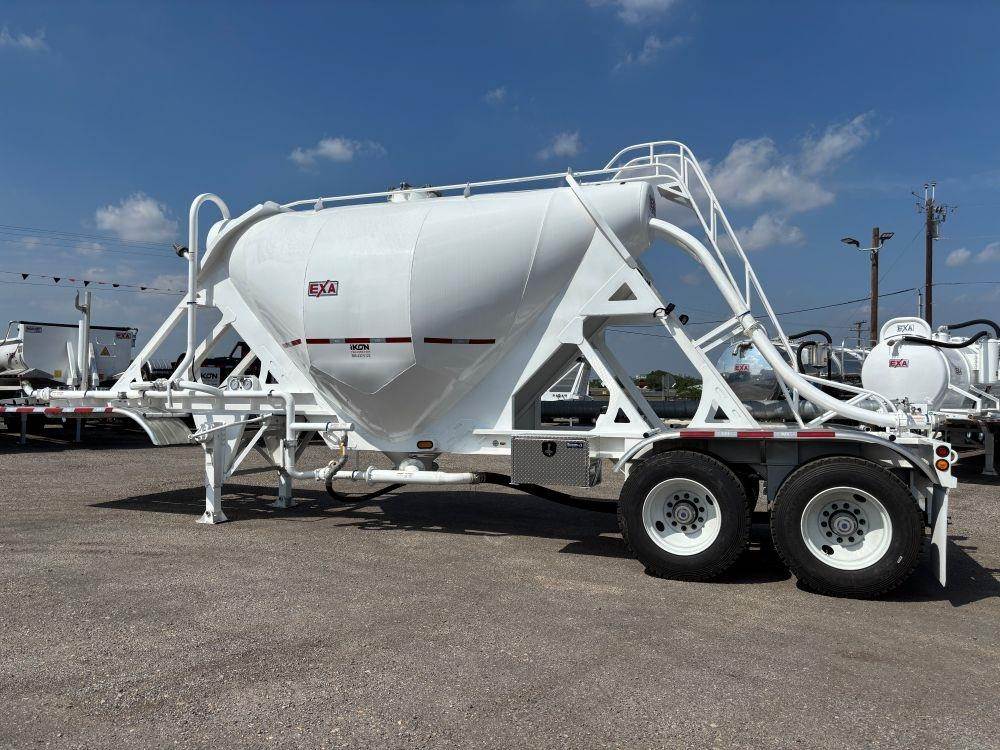

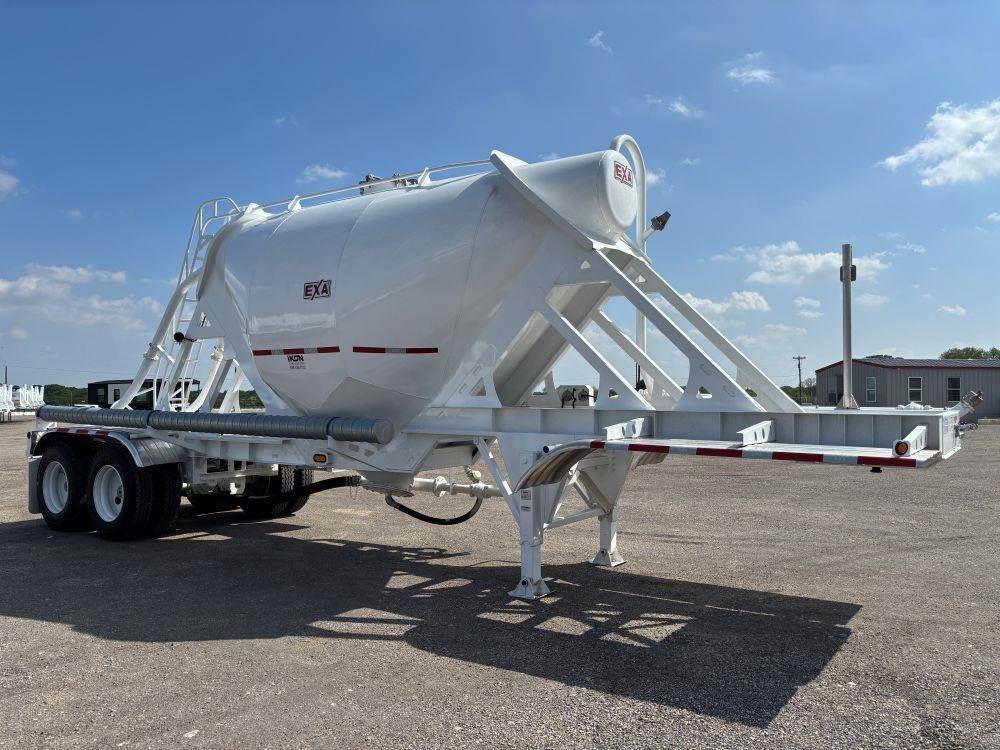

2027 EXA 575CF Dry Bulk / Pneumatic Tank Trailer

CUSTOM 575cf Pneumatic Dry Bulk Steel Trailer
(Options in specs may differ)

Capacity: 575 cu. ft.
Commodity: Transportation of silica sand, limestone, cement and other bulk commodities.
Design Pressure: 15 PSI, tested at 23 PSI
Material: Steel
Suspension: Air Hendrickson 60,000 lbs. capacity.
Weight: 10,900 Lbs. approx.
Height: 12' 10".
Overall Length: 34'.
Width: 102"
Compartments: Single.
Shell: 10 Gauge A572-55 High resistance steel.
Welding: Inside and out, minimal tie-ins with automatic welding.

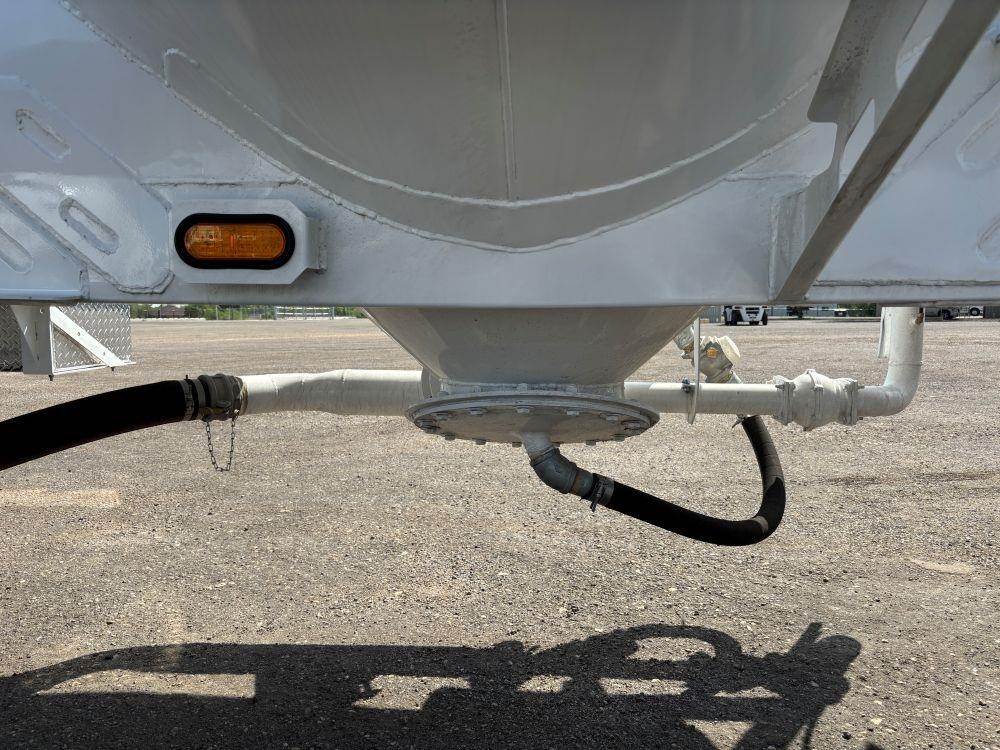

Hopper(s): One (1) cone with 45° slope. Lower fluidizer plate for easier material discharge.

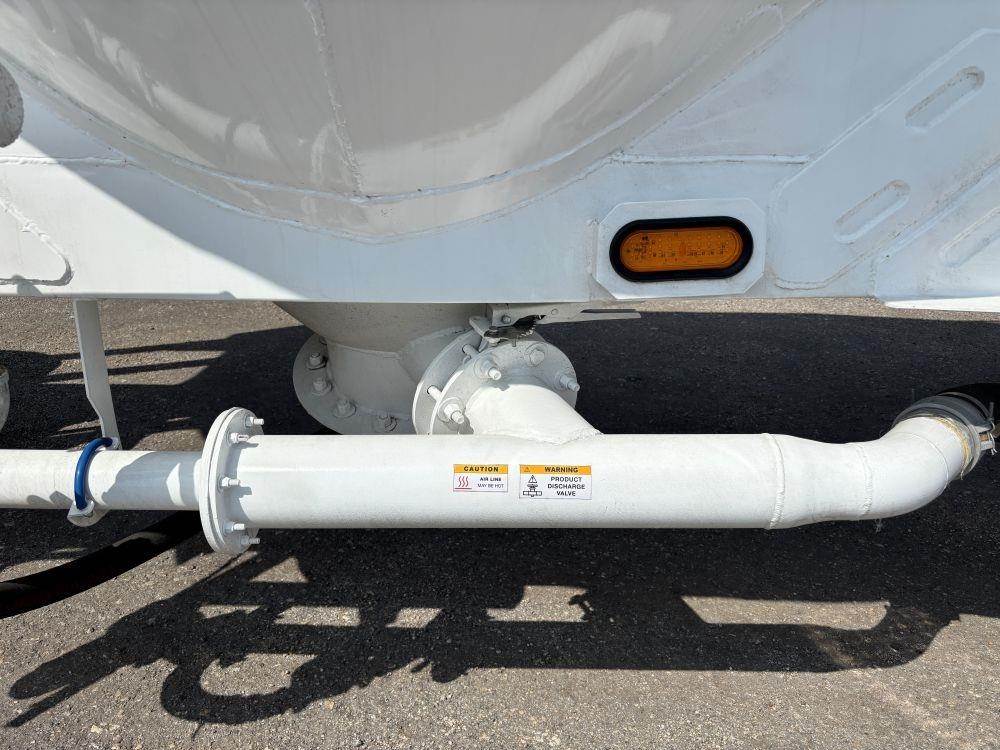

Product Valves: One (1) 6" butterfly valve, steel body, cast iron disc and steel stem.

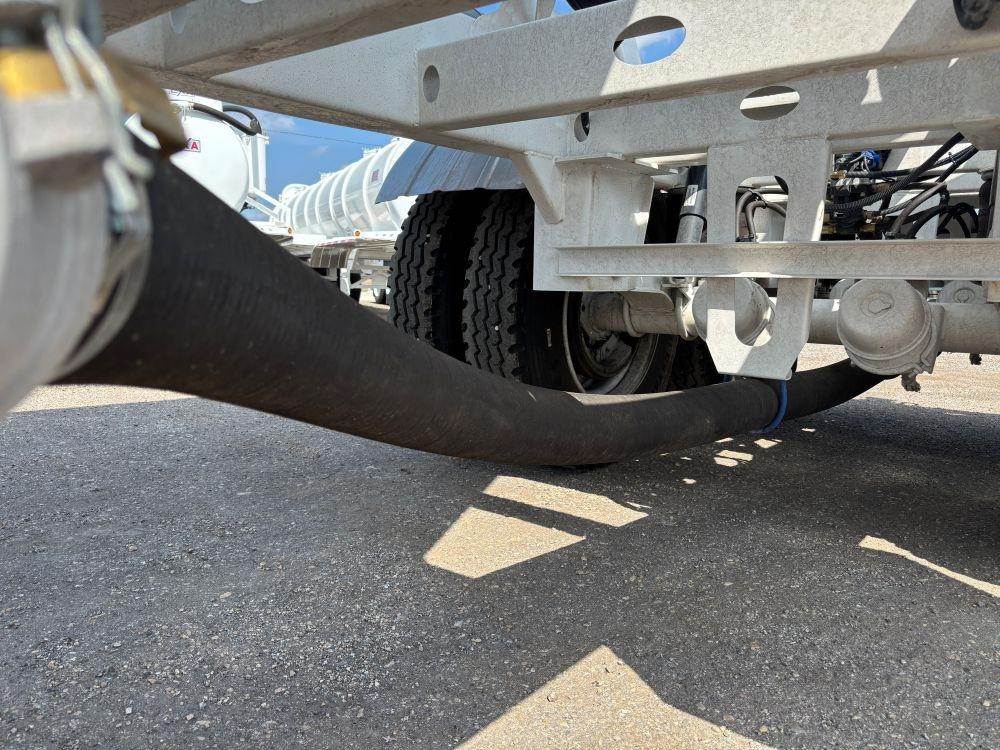

Discharge line: 4" discharge hose oriented to the rear.

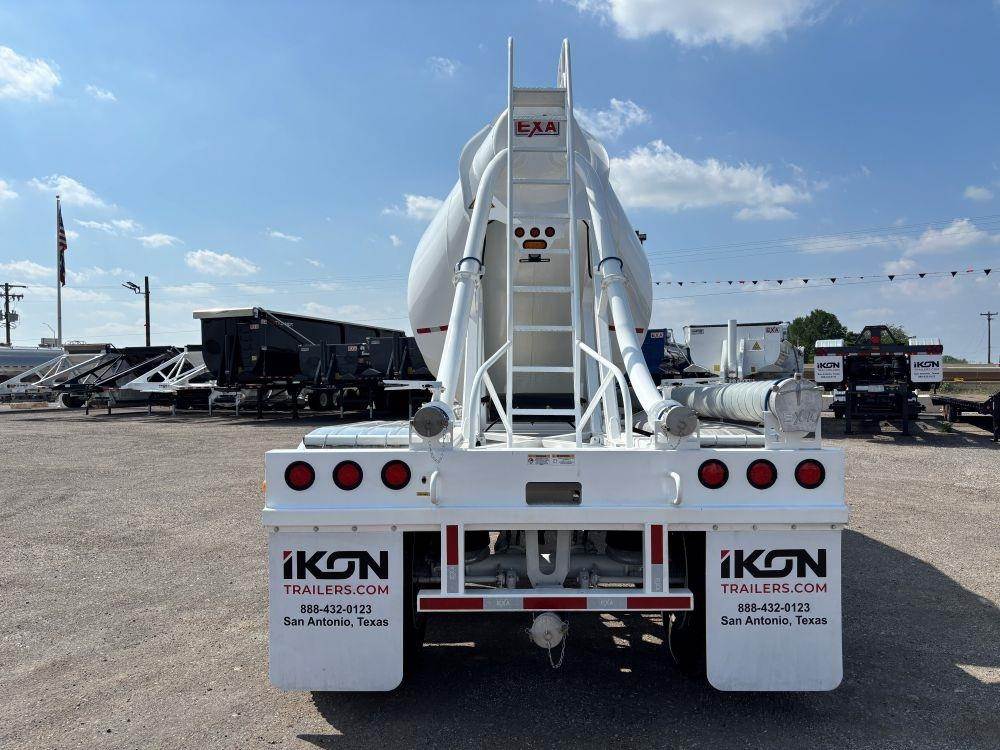

Loading lines: Two (2) 4" loading lines in the rear with two (2) butterfly valves.
Pressure control: 3" butterfly valve to regulate hot airflow to product discharge line
Check valves: First check valve in the hot air inlet line, second check valve in front of first tee and third check valve in air line to solimar plate.
Hose holder: Hose holder located at front.

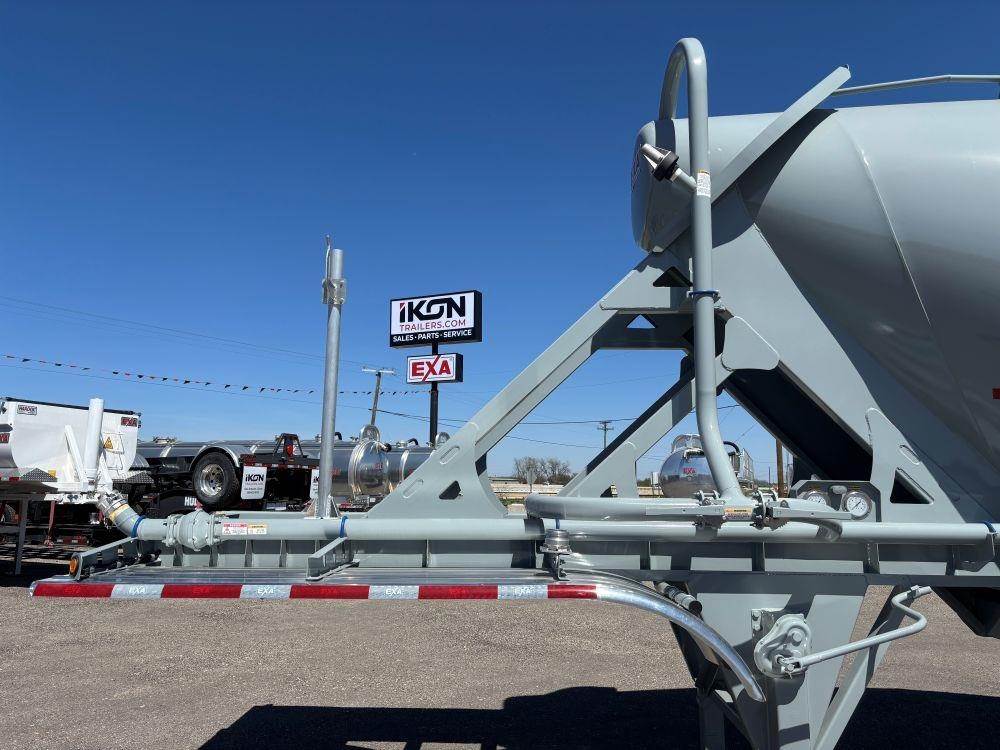

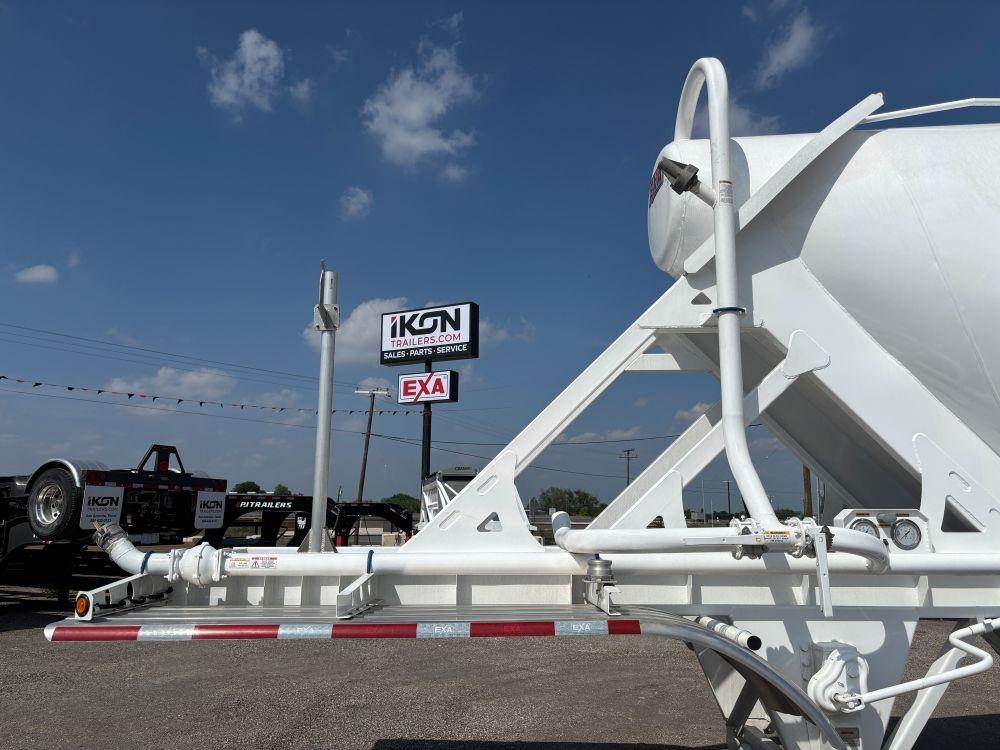

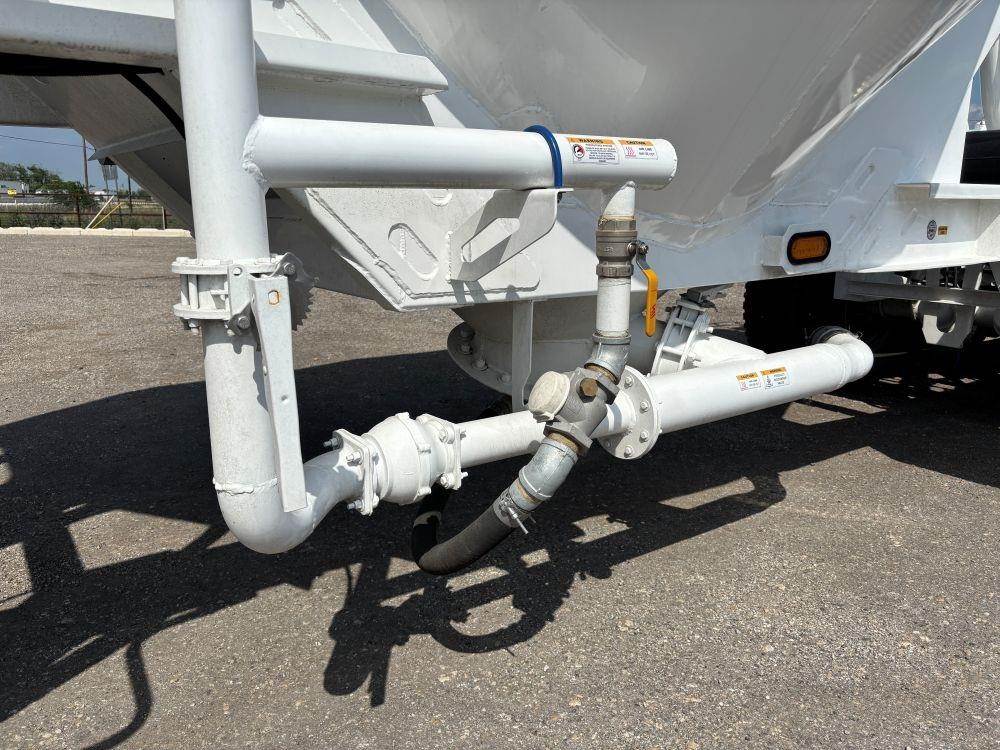

Pluming: 3" inlet tubing 10 gauge steel. All valves and pluming on driver side of trailer.
Top Air and Blow down line: Top air line includes a 3" relief valve with a 3" exhaust directed upward.
Hose tube: One (1) Steel 1x20' on curbside

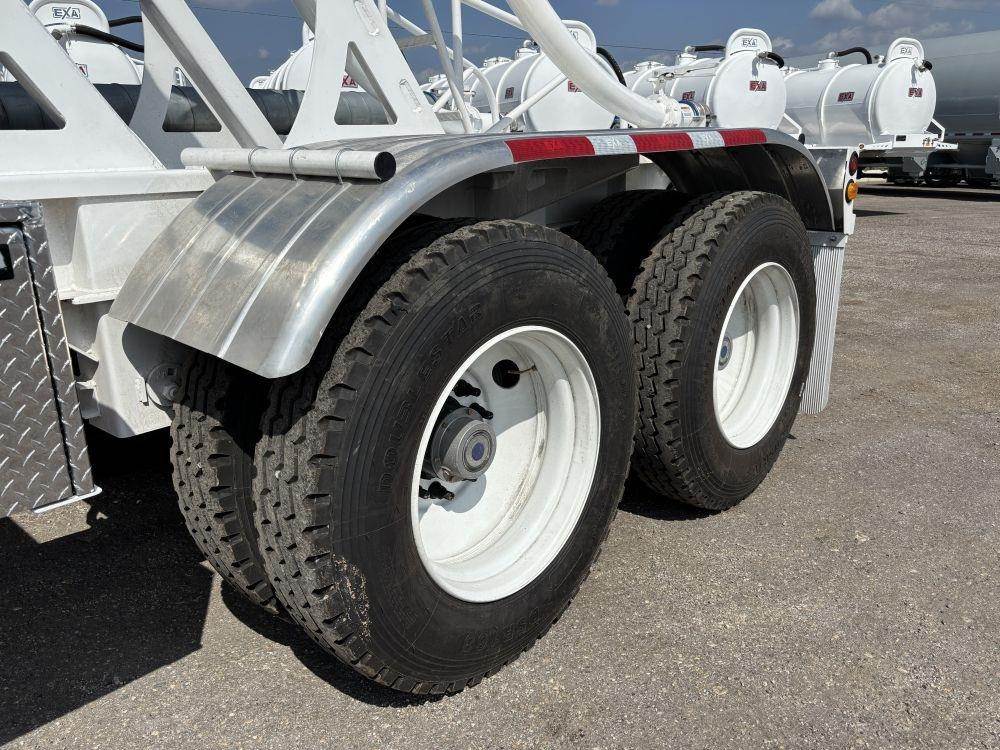

Axles: Two (2) 30,000 lbs. each, 102 in. wide, 77.5 in. track TP type with automatic slack adjuster.
Brakes: Air brakes with two boosters FMVSS-121, ABS 4S/2M Bendix anti-lock brake system.
Air Storage Tank: One (1) air tank.
Bumper: Formed steel. DOT approved.
Frame: Full Length 3/16 in. Strenx high resistance formed steel (For lighter weight).
Landing Gear: Two (2) two speed Heavy Duty (80,000 lbs. total) with handle on driver's side.

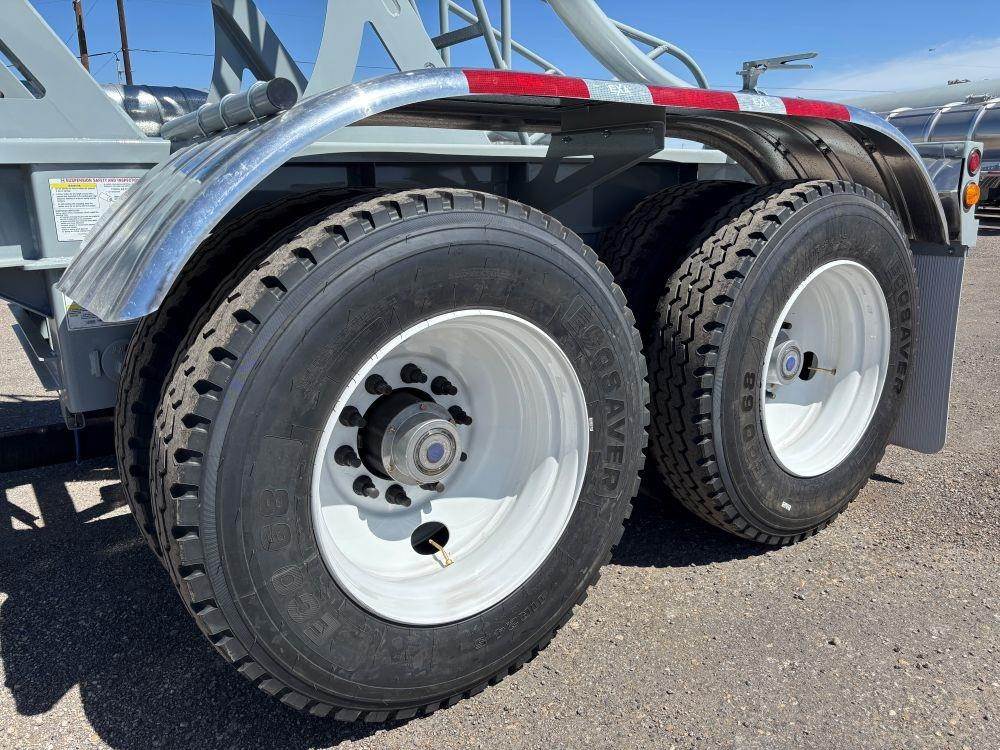

Tires: Eight (8) 24.5 x 11R 16 ply.
Wheels: All steel wheels 24.5" 10 hole budd.
Upper Coupler: Adjustable 3/8 in. plate with Holland king pin at 49" height.

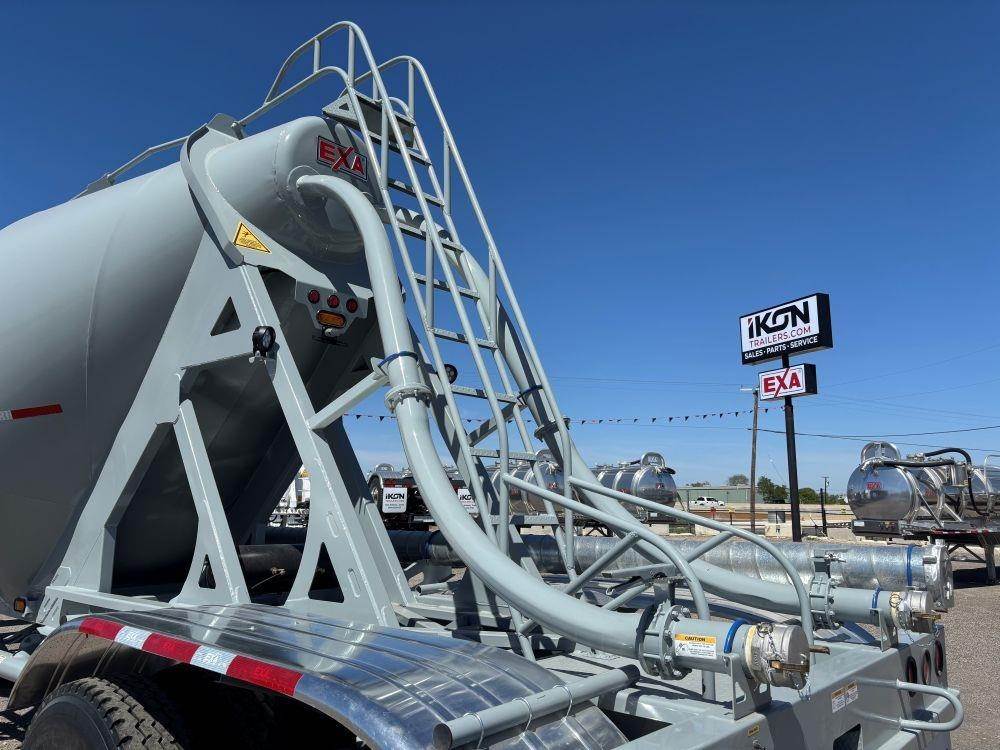

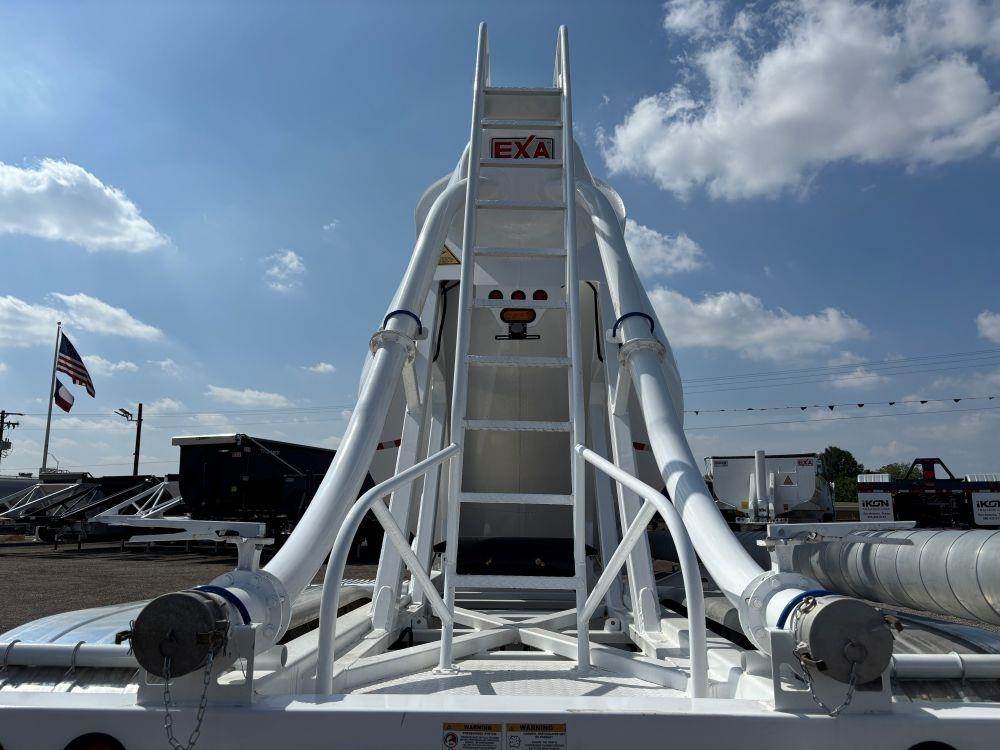

Access Ladder: One (1) located at driver's side with handrails and grab handles (For increased safety).
Manways: One (1) 20 in. sealed manways on top aluminum lid with hinge on the right.
Walkway: Not included.
Paint Prep: All steel surfaces washed, degreased and shotblasted.
External Coating: Hempel two coats of polyurethane on an epoxy primer (4-6 mils DFT). Paint applied before electrical installation.
Fenders: Four (4) Aluminum (front and rear)

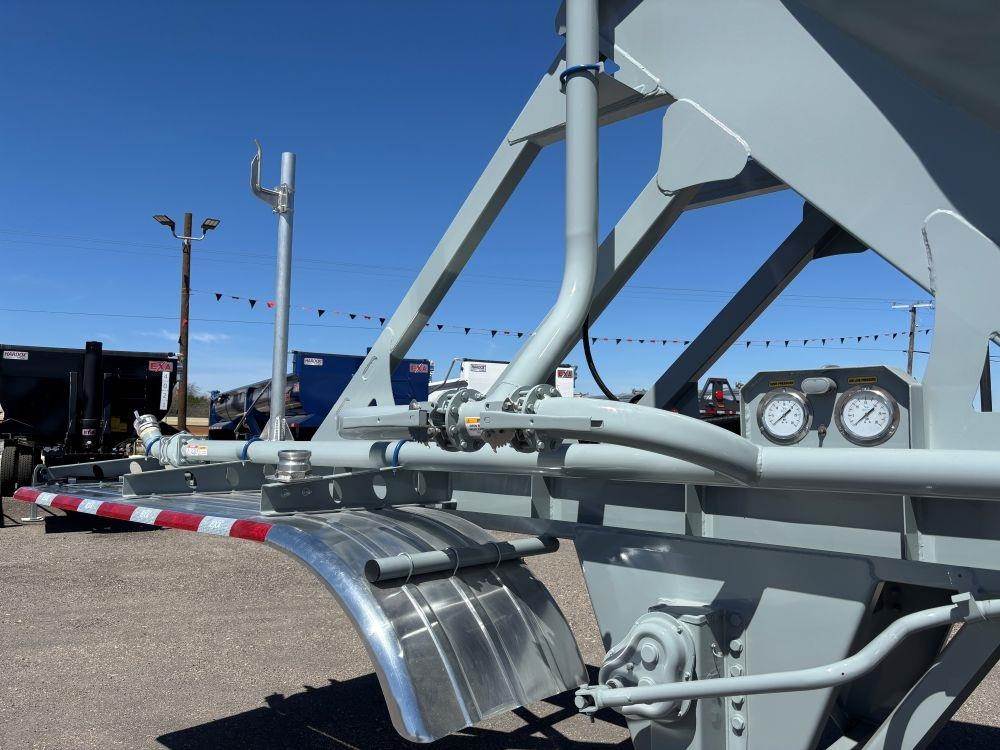

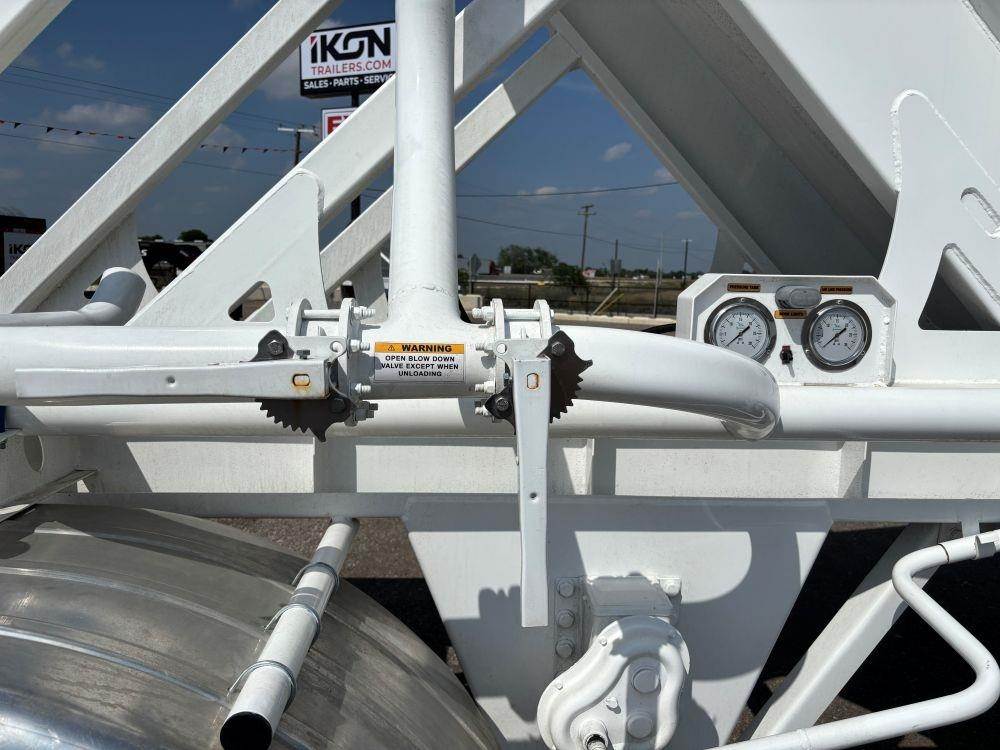

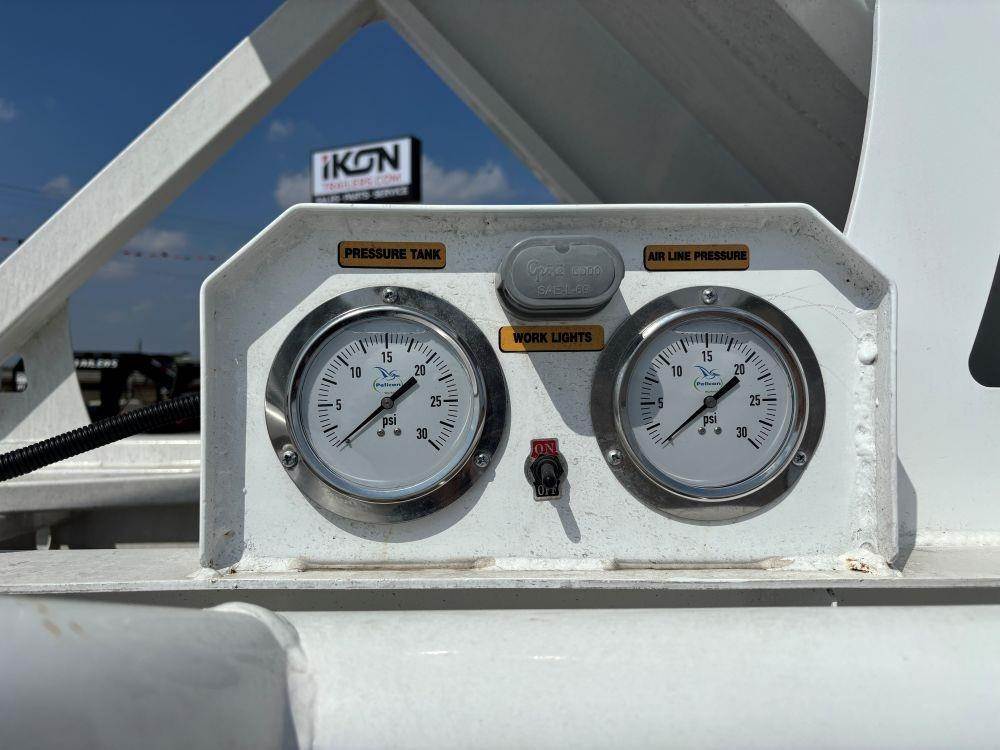

Pressure gauges: Two (2) liquid filled, pressure range 0-30 psi located on street side on frame with light.
Tow feature: Two (2) "U" round bar welded to frame's rails.
Lights: Sealed harness and recessed LED per DOT. Two (2) rear work lights with switch at rear.
Conspicuity tape: 3M Per DOT.

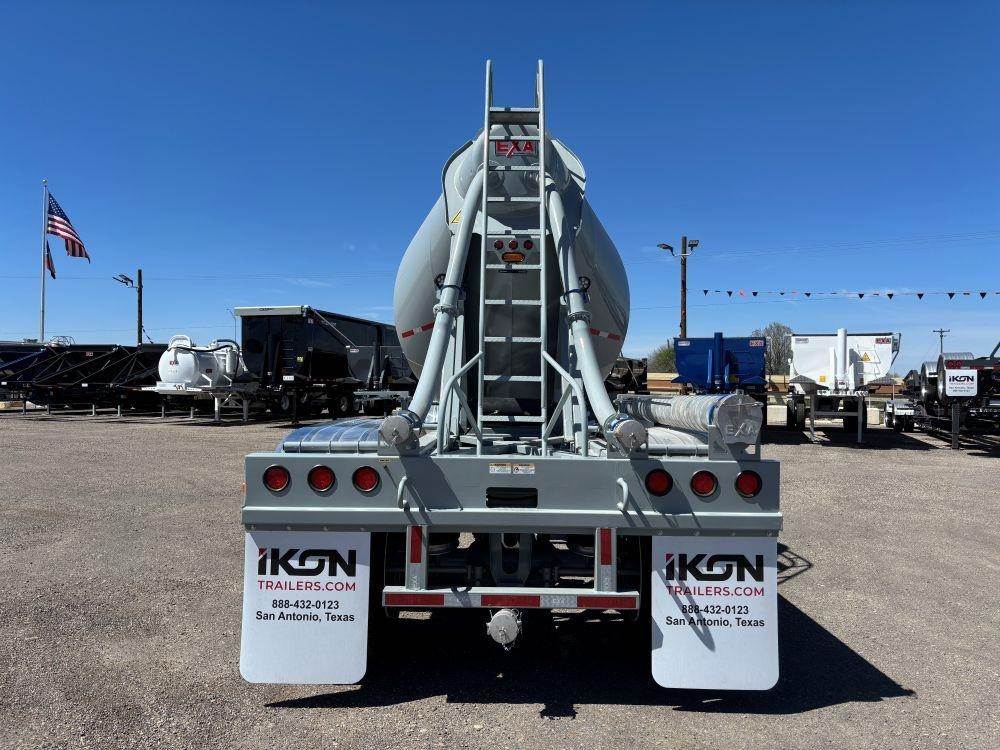

Mud Flaps: Four (4) Anti-sail with IKON logo.
Optional Multiple configurations: A wide variety of discharge options, loading lines, piping arrangements, and multiple compartments
Paint Color: Available in a variety of different colors.
