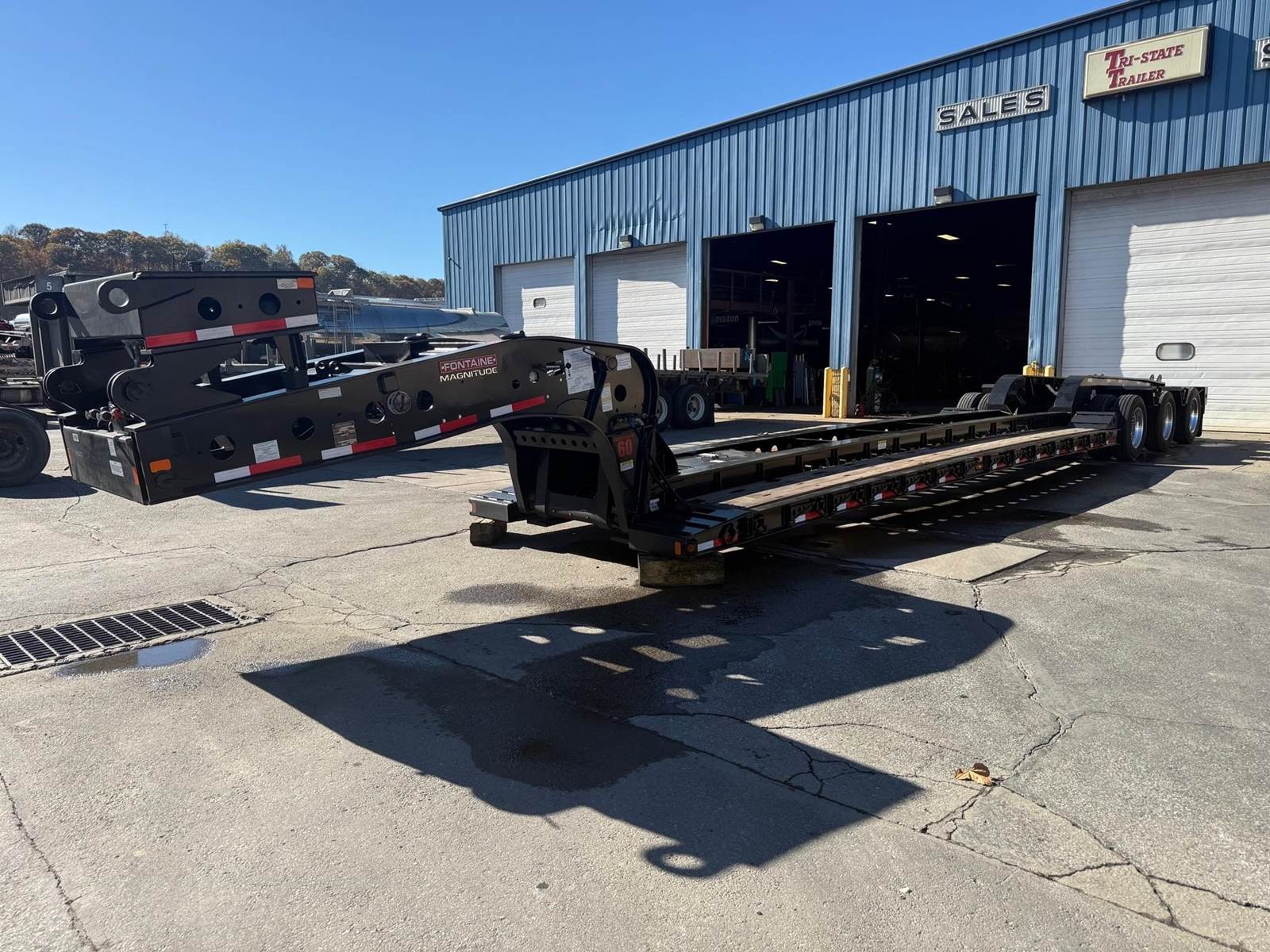

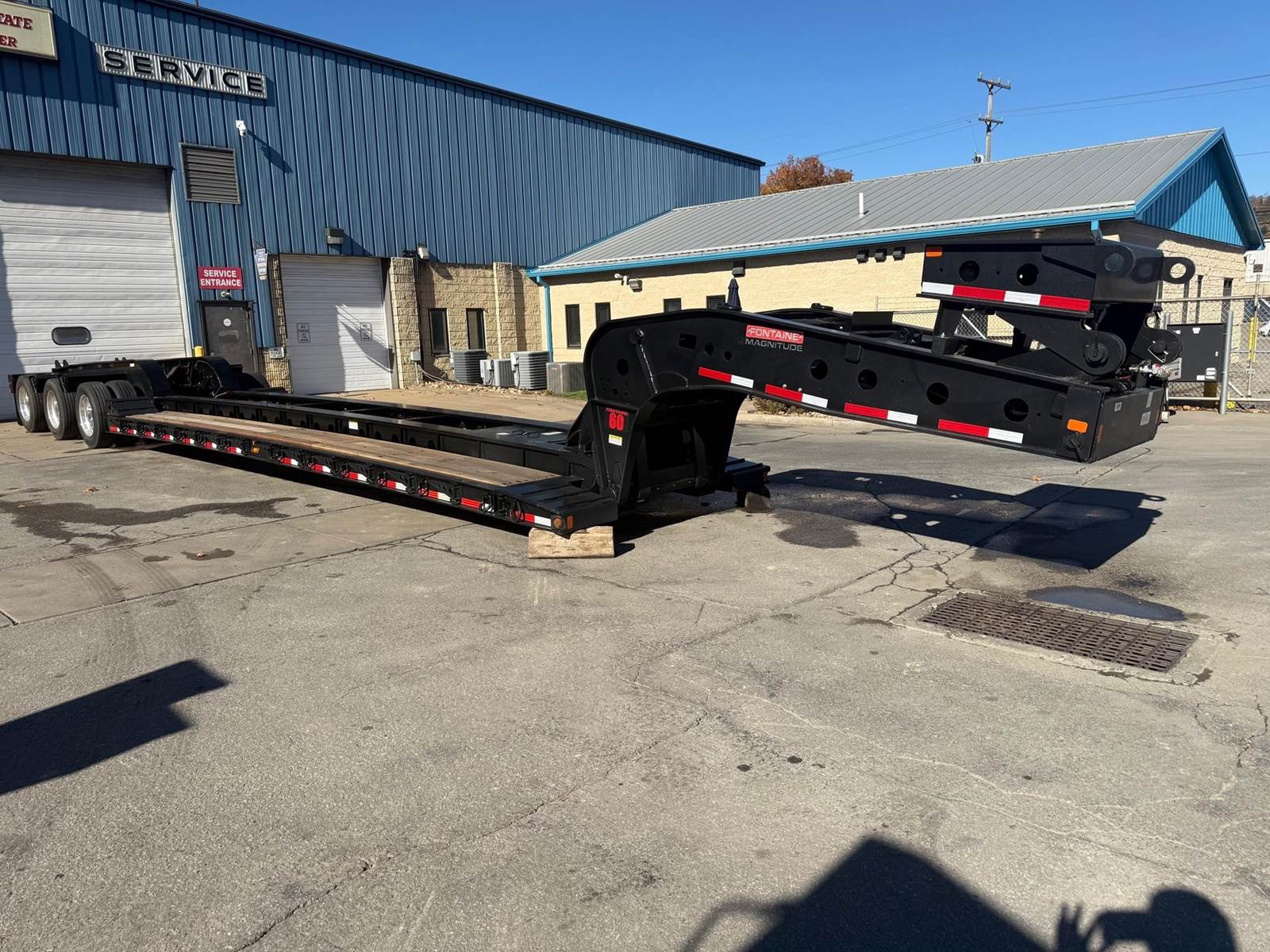

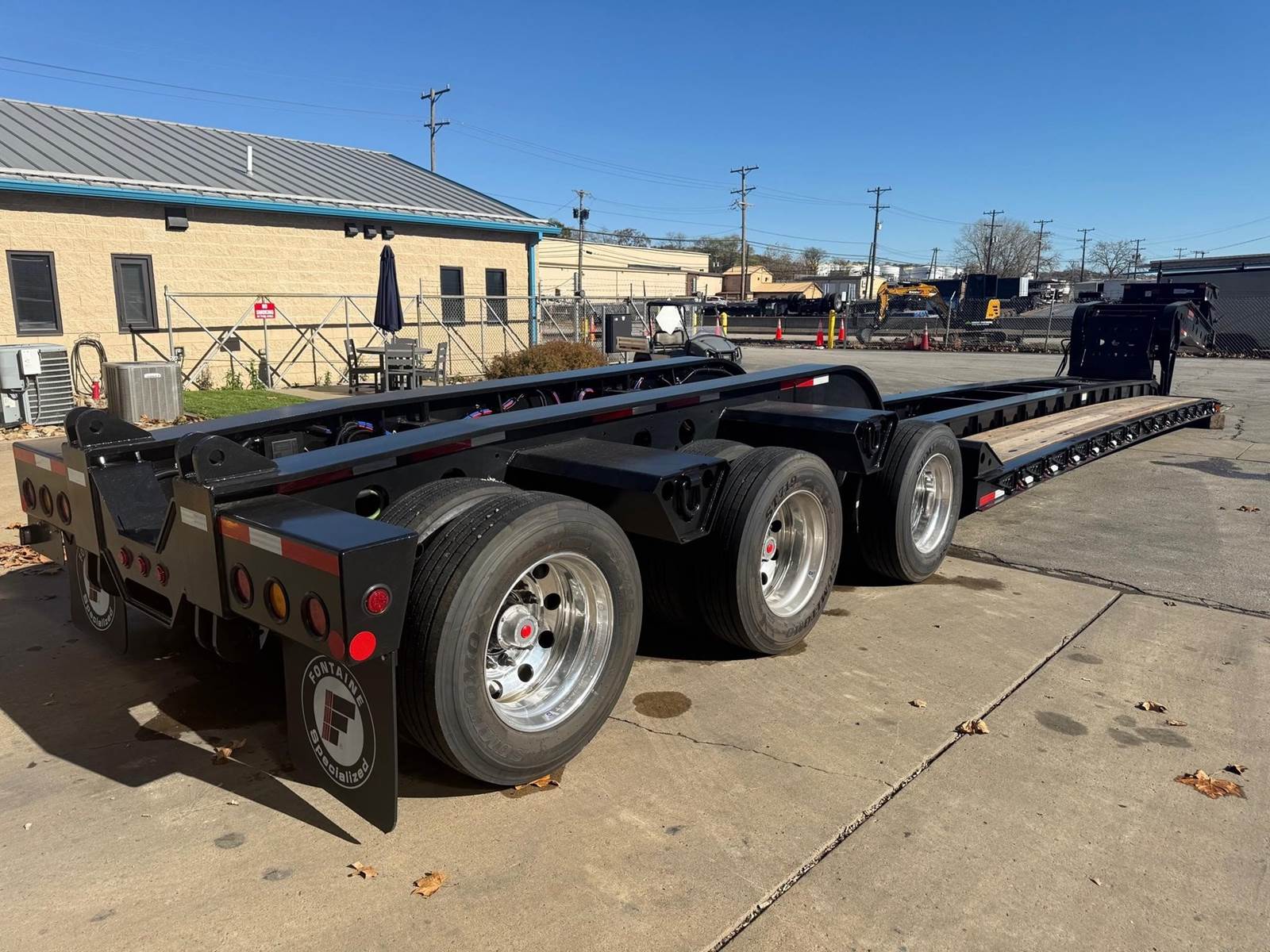

2026 Fontaine MAGNITUDE 60HD MDSR Lowboy Trailer

Heavy 60 Ton or Lightweight 65 Ton. Trailer can be ran 2+3+2 with a 60 Ton Rating or 4/5 Close Couple to achieve a 65 Ton Rating. Intermediate and Rear Flip Axles IN STOCK AND AVAILABLE!

Length 55' 10"
Width 102"
Top Deck Length 12' 8" Gooseneck
Main Deck Length 28'
Main Deck Height 14.5" at Side Rails; 23" at Main Beams
Weight 30,301 Lbs. +/-3%
Flat Body
Compatibility 36" or 83" Neck Ext, 60/90 Flip & EQ2 Spreader

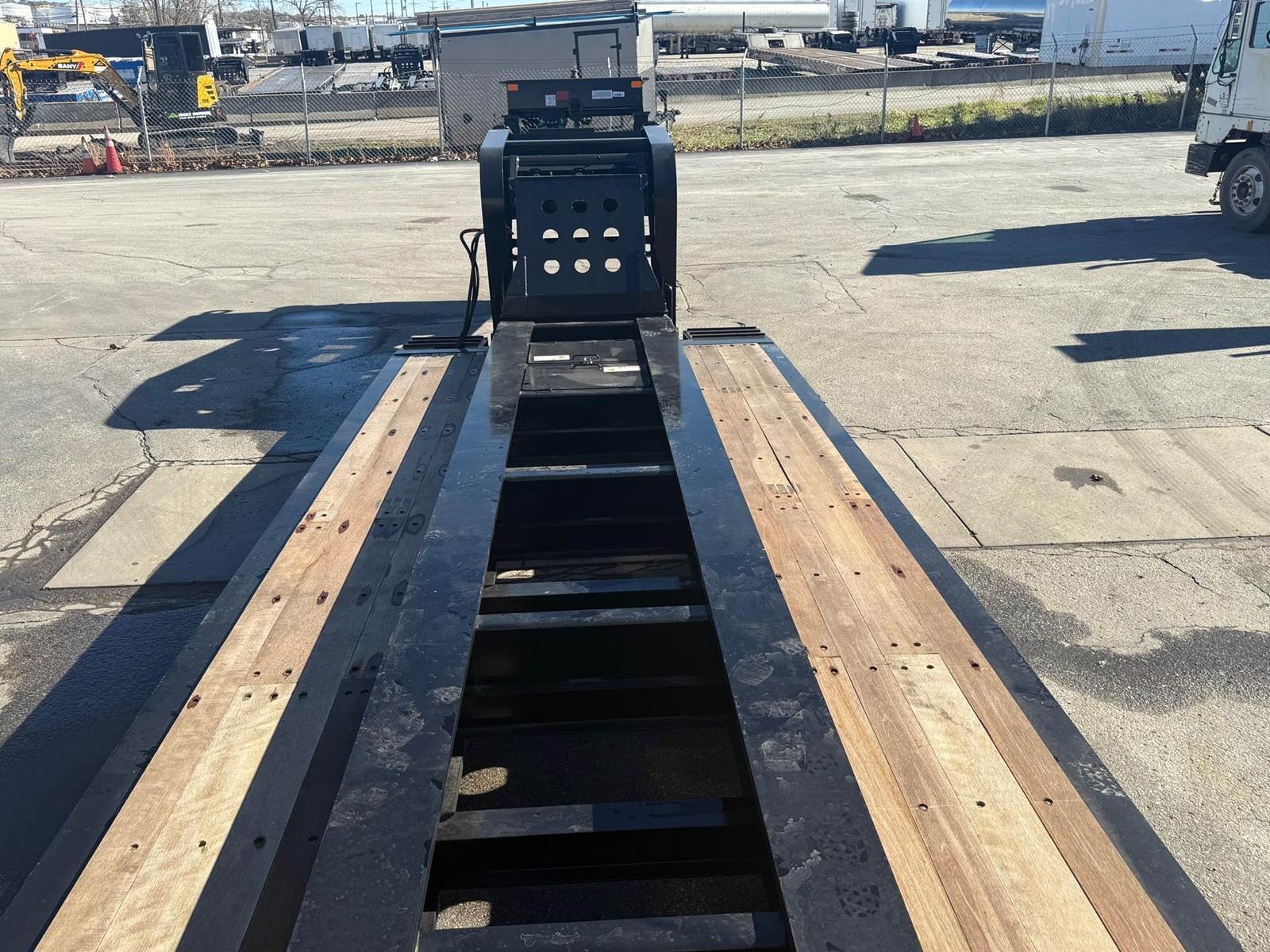

Floor 1.5" Nominal Wood - Side Rails Only
Ramps None, Front Deck Sloped Down
Side Rail Drop Side Rail - Steel
Outriggers 13 Pair, Removable Swing Type
D-Rings 17 Pair
Toolbox Two Covered Trays Between Mainbeams
Side Rail Lights Three (3) per Side including Mid Turn

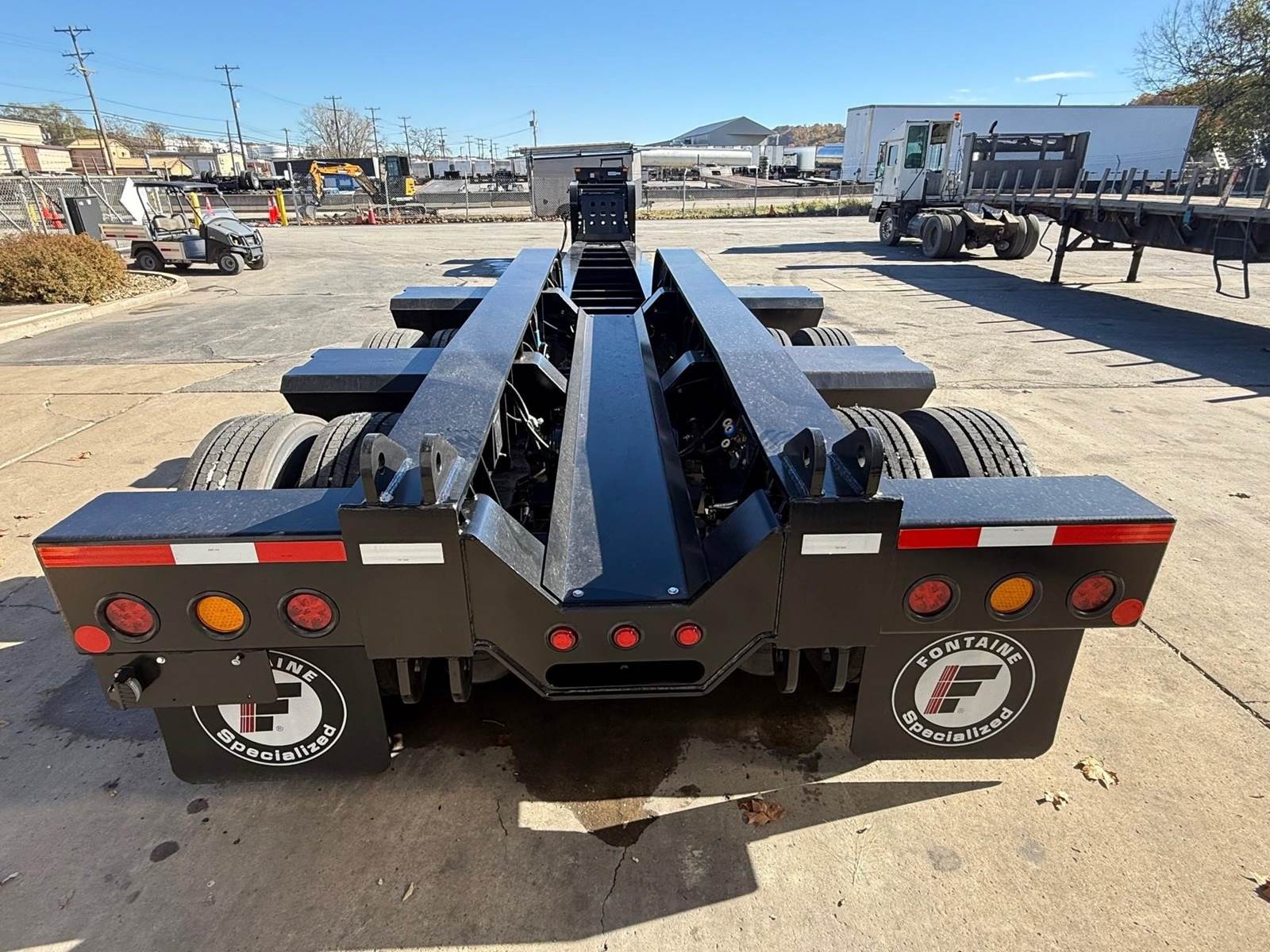

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Amber Strobes with Battery Power
Flag Holders Two Pair
Modular Connection Modular
Gooseneck

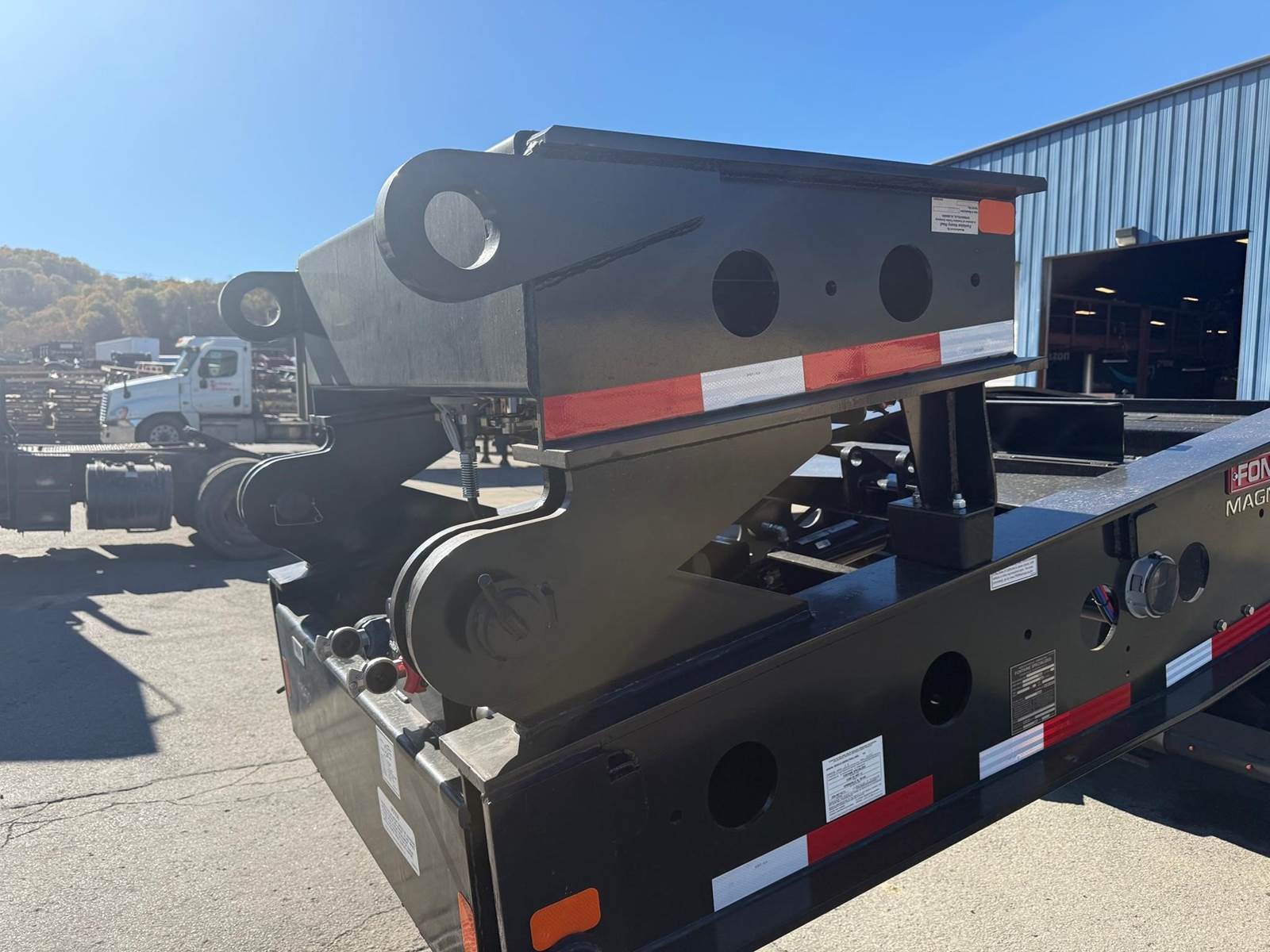

Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"

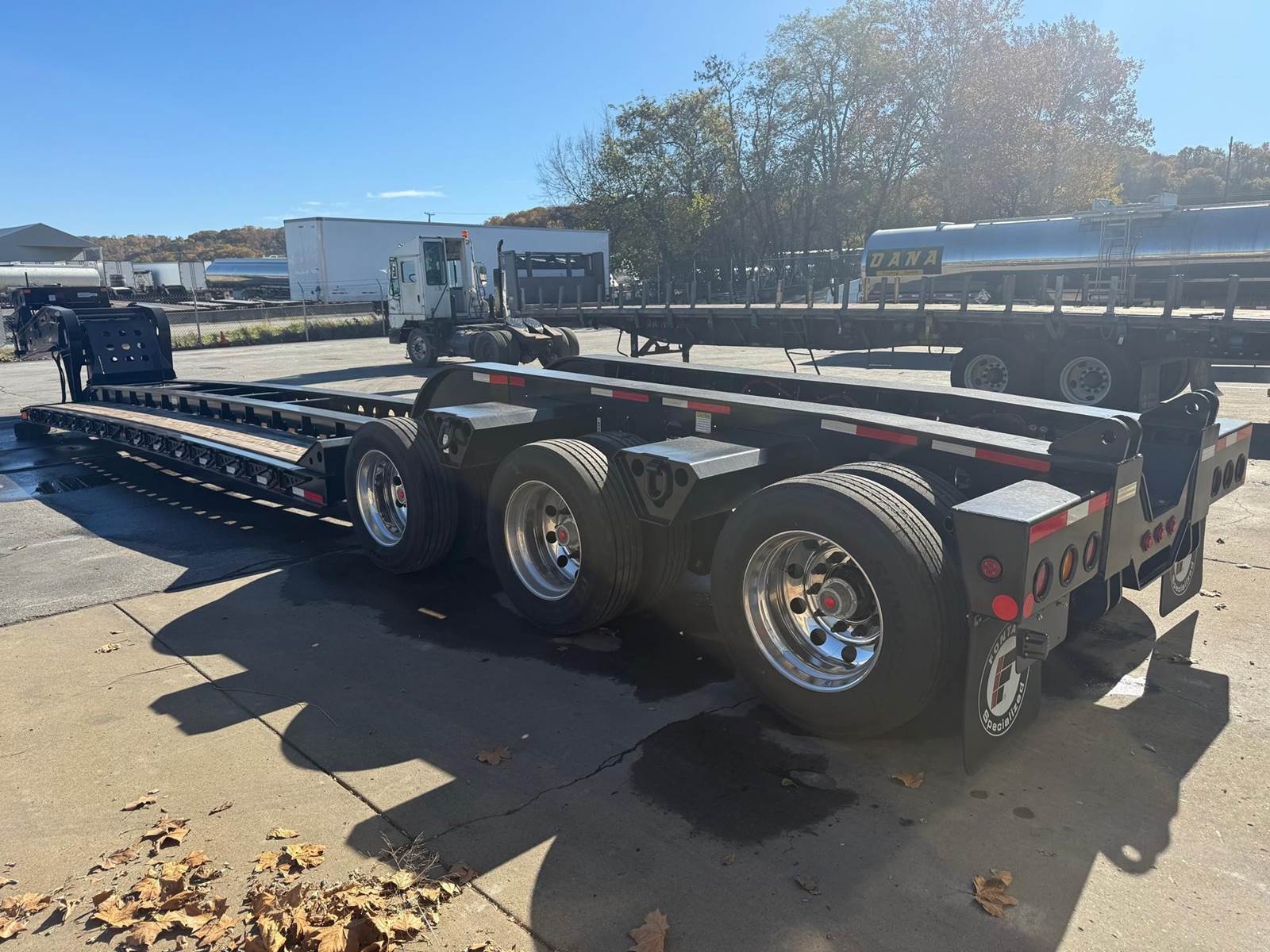

Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Setting 60" Axle Spacing
Lift Axle Air Lift Rear, Chain Lift Front
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels Aluminum/Steel
Liquid Filled Gauge Yes
UnderFrame
Cross Member Center 24"
Paint Black
Weight Ratings 65 Ton in 12' Length w/ Closed 4-Axle
Comments
60 Tons in 16' as a 3+2 Axle Configuration w/ Flip Box Deployed
106" Swing Radius
36" Flip Box (142" Total Swing Radius)
