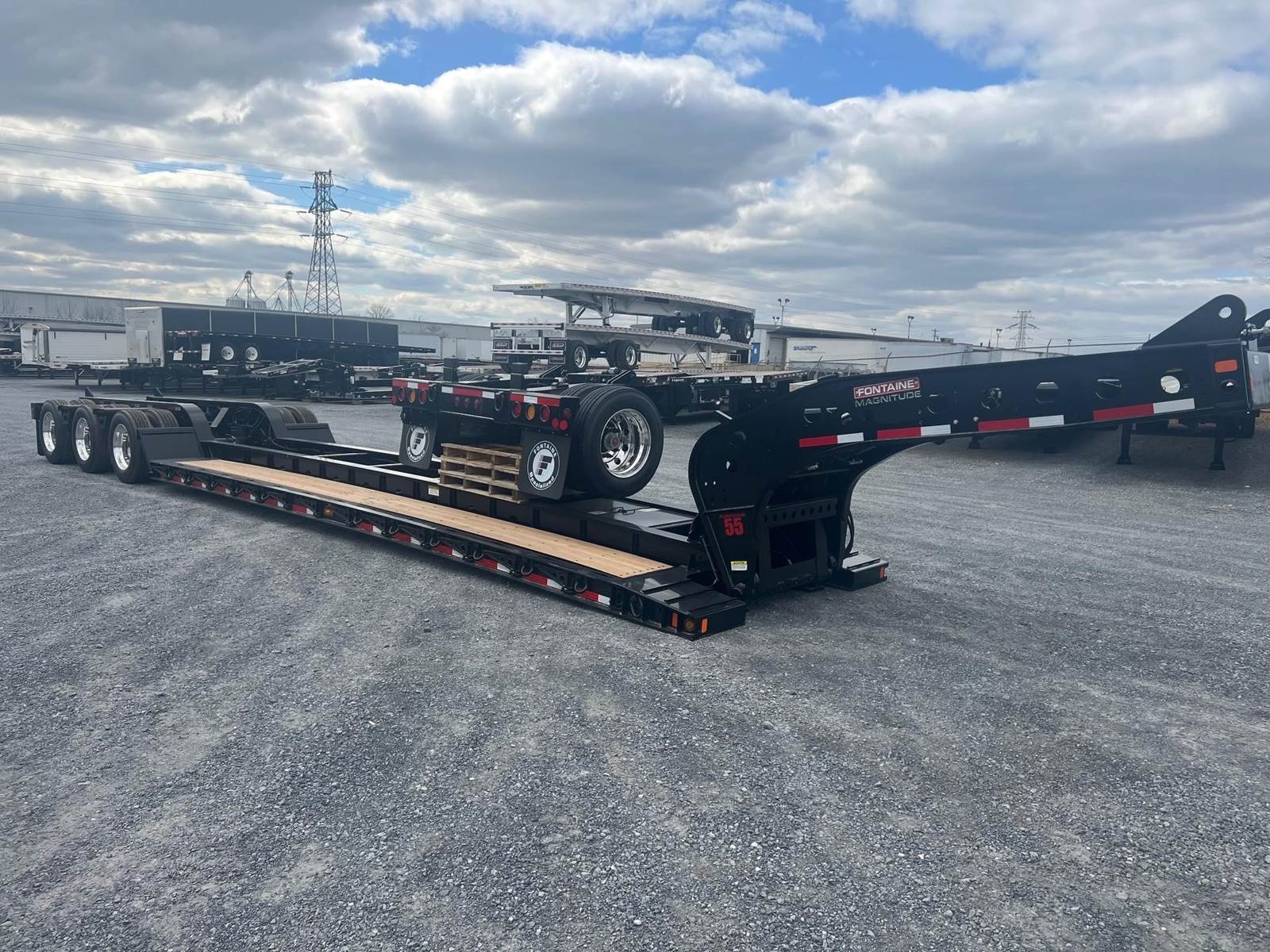

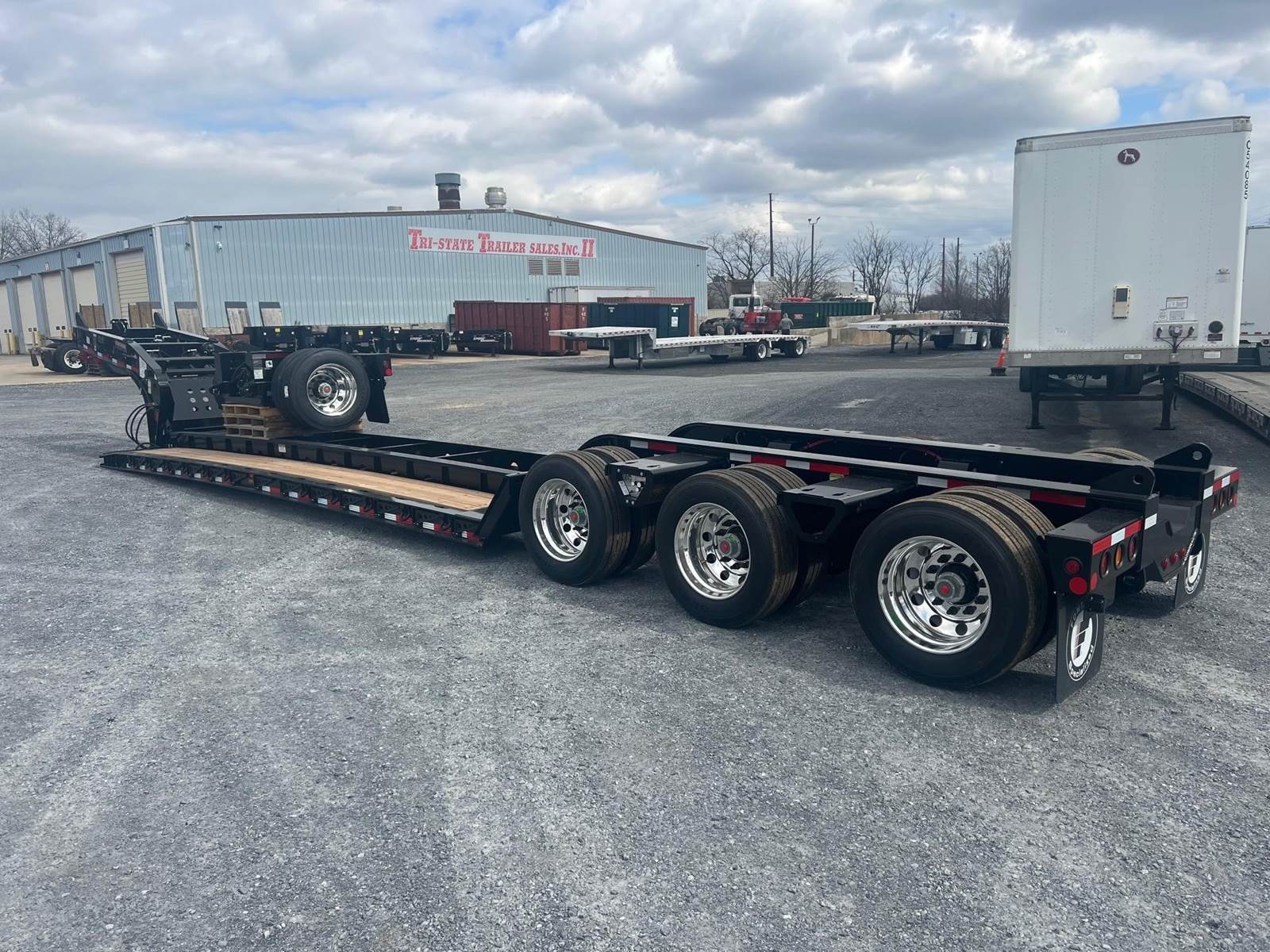

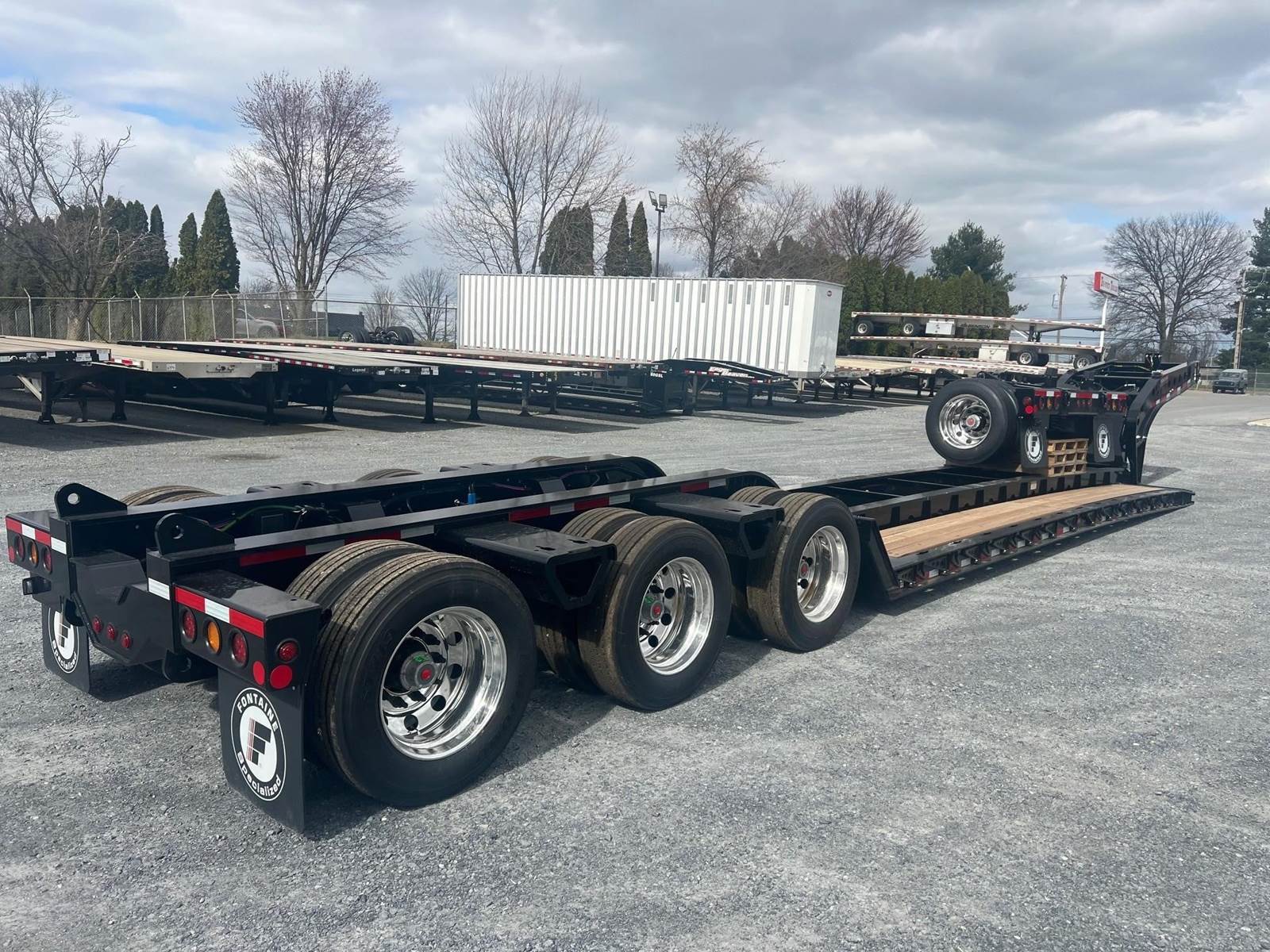

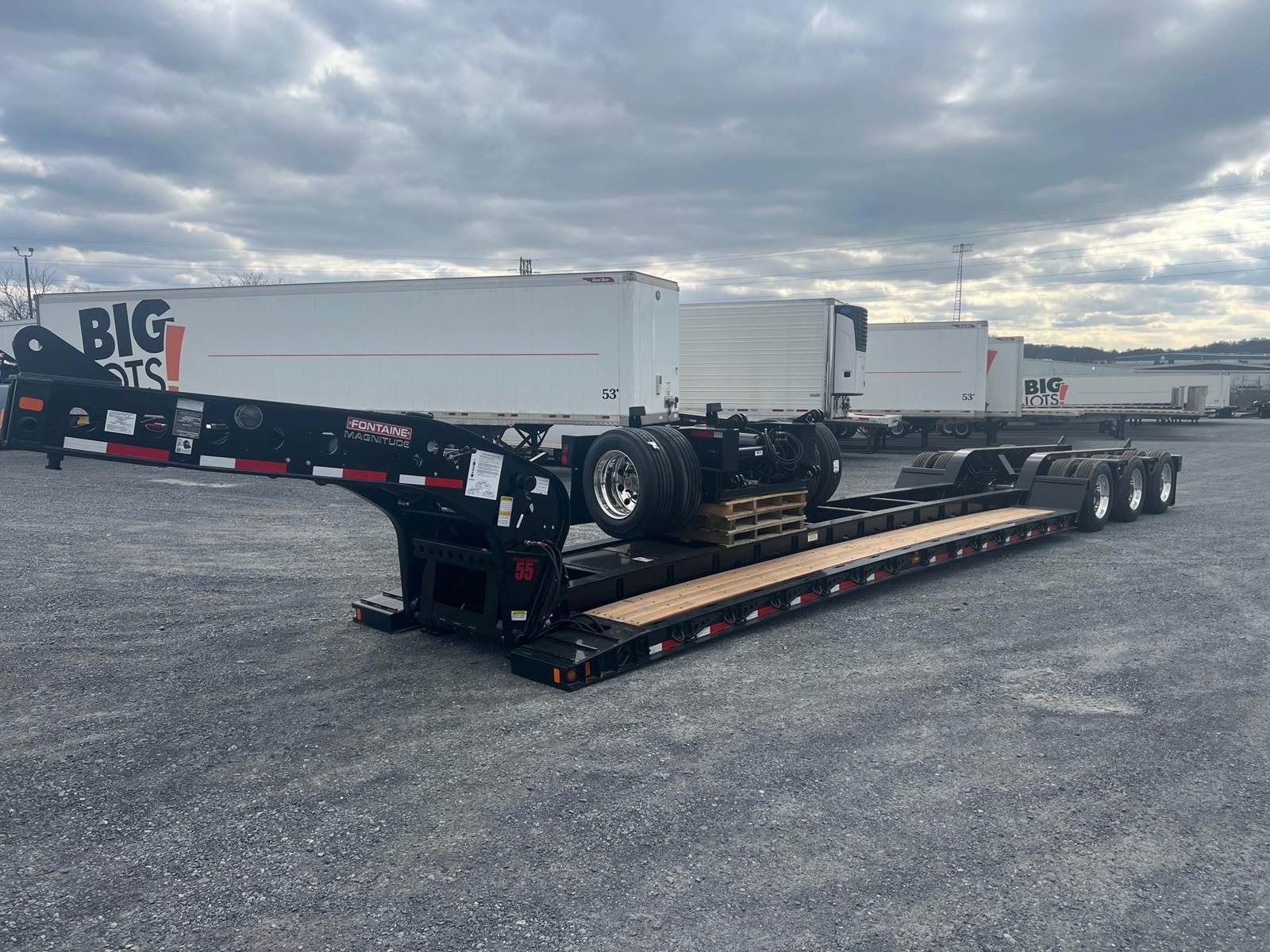

2027 Fontaine MAGNITUDE 55H-DSR Lowboy Trailer

FET included in the price.
Flip Axle not included.

Length 53' 0"
Width 102"
Top Deck Length 11' 11" Gooseneck
Main Deck Length 27'
Main Deck Height 14.5" at Side Rails; 22" at Main Beams
Weight 22,925 Lbs. +/-3%
Unit Description Magnitude 55DSR
Flat Body
Compatibility Designed to Accept Flip Neck Extension & Flip Axle
Floor 1.5" Nominal Wood - Side Rails Only
Side Rail Drop Side Rail - Steel
Outriggers 13 Pair, Removable Swing Type
D-Rings 14 Pair
Toolbox Two Covered Trays Between Mainbeams

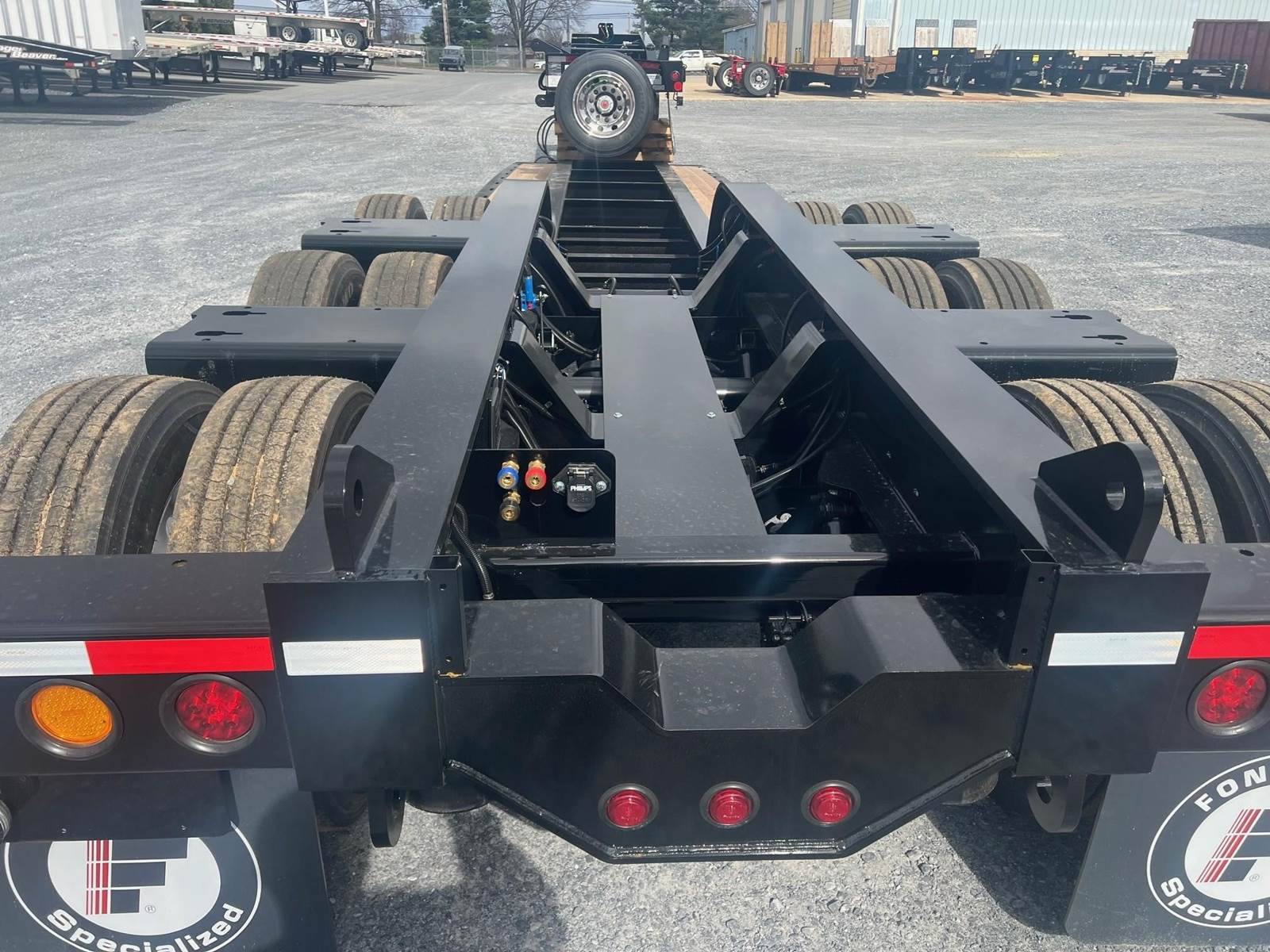

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Amber Strobes with Battary Power
Flag Holders One Pair at Front of Deck, One Pair on Bumper
Modular Connection Fixed
Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"
Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Setting 54.5" Axle Spacing

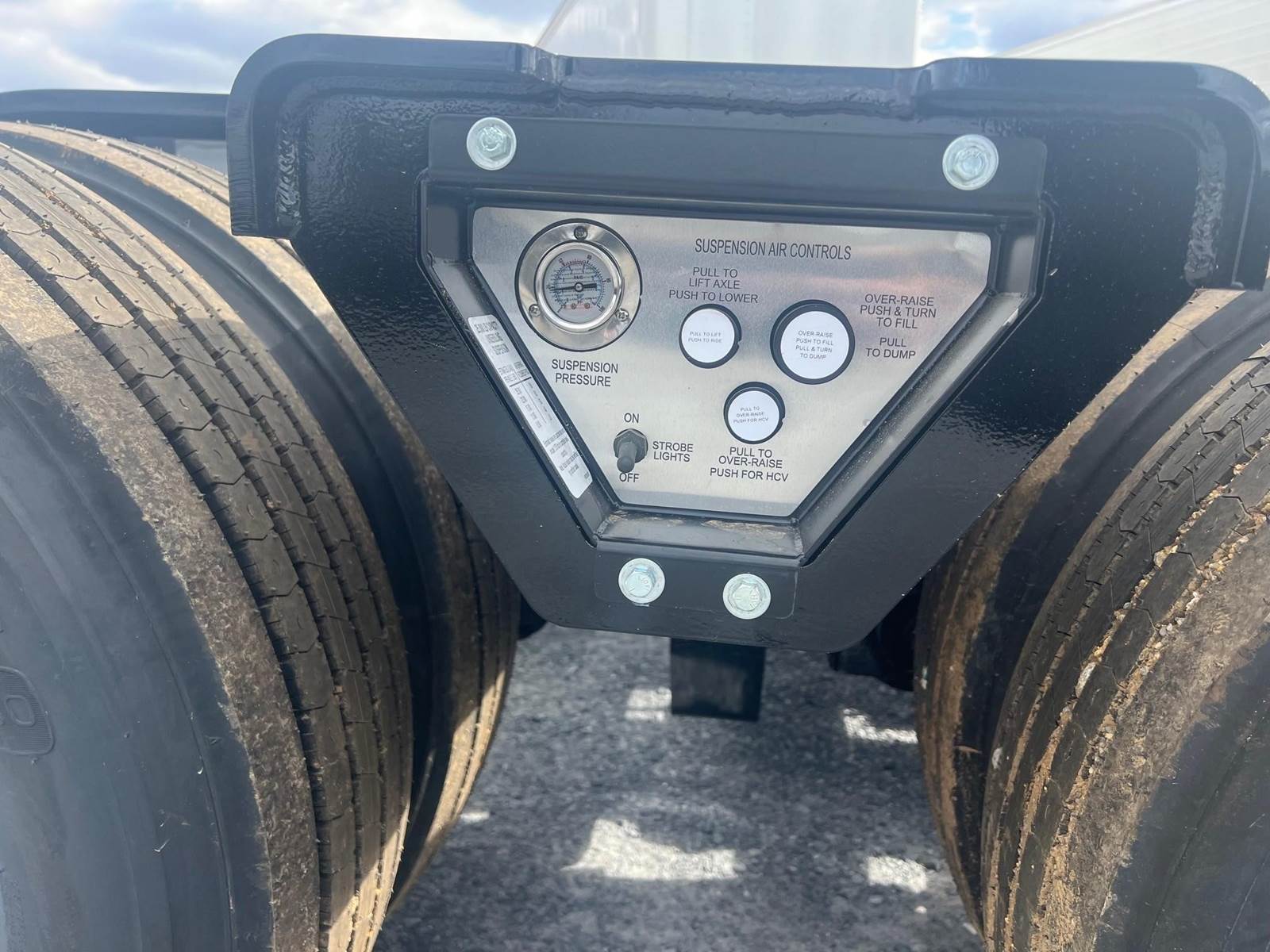

Lift Axle Air Lift Rear
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels Aluminum/Steel
Liquid Filled Gauge Yes
UnderFrame
Paint Black
Weight Ratings 55 Ton in 12' Length
Comments
102" Swing Clearance
Low Boom Well
Chain Lift Axle on Front Axle
Override Chains on 2nd & 3rd Axles
