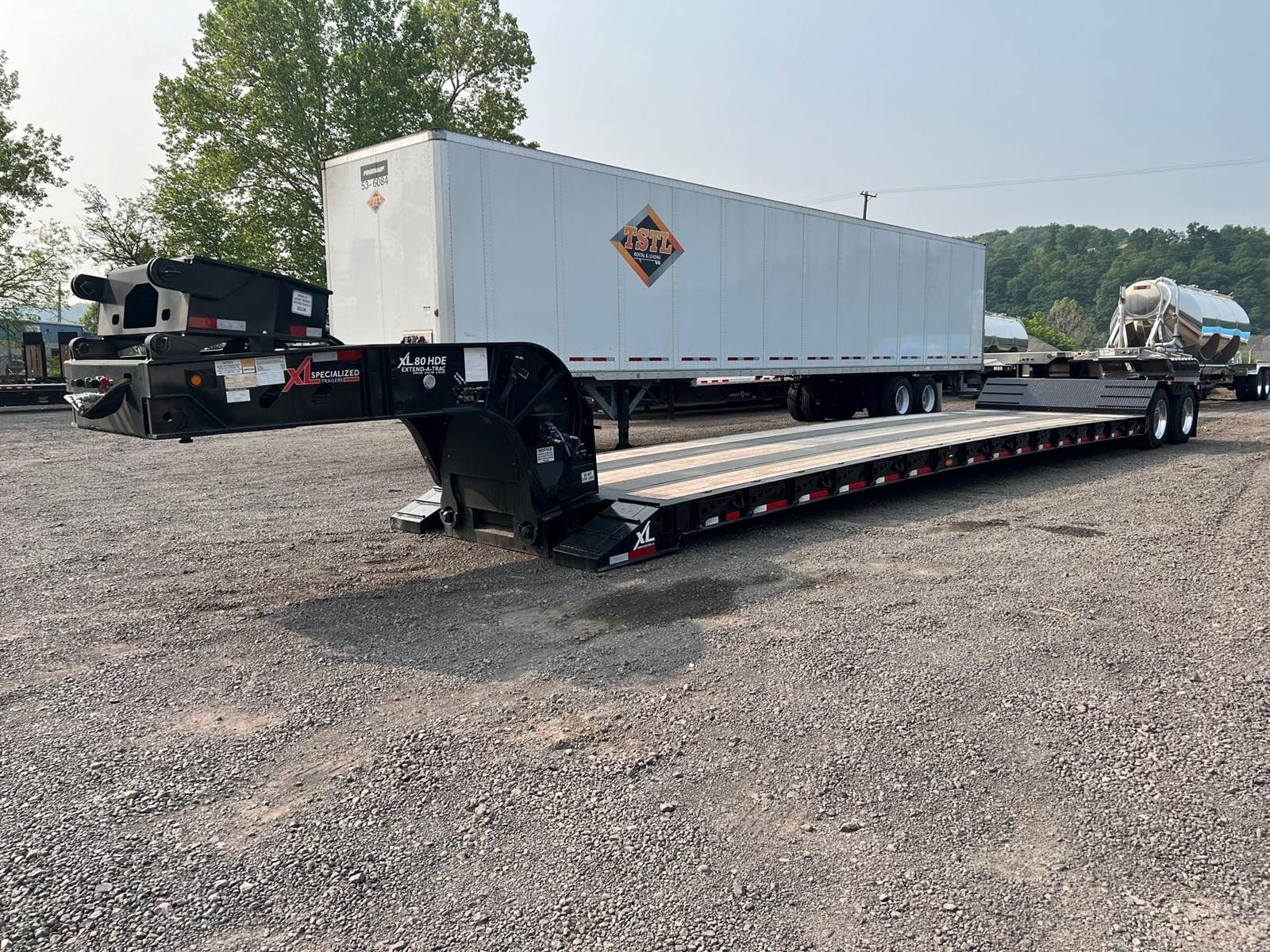

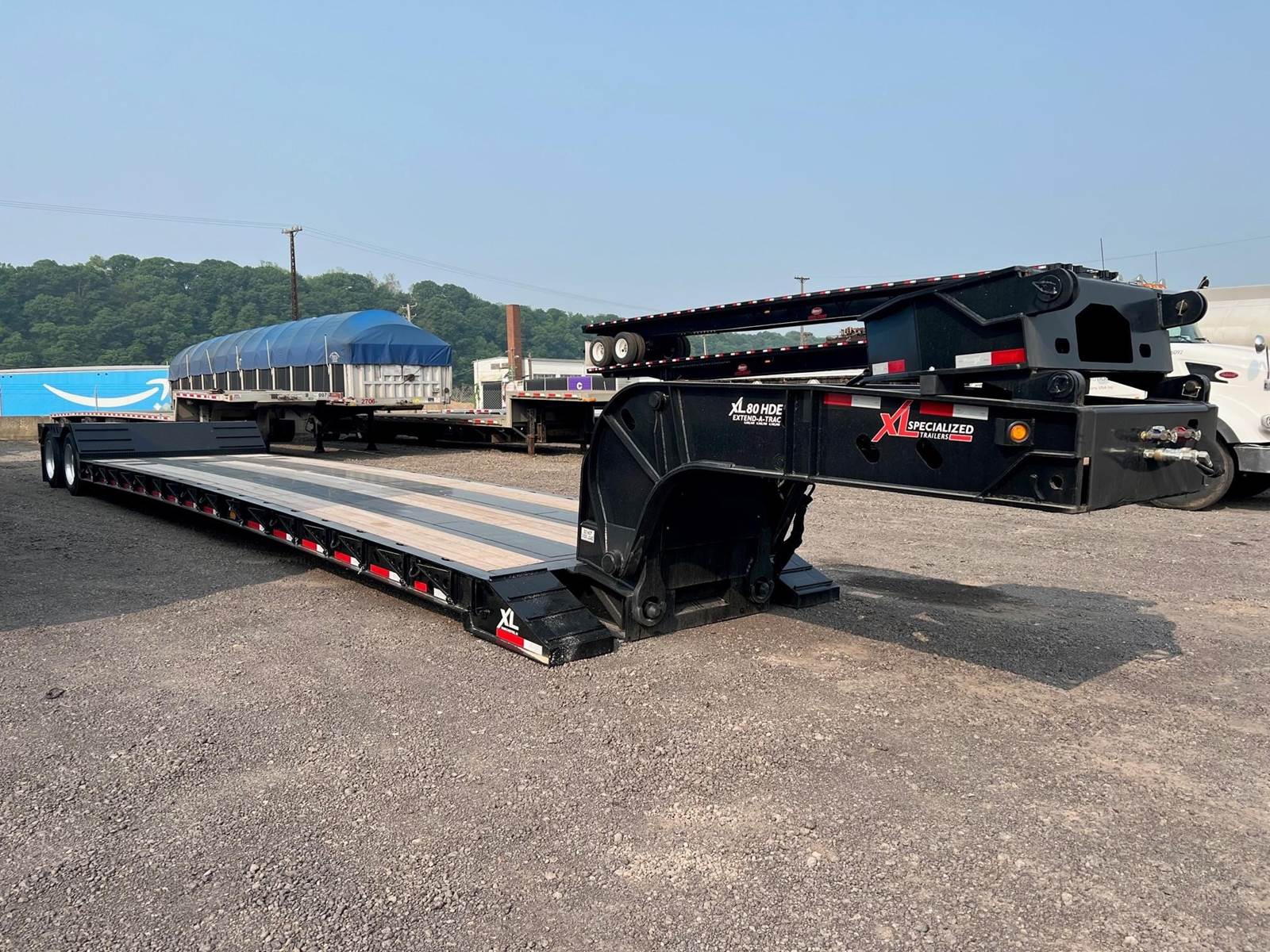

2026 XL Specialized XL 80 HDE 53x102 Tandem Axle Steel Lowboy Trailer - Air Ride, Fixed Axle

Length 53'
Width 102"
Top Deck Length 10' 5" (Plus 3' with flip box)
Main Deck Length 33' 7" Closed / 59' 11" Open
Main Deck Height 20" Loaded Deck Height

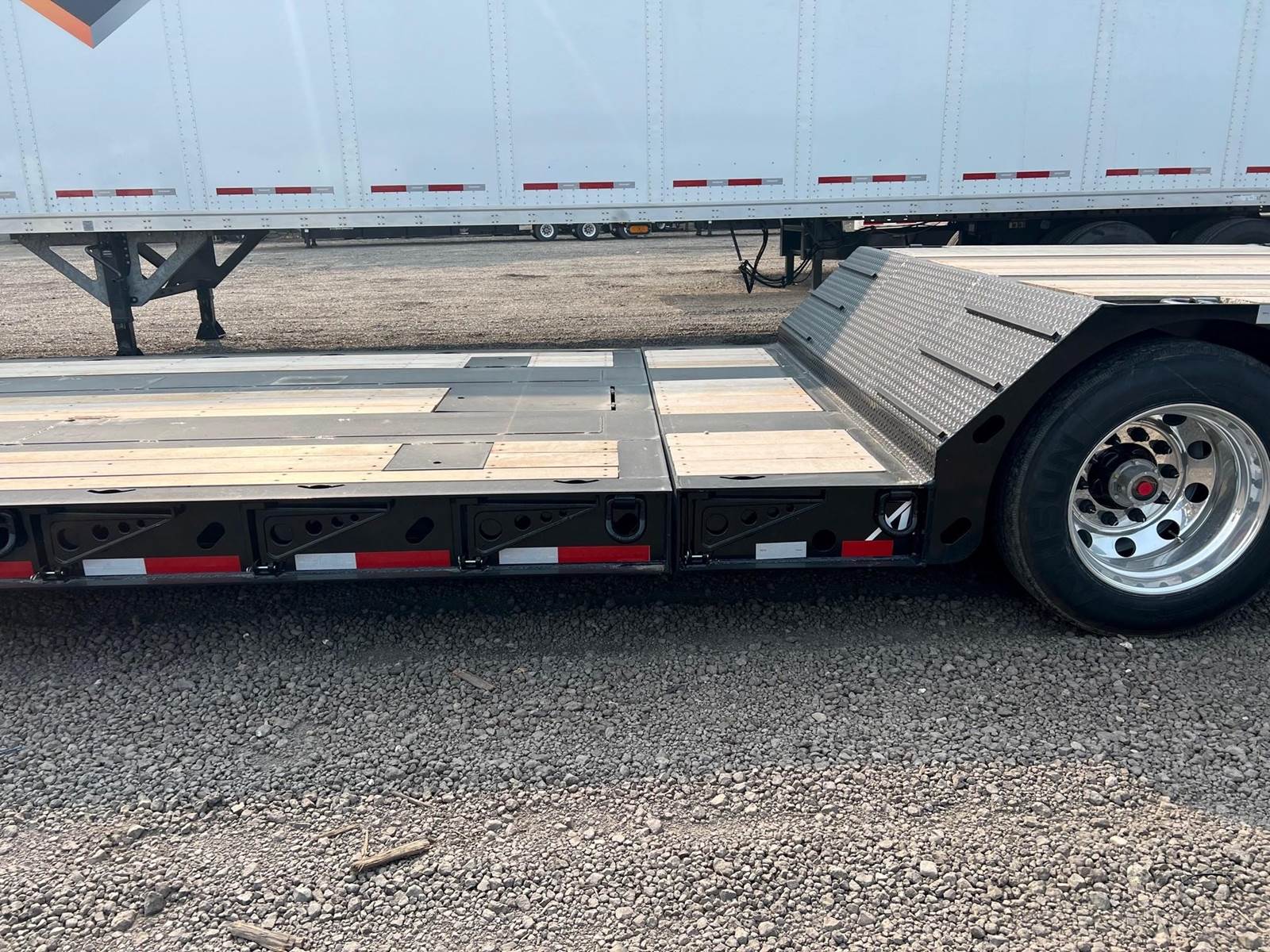

Rear Deck Length 9'
Weight 25,280 Lbs +/- 3% - GVWR 105,280 Lbs
Flat Body
Compatibility Designed to Accept 36" Neck Extention & Flip Axle
Floor 1 1/8" Apitong
Side Rail Perimiter Beam - Steel
Outriggers Swingout Removable on 24" Centers, Double Front
D-Rings Eight (8) Pair Bent D-Rings

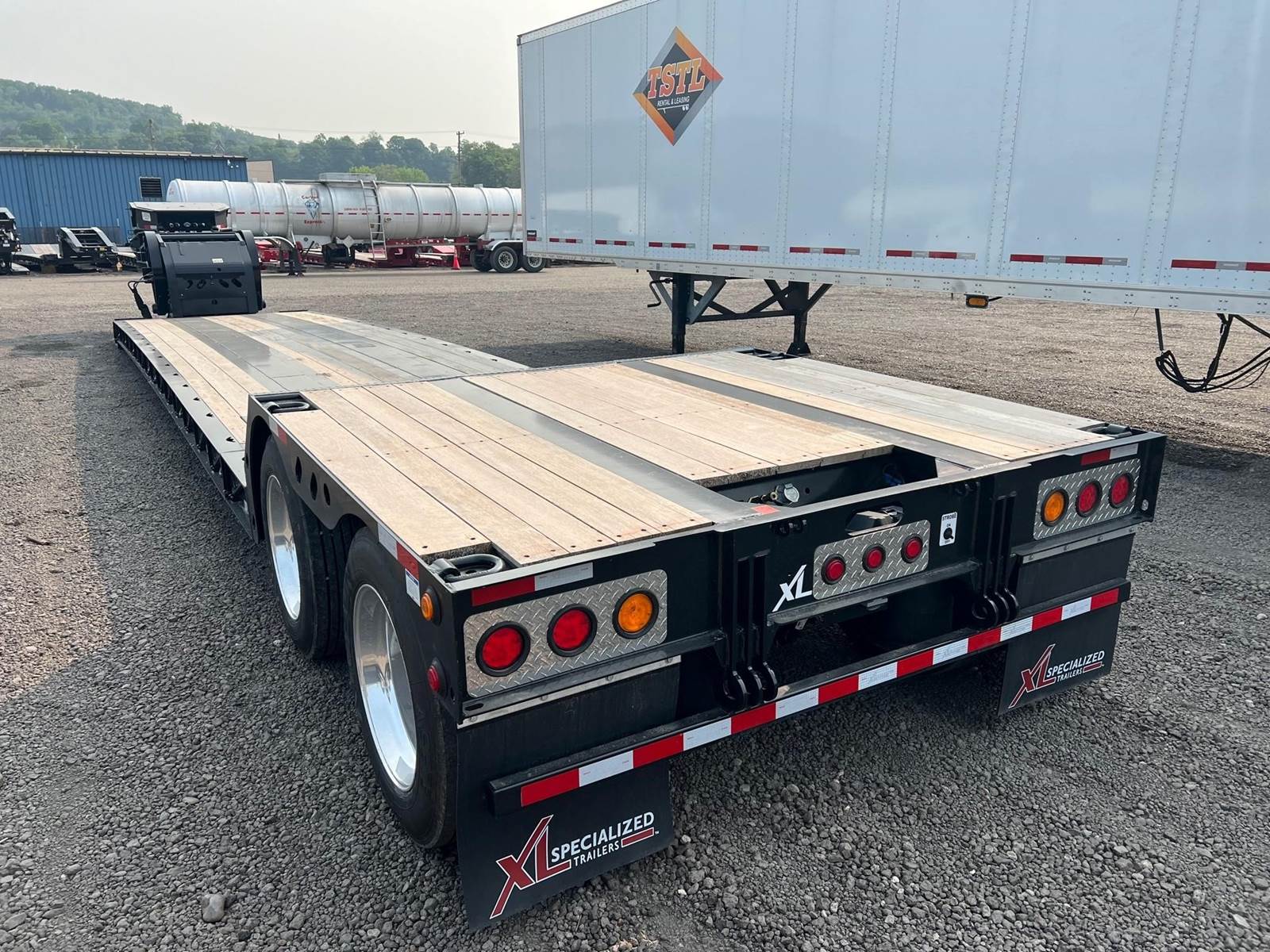

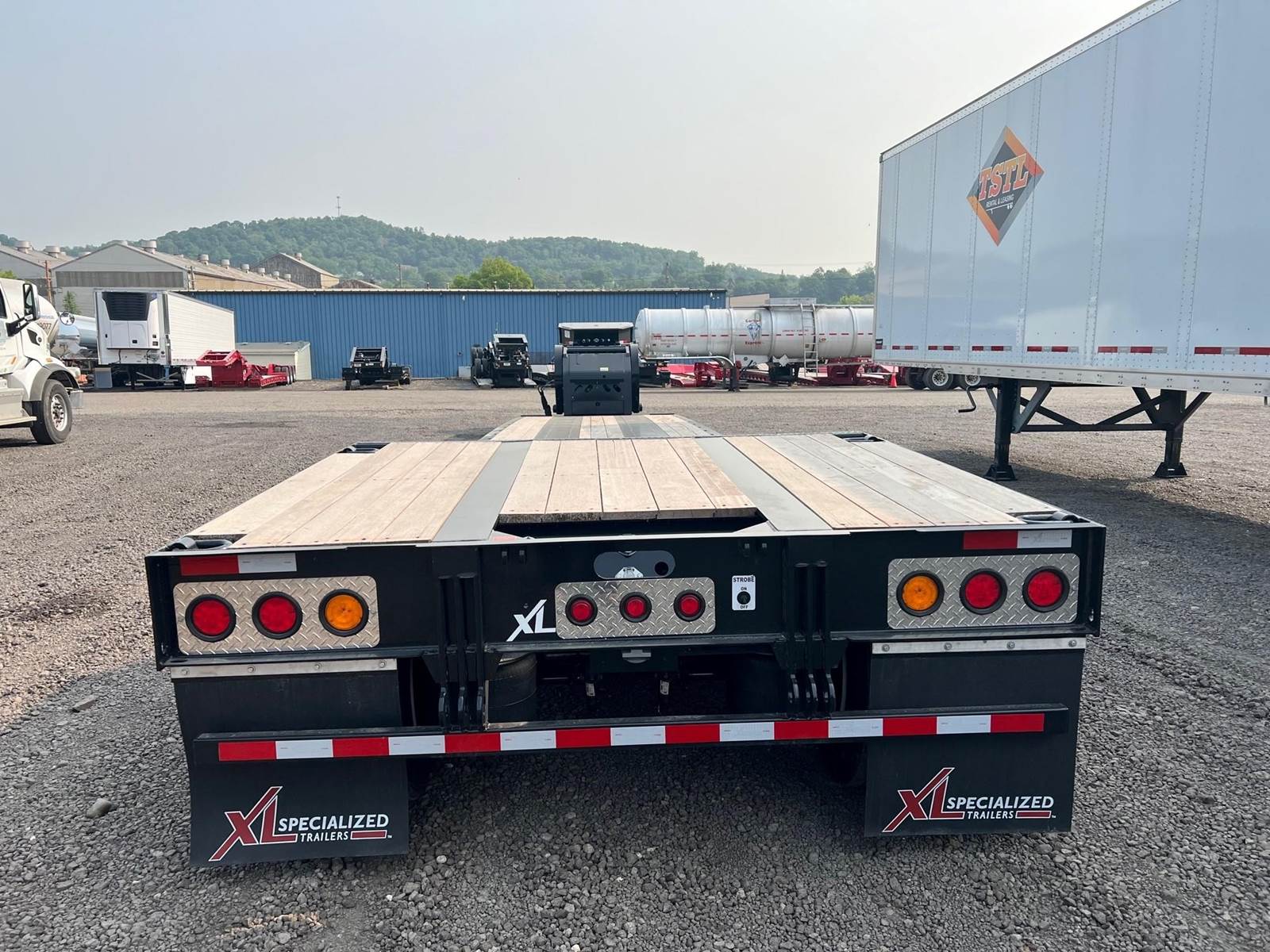

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights 4" Amber Strobe w/ Switch for 3rd Tail Light
Flag Holders Two Pair, Front & Rear

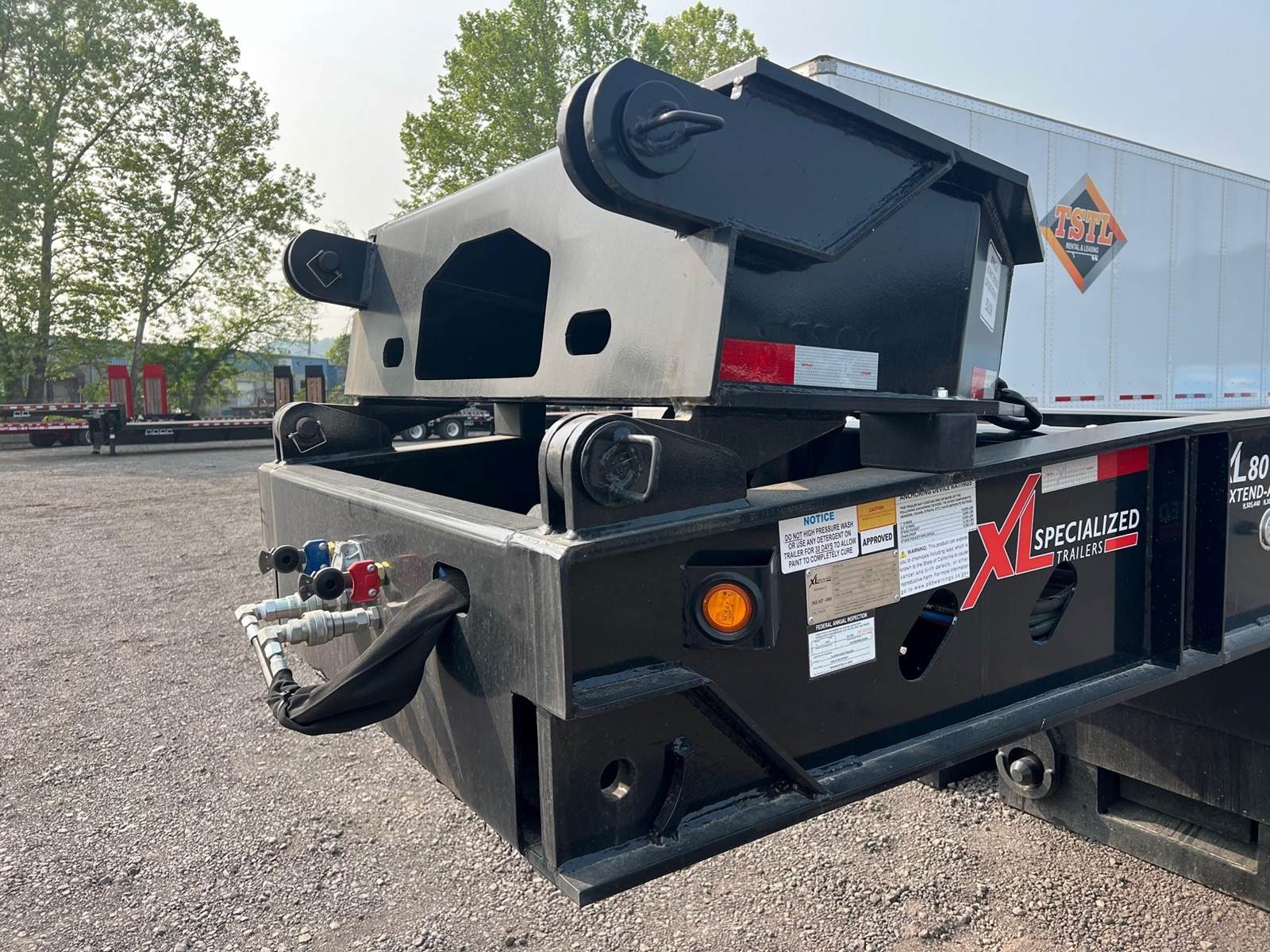

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 49" w/ Seven (7) Variable Ride Height Positions

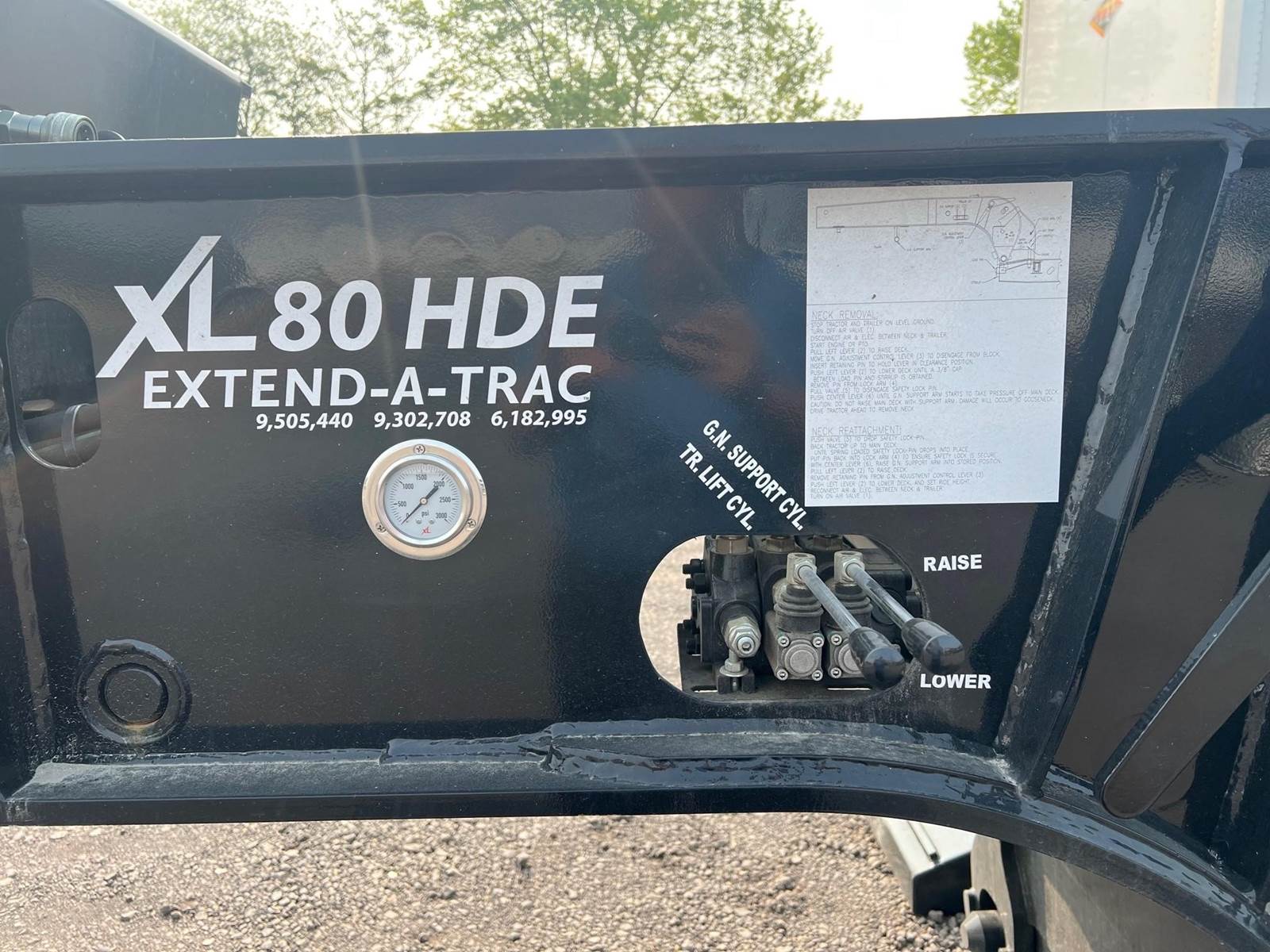

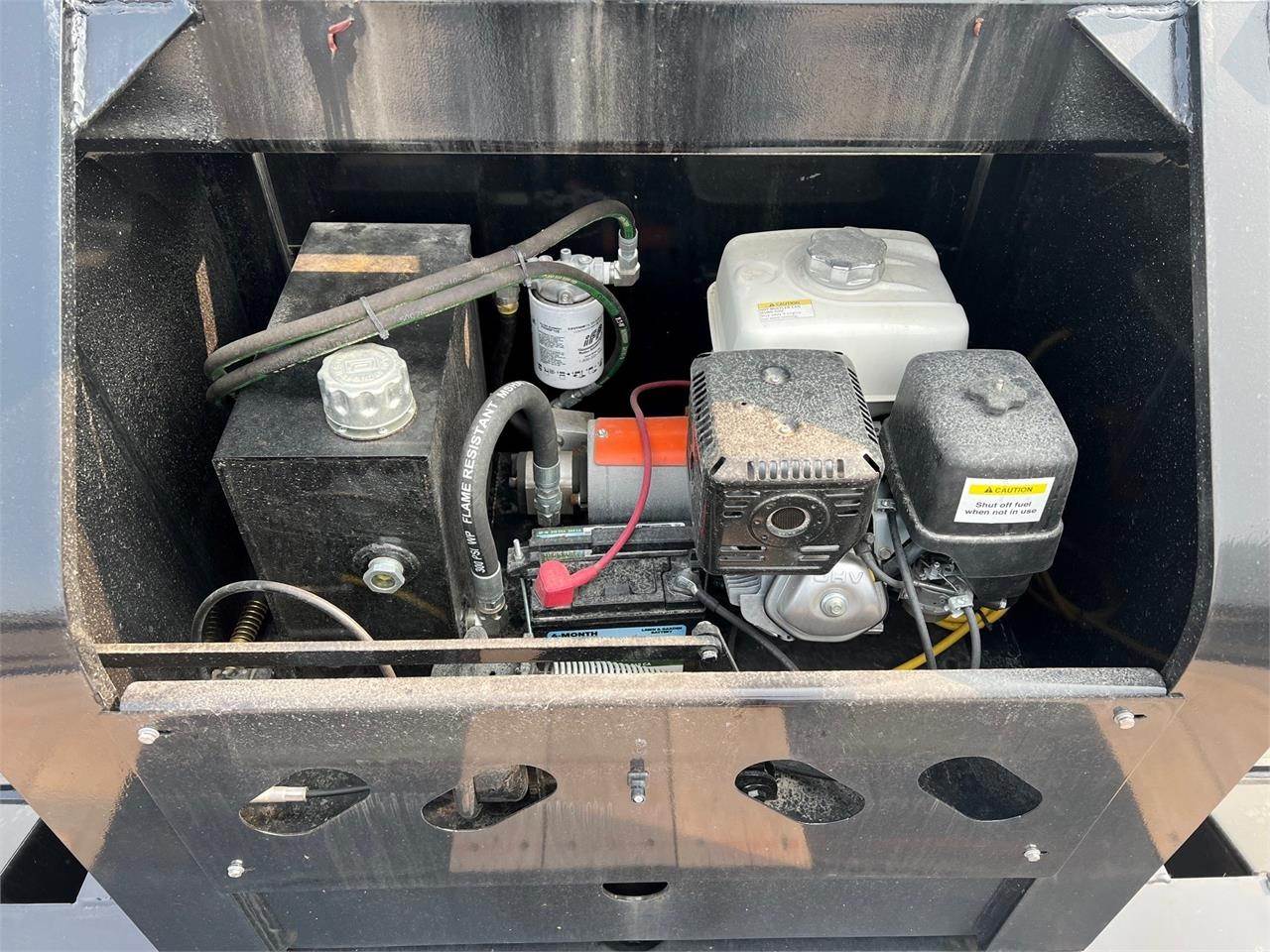

Pony Motors 13HP Honda Pony Motor, Dual Hydraulics

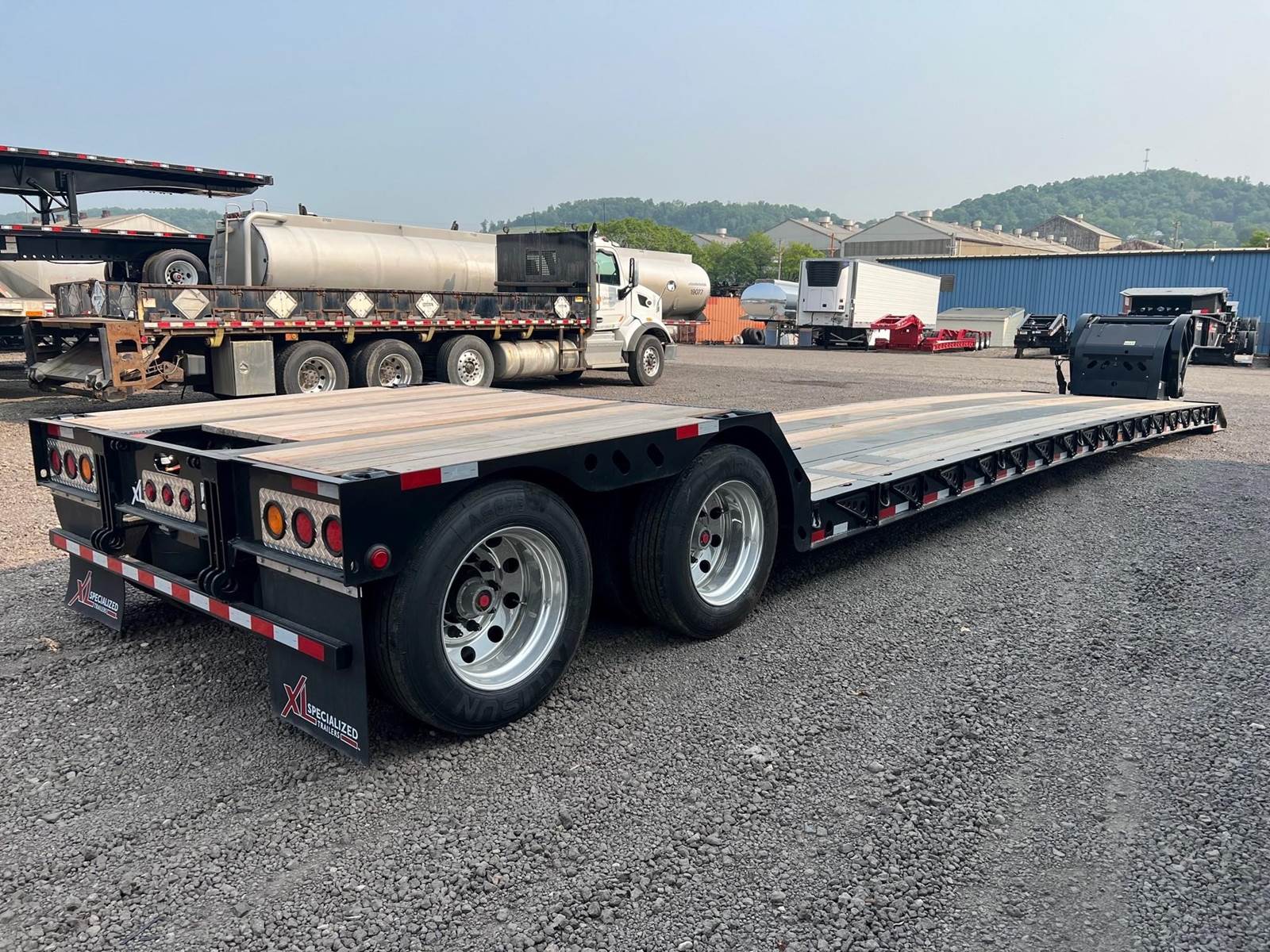

Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 54" Axle Spacing
Flip Axle Prepped for Third Axle Flip

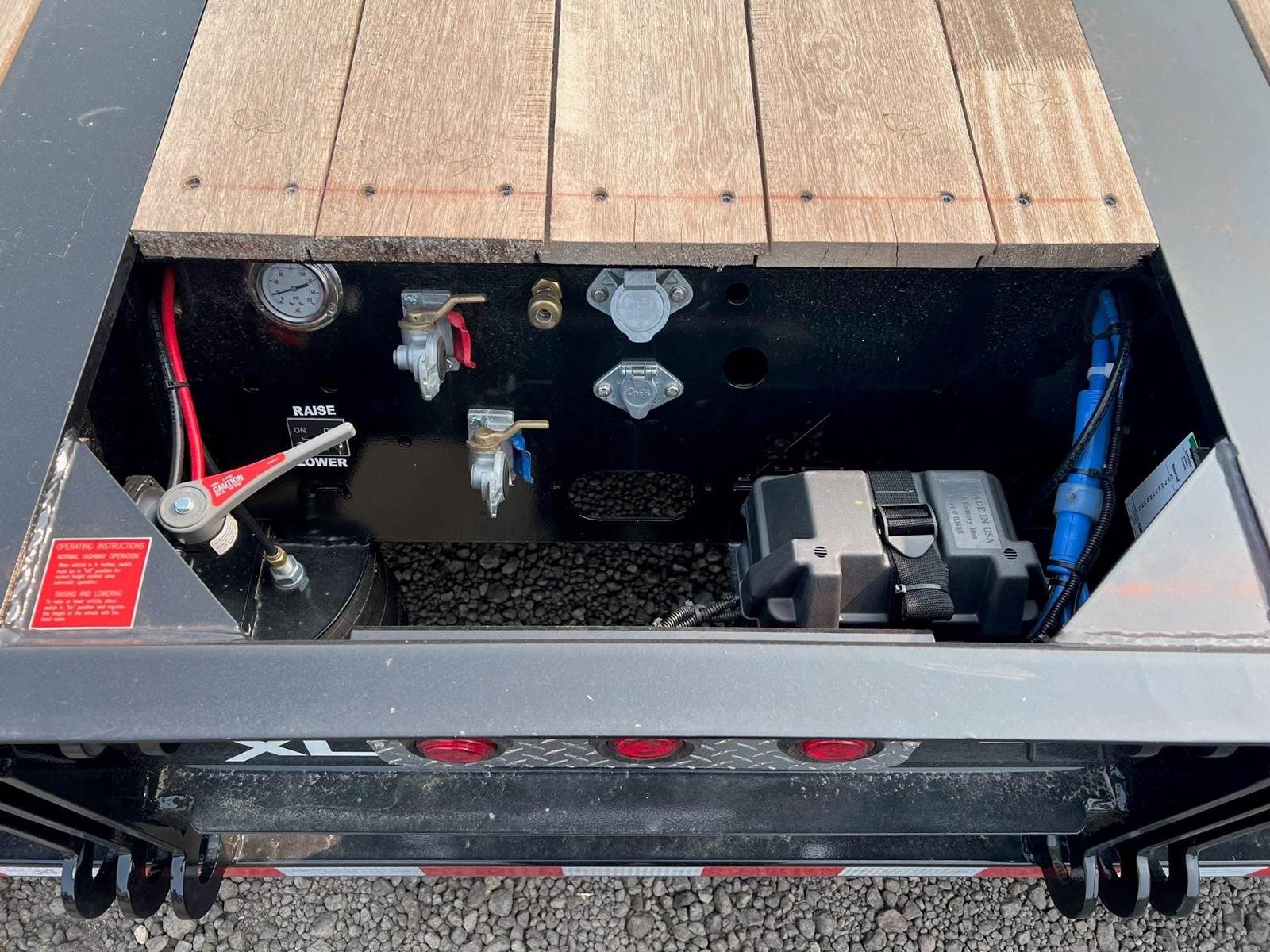

Manual Dumpvalve Yes
Raise & Lower Valve Yes
Tire Size 255/70R22.5
Wheels Aluminum Outside / Steel Inside
Liquid Filled Gauge Yes
UnderFrame
King Pin Setting 16"
Cross Member Center 4" I-Beam & Knee Braces on 12" Alternating Centers
Paint Black
Weight Ratings 80,000 lbs. distributed
60,000 Lb. Capacity in 10' Closed
Chain Slots on 24" Centers
4" Tapered Front Approach Ramps
Extension Stops on 24" Centers
2'x2' Cut Out in Rear Transition
(2) Additional Lights per Side on Main Deck
***Flip Box Additional ***
SALE PRICE INCLUDES FET
