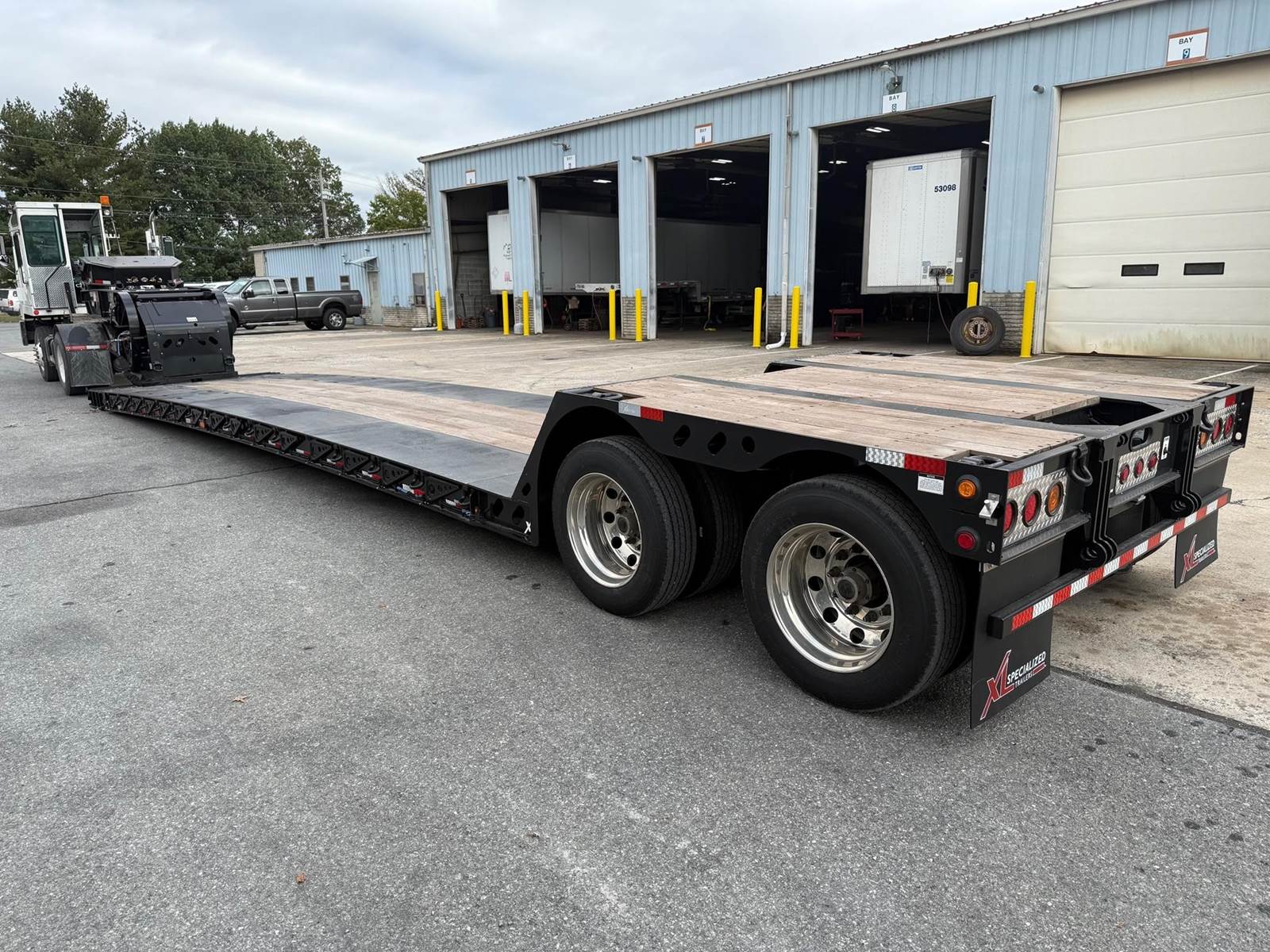

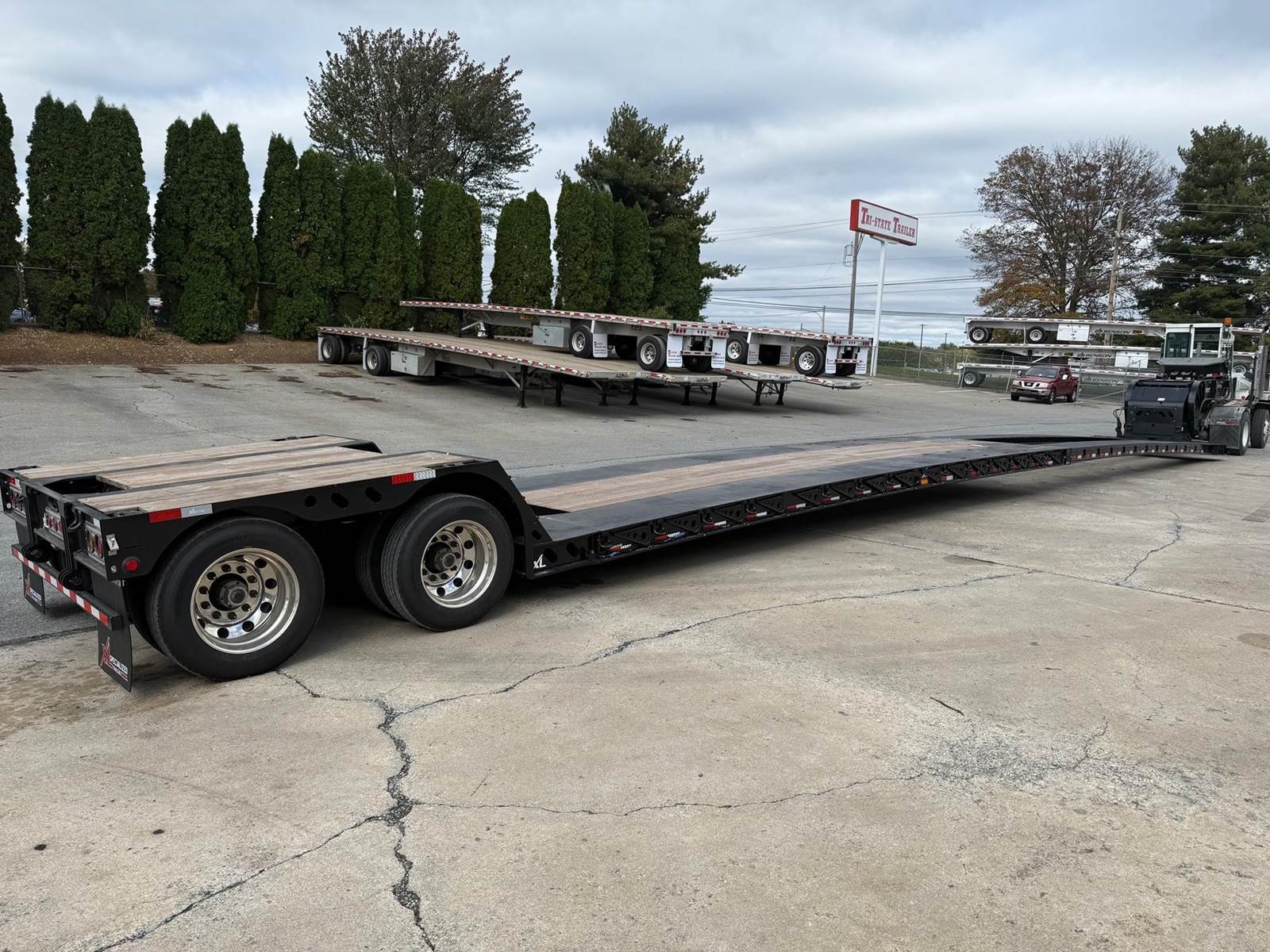

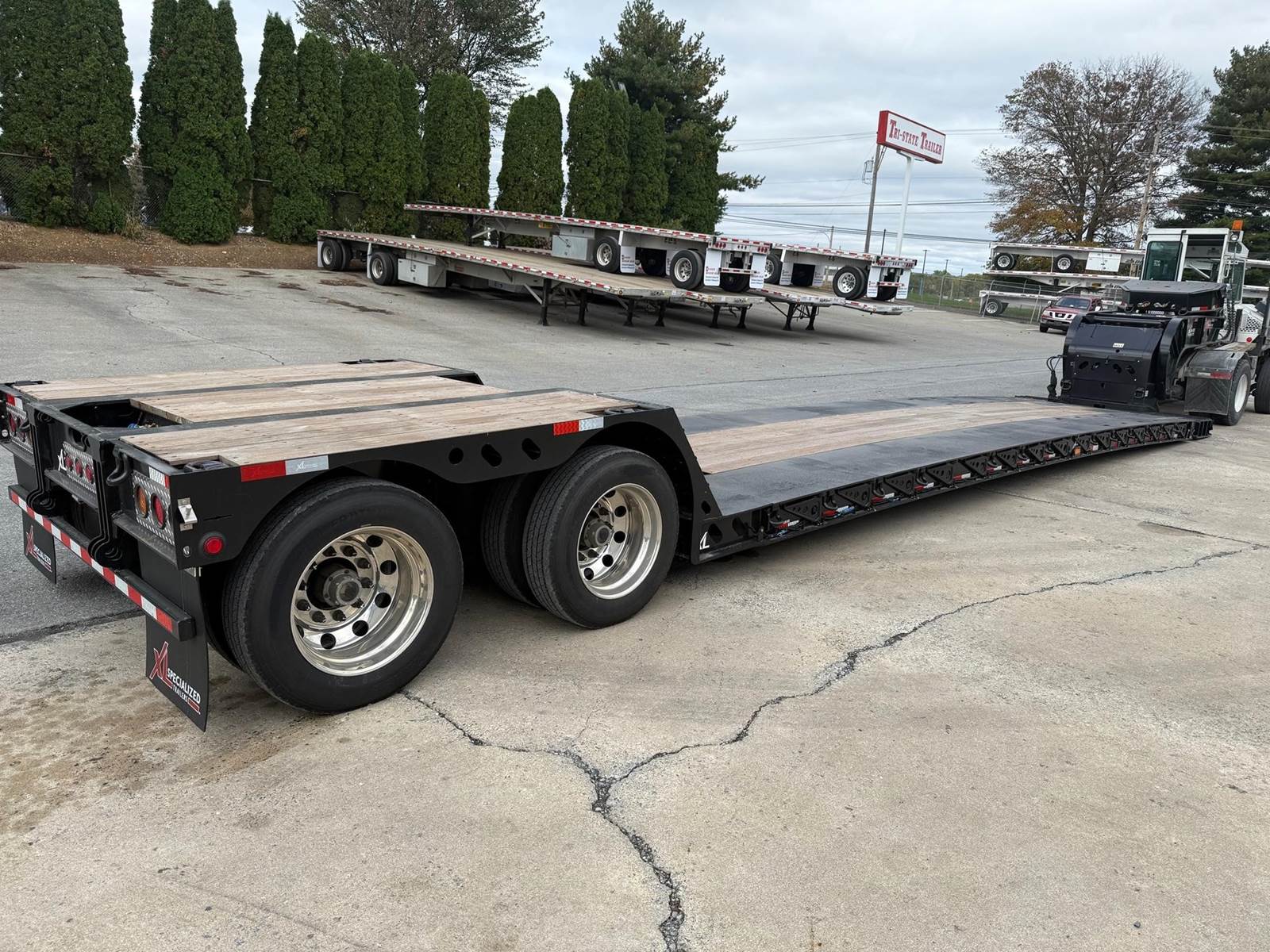

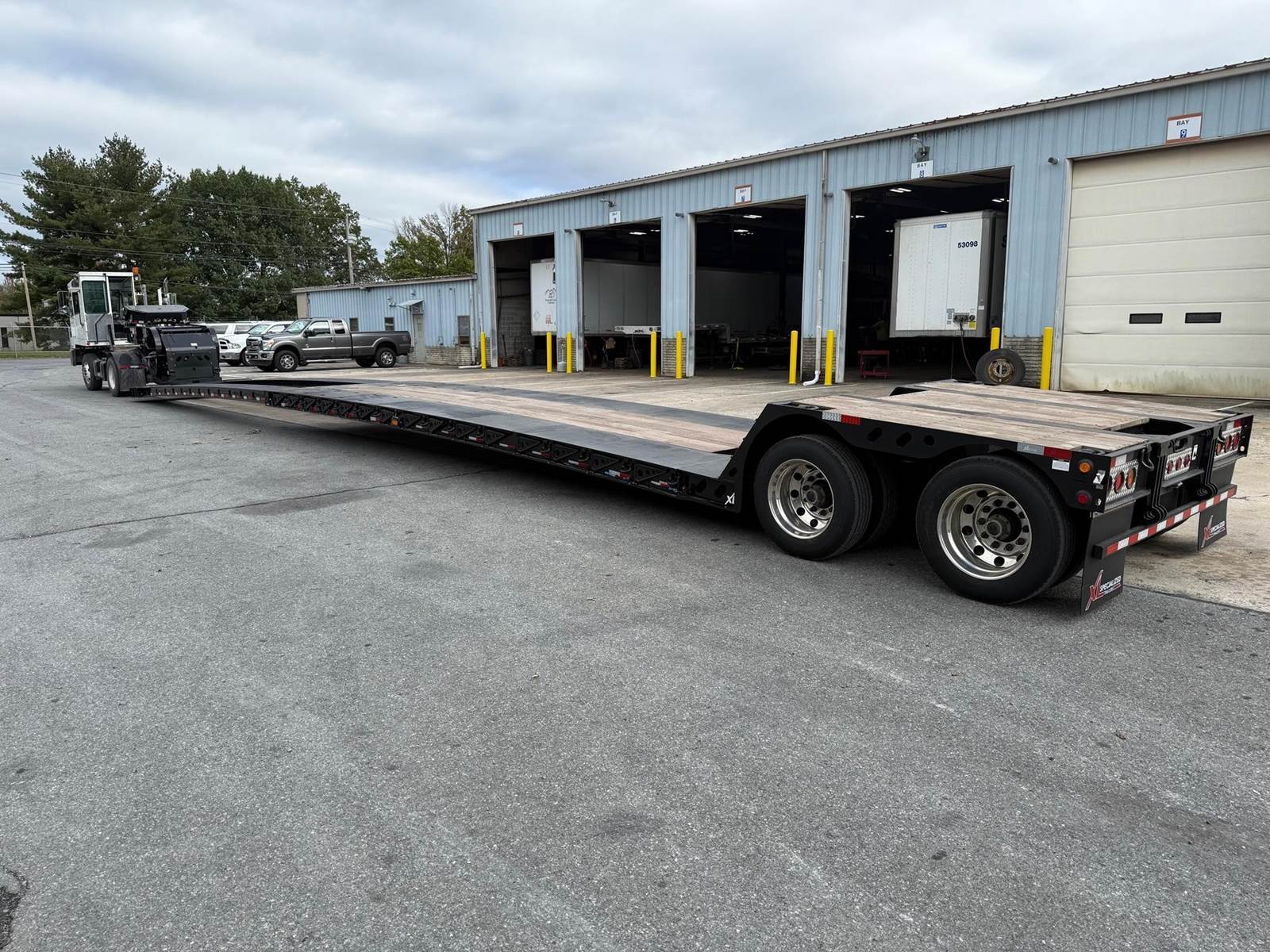

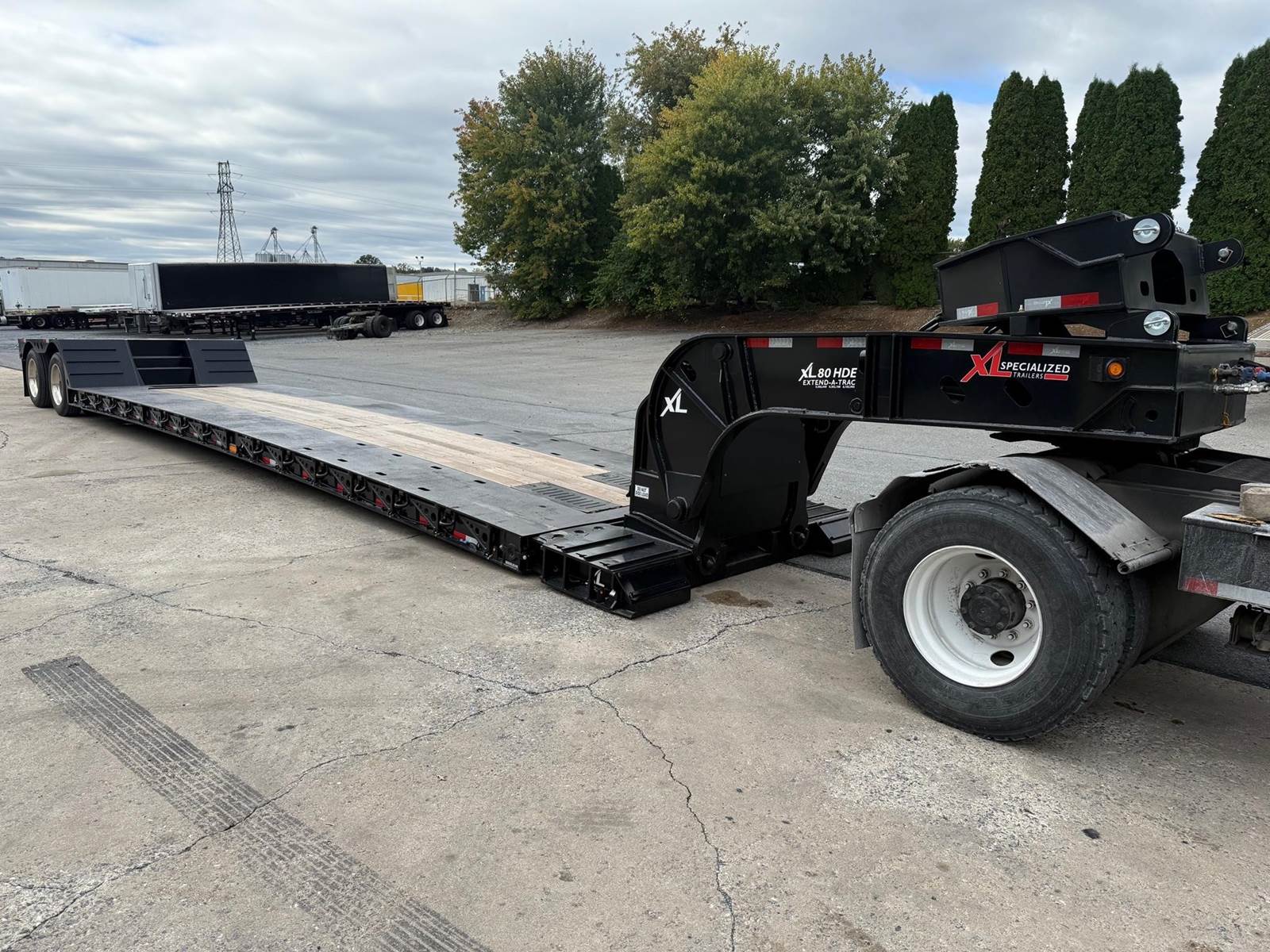

2026 XL Specialized XL80HDEM Lowboy Trailer

*FET INCLUDED IN SELLING PRICE*

Length 53' Closed - 79'5" Open
Width 102"
Top Deck Length 10'5"
Main Deck Length 33'3" Closed - 59'8" Open
Main Deck Height 14" Loaded Deck Height
Rear Deck Length 9'4"
Flat Body
Compatibility Designed to Accept 36" Neck Extention & Flip Axle
Floor 1 1/8" Apitong
Ramps Bump Ramp: Extends 6", Tapers to 4"
Side Rail 10" Fabricated
Outriggers Removable Swing Out Outriggers on 24" Centers
D-Rings (13) Bent D-Rings per Side
Toolbox Storage Area at Rear of Female Deck
Side Rail Lights Five (5) per Side
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights 4" Amber as 3rd Tail Light w/ Battery Backup
Flag Holders Two (2) Pair

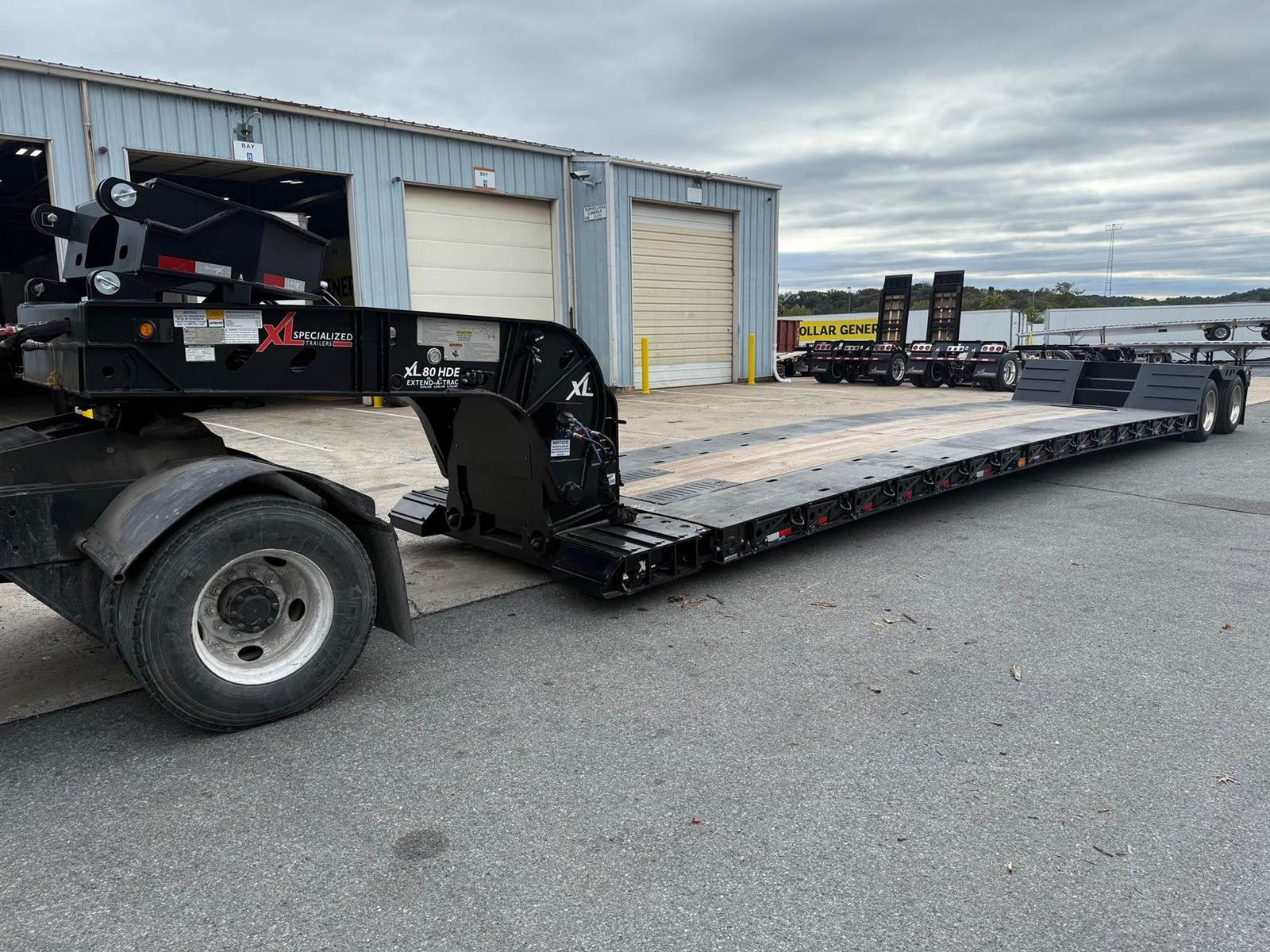

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 49" w/ Seven (7) Variable Ride Height Positions
Pony Motors 13 HP Honda w/ Dual Hydraulics
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 54" Tandem
Flip Axle Prepped for Future Flip Axle
Manual Dumpvalve Yes
Raise & Lower Valve Yes
Tire Size 255/70R22.5
Wheels Aluminum Outside / Steel Inside
Liquid Filled Gauge Yes
UnderFrame
King Pin Setting 16"
Cross Member Center 24"
Paint Black
80,000 Lbs. Distributed Closed, 80,000 Lbs. in 16' Closed Centered on the Deck
30,000 Lbs. in 5' Front & Rear of Deck Fully Extended - 60,000 Lbs. Total
Classic Neck
84" Swing Clearance
36" Flip Neck Extension

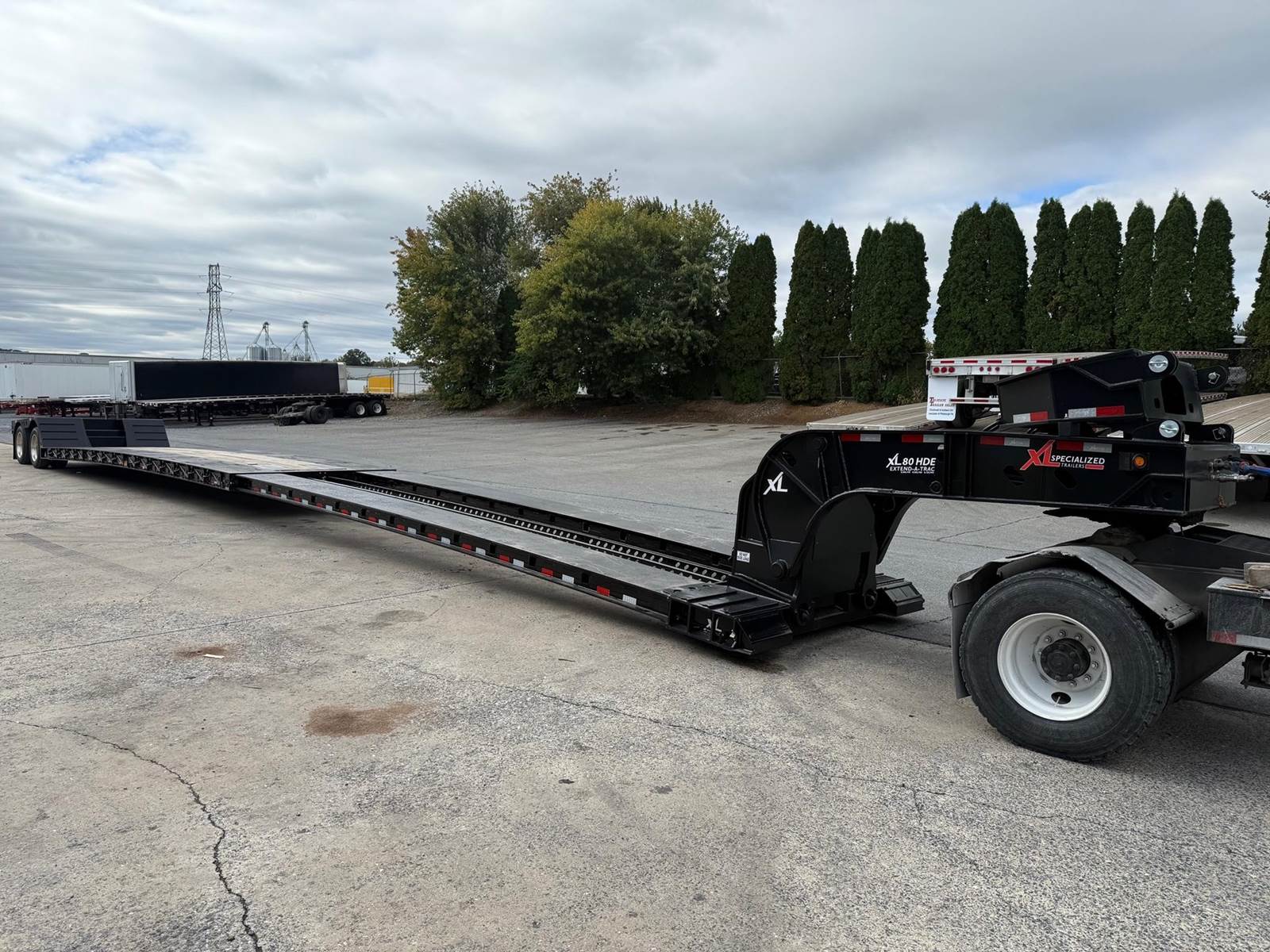

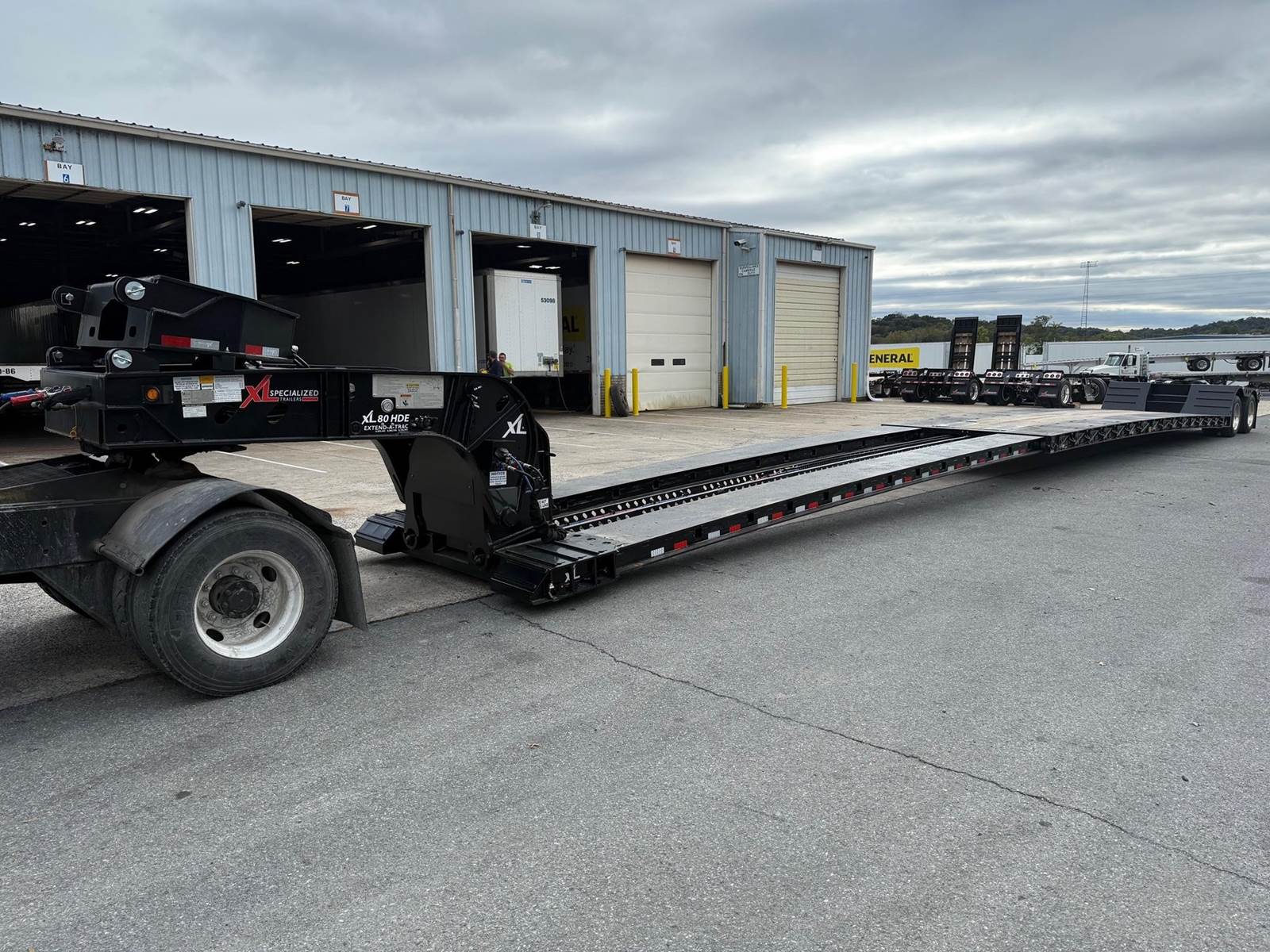

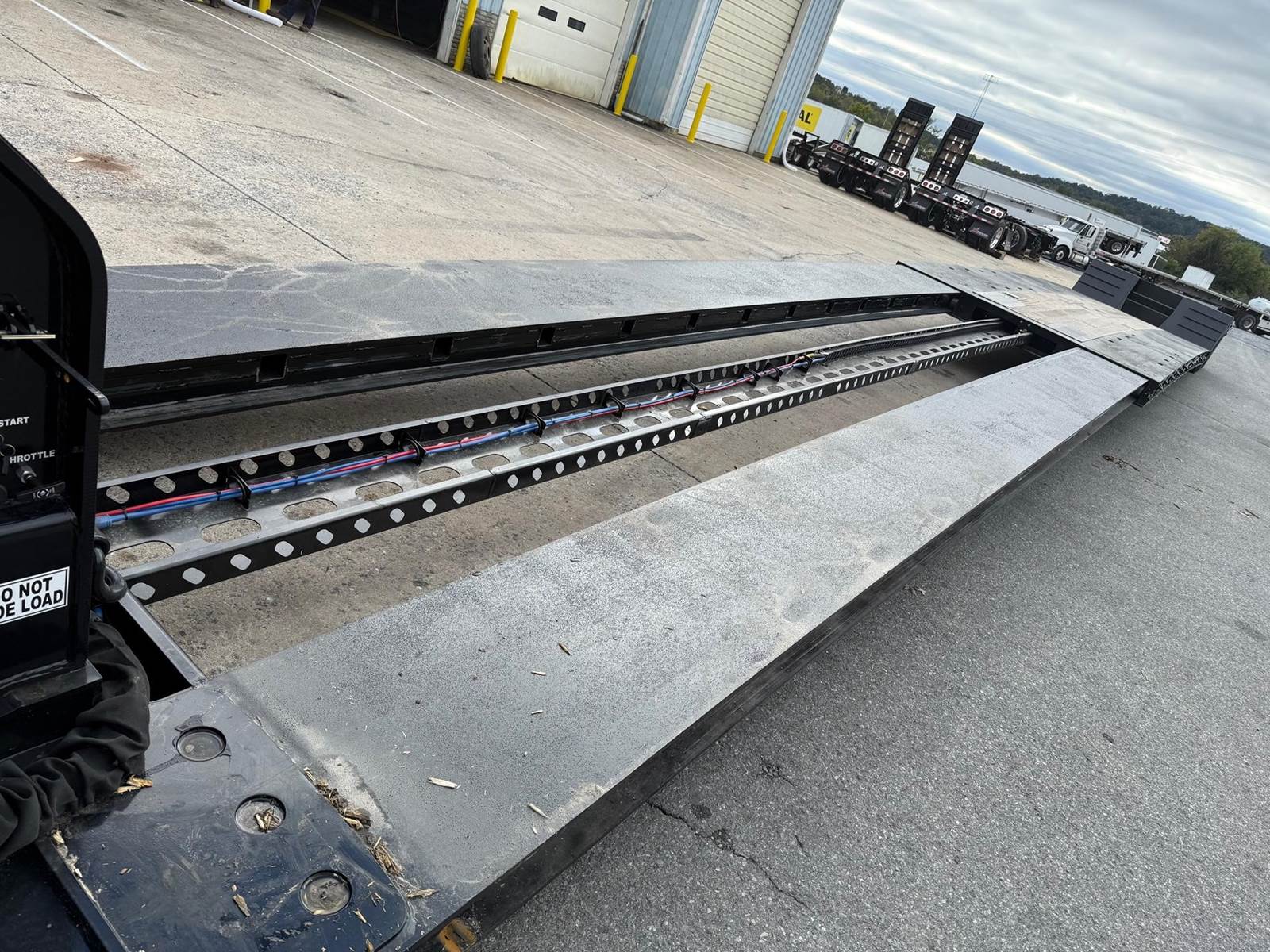

Trailer Extends from the Front
4" Ground Clearance
4S2M ABS w/ Spring Brakes on Both Axles
4-Way Receptacle at Rear
(2) Bent D-Rings in Tail Channel
(1) Pan Style D-Ring in each Corner
(1) Pair Bent D-Rings on Male Deck Below Gooseneck Base
(3) Pair Keyslot Chain Drops in Front Outside Edges of Male Deck
2'x2' Cut Out in Rear Transition
