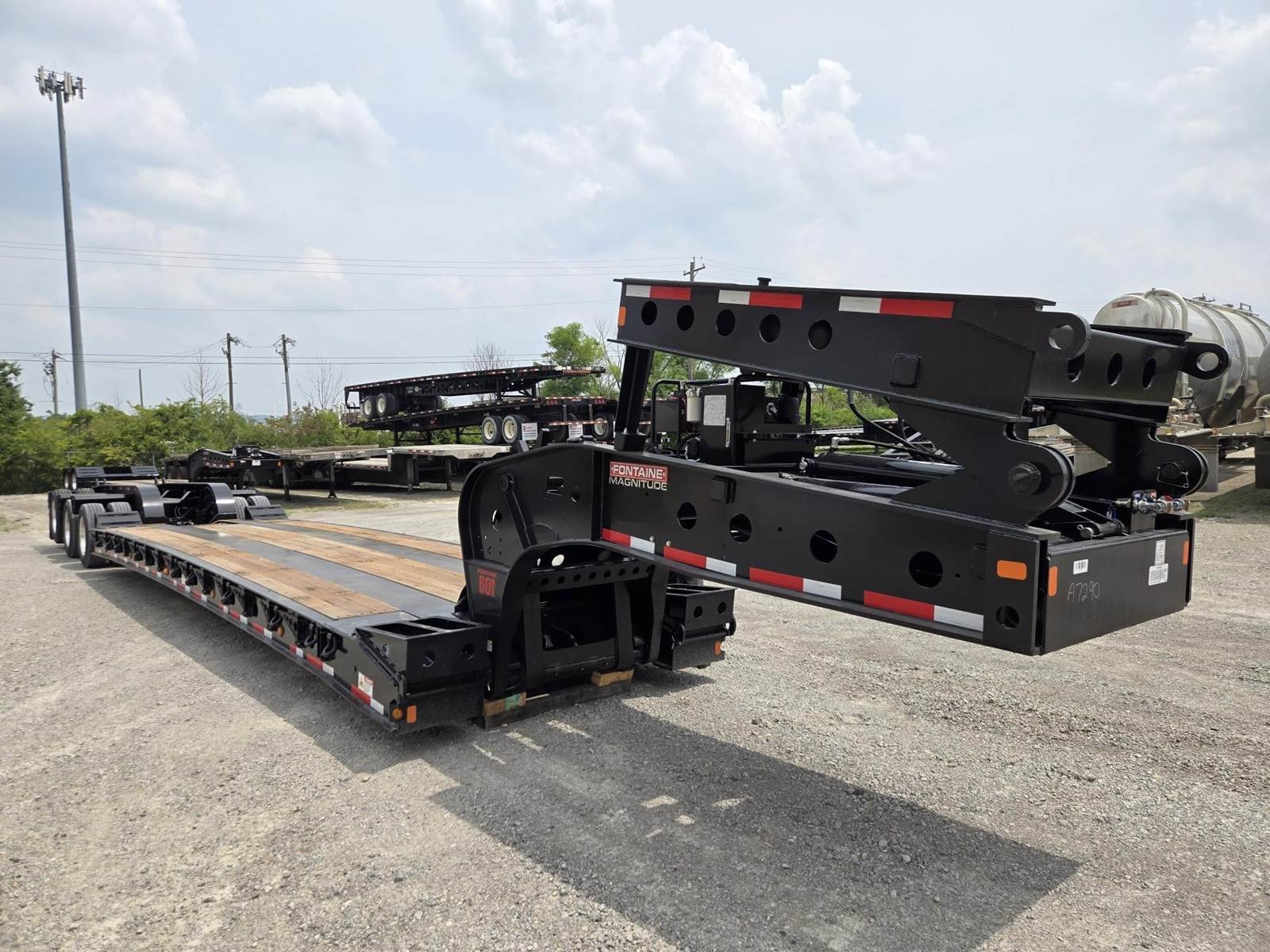

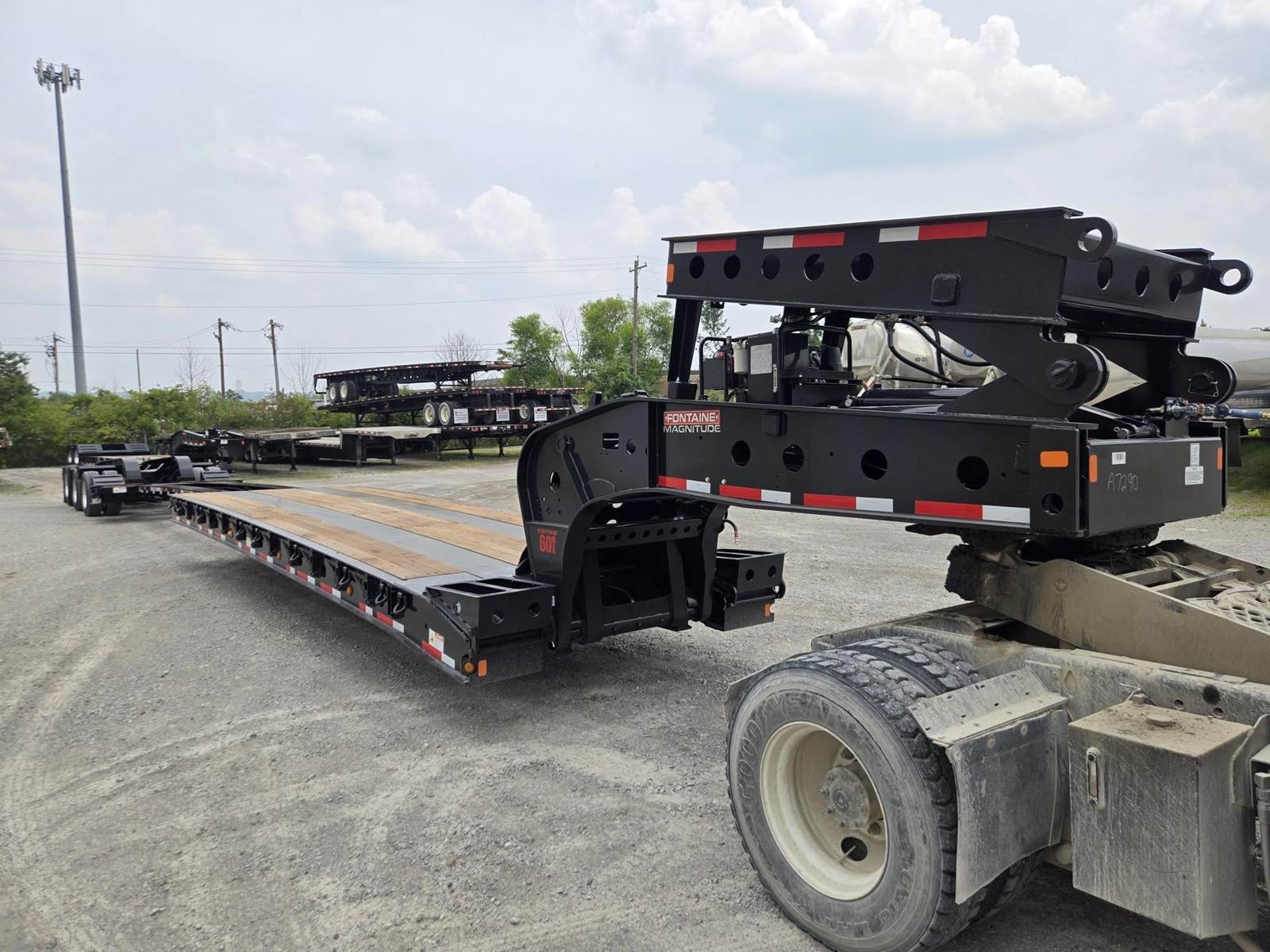

2027 Fontaine MAGNITUDE 60HD MX Lowboy Trailer

*FET Included*
Length 57' 10" Closed, 78' 10" Open
Width 102"
Main Deck Length 30'0" Closed, 51'0" Open
Main Deck Height 22"
Weight 35,024 lbs. +/-3%
Flat Body
Compatibility To Accept 36" or 83" Neck Extention & Flip Axle

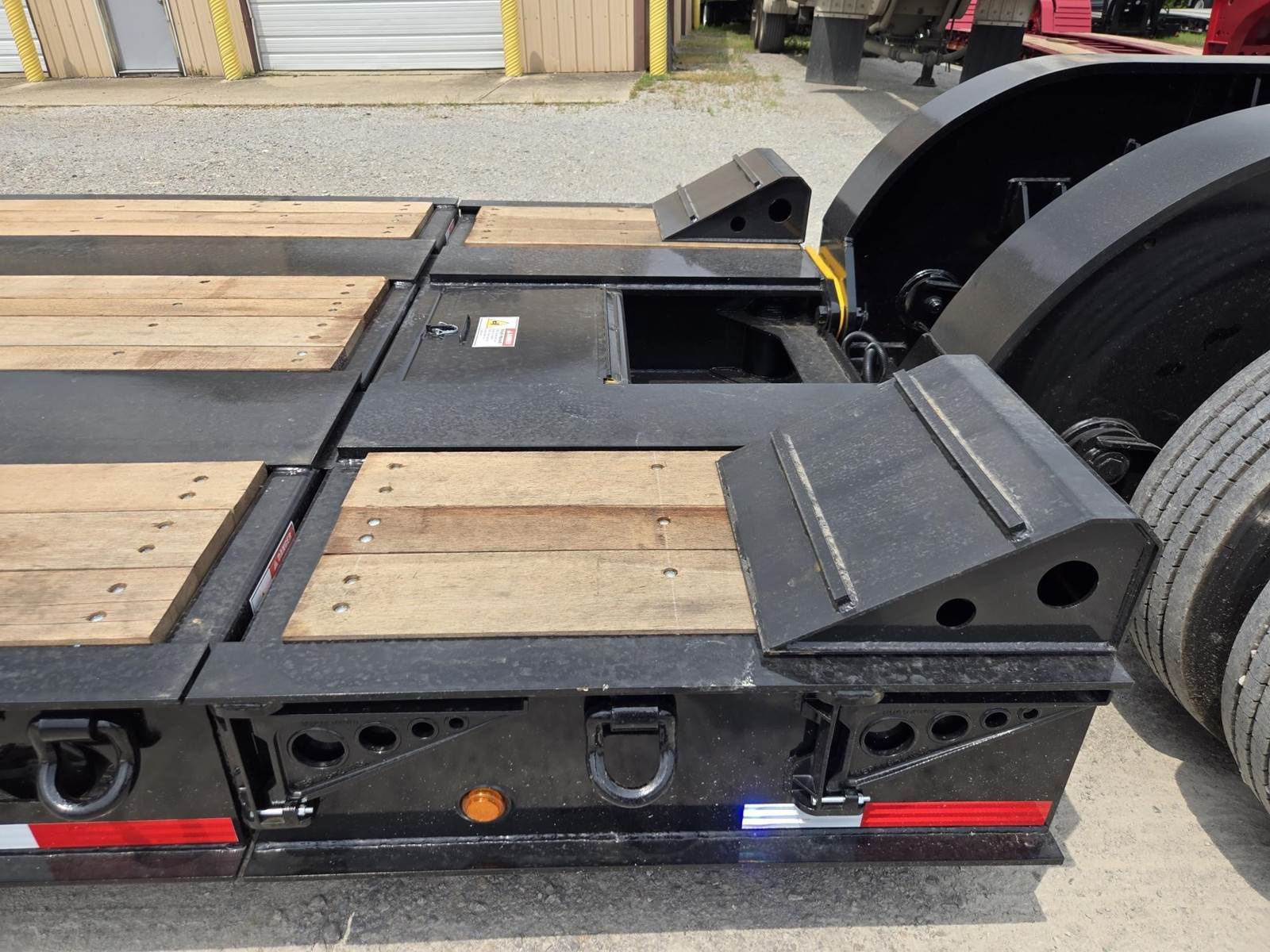

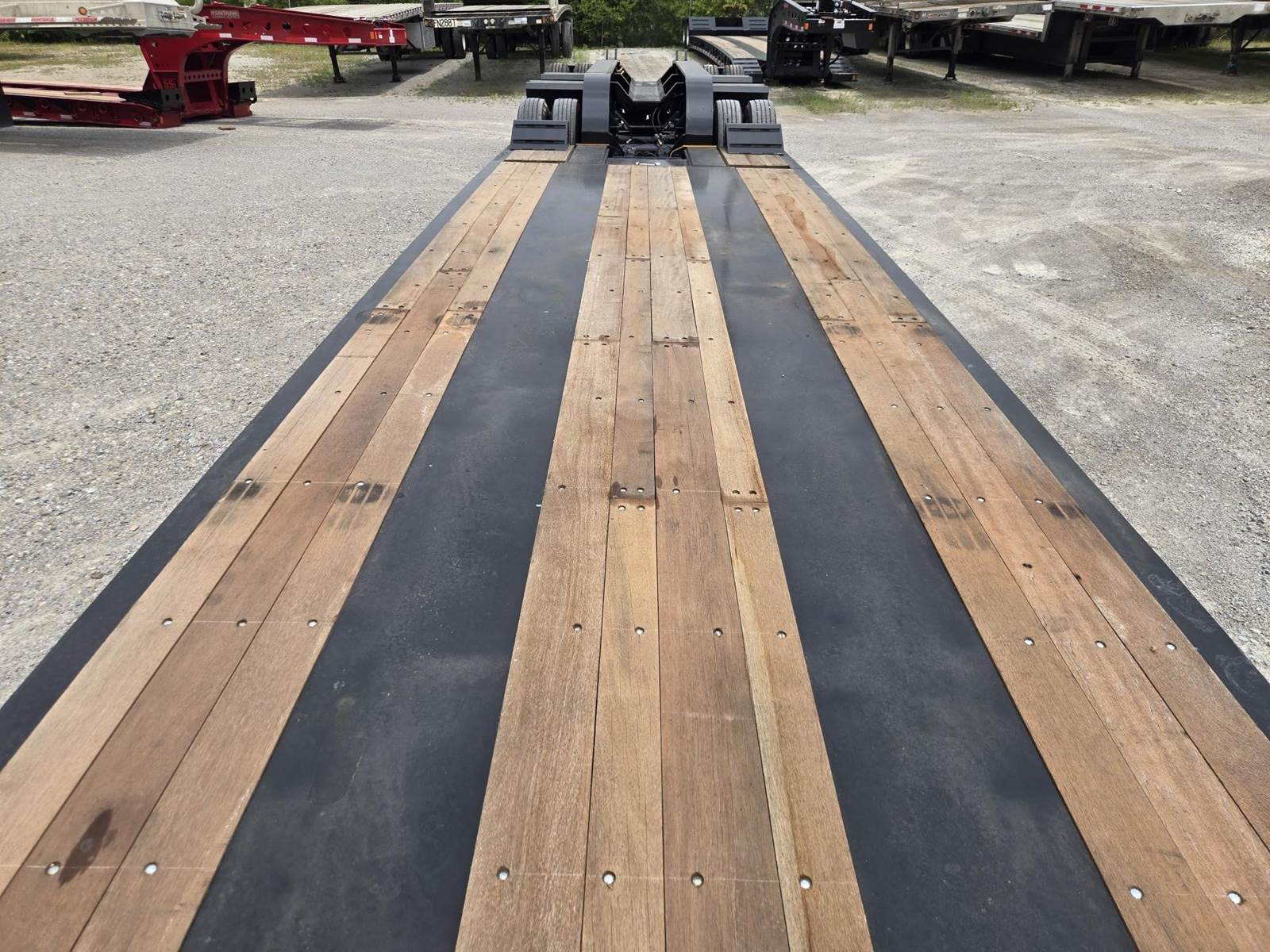

Floor 2" Apitong
Ramps Manual Front Approach Ramps Included
Outriggers 14 pair - Removable Swing Type / 1 pair removable
D-Rings 17 pair
Toolbox 1 Fully Covered Tray in Rear of Deck
Side Rail Lights 3 Marker Lights per Side

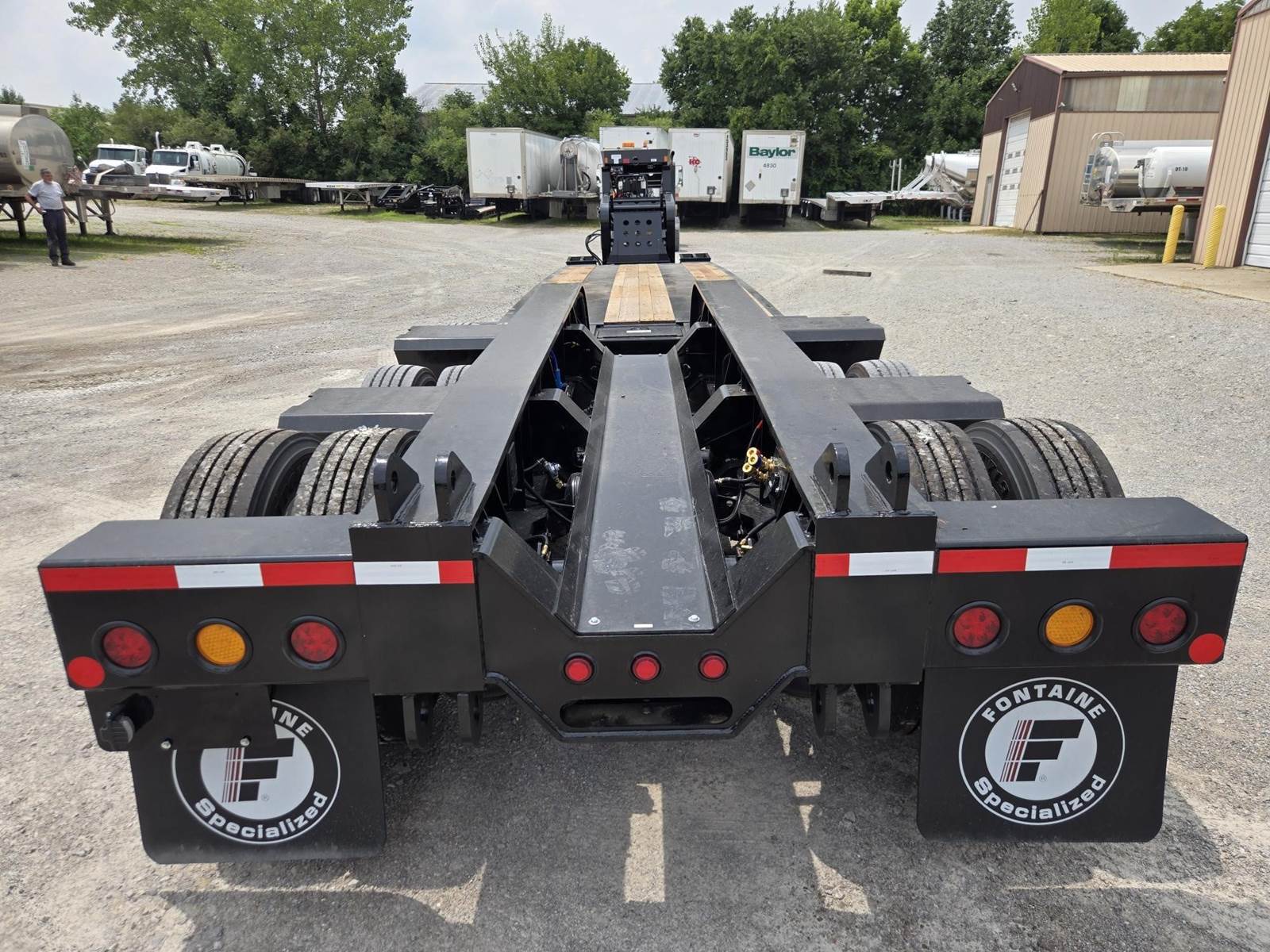

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders Two (2) Pair Total, Front of Deck & Bumper
Modular Connection Modular (Main Deck Disconnects from Bogie)

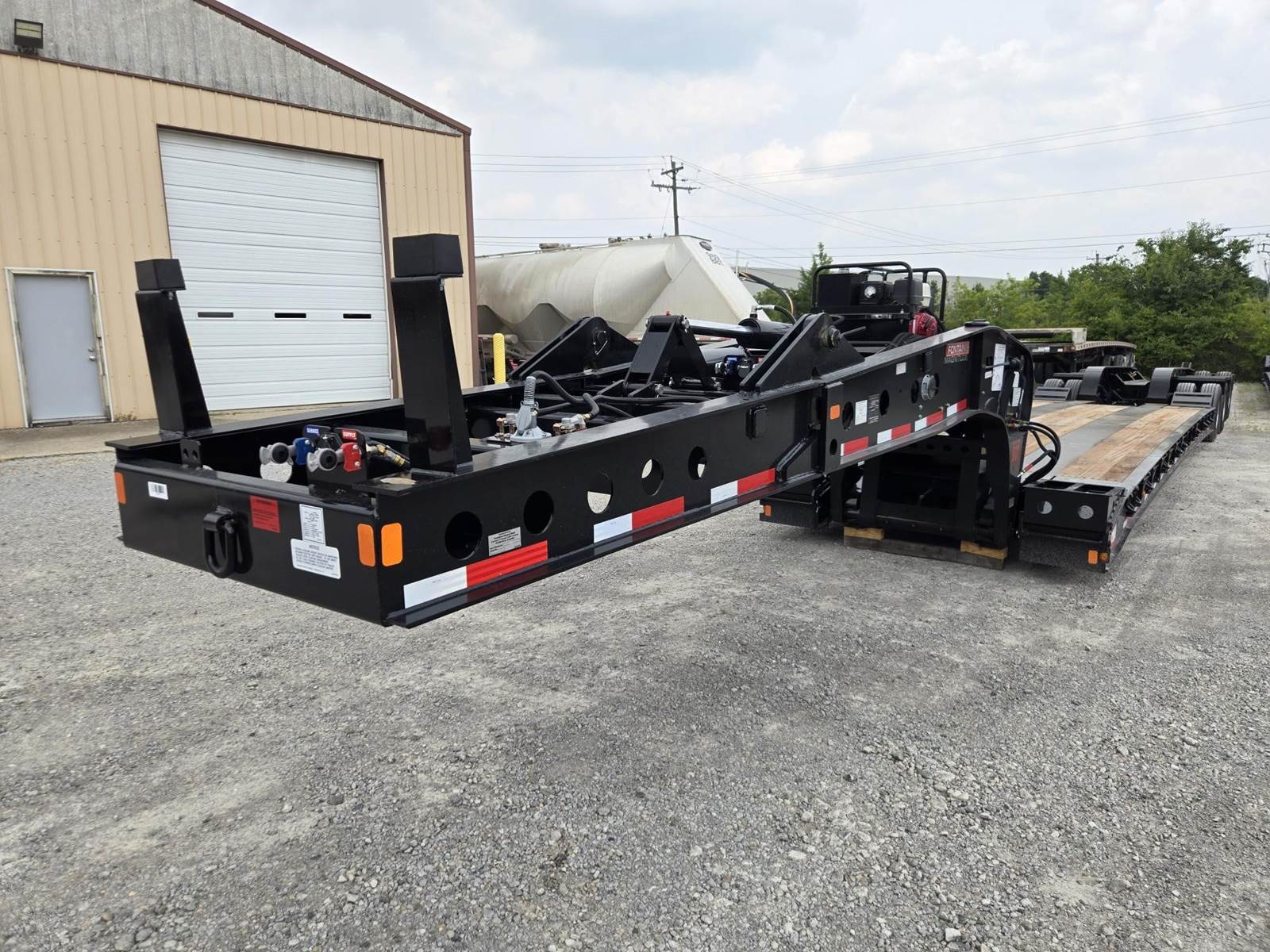

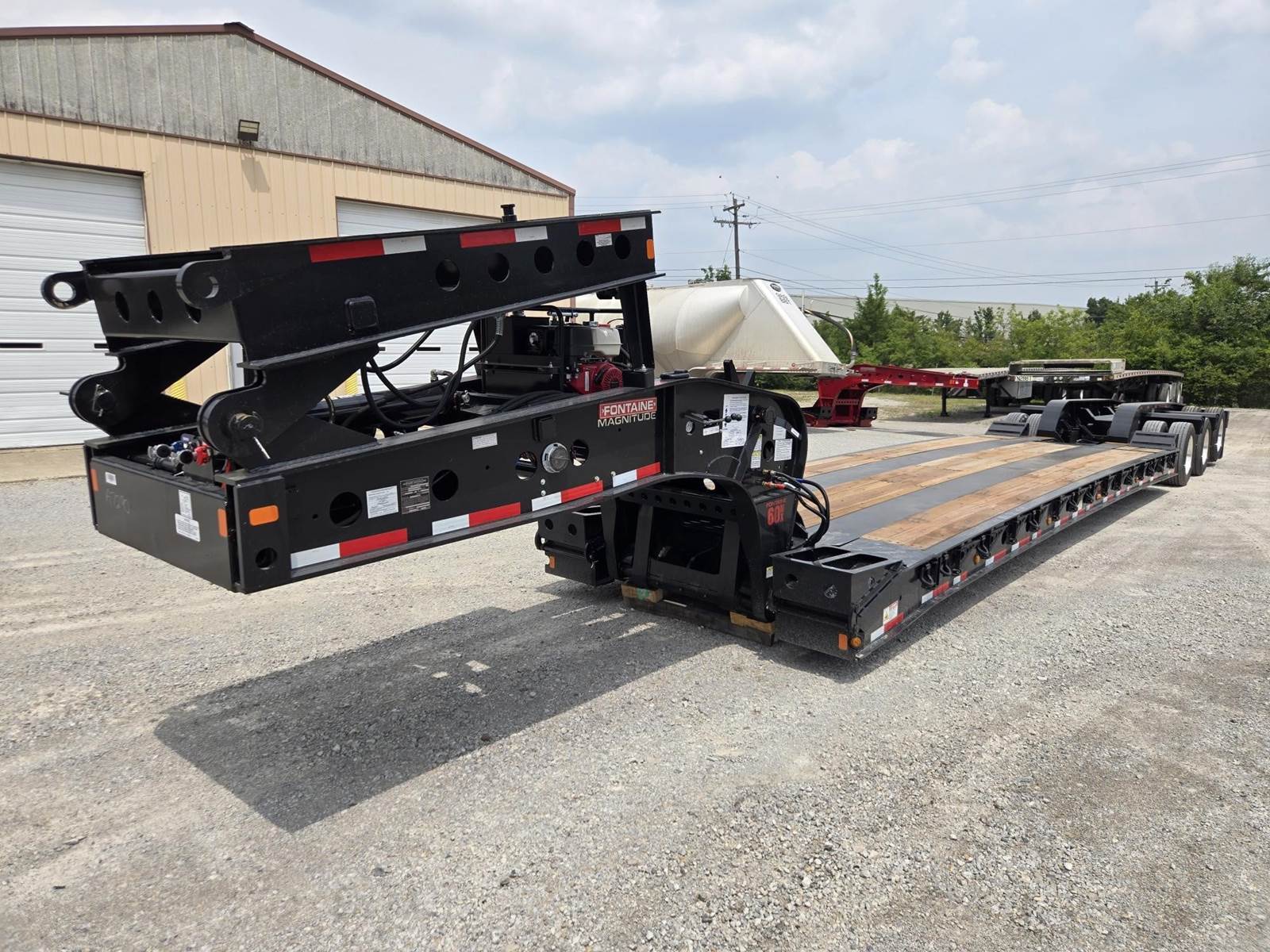

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"
Pony Motors Honda 13HP Pony Motor

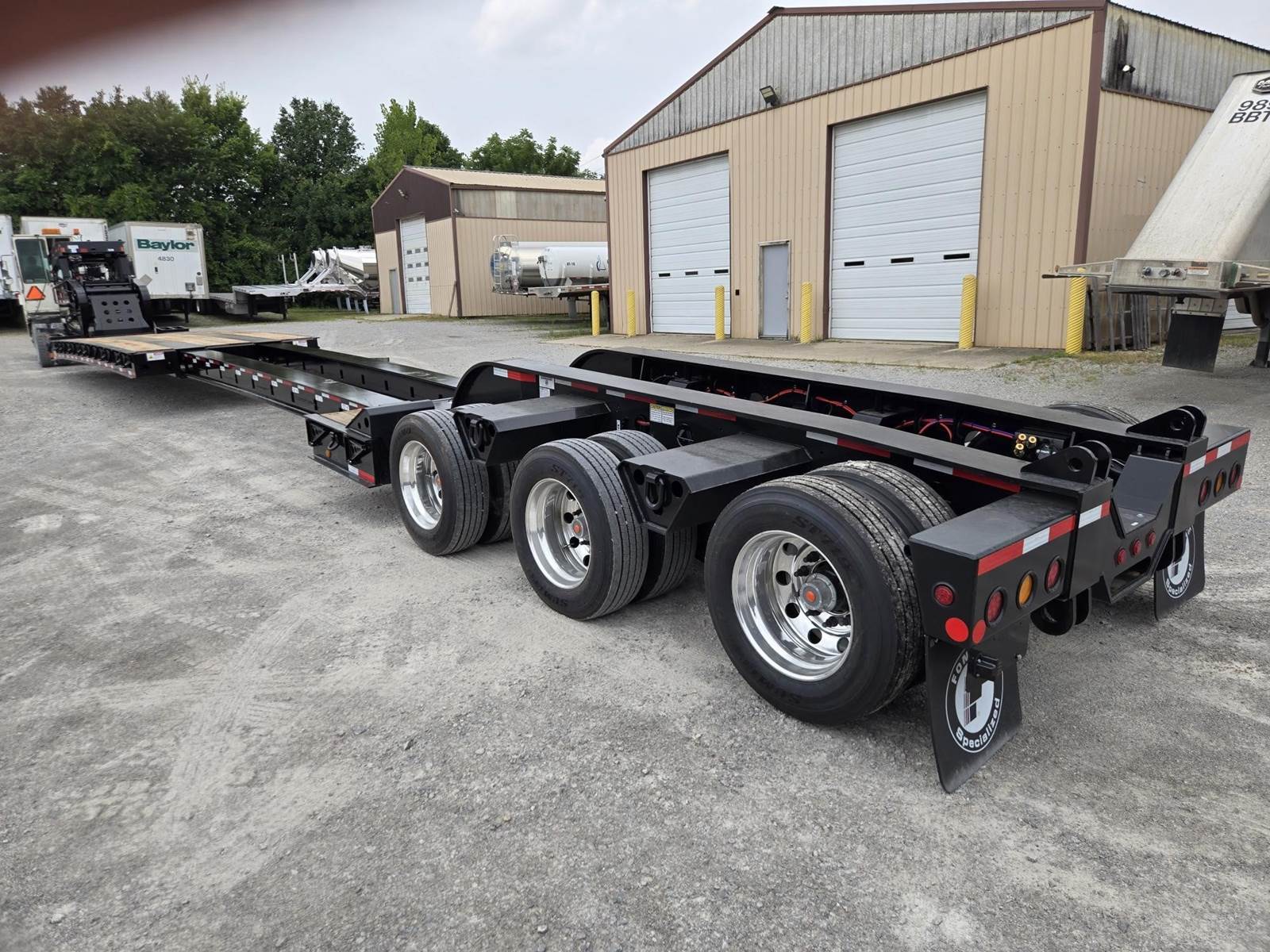

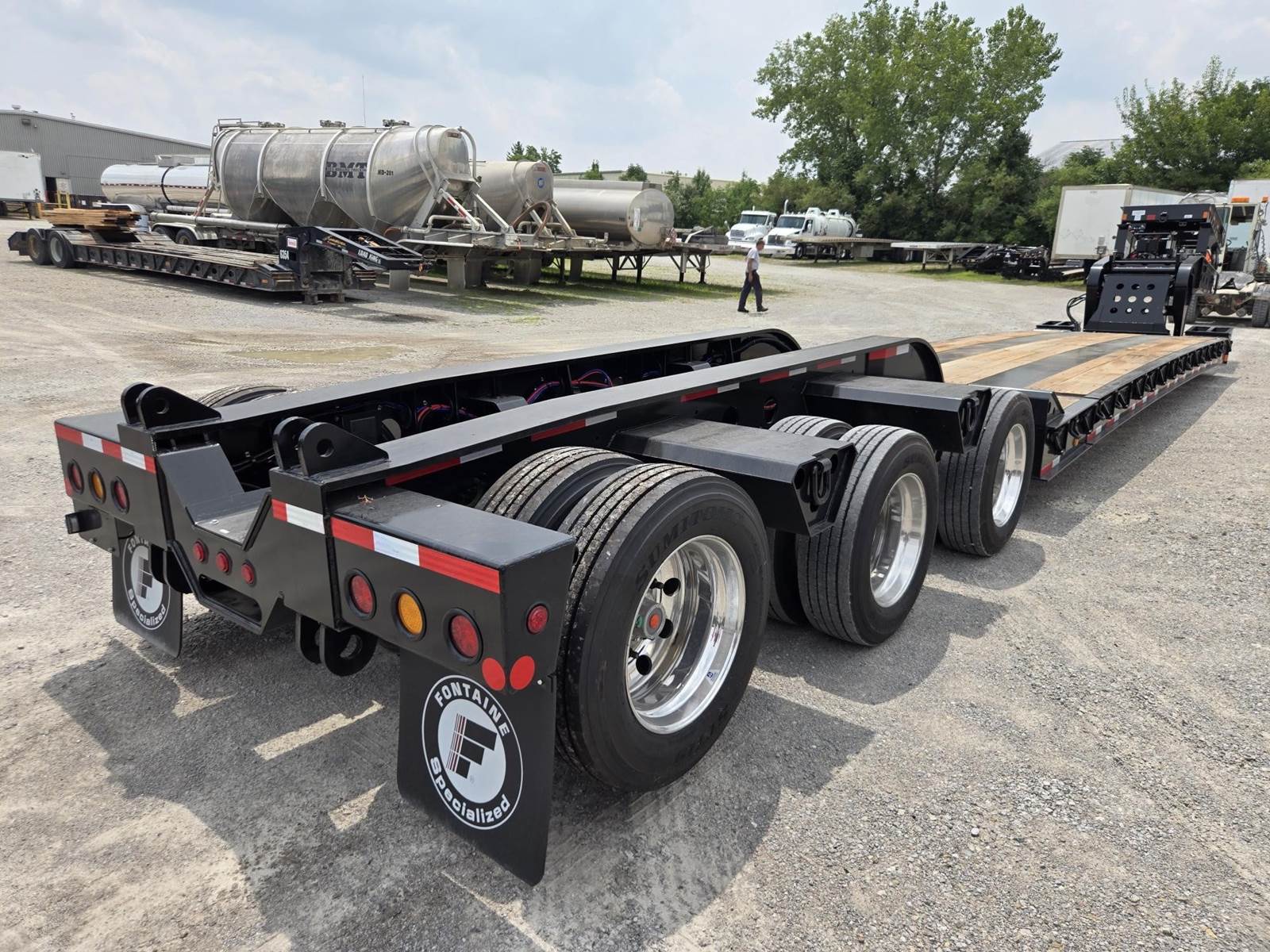

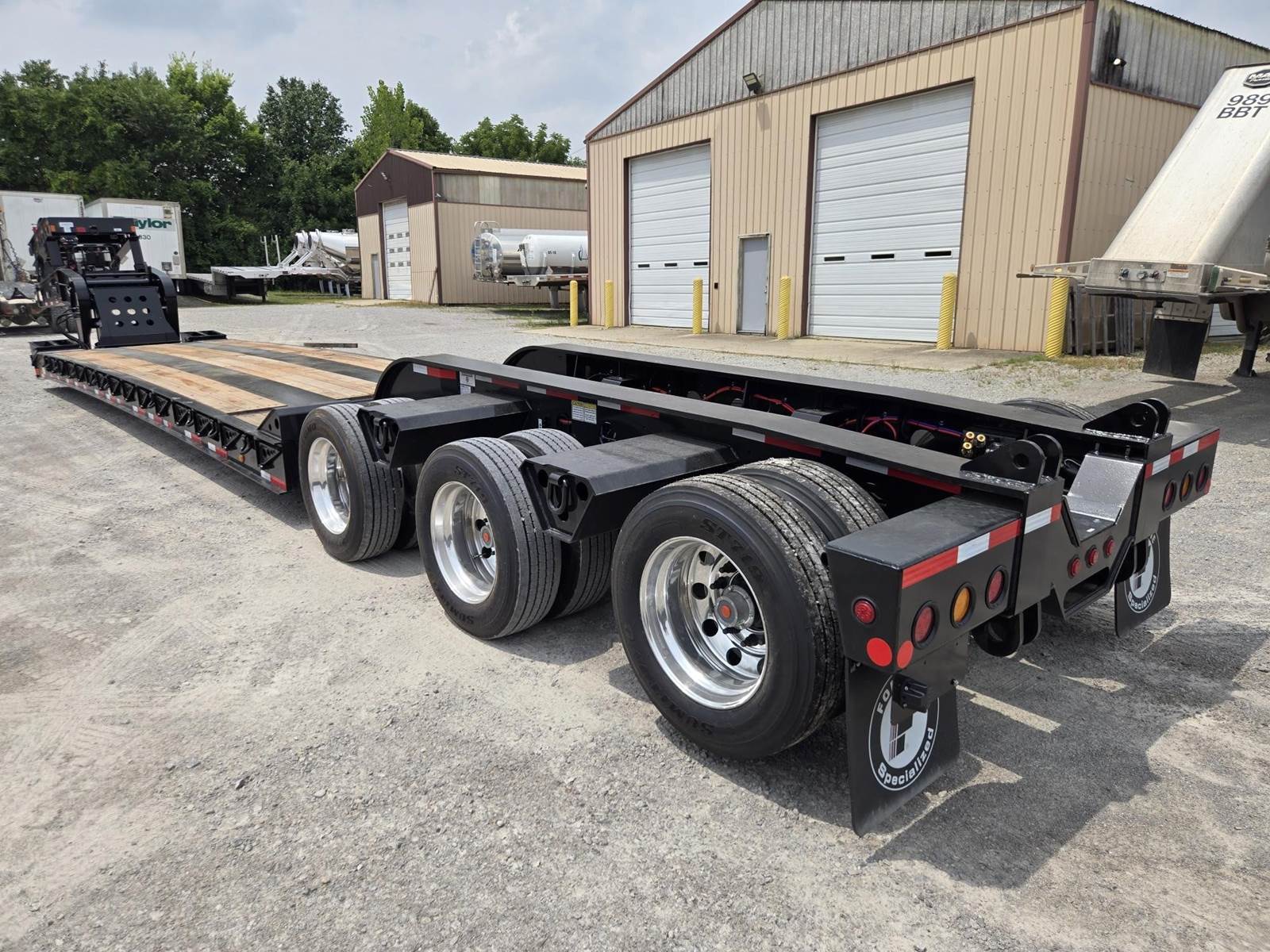

Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Setting 60.5"
Lift Axle Front Axle Chain Lift, Rear Axle Air Lift
Flip Axle Not Included
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels (6) Polished Alum (6) Steel Disc
Liquid Filled Gauge Yes
UnderFrame
King Pin Setting 16"
Cross Member Center 12"
Paint Black
Weight Ratings 65 Ton in 12' Length w/ Closed 4-Axle
Comments
60-Ton in 16' as a 3+2 Configuration w Flipbox Deployed
65-Ton in 12' with Four Axles Close Coupled
Designed to Accept 60/90 Intermediate Flip Axle, 60/90 Rear Flip Axle, EQ2 Spreader, and/or 36" or 83" Flip Box
12'8" Overall Gooseneck Length
106" Swing Clearance
Removable Kingpin at 86" & 102" Radius

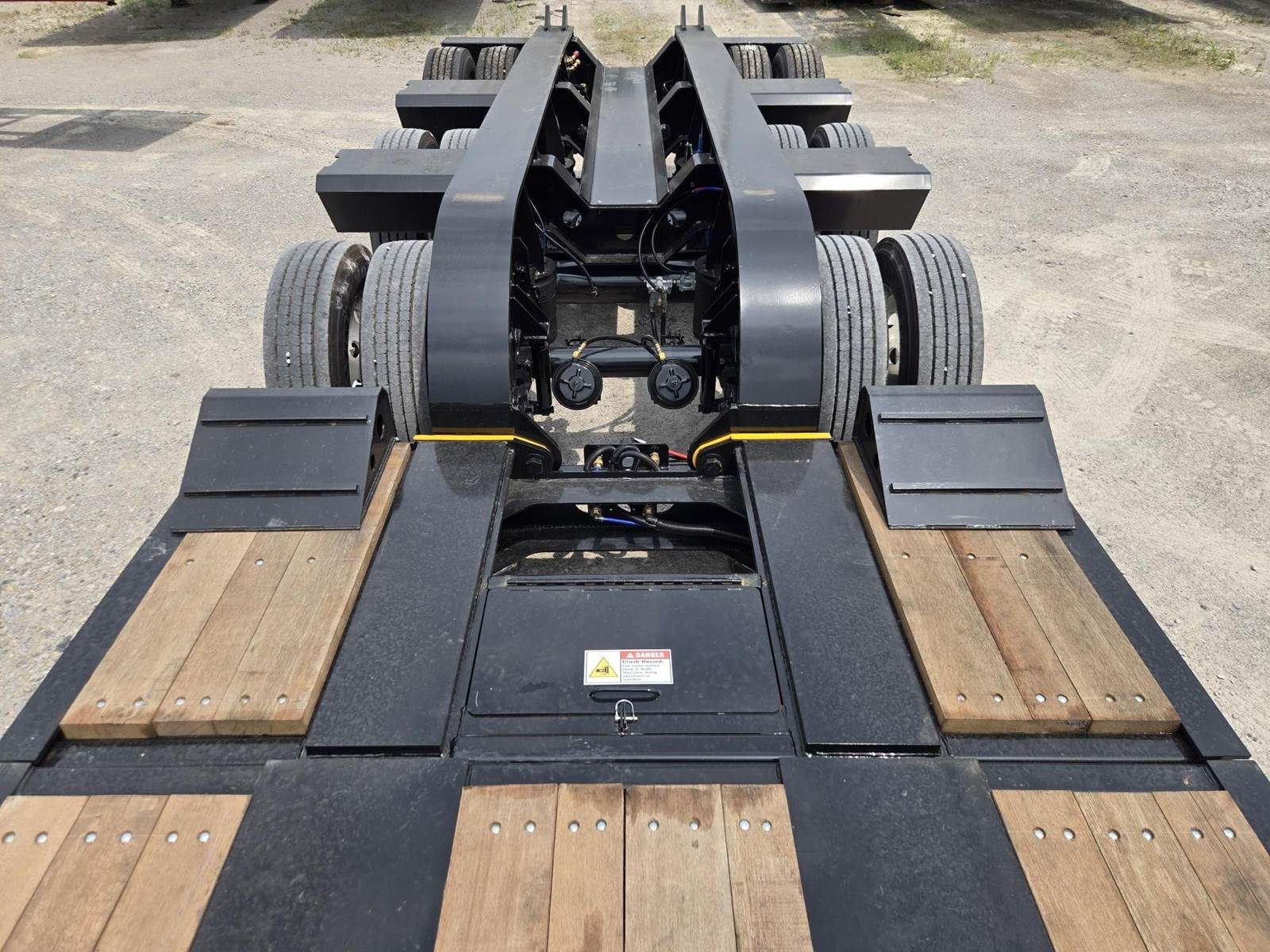

Rear Bogie Height: 43" to Top Flanges, 39" to Top of Bolsters
83" Hydraulic Flipbox w/ 189" Total Swing Clearance
