2027 Landoll 850XT-53 Extendable Lowboy Bus Hauler Trailer – 50 Ton - for sale at Midco Sales in AZ

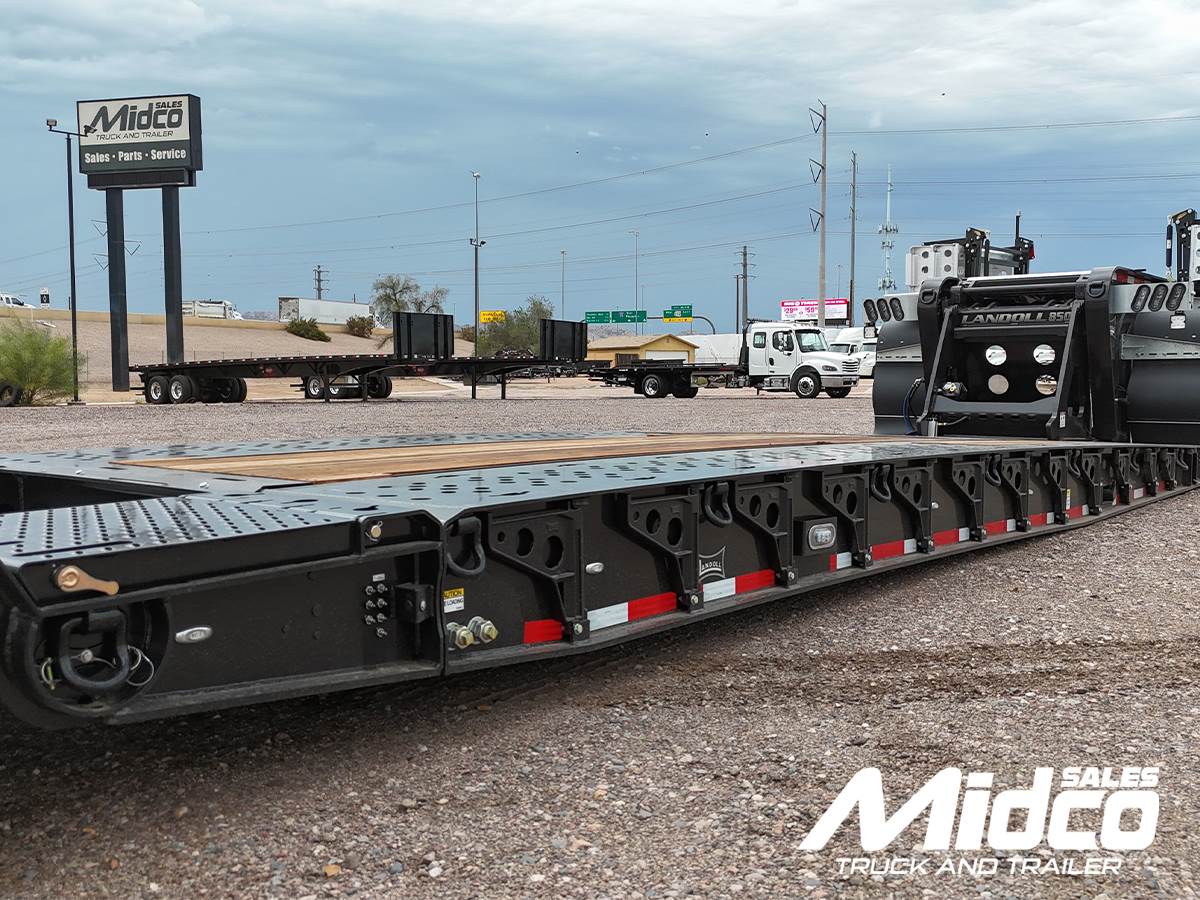

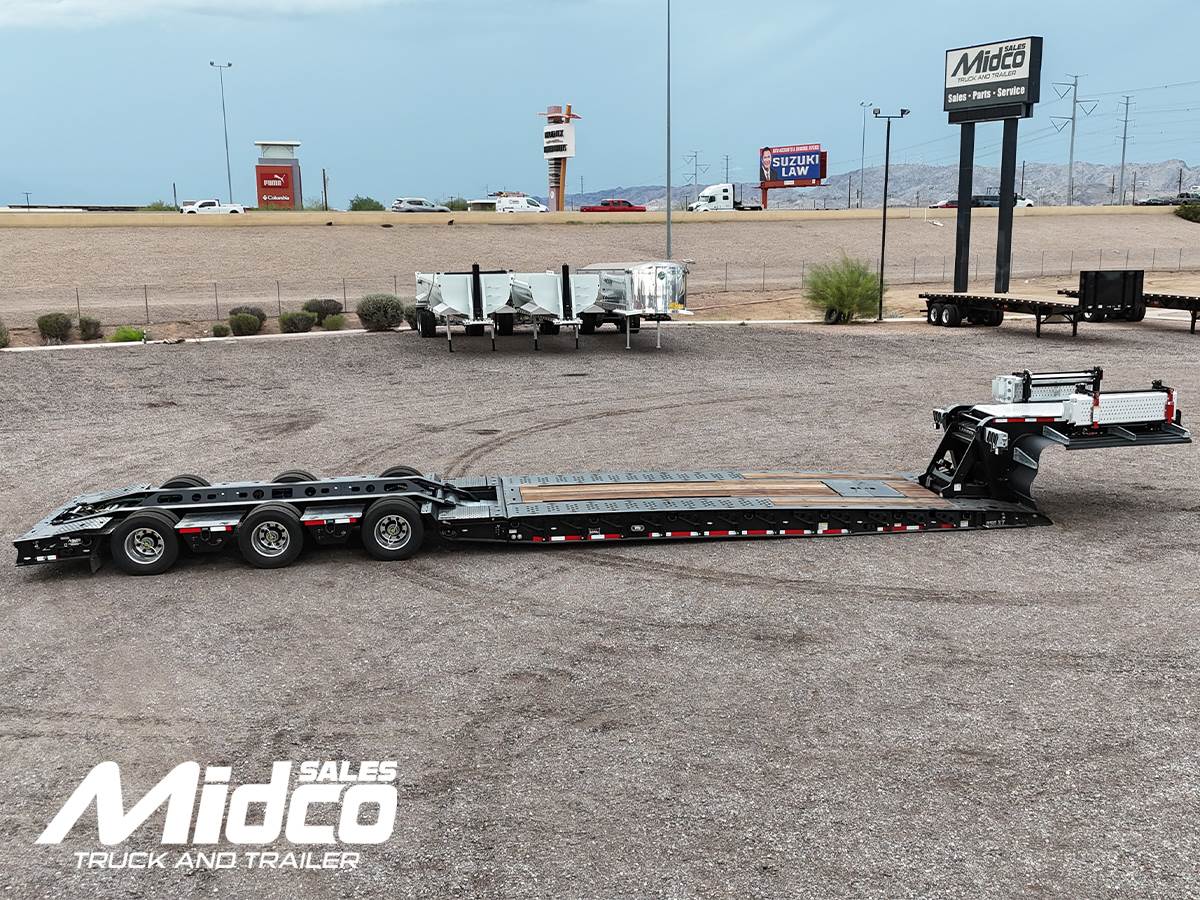

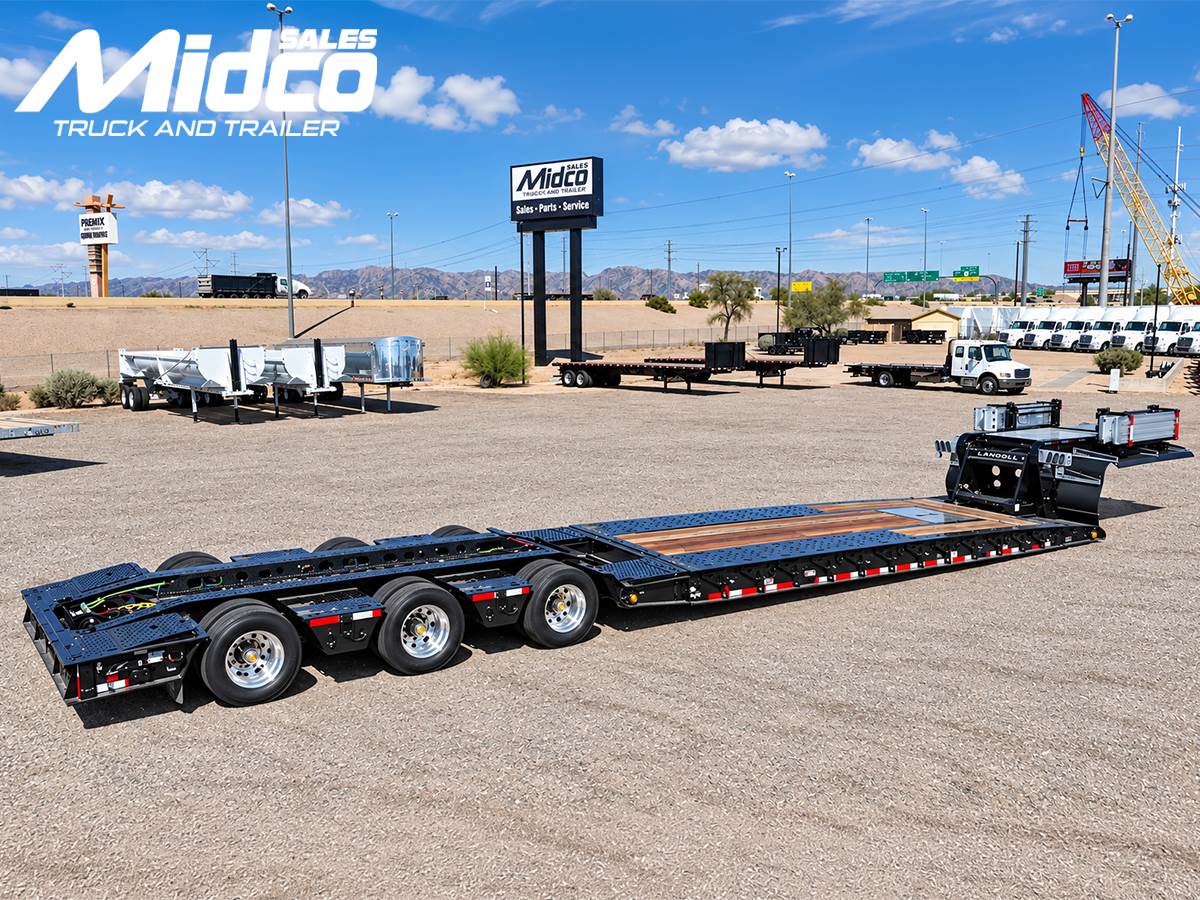

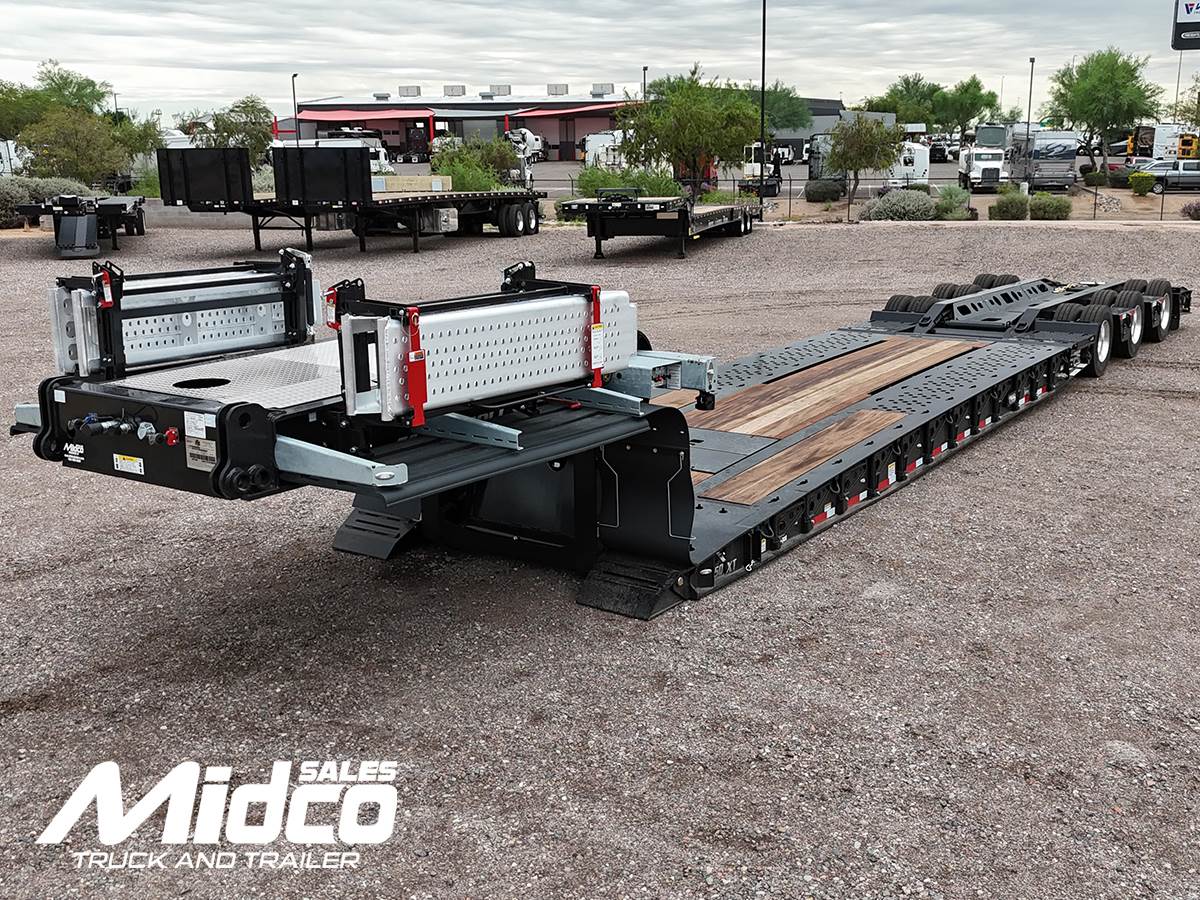

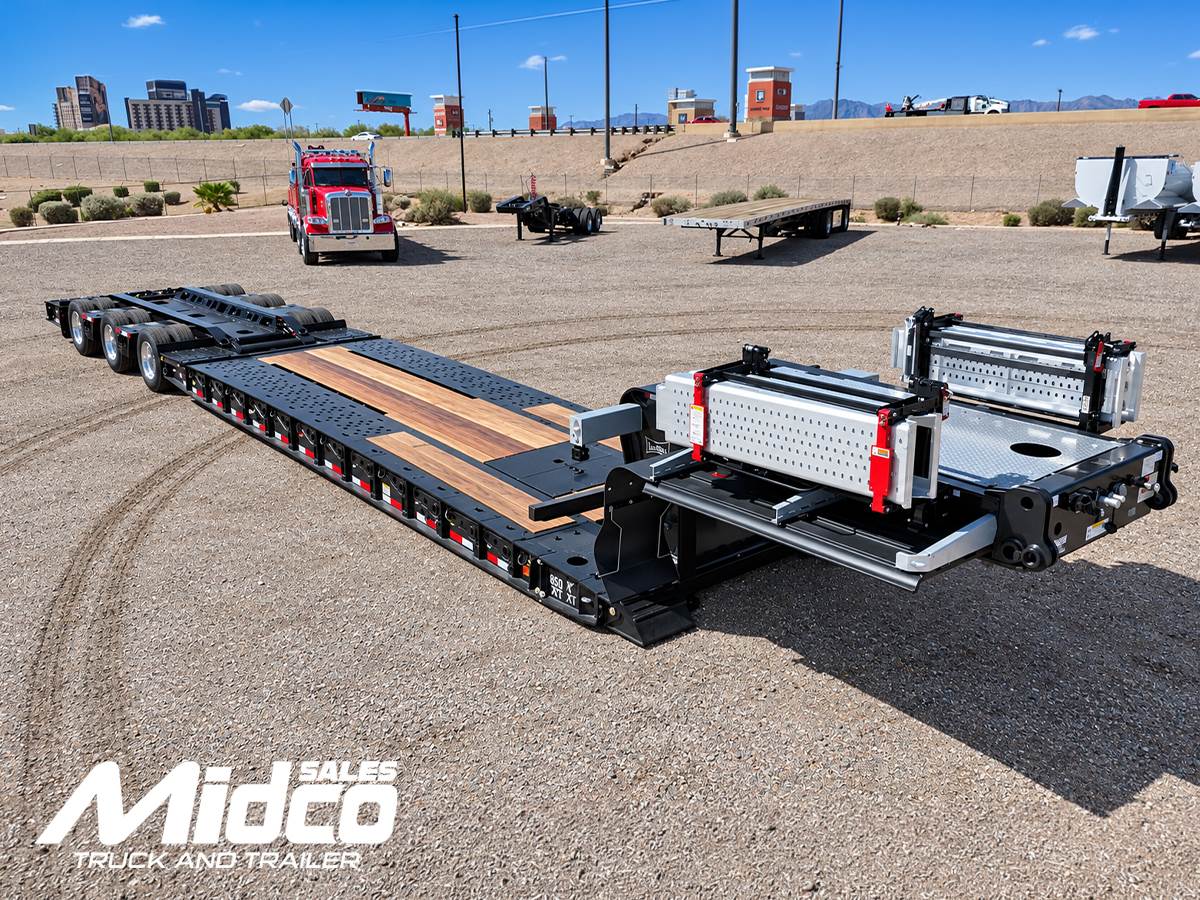

The 2027 Landoll 850XT-53 Extendable Lowboy Trailer is a purpose-built heavy-haul lowboy and bus hauler trailer designed for transporting commercial buses, motorcoaches, RVs, fire trucks, heavy equipment and other long or low-clearance loads. With its low deck design, detachable gooseneck, extendable frame and dedicated bus-loading equipment, this Landoll 850XT offers the flexibility needed for specialized vehicle transport.

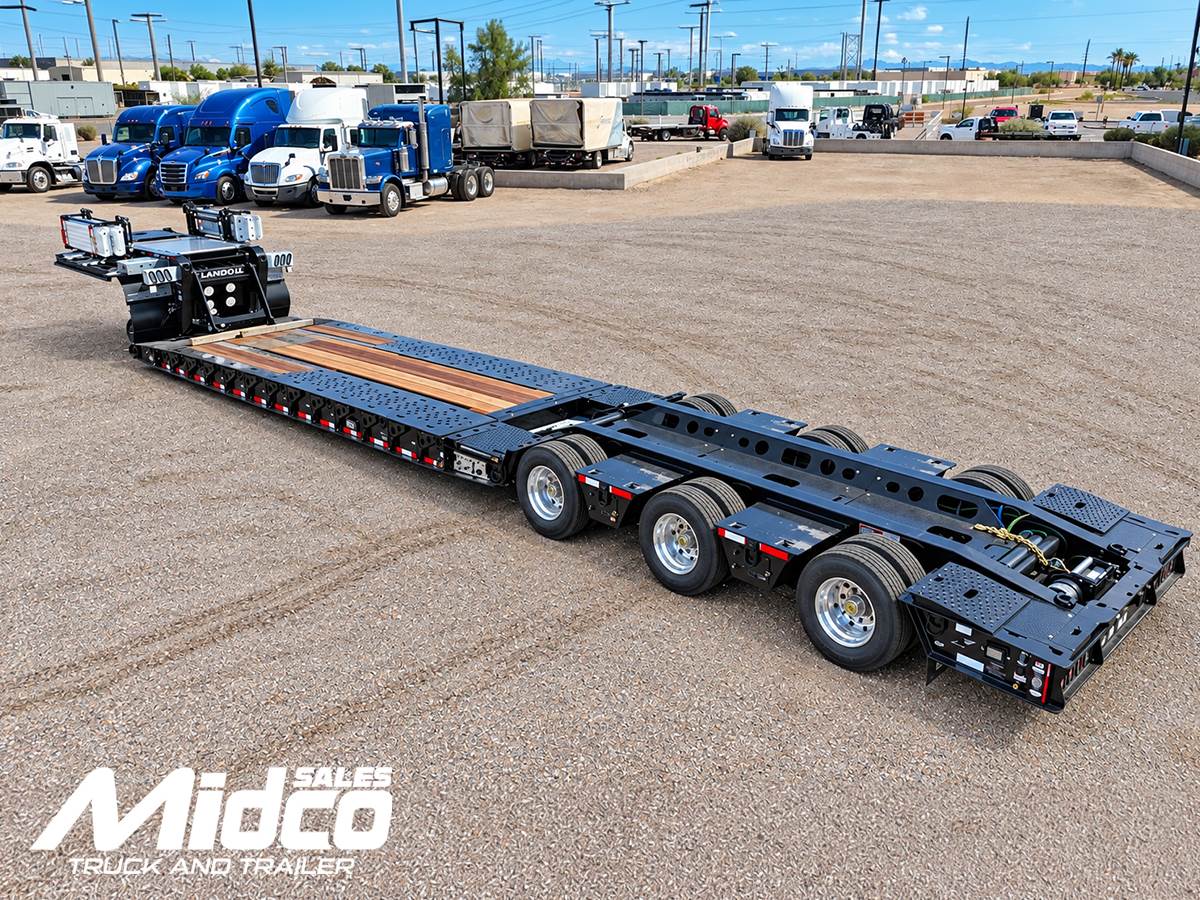

This 53' x 102" Landoll lowboy is rated at 50 tons (100,000 lbs.) concentrated in 16 feet. Its engineered extendable frame provides four trailer-length positions, allowing the trailer to accommodate longer vehicles and oversized loads while maintaining the versatility of a 53-foot trailer when the additional length isn't required.
For loading buses, RV coaches and other vehicles, this 850XT is equipped with a four-piece bus ramp system with lockable storage and lift assist. A 20,000 lb. rear-mounted winch with cable roller guide and remote control provides additional pulling capability when loading disabled or non-running vehicles. The trailer also features a boom trough with covers, Apitong wood decking, outriggers and multiple tie-down points for securing a wide range of cargo.
The tri-axle running gear features three rigid axles with air-ride suspension. The center axle can be manually chained up, while the rear axle features an air-lift/retract system. Additional equipment includes a tire inflation system, Air-Weigh Digital QuickLoad Plus air scale and centralized grease system.
Built for professional heavy-haul operations, this Landoll 850XT bus transport trailer combines a 50-ton capacity with an extendable deck and low-clearance loading capability. It is well suited for companies transporting buses, motorcoaches, RVs, fire apparatus, trucks and heavy equipment, while its specialized ramp, winch and cargo-control equipment make it particularly well equipped as a bus hauler trailer.
Available from Midco Sales, an authorized Landoll trailer dealer in Arizona. Contact Midco Sales at 480-999-0607 for pricing and availability. Nationwide delivery is available.
DIMENSIONS & CAPACITY
Closed Length: 53'
Extended lengths: 55.5", 58' 61'
Width: 102"
Capacity: 50 tons (100,000 lbs) concentrated in 16'
GVWR: 125,000 lbs

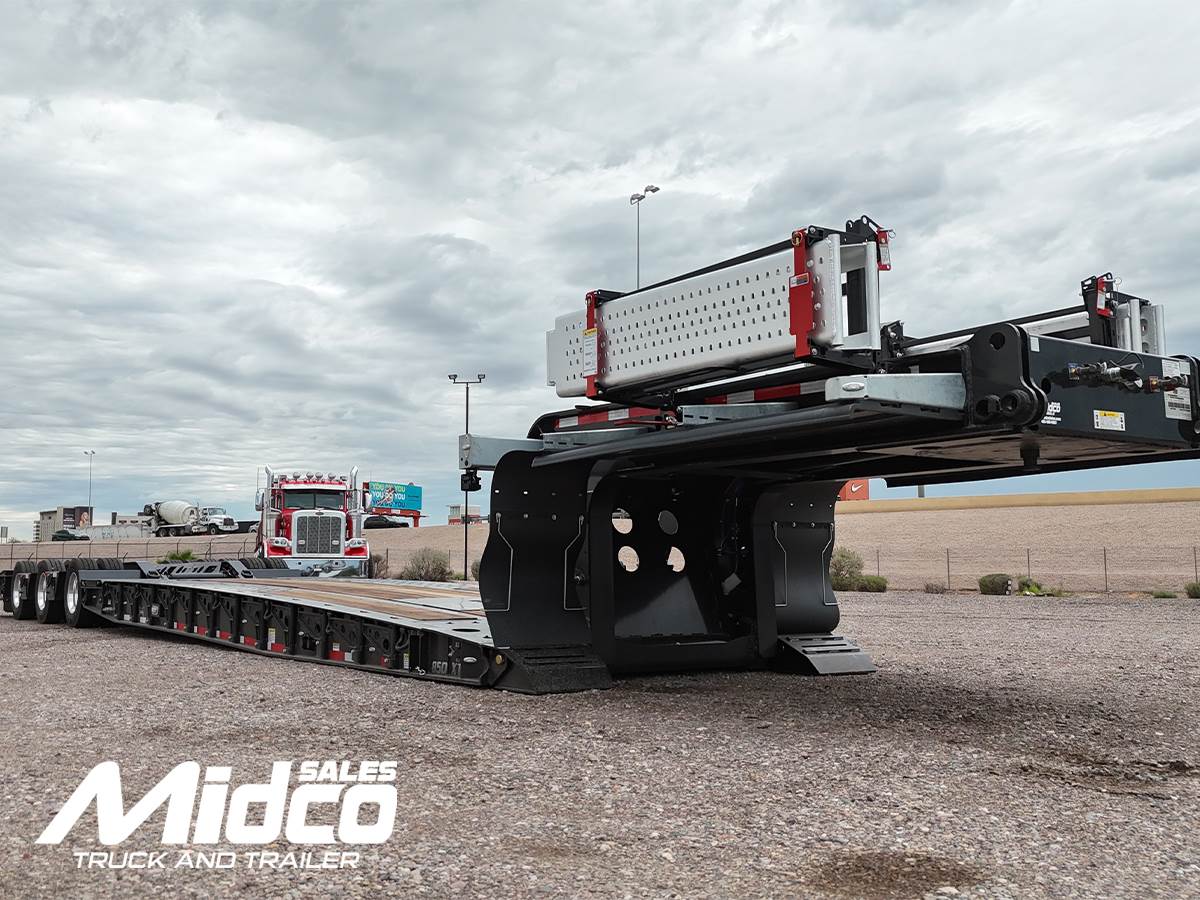

GOOSENECK
12' length
Aluminum cover plate
Bolt-on chain and binder rack

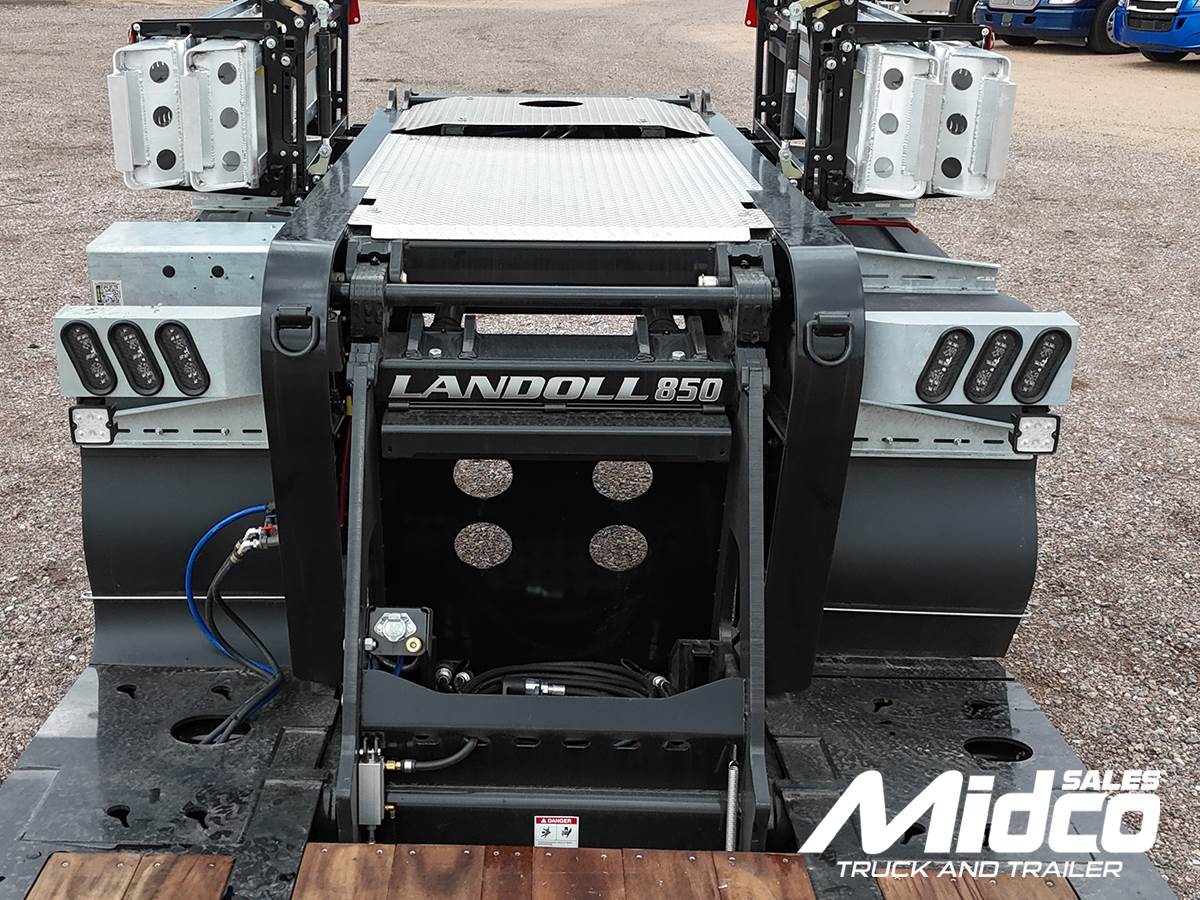

LED lighting: (3) stop/turn lights, (2) work lights
Fenders w/ mudflaps

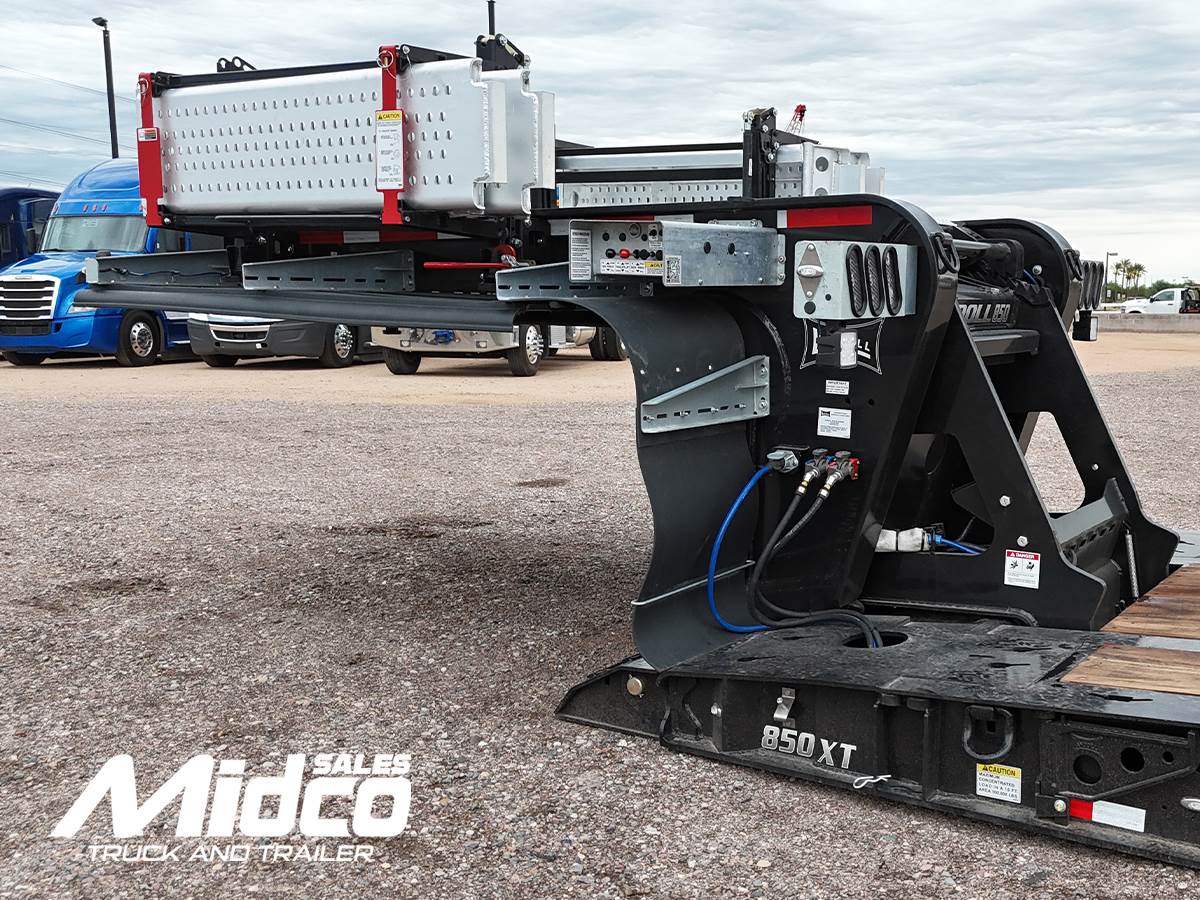

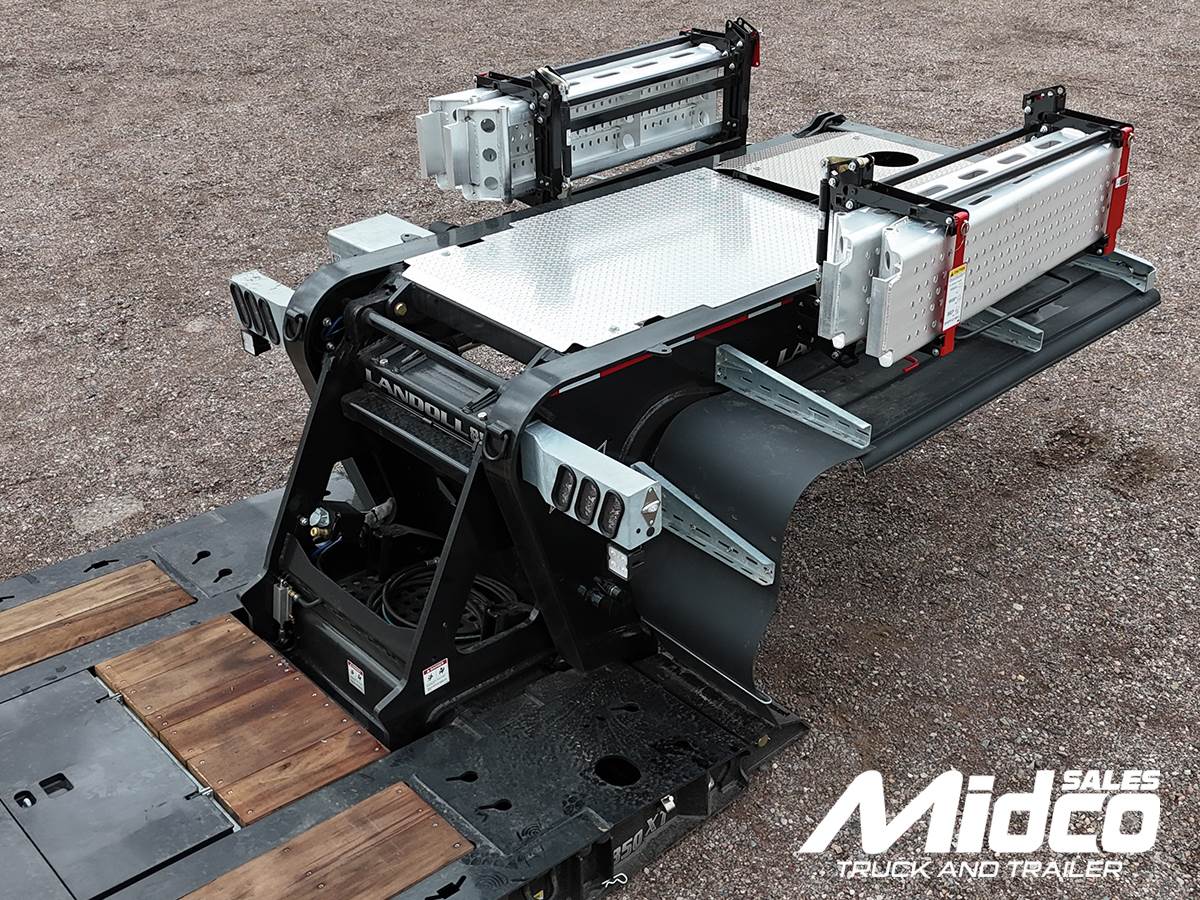

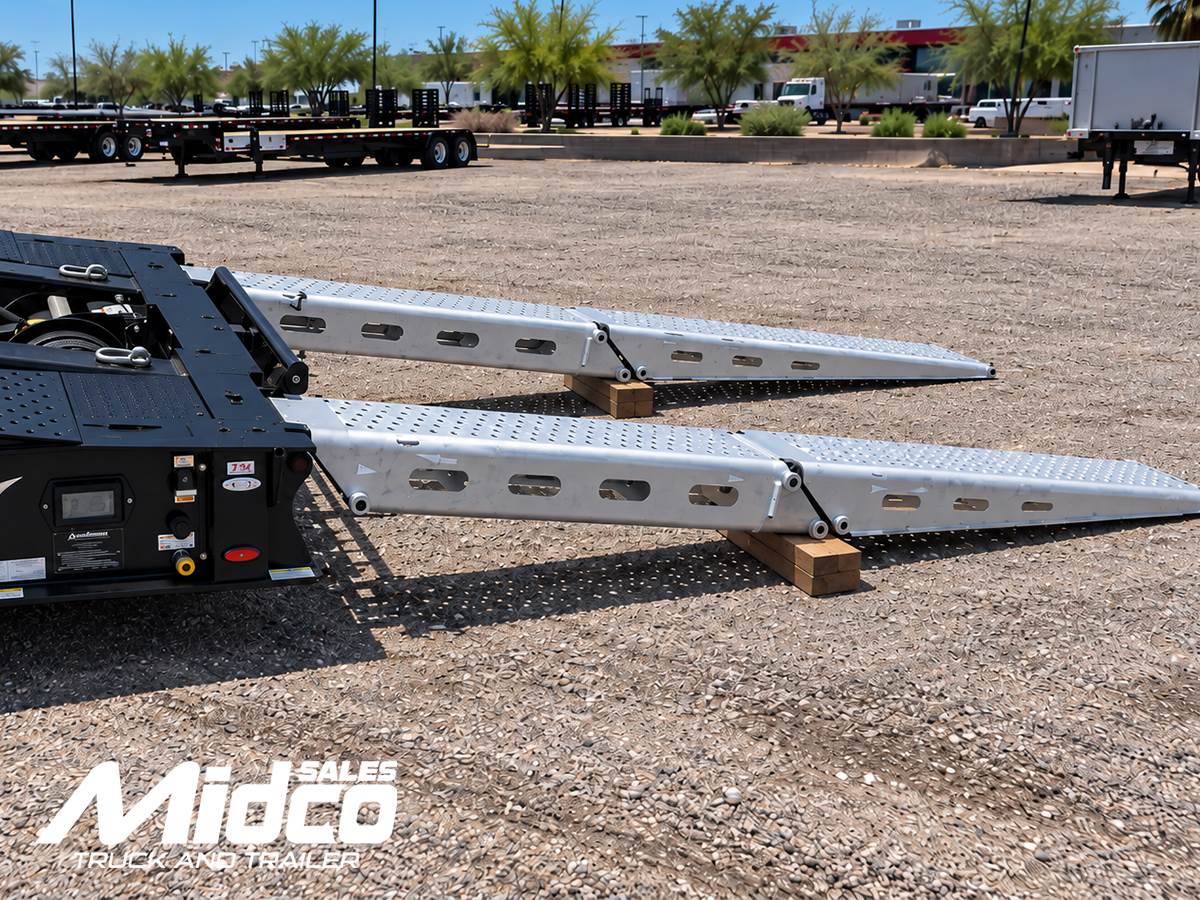

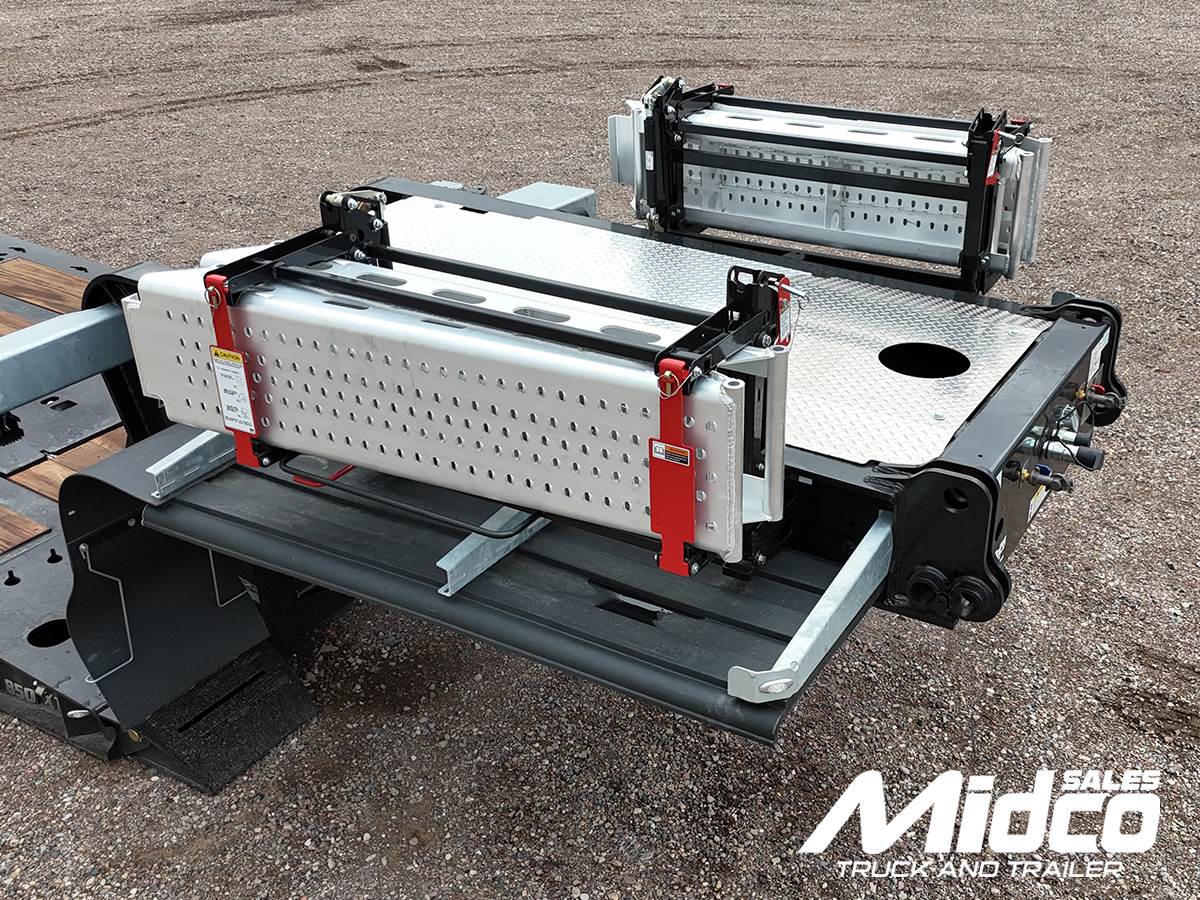

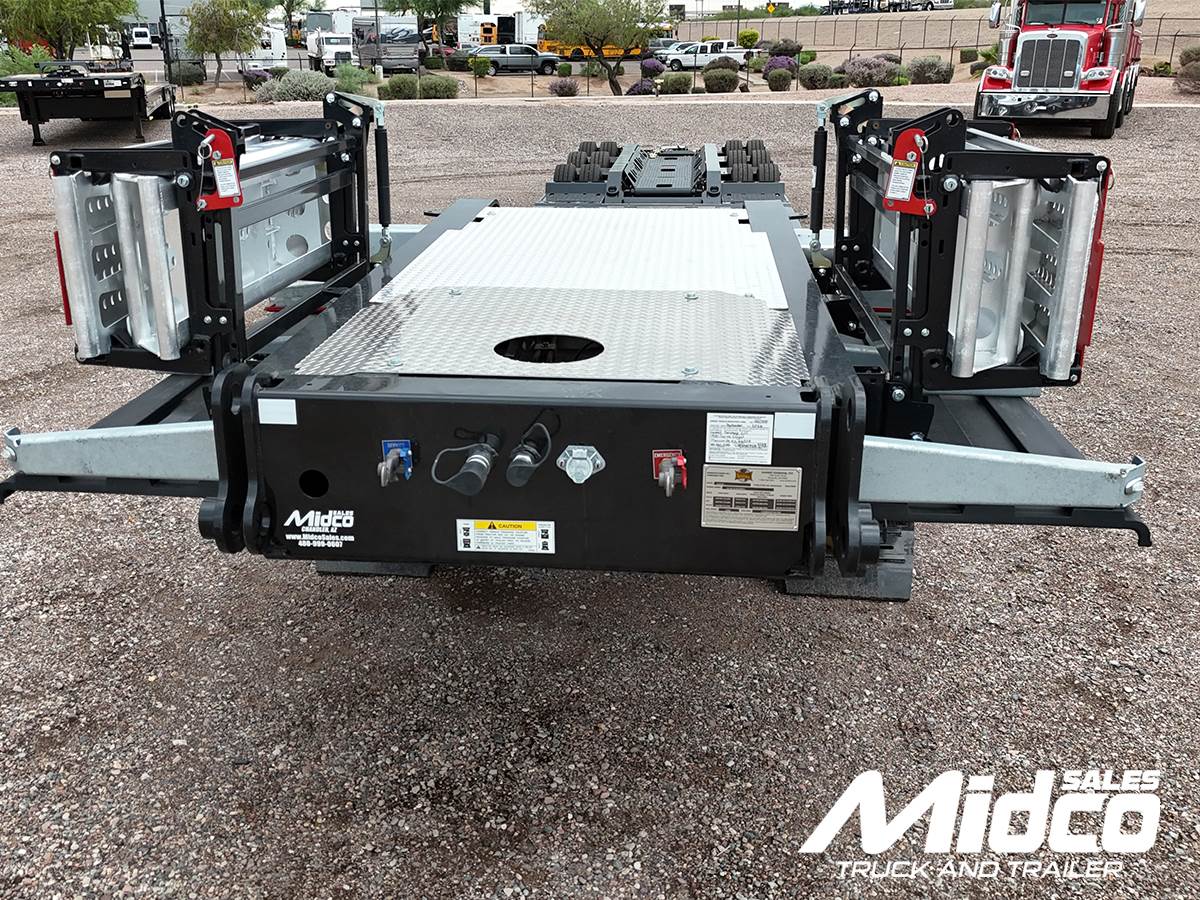

4-piece bus ramps (lockable storage, lift assist system)
COUPLING
King Pin: 15"

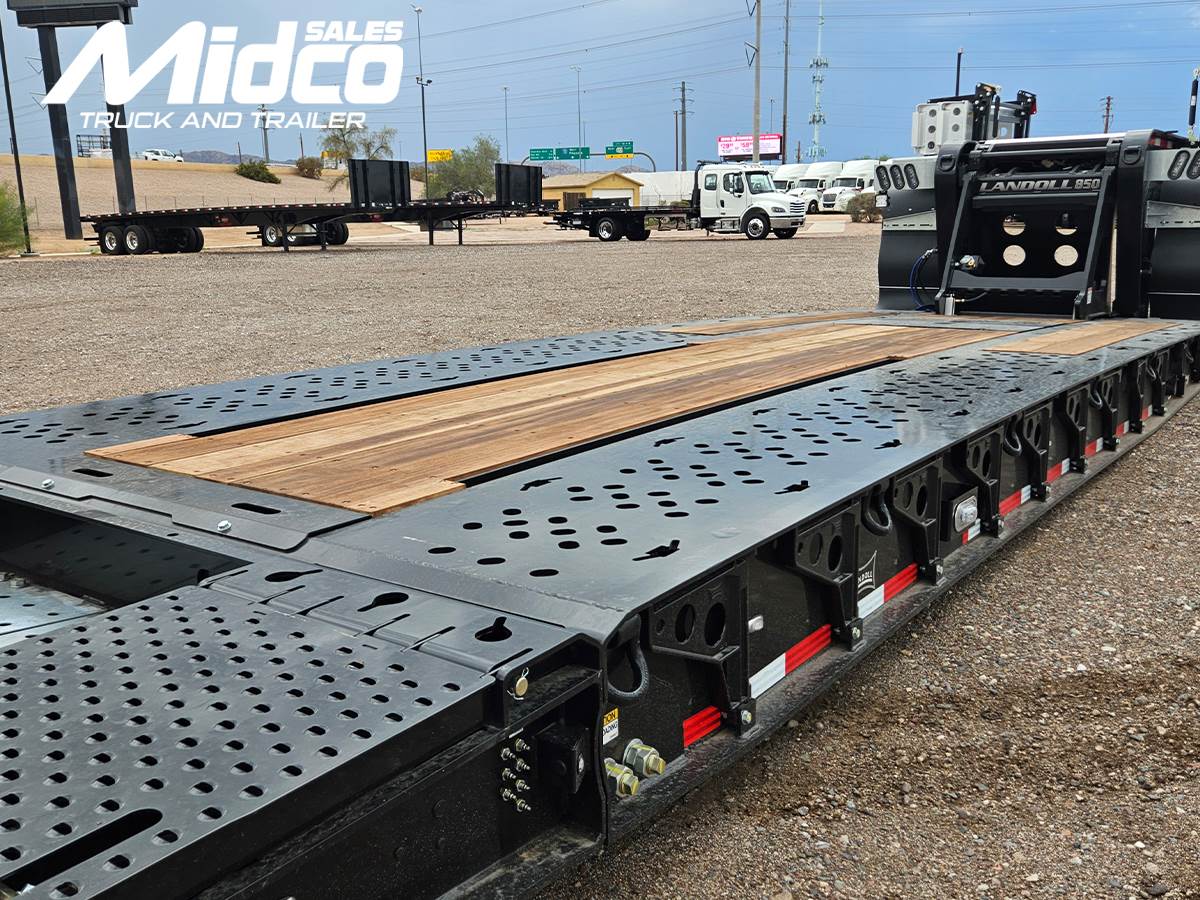

MAIN DECK
24' length
Loaded deck height: 19.5"
Ground clearance: 6"

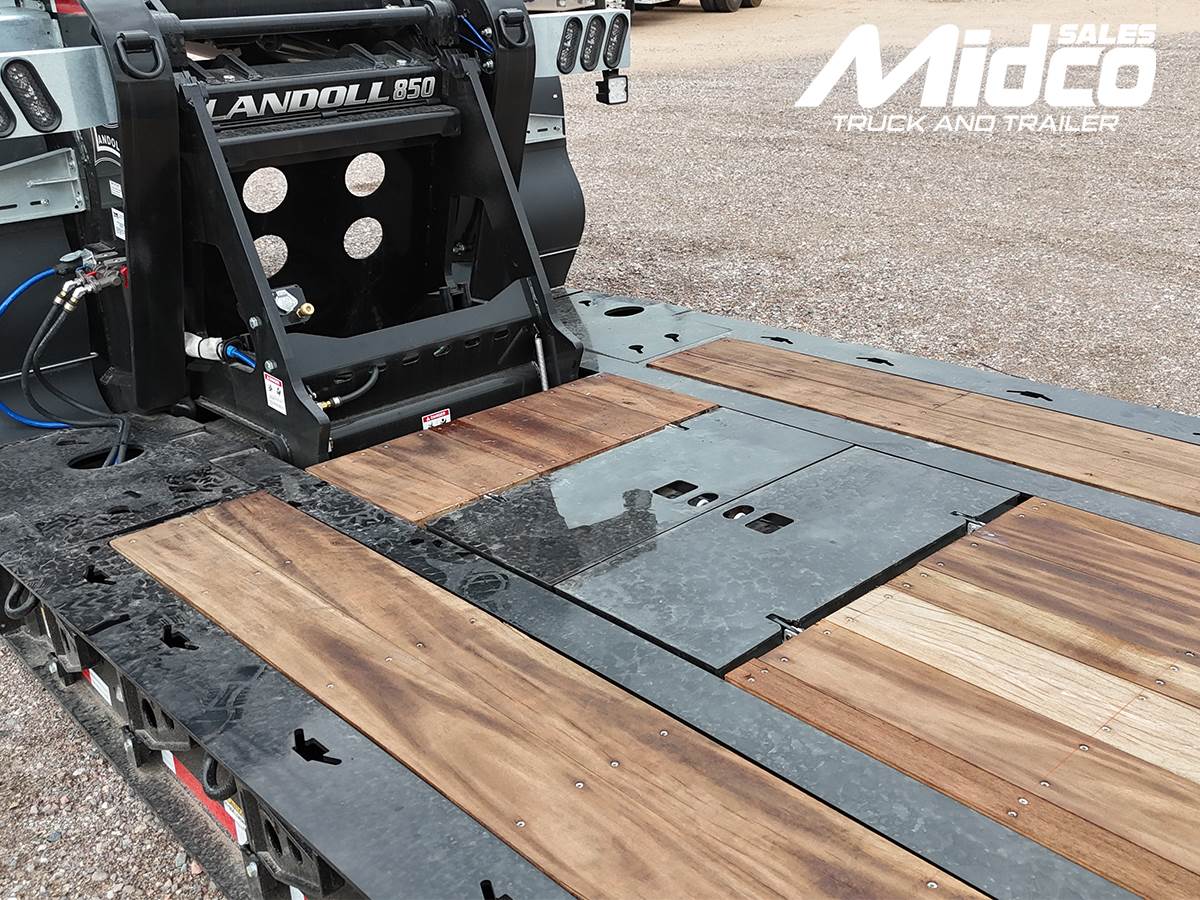

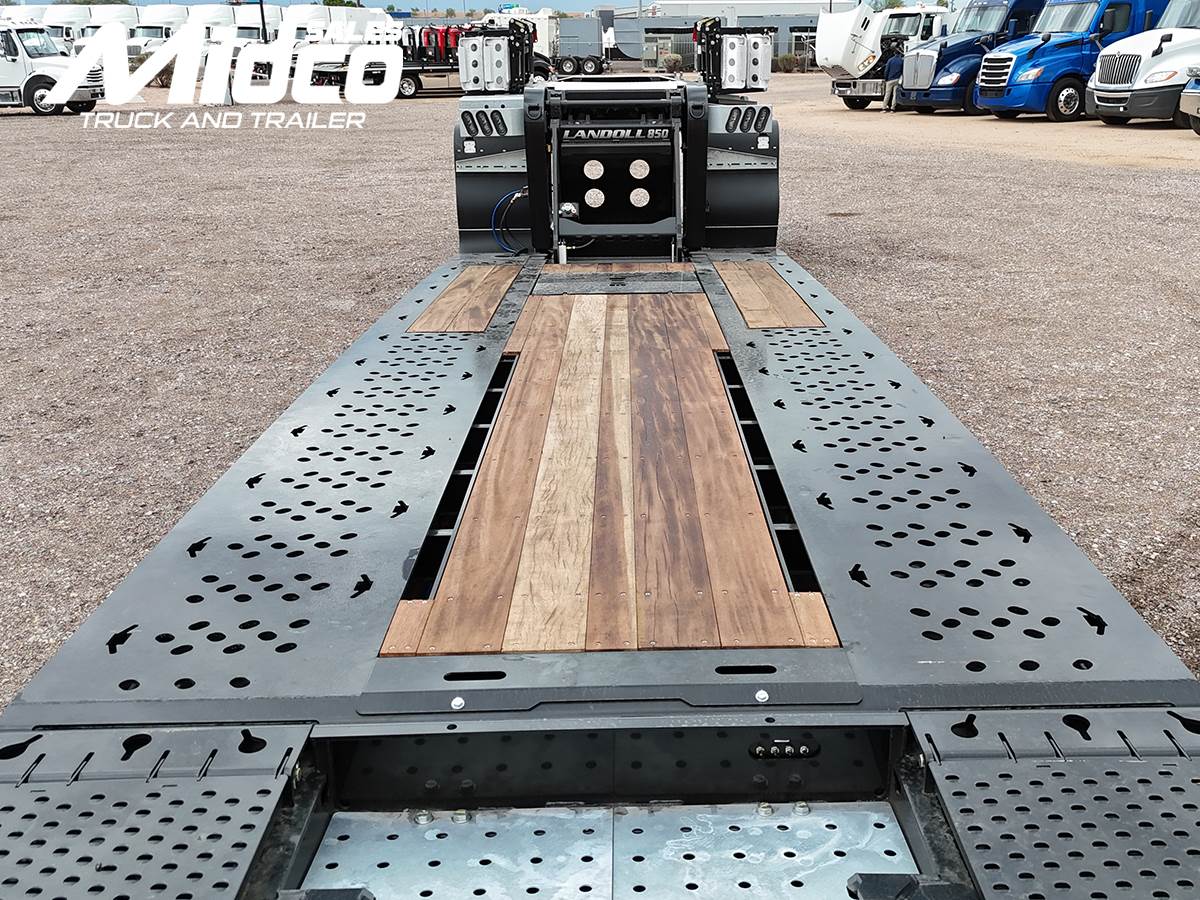

Apitong deck
Swing-out Outriggers

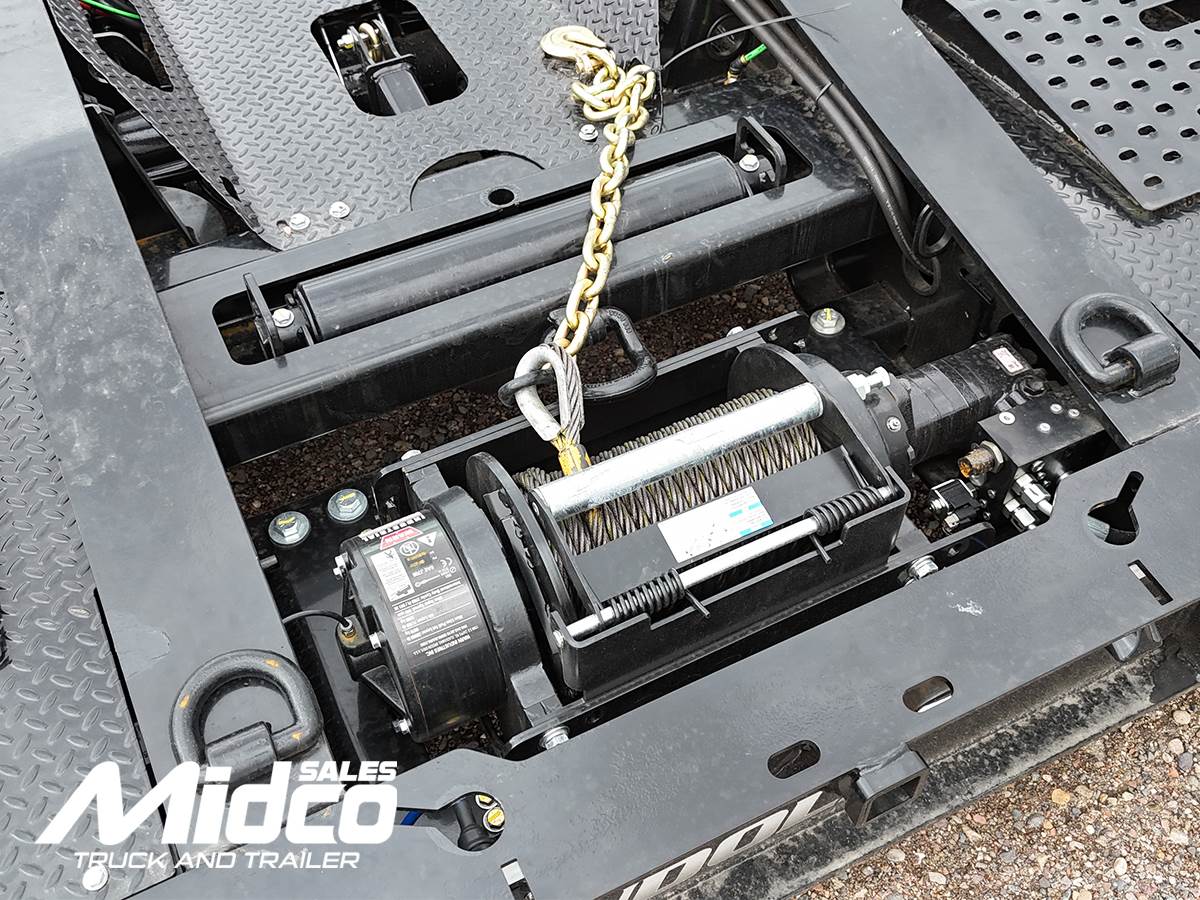

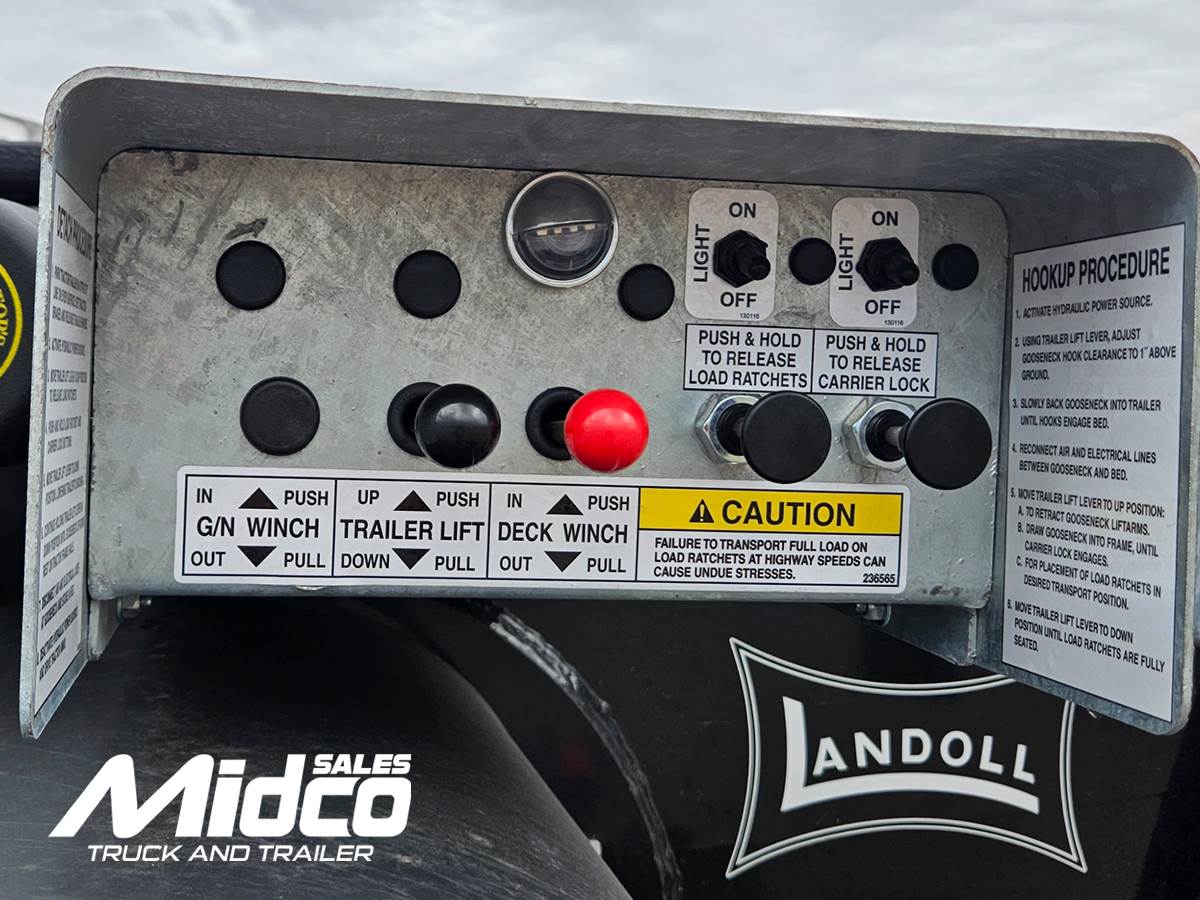

20,000 lb winch w/ cable roller guide and remote control(rear mounted)
Quarter-front bolster with traction bar
Front trunnion ramps
Deck-height middle and rear bolster assembly

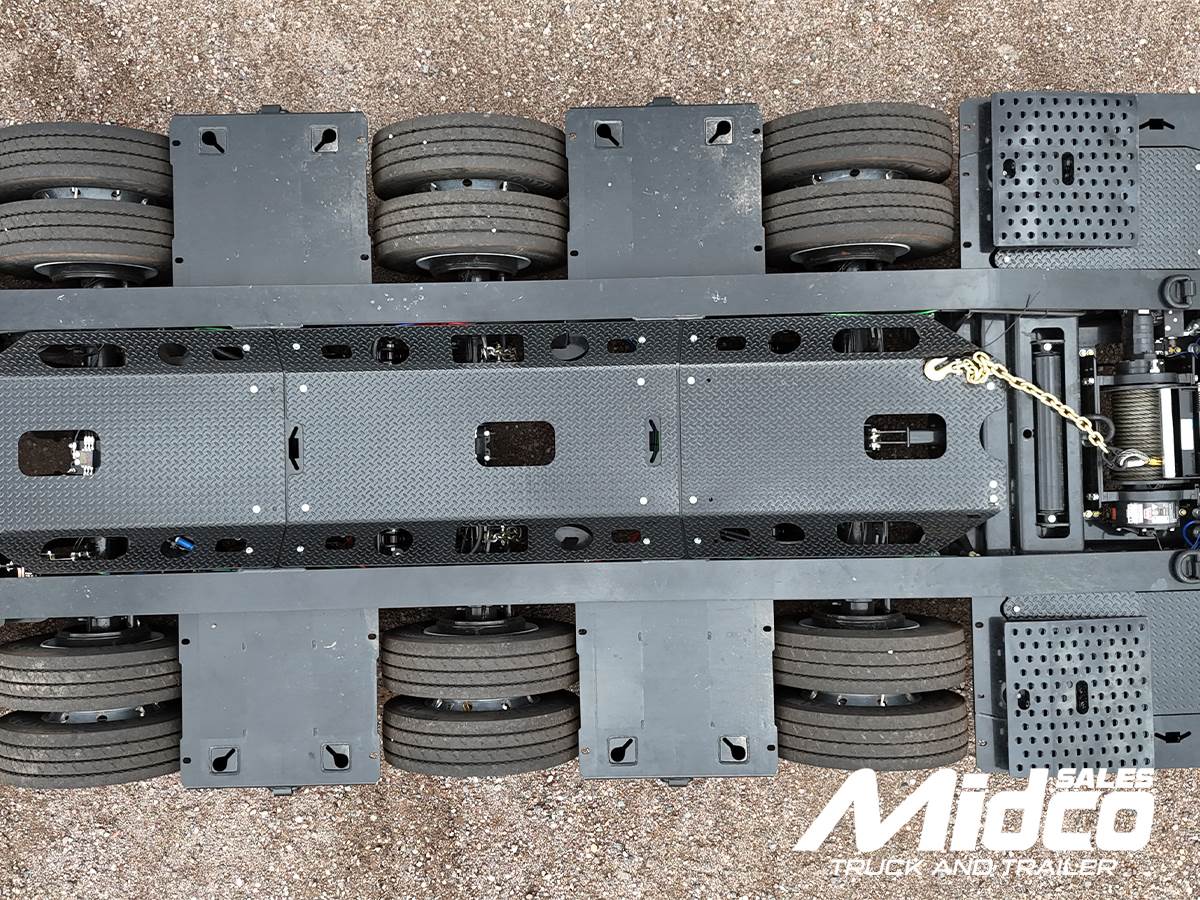

Boom trough
Boom trough covers
Bolsters with storage
Tail and extension approach ramps

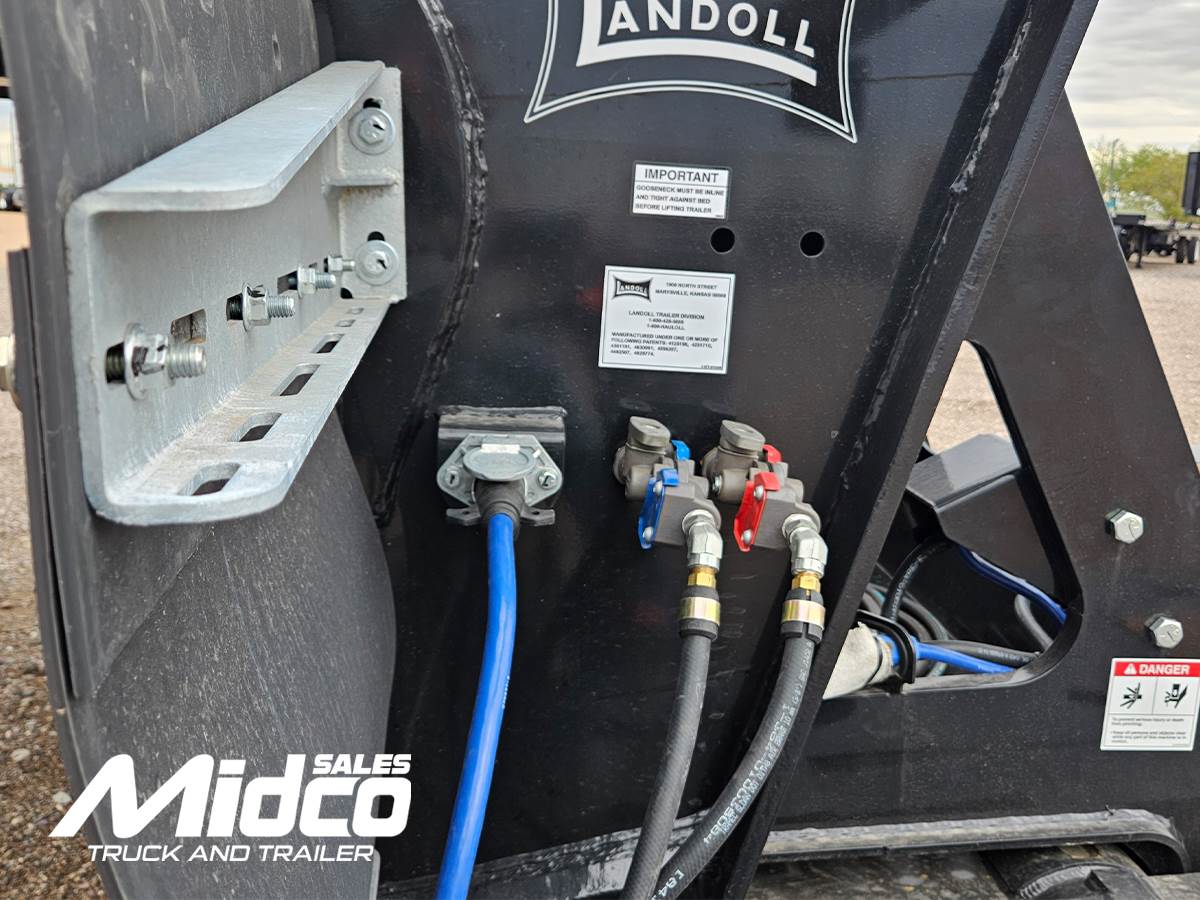

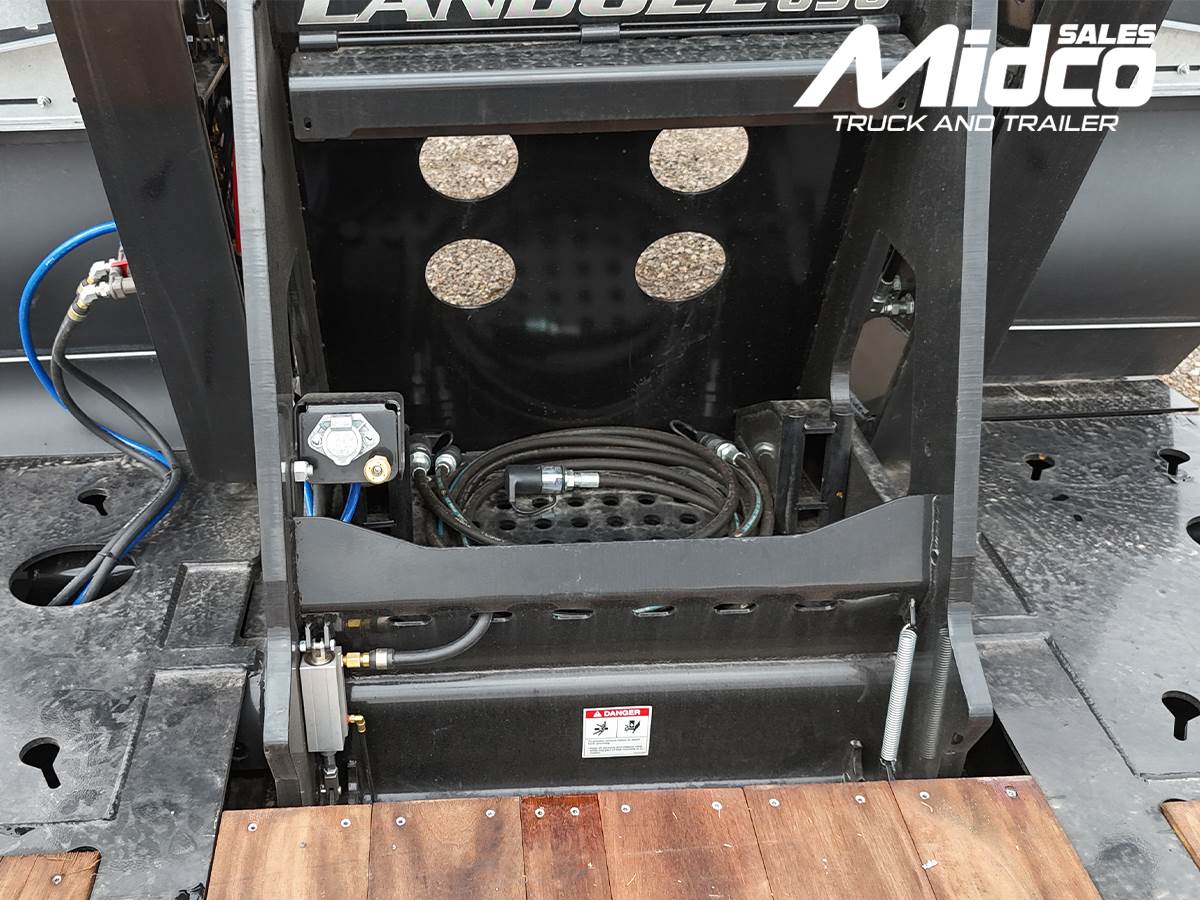

Curbside front and rear hydraulic hookups
CARGO CONTROL
16 angled D-rings on lower deck
2 D-rings on tail

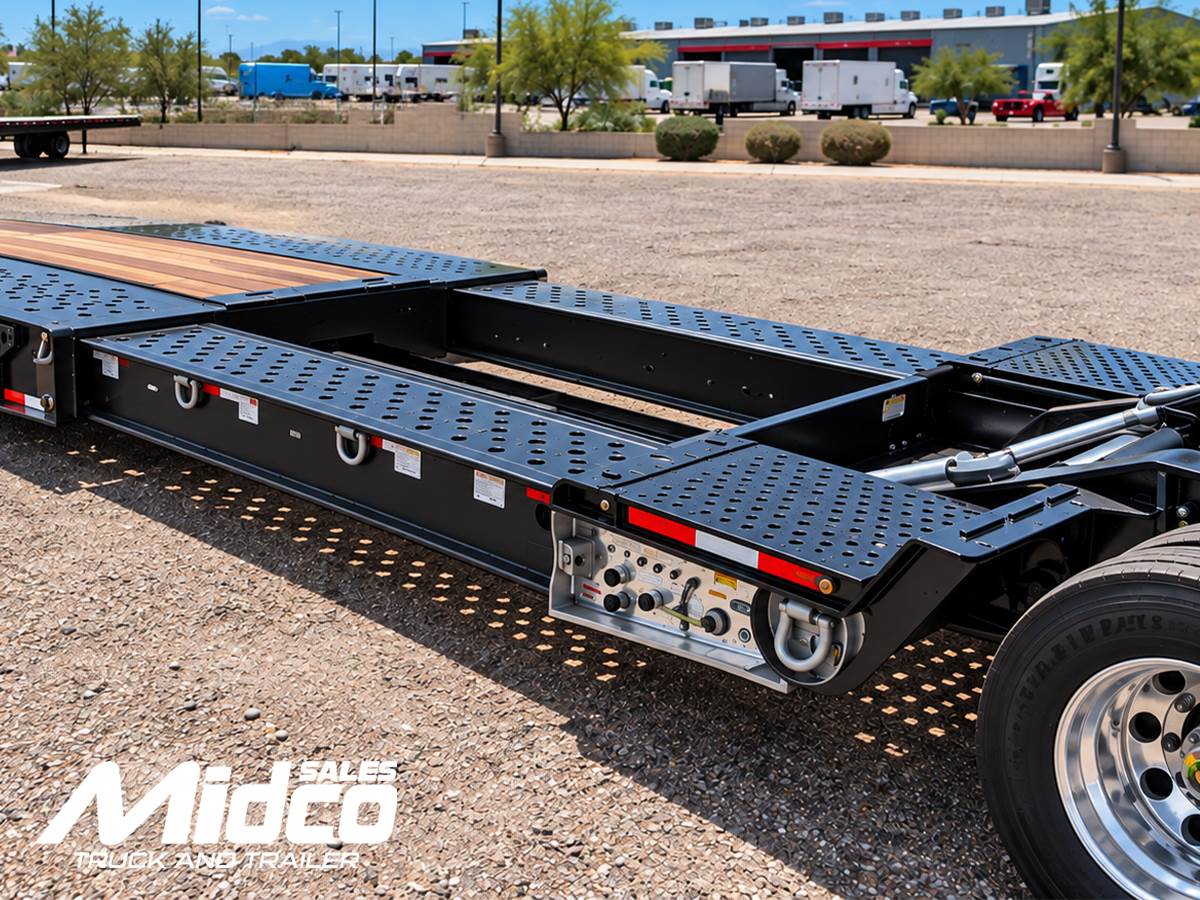

4 flush D-rings on each extension
Additional D-rings on bolsters and trunnion beams
Keyhole tie-downs on top outer flange at 21.5 in. centers
Keyhole tie-downs on top inner flange on rear half at 21.5 in. centers
Bolt-on chain and binder rack between gooseneck lock arms
Quick-mount twist-lock flag holder brackets with 4 flags
STORAGE
Dual front storage boxes in lower deck between beams
Load-bearing painted storage-box lids
Storage area at rear of main deck between inner beams
Bolster storage
Lockable storage for 4-piece bus ramps
Chain and binder rack between gooseneck lock arms

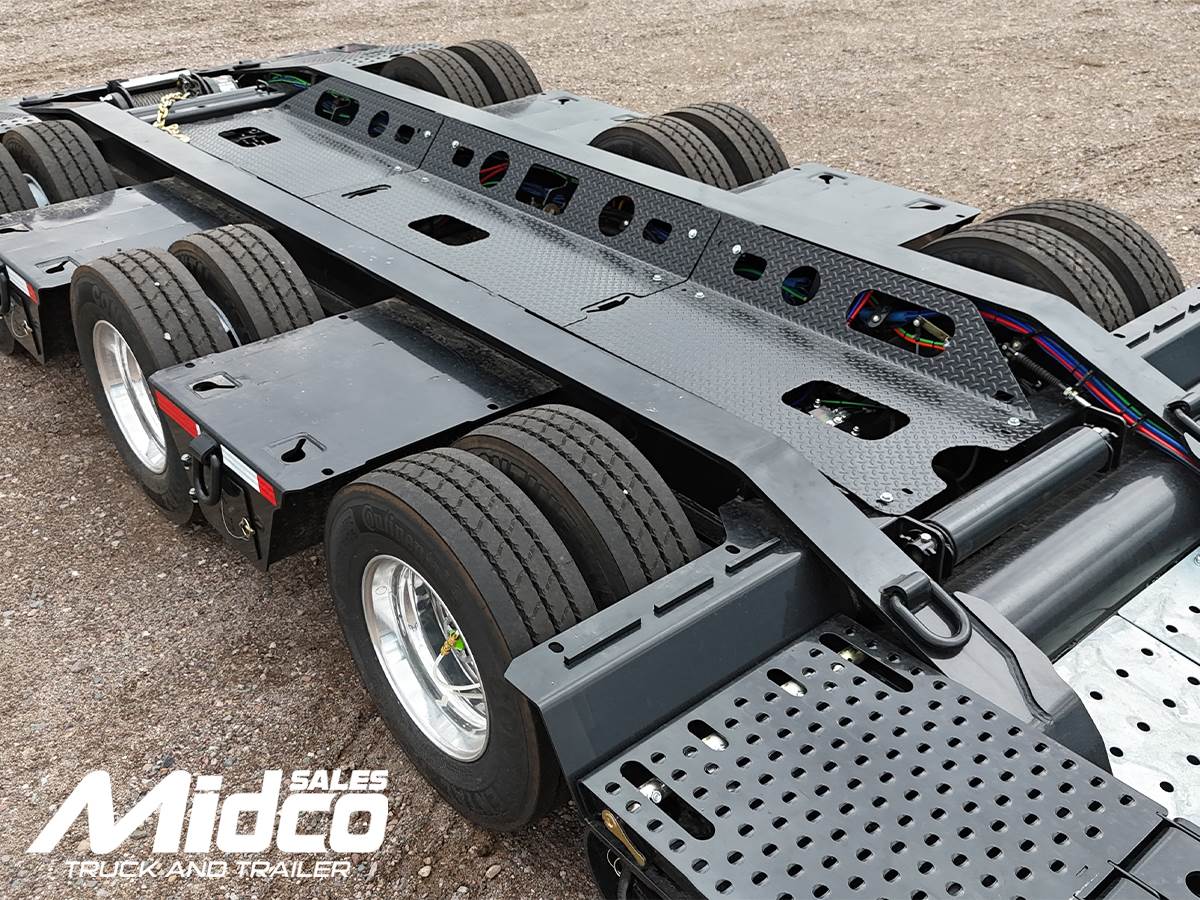

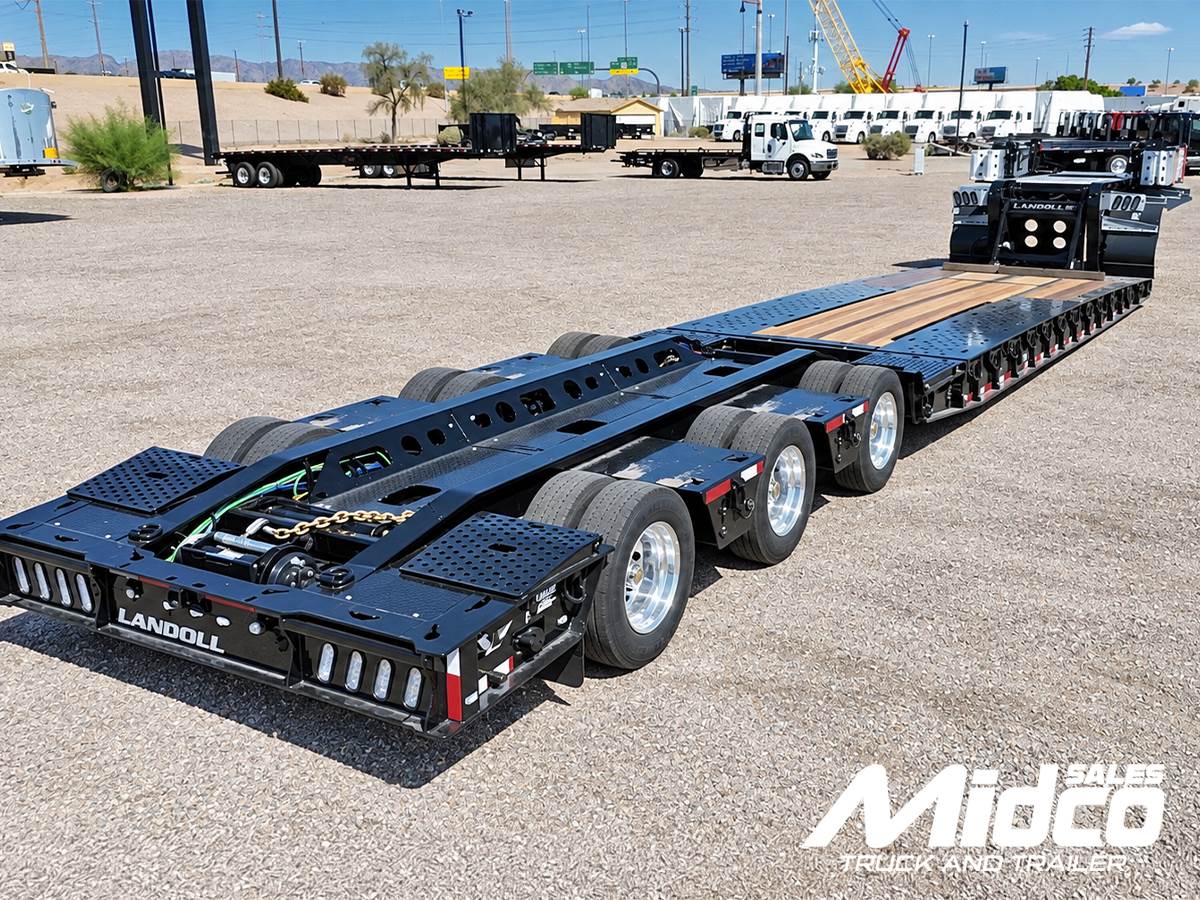

AXLES & SUSPENSION
Tri-axle, 60" SPREAD
Air ride suspension
Drum brakes with outboard brake drums

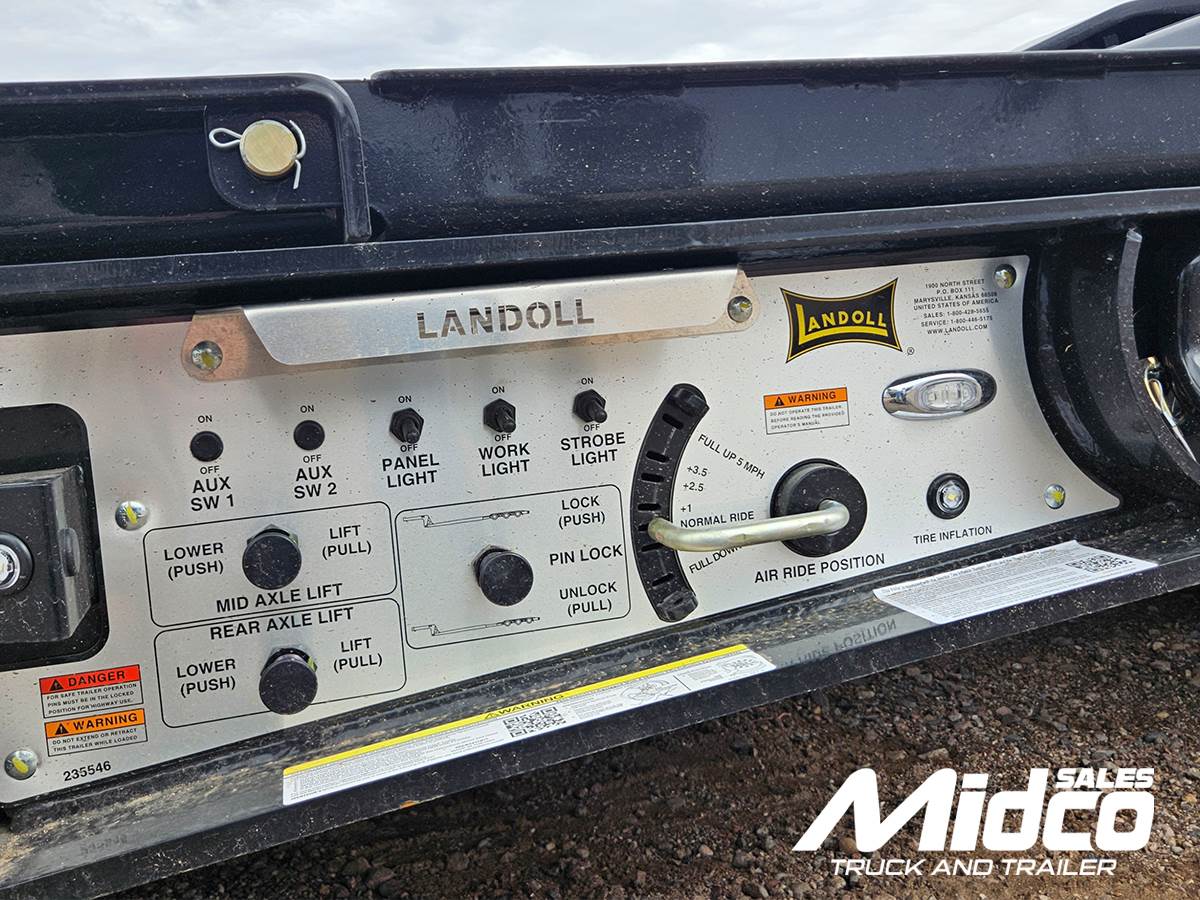

Air raise/lower valve
Center lift axle — manually chainable
Rear air-lift axle
Shock straps

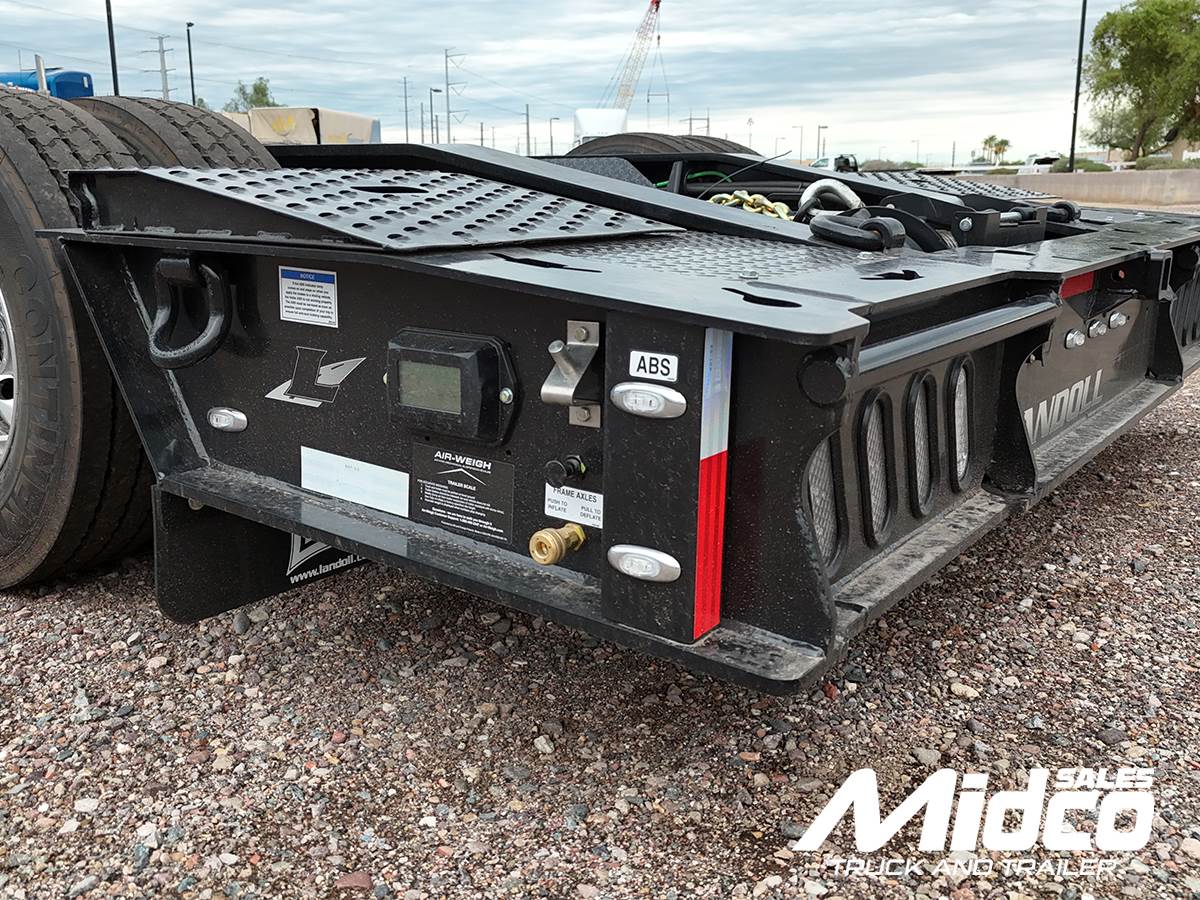

Air-Weigh Digital QuickLoad Plus air scale
Centralized grease system
WHEELS & TIRES

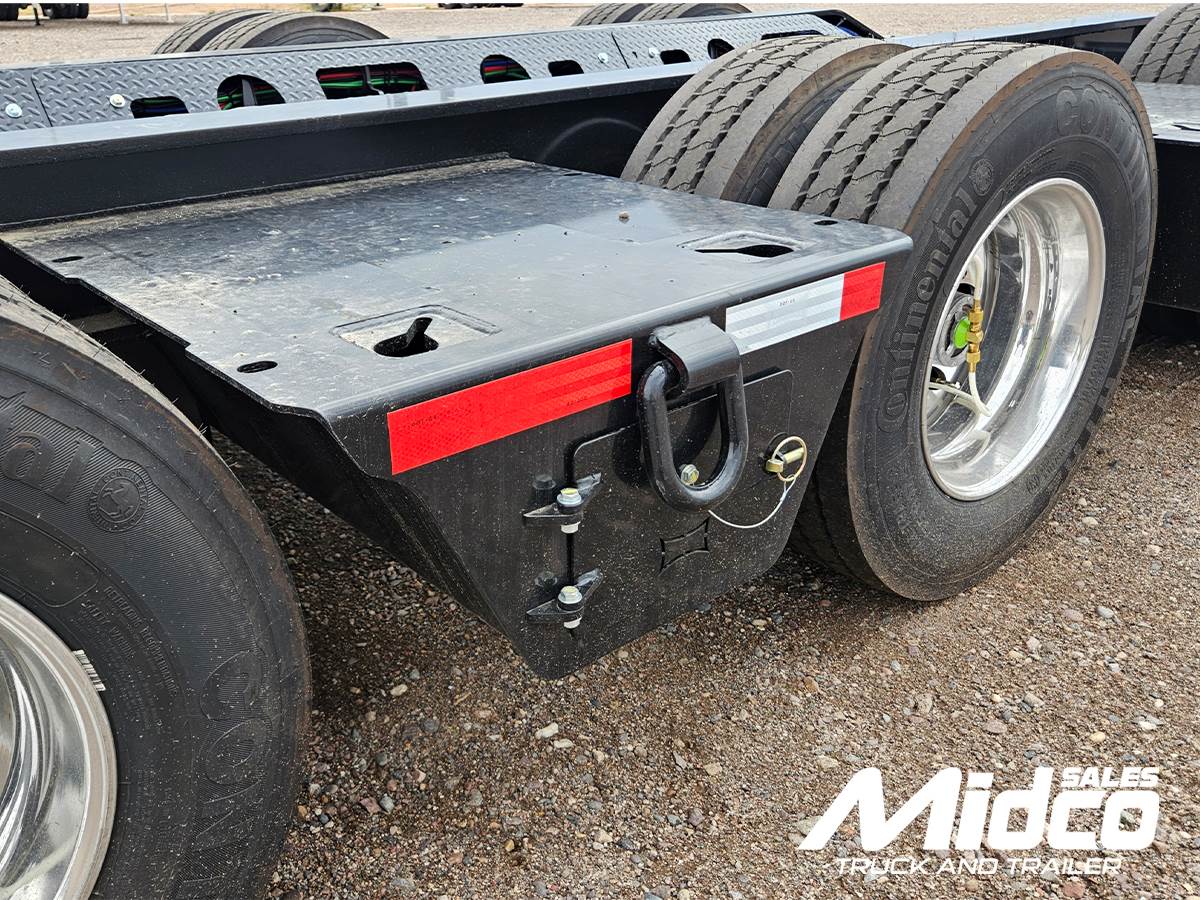

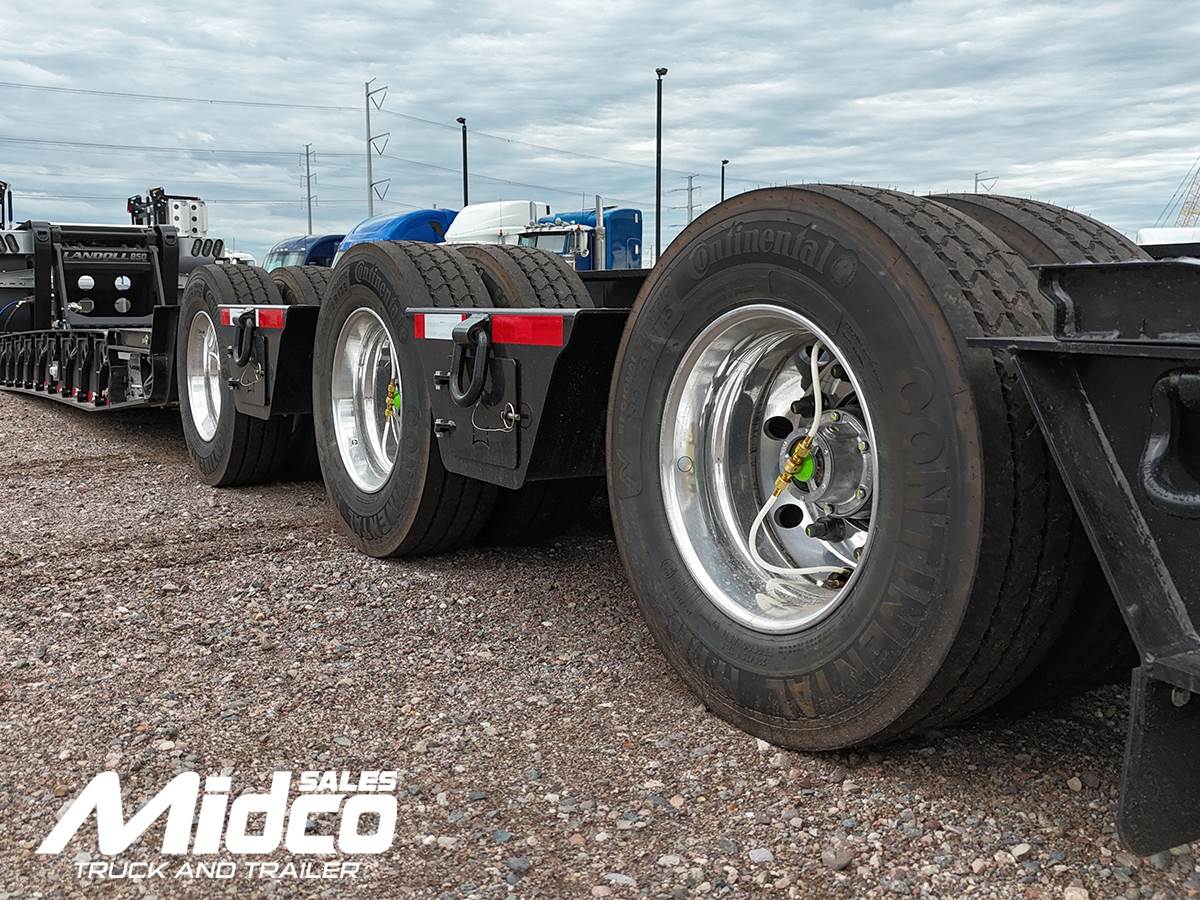

Tires: 235/75R17.5 Continental H2
Wheels: Outer aluminum hub pilot, inner steel hub pilot
Tire inflation system
LIGHTING & ELECTRICAL
LED light package
Gooseneck LED lighting
Work Zone lights on trunnion
Strobe light package integrated into rear bumper (battery back-up)
7-pin blade electrical plug at rear
Load-carrier-mounted air/electrical hookups
