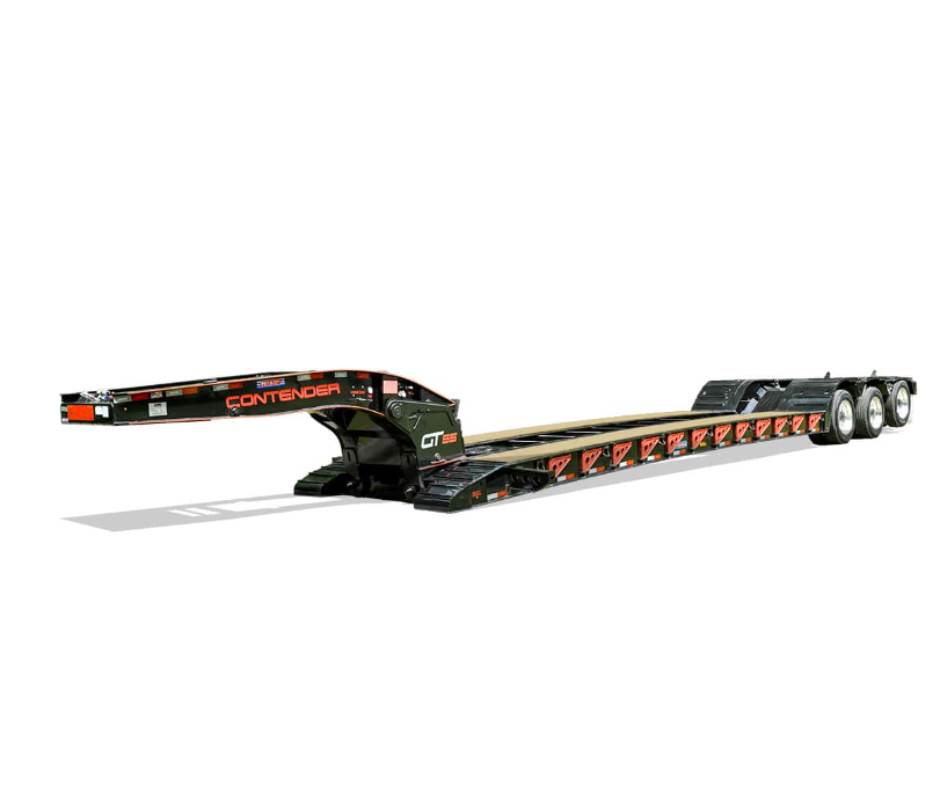

2027 Pitts Lowboy | LB55-18GT | Contender

2027 Pitts Lowboy | LB55-18GT | Contender

• 55-Ton Detach With An 18" Loaded Deck Height
• 53' Overall Length
• Upgraded Gooseneck Reinforced for GN Extension
• King Pin Height: 50" (5 Position)
• King Pin Setting: 16"
• Swing Clearance: 102"
• King Pin Plate: 5/16 Plate
• Main Deck: Hydraulic Detachable Non-Ground Bearing. Level Deck Design, Main Longitudinal Members Fabricated With T-1 Steel Flanges 12" Main And 12" Side Beams, 8" I-Beam Crossmember On 24" Centers With 4" Stub Cross Members On 12" Centers Outer Bay, 1 1/2" Nominal Apitong On Outer Bays, Lockable Toolbox In Front Of Deck, Removable Swing-Type Outriggers (Extends Trailer Width 2'), Knuckle Trough At Rear Of Deck, With Full Width Plate
• Loaded Deck Height: 18" With 6" Ground Clearance
• Deck Length: 26'
• Center Deck: Open
• Front Ramps Front: Fixed Ramps
• Deck Width: 8'6" Wide
• Front Pullout Bracket: Heavy Duty Pull Out Outrigger with Spring Latch Pin
• Axles (3) Heavy-Duty Axles, 25,000 Lbs. Nominal Capacity Per Axle (GAWR Determined By Suspension Type, Brakes, Tires And Other Components), Tapered Spindle Axles, Hub-Piloted 10-long Stud Mount, Outboard Cast Drums
• Brakes: 16 1/2" X 7", Heavy-Duty Brake Drums, Outboard Mount, Automatic Slack Adjusters, Type 30/30 Parking Brakes On (2) Axles
• Tires: 275/70R 22.5 H-Ply Tire
• Wheels: (12) Steel Disc Wheels 8.25 X 22.5
• Load Securement: 18 Bent D' Rings (7 Pair Side Rail, 2 Pair Bucket Well)
