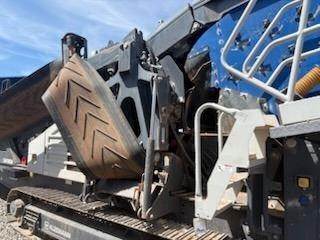

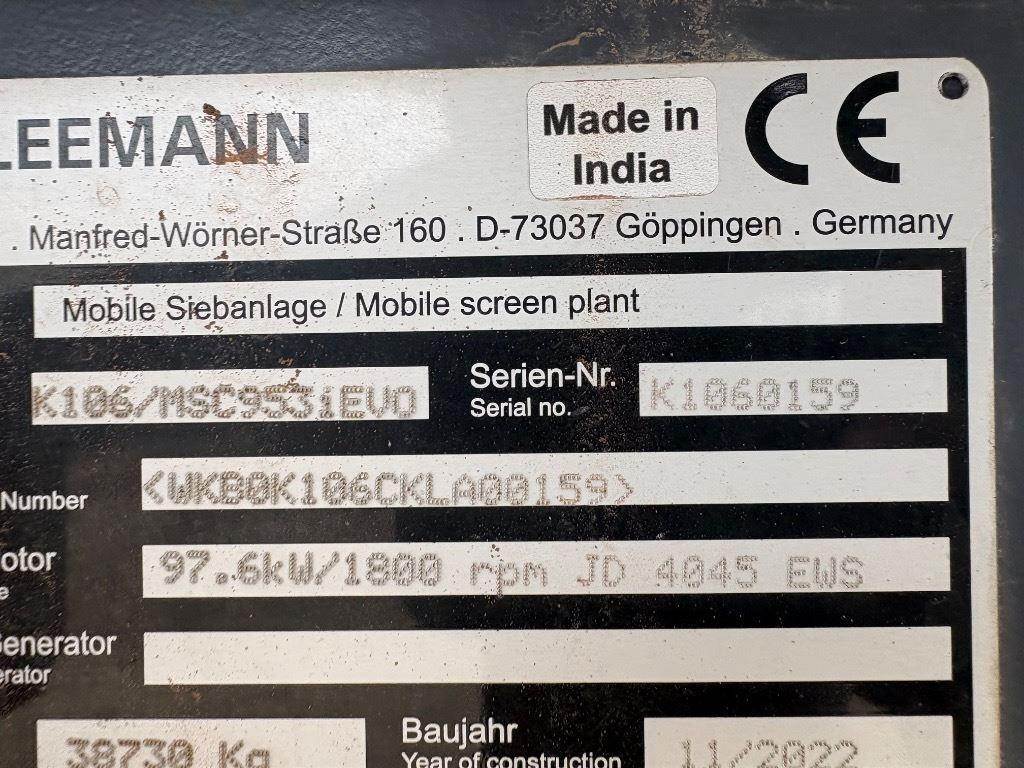

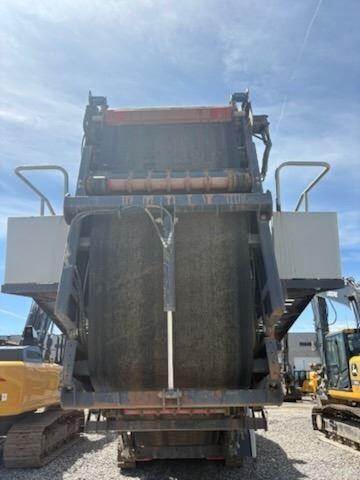

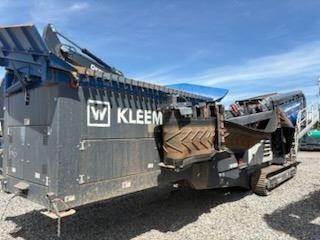

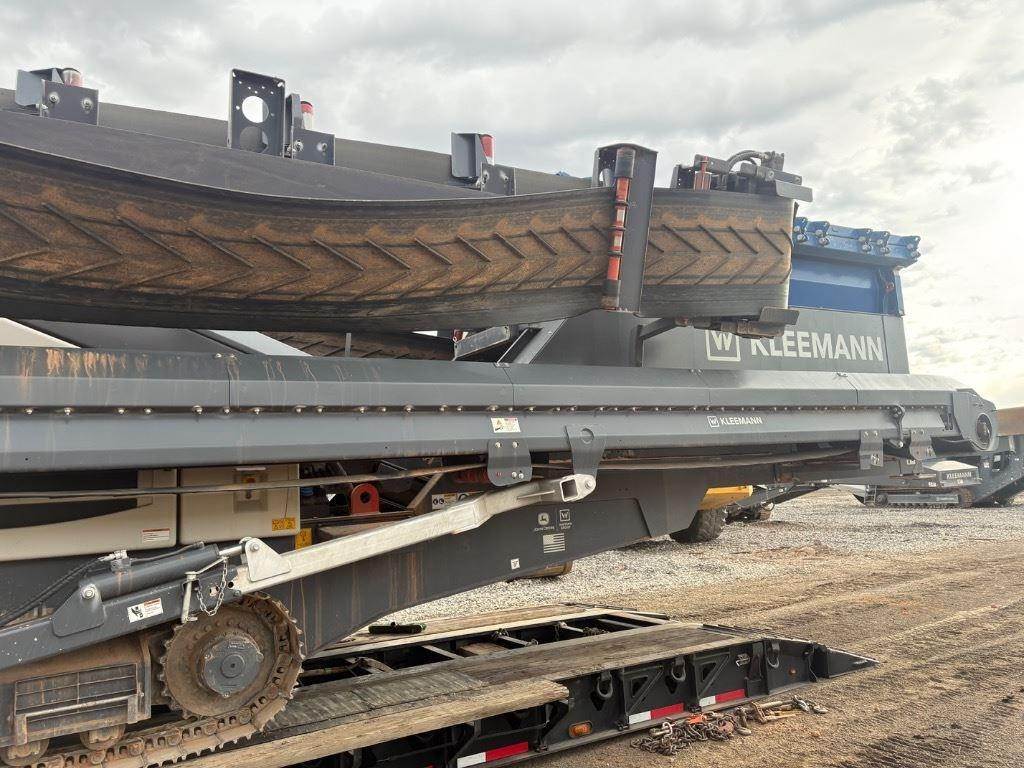

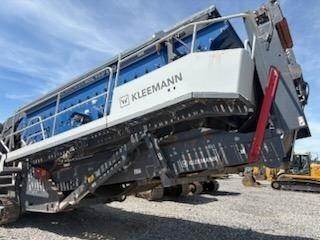

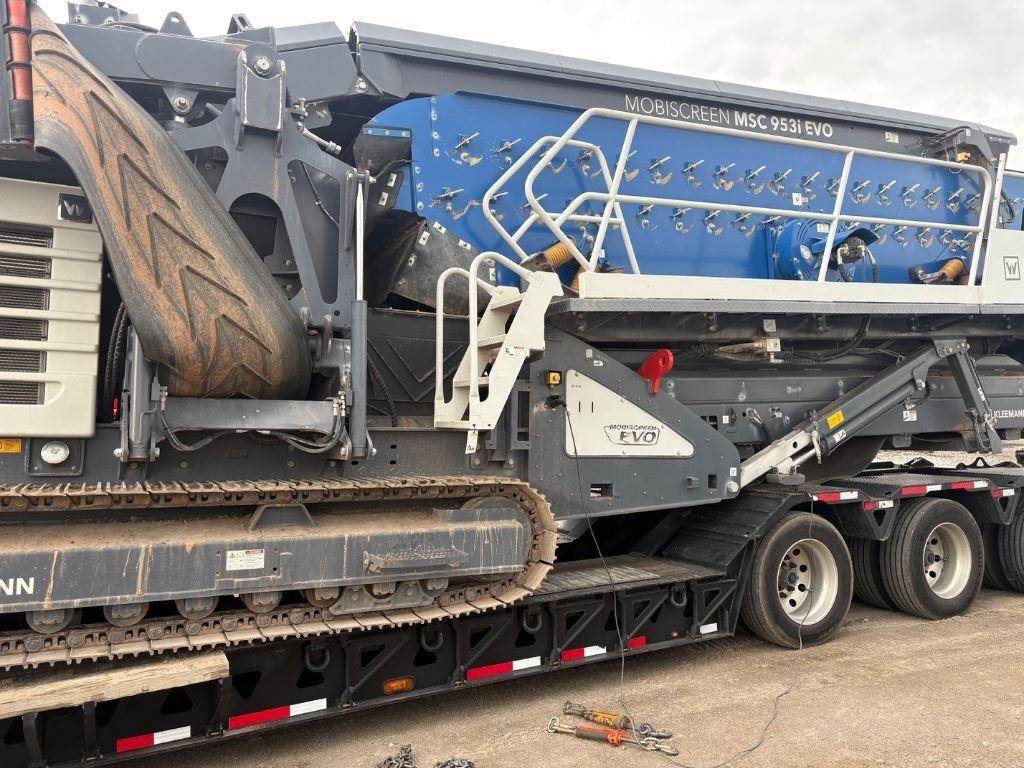

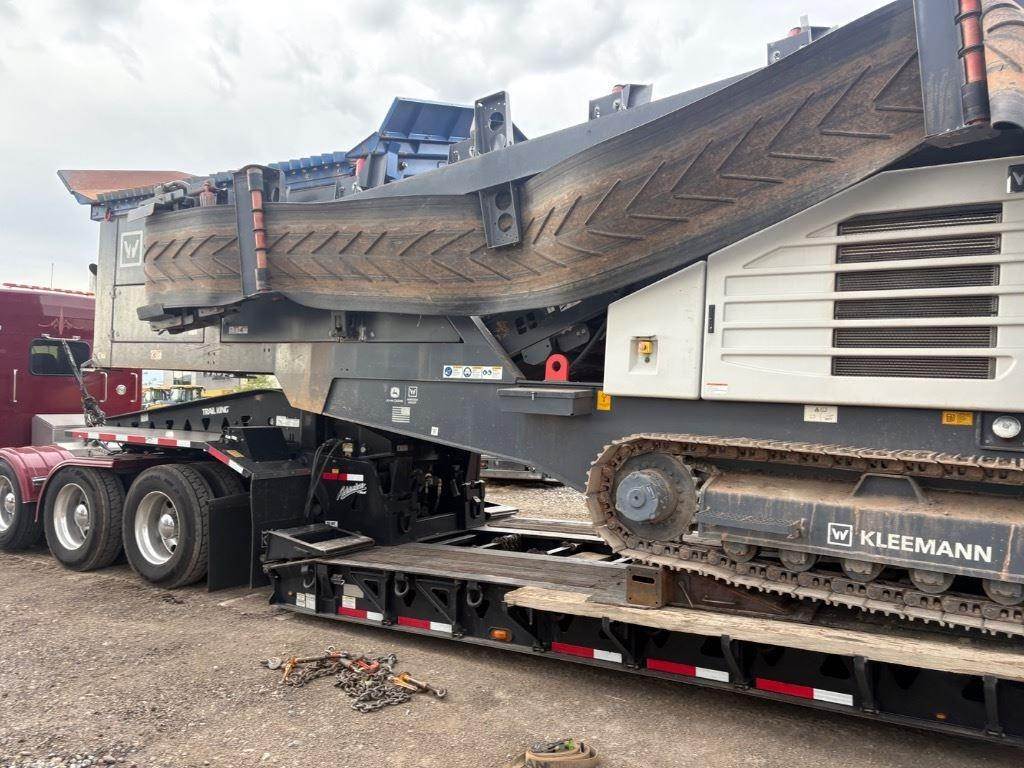

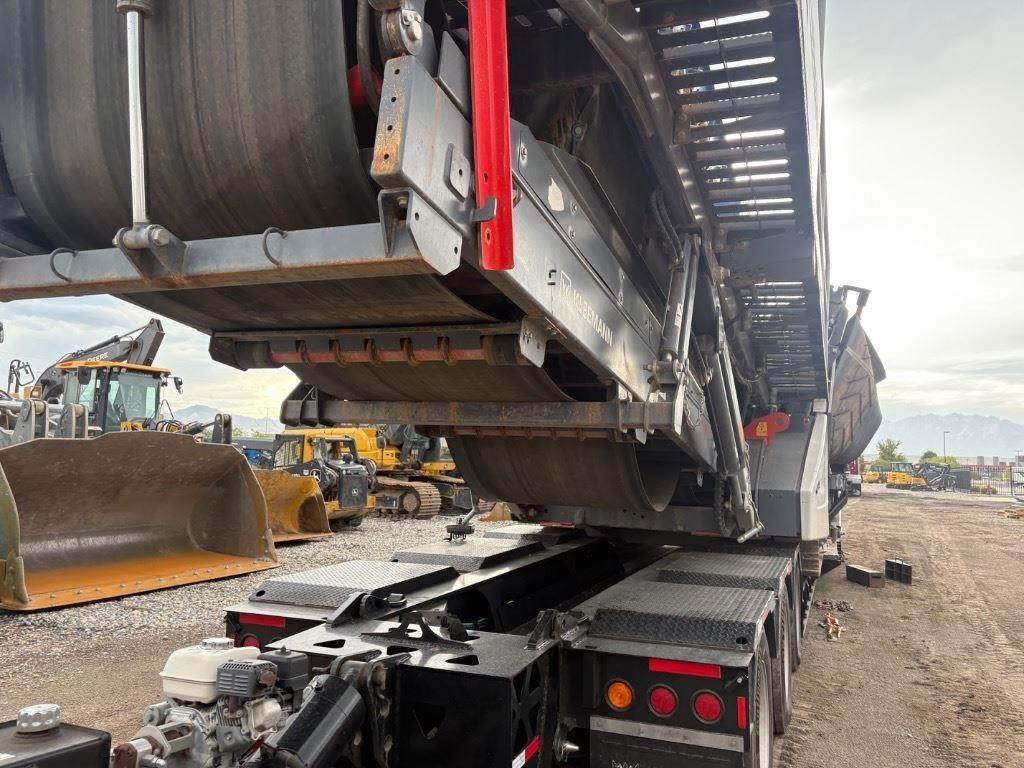

2023 KLEEMANN MSC 953I EVO Screening Plant

MOBISCREEN -
HOPPER UNIT 8 M3 -
FOLDING GRID MEDIUM GAP SETTING 100MM -
SIDE DISCHARGE CONVEYER -
FEEDING CONVEYOR BELT CONVEYOR, SMOOTH -
WITHOUT WIRE CLOTH -
WITHOUT VIBRATING COVER -
WITHOUT EXTERNAL POWER SUPPLY -
HOPPER DOSING FLAP -
REMOTE CONTROL FOR FOLDING GRID -
WITOS FLEET VIEW -
MATERIAL BRAKE,FEEDING CONVEYOR -
MATERIAL BRAKE , SCREEN -
POWER SUPPLY JOHN DEERE STAGE V -
MAY BE SUBJECT TO NEW EQUIPMENT SALES TAX -

Factory Features -
TYPE: Mobile Screening Plant -
SCREEN TYPE: Triple-Deck Classifying Screen -
DRIVE SYSTEM: Diesel-Hydraulic -
MAX PRODUCTION: 551 TPH -
MAX FEED SIZE: 7 in x 4 in x 3 in -
HOPPER CAPACITY: 10.5 yd³ -
FEED HEIGHT: 11 ft 9 in -
HOPPER DISCHARGE CONVEYOR: 48 in x 11 ft 6 in -
FEED CONVEYOR: 48 in x 39 ft 4 in -
SCREEN BOX SIZE: 5 ft 1 in x 20 ft -
SCREENING AREA: 102 ft² -
FINE GRAIN CONVEYOR: 48 in x 26 ft 7 in -
FINE GRAIN DISCHARGE HEIGHT: 10 ft 10 in to 14 ft 9 in -
LOWER DECK MIDS CONVEYOR: 32 in x 33 ft 6 in -
LOWER DECK DISCHARGE HEIGHT: 16 ft 5 in -
CENTER DECK MIDS CONVEYOR: 32 in x 33 ft 6 in -
CENTER DECK DISCHARGE HEIGHT: 16 ft 5 in -
TRANSFER CONVEYOR: 26 in x 5 ft 11 in -
OVERSIZE CONVEYOR: 20 in x 29 ft 2 in -
OVERSIZE DISCHARGE HEIGHT: 16 ft 6 in -
TRANSPORT LENGTH: 58 ft 11 in -
TRANSPORT WIDTH: 10 ft 6 in -
TRANSPORT HEIGHT: 11 ft 1 in -
OPERATING WEIGHT: 85,500 lb -
MAX CONFIGURATION WEIGHT: 96,150 lb -

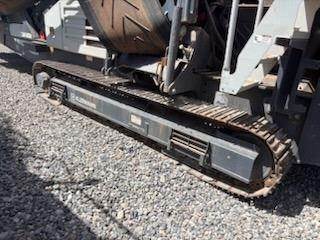

TRACK UNDERCARRIAGE -
APPLICATIONS: Aggregate, Quarry, Topsoil, Sand & Gravel, Recycling, Contract Crushing -

Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact RDO Equipment Company to verify machine specifications, options, attachments, and condition.
