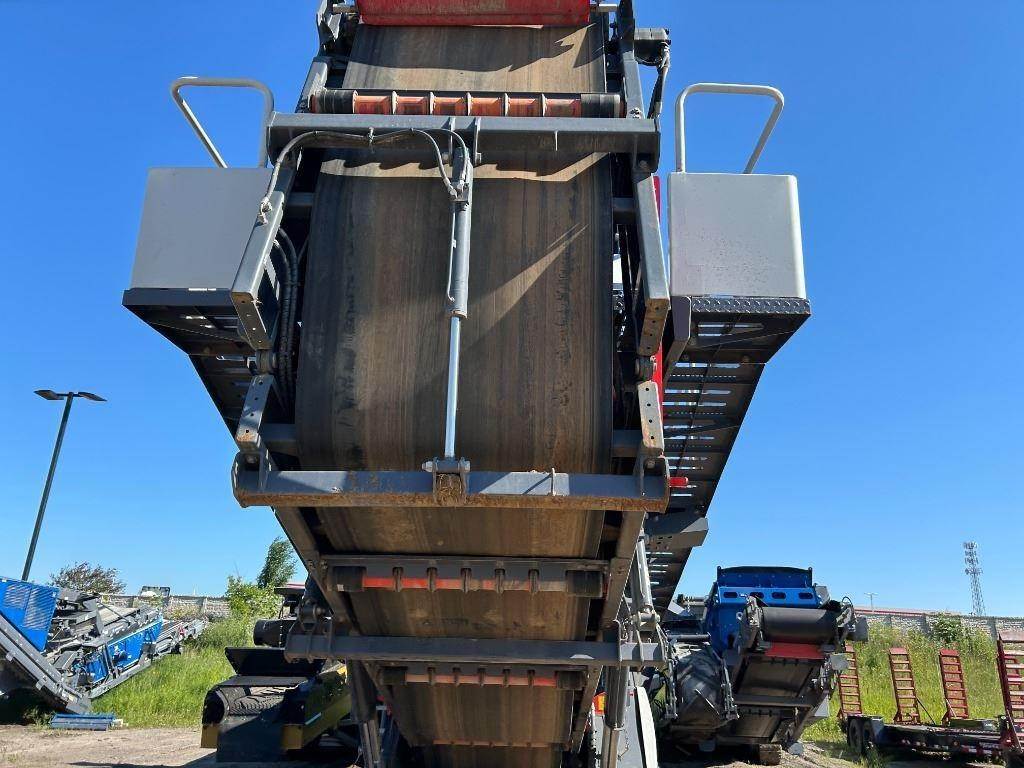

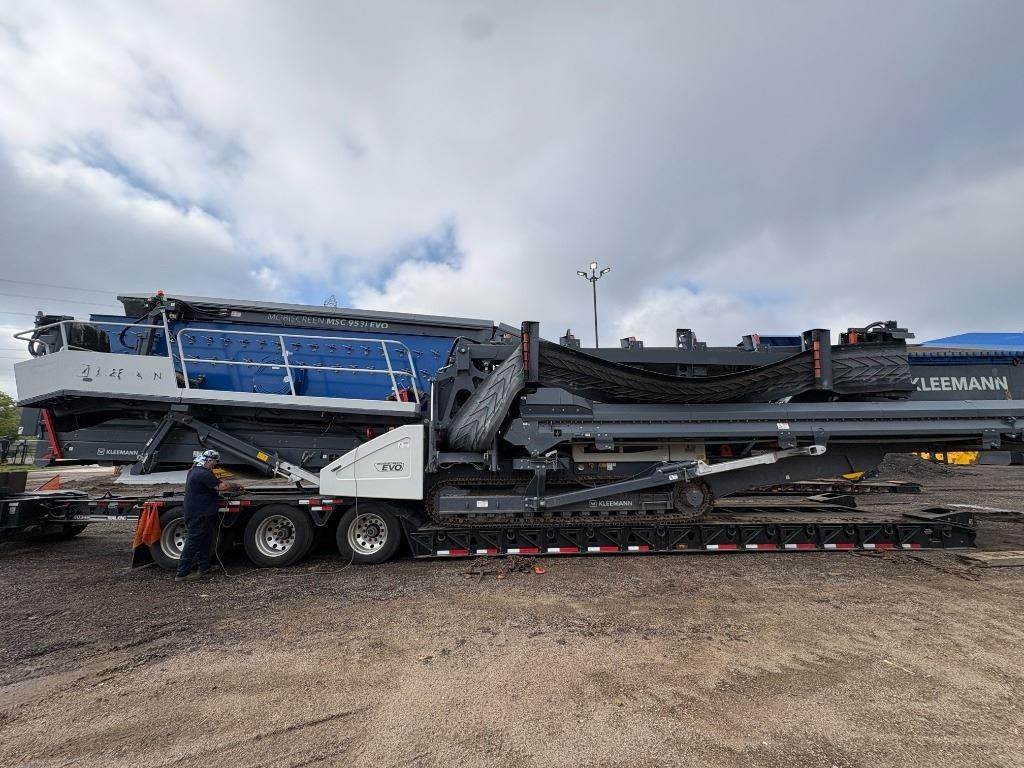

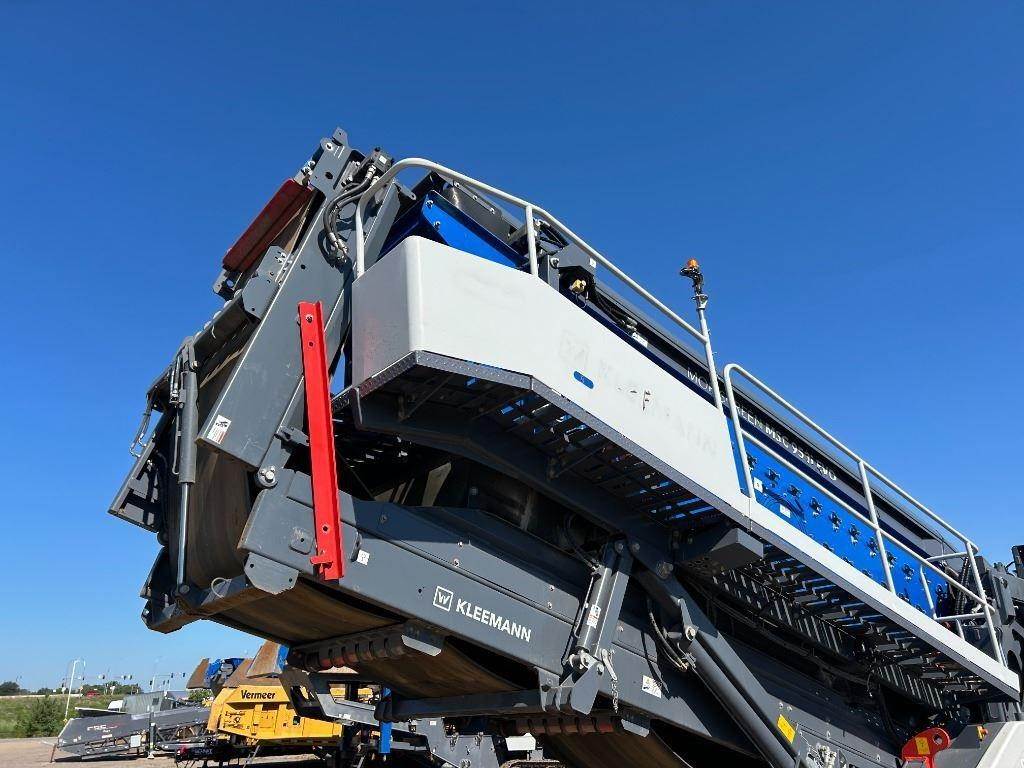

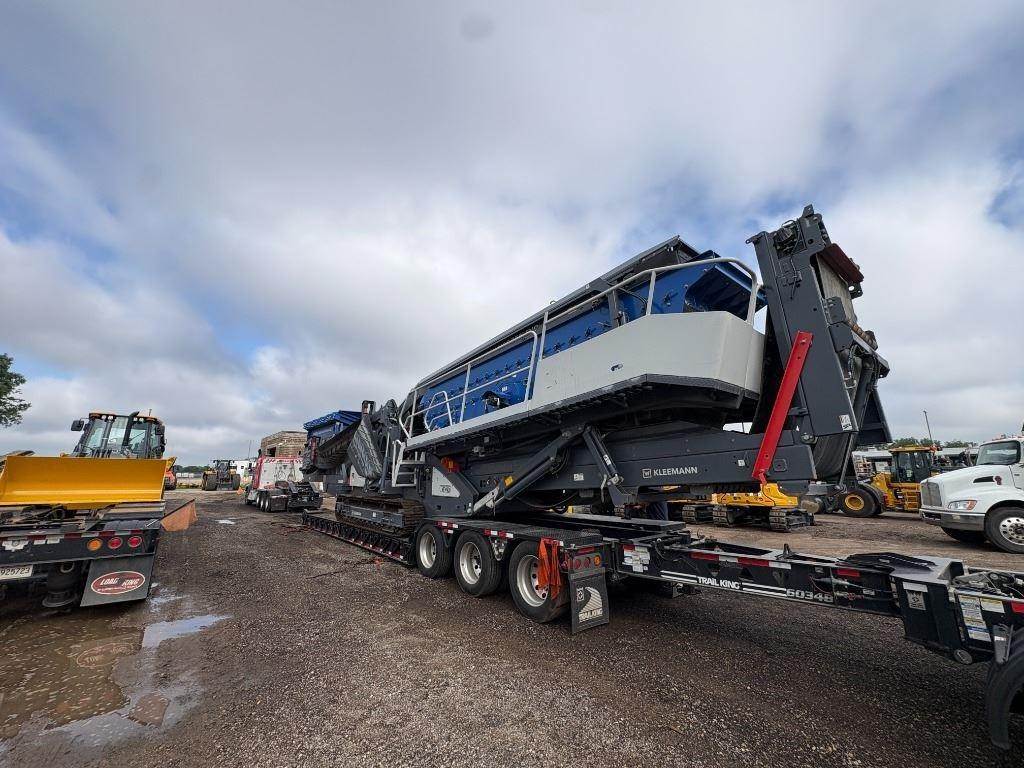

2023 KLEEMANN MSC 953I EVO Screening Plant

MOBILE SCREENING PLANT -
POWER SUPPLY UNIT JOHN DEERE (STAGE V) -
HOPPER UNIT 8M3 -
FOLDING GRID MEDIUM GAP SETTING 100MM -
WITHOUT VIBRATING COVER -
FEEDING CONVEYOR BELT, SMOOTH -
SIDE DISCHARGE CONVEYOR, OVERFLOW FROM TOP DECK, L -
WIRE CLOTH MESH WIDTH 3" MOUNTED -
WIRE CLOTH MESH WIDTH 1.5" MOUNTED -
WIRE CLOTH MESH, WIDTH 3/4" MOUNTED -
REMOTE CONTROL FOR FOLDING GRID -
WITHOUT EXTERNAL POWER SUPPLY -
WITOS FLEETVIEW TELEMATICS -
HOPPER DOSING FLAP -
MATERIAL BRAKE, FEEDING CONVEYOR -
MATERIAL BRAKE, SCREEN -
RUMBLE CORD LOWER DECK STANDARD -
EXTRA CABLE CONTROL UNIT -
MAY BE SUBJECT TO NEW EQUIPMENT SALES TAX

Factory Features -
TYPE: Mobile Screening Plant -
SCREEN TYPE: Triple-Deck Classifying Screen -
DRIVE SYSTEM: Diesel-Hydraulic -
MAX PRODUCTION: 551 TPH -
MAX FEED SIZE: 7 in x 4 in x 3 in -
HOPPER CAPACITY: 10.5 yd³ -
FEED HEIGHT: 11 ft 9 in -
HOPPER DISCHARGE CONVEYOR: 48 in x 11 ft 6 in -
FEED CONVEYOR: 48 in x 39 ft 4 in -
SCREEN BOX SIZE: 5 ft 1 in x 20 ft -
SCREENING AREA: 102 ft² -
FINE GRAIN CONVEYOR: 48 in x 26 ft 7 in -
FINE GRAIN DISCHARGE HEIGHT: 10 ft 10 in to 14 ft 9 in -
LOWER DECK MIDS CONVEYOR: 32 in x 33 ft 6 in -
LOWER DECK DISCHARGE HEIGHT: 16 ft 5 in -
CENTER DECK MIDS CONVEYOR: 32 in x 33 ft 6 in -
CENTER DECK DISCHARGE HEIGHT: 16 ft 5 in -
TRANSFER CONVEYOR: 26 in x 5 ft 11 in -
OVERSIZE CONVEYOR: 20 in x 29 ft 2 in -
OVERSIZE DISCHARGE HEIGHT: 16 ft 6 in -
TRANSPORT LENGTH: 58 ft 11 in -
TRANSPORT WIDTH: 10 ft 6 in -
TRANSPORT HEIGHT: 11 ft 1 in -
OPERATING WEIGHT: 85,500 lb -
MAX CONFIGURATION WEIGHT: 96,150 lb -
TRACK UNDERCARRIAGE -
APPLICATIONS: Aggregate, Quarry, Topsoil, Sand & Gravel, Recycling, Contract Crushing -

Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact RDO Equipment Company to verify machine specifications, options, attachments, and condition.
