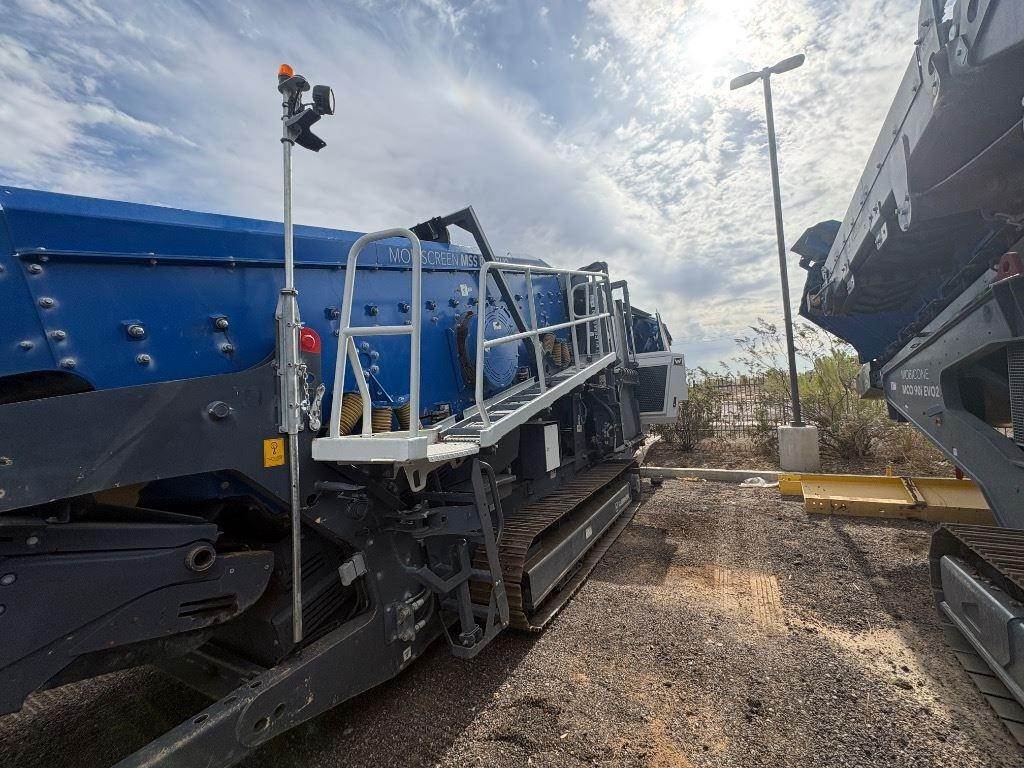

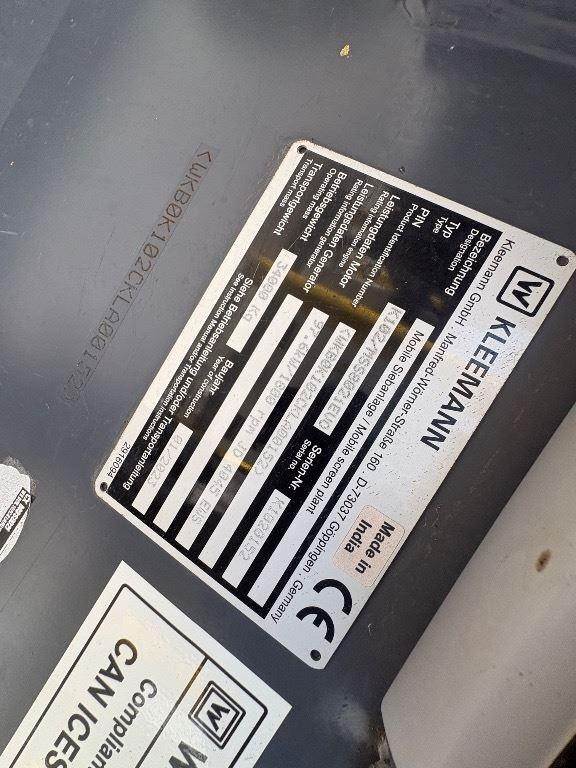

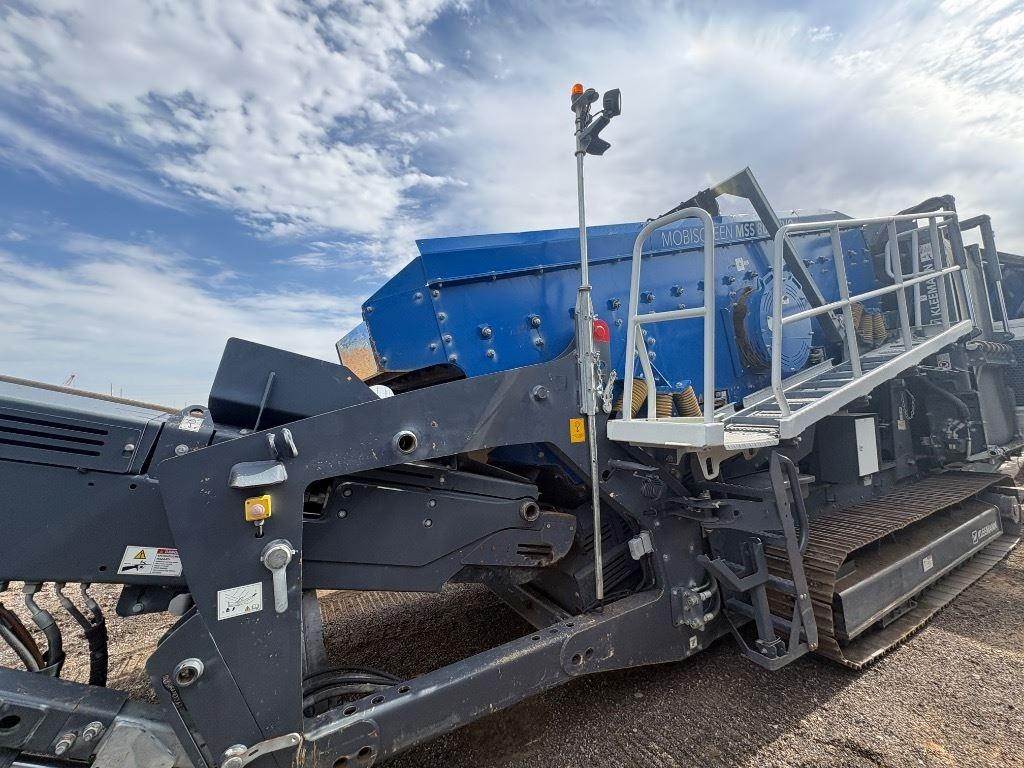

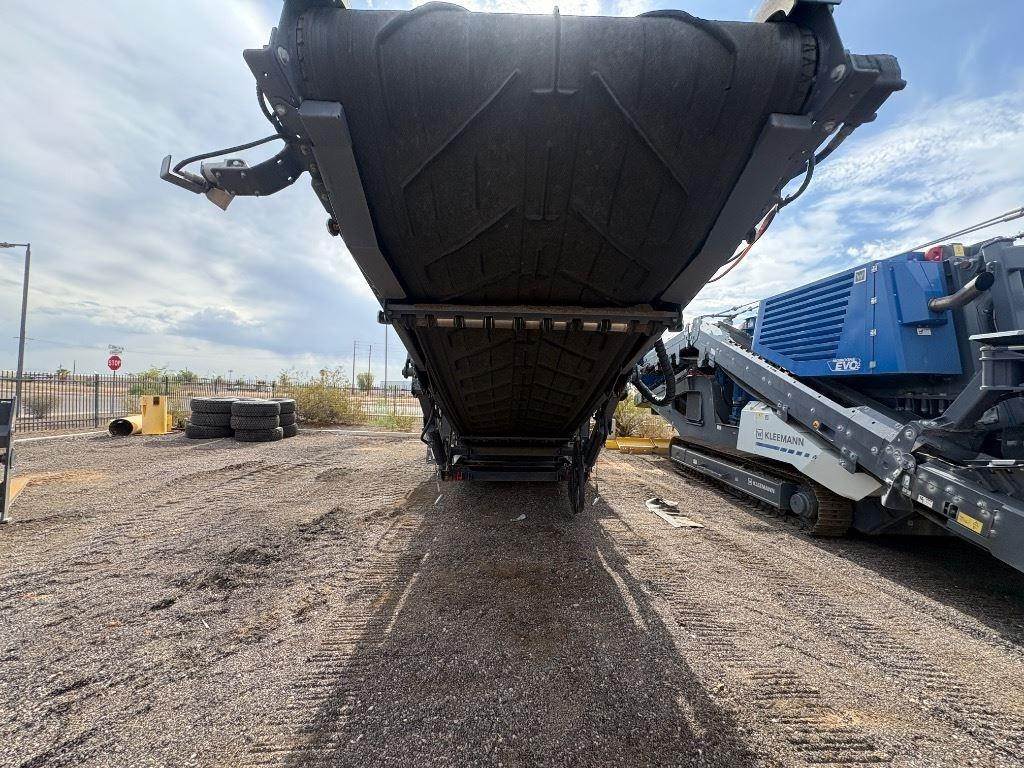

2023 KLEEMANN MSS 802I EVO Screening Plant

MOBILE SCREENING PLANT -
POWER SUPPLY UNIT JOHN DEERE (STAGE V) -

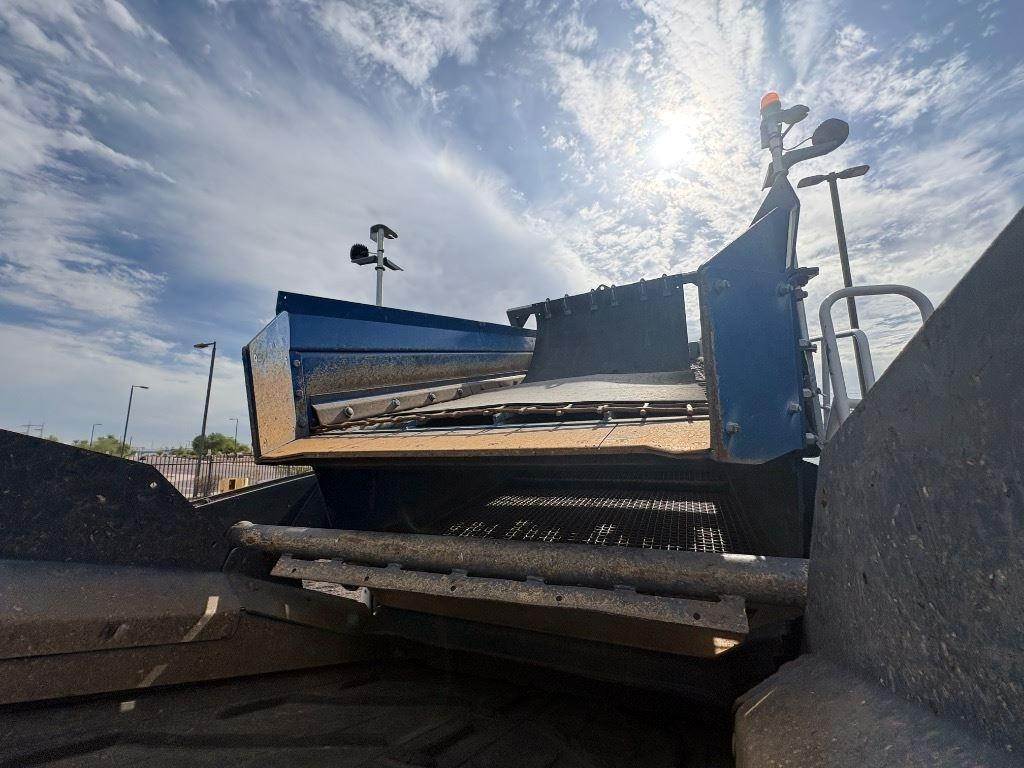

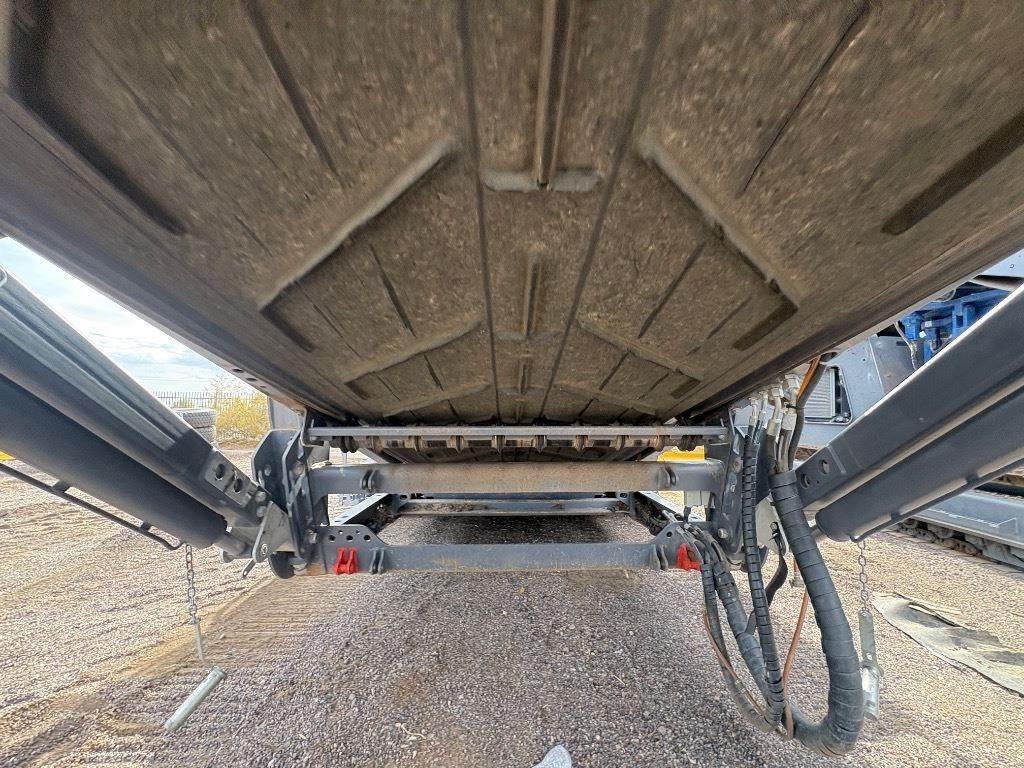

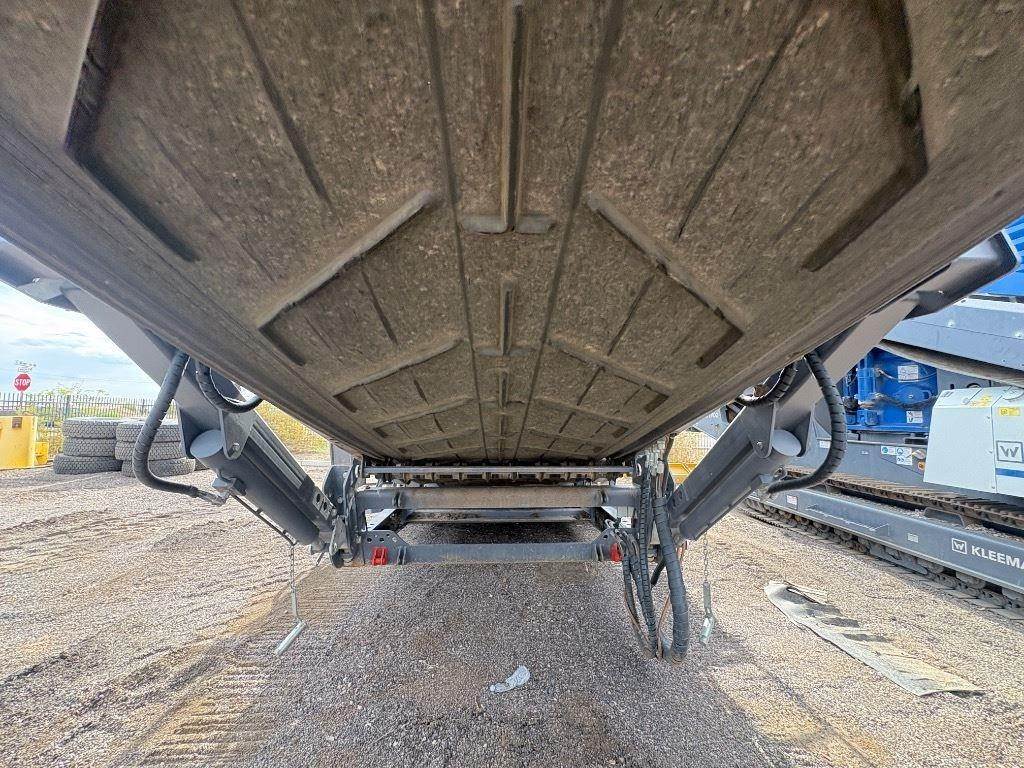

HOPPER UNIT 9,1 M3 -
FEEDING CONVEYOR BELT CONVEYOR, SMOOTH -

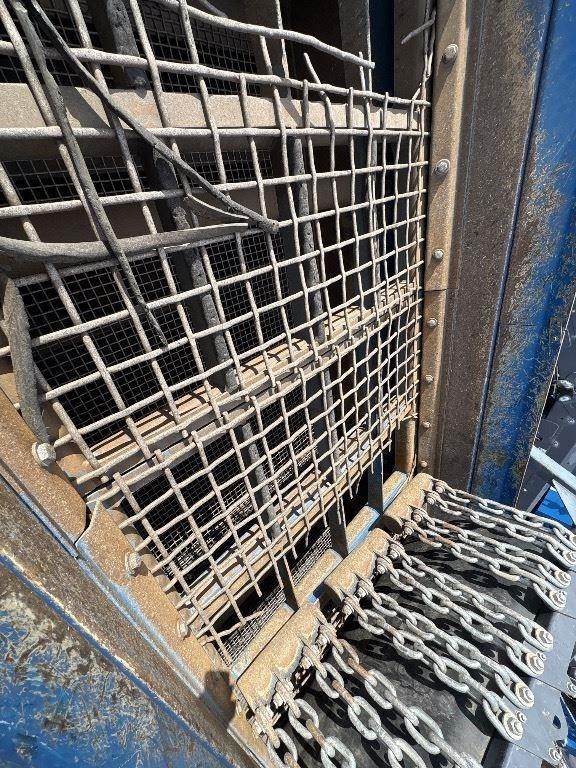

CLOTH MESH WIDTH 80MM PACKAGE, 1-4 -
CLOTH MESH WIDTH 40MM PACKAGE 1-3 -

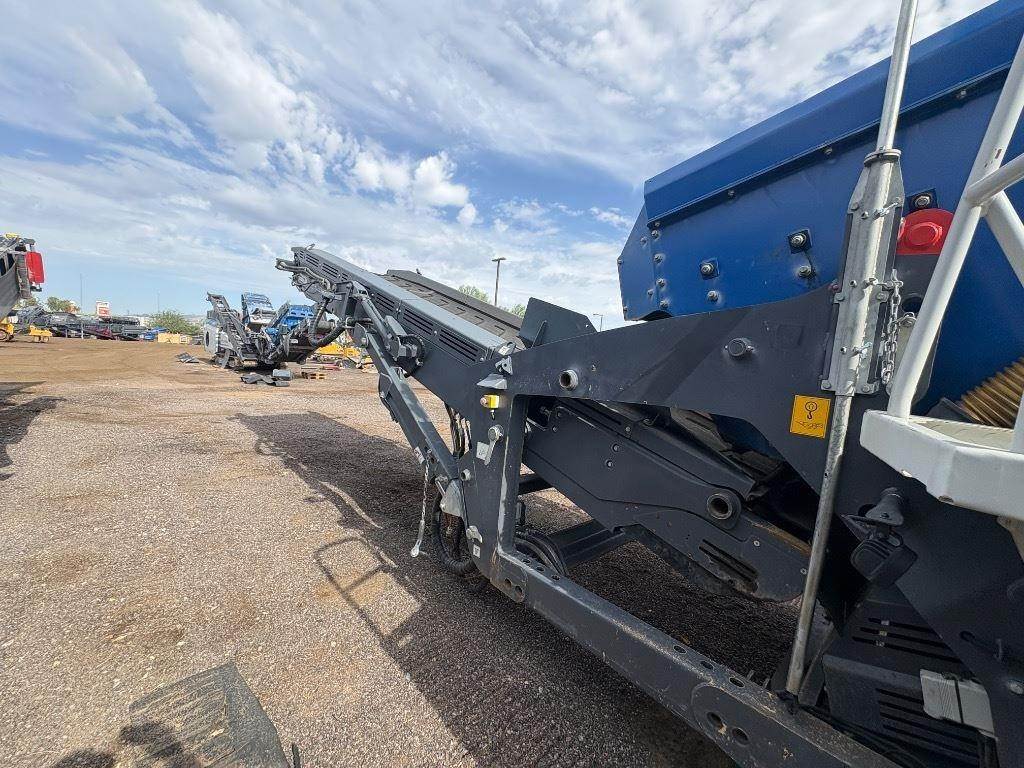

SIDE DISCHARGE CONVEYOR, LOWER DECK UNDERFLOW SMOOTH -
SIDE DISCHARGE CONVEYOR, LOWER DECK OVERFLOW STUD -
CRUSHER DISCHARGE CONVEYOR, STUD BELT -
W/O MAGNETIC SEPARATOR -
W/O EXTERNAL POWER SUPPLY -
WITOS FLEETVIEW-PROFESSIONAL TELEMATICS SOLUTION T -
CHAIN CURTAIN -
RADIO REMOTE CONTROL NAFTA -
LINE COUPLING MS -
MAY BE SUBJECT TO NEW EQUIPMENT SALES TAX -

Factory Features -
TYPE: Mobile Coarse Material Screening Plant -
SCREEN TYPE: Double-Deck Scalping Screen -
DRIVE SYSTEM: H-DRIVE Diesel-Hydraulic -
ENGINE: John Deere Tier 4 Final -
ENGINE POWER: 133 HP -
MAX PRODUCTION: 551 TPH -
MAX FEED SIZE: 32 in x 20 in x 12 in -
HOPPER CAPACITY: 11.9 yd³ -
FEED HEIGHT: 11 ft 9 in -
HOPPER DISCHARGE CONVEYOR: 56 in x 14 ft 9 in -
SCREEN TOP DECK: 5 ft 1 in x 16 ft -
SCREEN BOTTOM DECK: 5 ft 1 in x 14 ft 9 in -
FINE GRAIN CONVEYOR: 48 in x 14 ft 4 in -
FINE MATERIAL CONVEYOR: 36 in x 25 ft 6 in -
FINE MATERIAL DISCHARGE HEIGHT: 9 ft 9 in to 13 ft 1 in -
MEDIUM MATERIAL CONVEYOR: 36 in x 25 ft 6 in -
MEDIUM MATERIAL DISCHARGE HEIGHT: 7 ft 7 in to 11 ft 11 in -
OVERSIZE CONVEYOR: 56 in x 19 ft 11 in -
OVERSIZE DISCHARGE HEIGHT: 8 ft 8 in to 13 ft 3 in -
TRANSPORT LENGTH: 52 ft -
TRANSPORT LENGTH EXTENDED: 55 ft 1 in -
TRANSPORT WIDTH: 9 ft 10 in -
TRANSPORT HEIGHT: 11 ft 2 in -
OPERATING WEIGHT: 70,350 lb -
MAX CONFIGURATION WEIGHT: 84,900 lb -
TRACK UNDERCARRIAGE -
VARIABLE SPEED HOPPER FEEDER: Optional -
APPLICATIONS: Quarry, Aggregate, Topsoil, Recycling, Demolition Material, Heavy Scalping Applications -

Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact RDO Equipment Company to verify machine specifications, options, attachments, and condition.
