2024 Superior RAZERTAIL 48 Conveyor

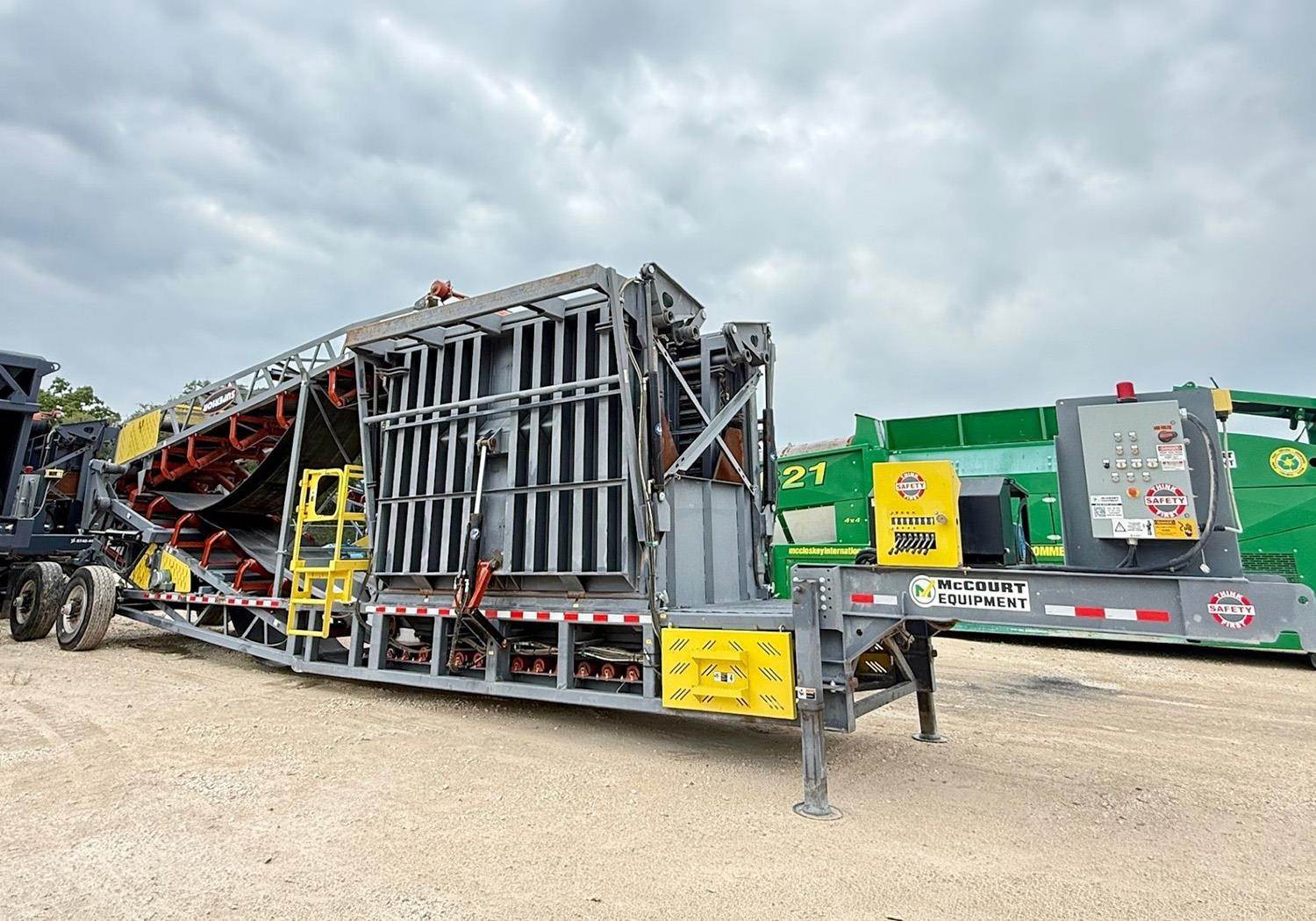

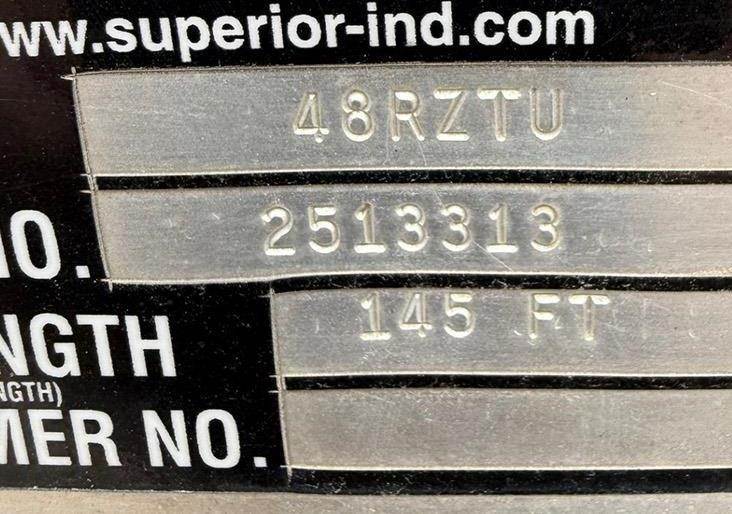

Superior 48" RazerTail® Truck Unloader

TRUCK LOAD AREA

GRATE: 10' X 5' OUTSIDE DIMENSION
*LOAD AREA CONSTRUCTION: ANGLED TUBE WITH 7" WIDE OPENINGS, FLAT BAR MIDDLE SECTION*
SELF-CLEANING RAMPS: HINGED ON EACH SIDE OF THE GRATE, FOLD UP FOR CLEANING CYCLE AFTER TRUCK IS OFF RAMP
RAMP BULKHEAD: 10' WIDE BY 8' 4" LONG, FOLD HYDRAULICALLY FOR ROAD TRANSPORT
*RAMP: ELIMINATE EARTHEN RAMPS WITH 16' EXTENDED TRI-FOLD STEEL RAMPS EACH SIDE, FROM SELF-CLEANING RAMPS TO GRADE, HYDRAULICALLY FOLD INTO HOPPER AREA FOR TRANSPORT*

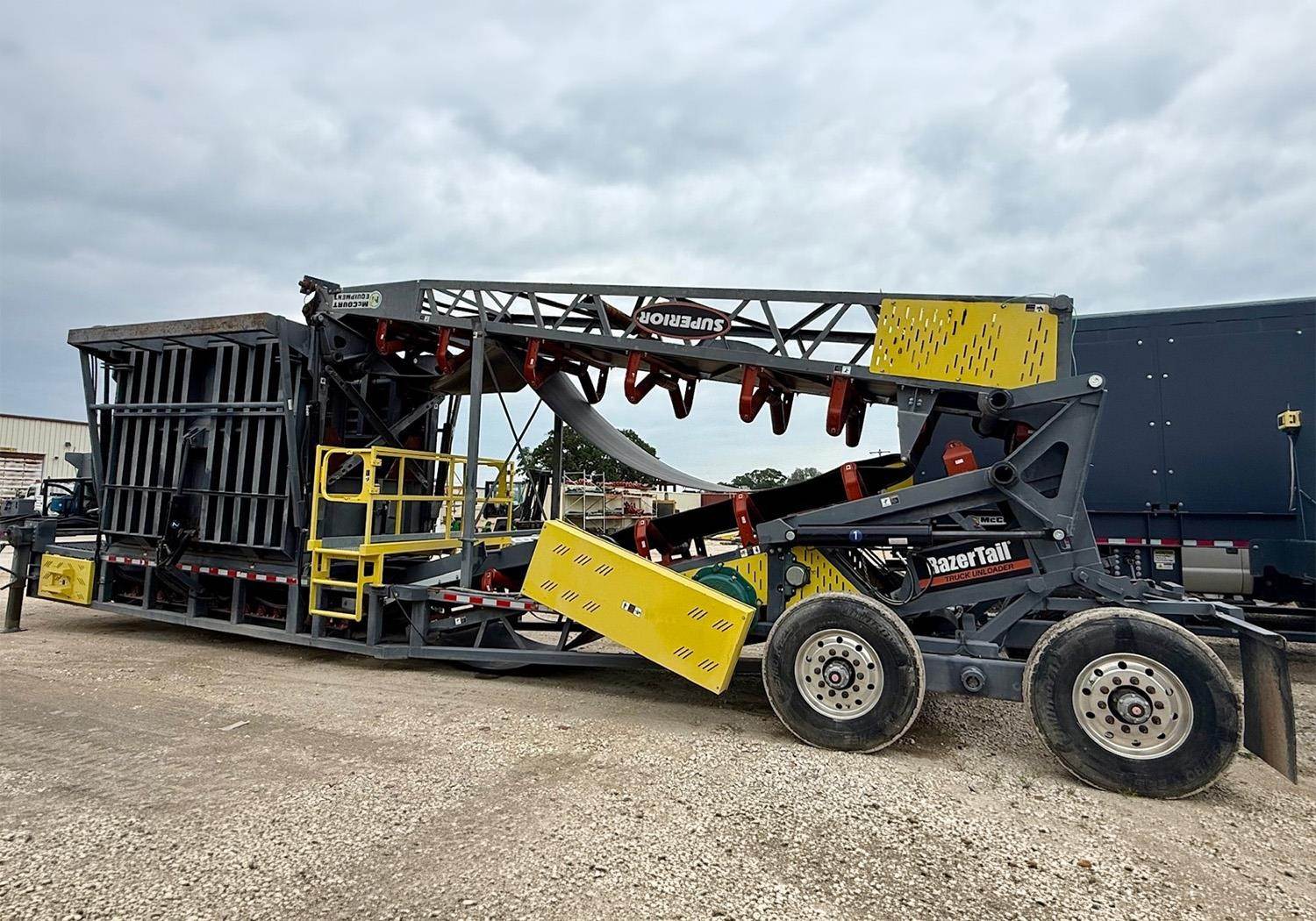

UNLOADING CONVEYOR

SIZE: APPROXIMATELY 48" X 63'
DISCHARGE HEIGHT: FOLDING CONVEYOR, WITH 3 POSITION ADJ HEIGHT, MAX OF 12.5' FROM BOTTOM OF DISCHARGE HOOD
FRAME: 30" DEEP TRUSS
DRIVE: CLASS I SINGLE WRAP
GEAR REDUCER: SHAFT MOUNT, WITH BACKSTOP
MOTOR: 50 HP 1800 RPM TEFC
V-BELT DRIVE: WITH DRIVE GUARD
CAPACITY: 1000 STPH OF 100 PFC MATERIAL, 1.5" MINUS SPHERICAL LUMPS
BELT SPEED: 210 FPM
FLOW CONTROL: ADJUSTABLE SLIDE GATE
DISCHARGE HOOD: NOT INCLUDED
SUPERIOR IDLERS: CEMA C, 5" DIAMETER ROLLS, SEALED FOR LIFE BALL BEARINGS
LOAD AREA: 5" DIAMETER FLAT STEEL IDLERS, CLOSE SPACING
TROUGH: 35° EQUAL, STEEL ROLLS, ON 4' SPACING
RETURNS: FLAT STEEL ROLLS ON 10' SPACING
DRIVE PULLEY: 20" DIAMETER CERAMIC LAGGED DRUM
SNUB PULLEY: 18" DIAMETER CEMA CHEVRON® WING
TAIL PULLEY: 12" DIAMETER MD CHEVRON® WING
HEAD PULLEY: 16" DIAMETER PLAIN STEEL MD DRUM
SHAFTS: TURNED AND POLISHED
BEARINGS: INCLUDED
TAKE UPS: SCREW TYPE
BELTING: 3 PLY, 3/16 X 1/16 330 PIW
*BELT SPLICE: FACTORY VULCANIZED BELT SPLICE*
BELT SCRAPER: SUPERIOR CLICK TENSIONING EXTERRA® PRIMARY BELT SCRAPER

CHASSIS

CHASSIS CONSTRUCTION: WELDED STEEL TUBE
AXLE: TANDEM, WITH SINGLE 315/80RX 22.5 TIRES
HITCH: FIFTH WHEEL
BRAKES: COMPLETE AIR BRAKE PACKAGE
LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
LANDING JACKS: CRANK-DOWN

HYDRAULICS

POWER UNIT: 20 HP ELECTRIC PUMPING UNIT
HYDRAULIC RAMPS: RAISE AND LOWER
HYDRAULIC CONVEYOR FOLD: 25' HYDRAULIC HEAD END FOLD

ADDITIONAL SPECIFICATIONS

GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED
VOLTAGE: 480 V / 3 PH / 60 HZ - 1800 RPM

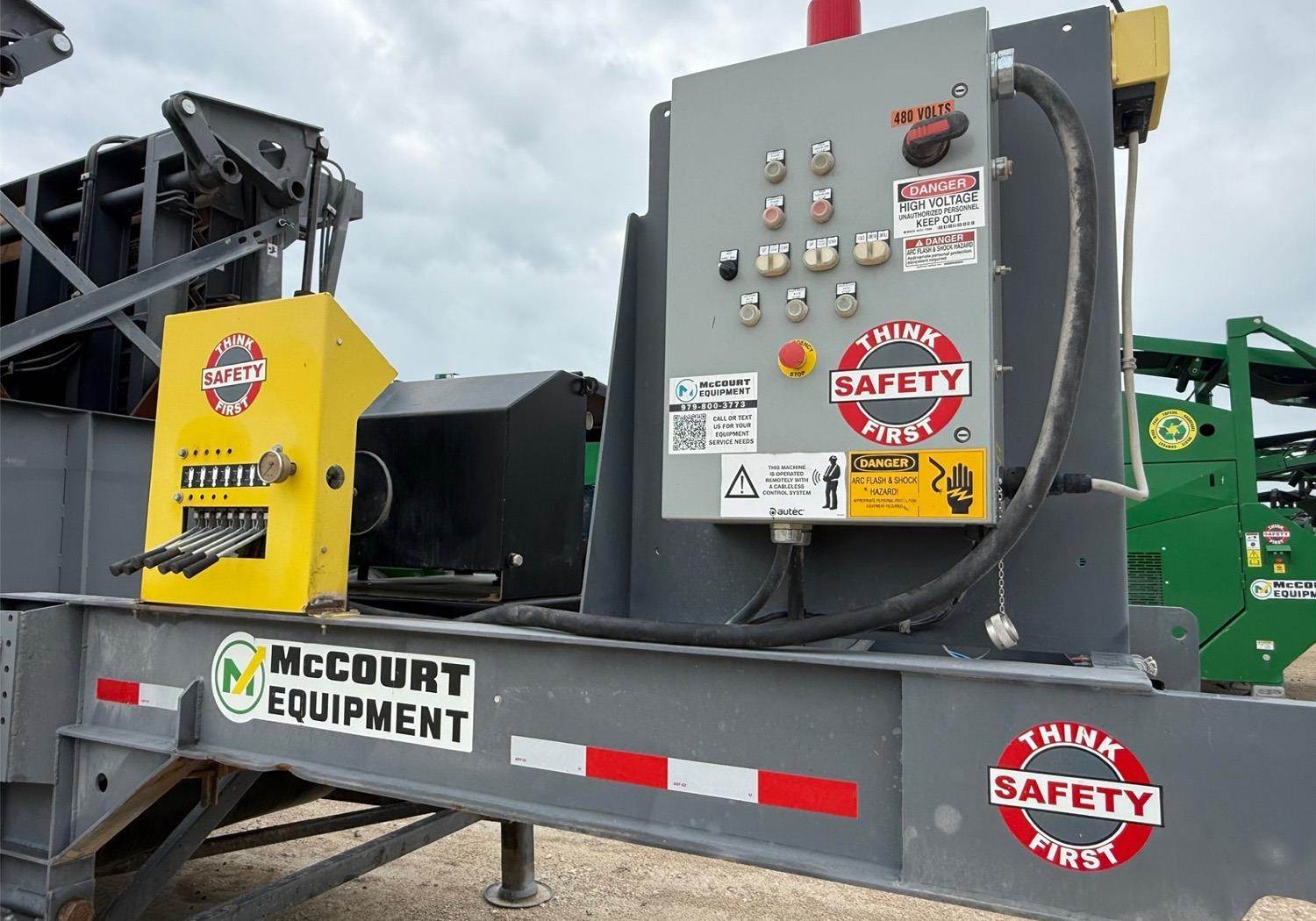

ELECTRICAL: ENCLOSURE WITH MAIN DISCONNECT, CIRCUIT BREAKER, AND PUSH BUTTON ON/OFF SWITCHES WITH RAMP AUTO-CYCLE PLC (IF APPLICABLE), MOUNTED TO THE CHASSIS AND WIRED TO MOTORS
*REMOTE CONTROL: WIRELESS REMOT CONTROLS BELT DRIVE, HYDRAULIC UNIT, AND RAMP OPERATIONS*
*OPERATOR PLATFORM: WALKWAY AND HANDRAILS OVER CONVEYOR ON BOTH SIDES OF HOPPER AREA, FOR OPERATOR WORKSTATION AND INSPECTION PLATFORM*
*PORTABLE: PORTABLE AXLE, FIFTH WHEEL HITCH, COMPLETE AIR BRAKE PACKAGE LIGHTS, MUD FLAPS, LANDING JACKS*
*FOLDING CONVEYOR: ALLOWS RAZERTAIL® TO REACH 11' FEED HEIGHT FOR TELESTACKER. INCLUDES HYDRAULIC FOLDING HEAD SECTION AND WRAP DRIVE*
