2025 XL Specialized XL 90 HDE Lowboy Trailer

NEW 2025 XL Specialized 90HDE 45 ton hydraulic RGN stretch with (2) flip axles

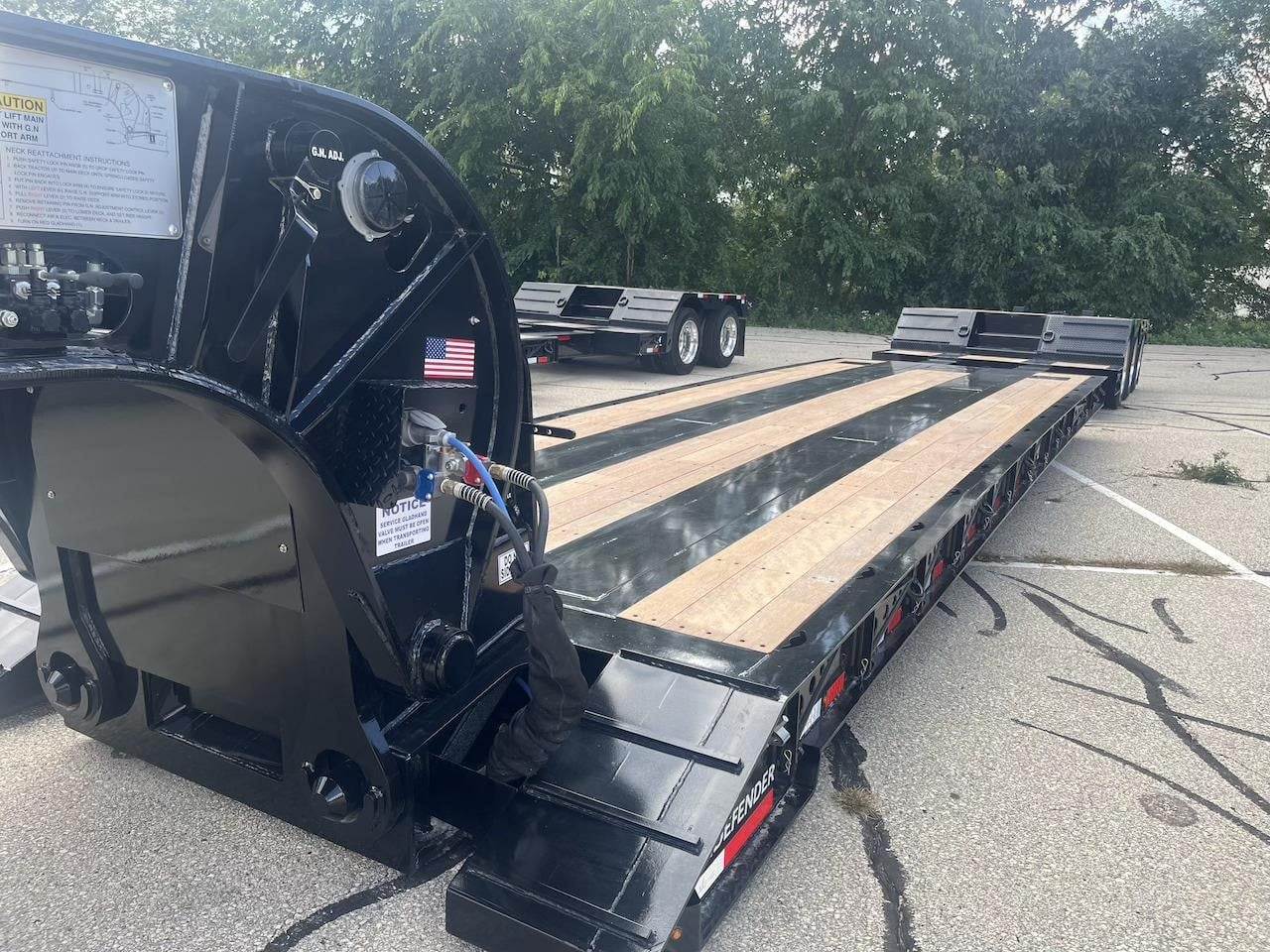

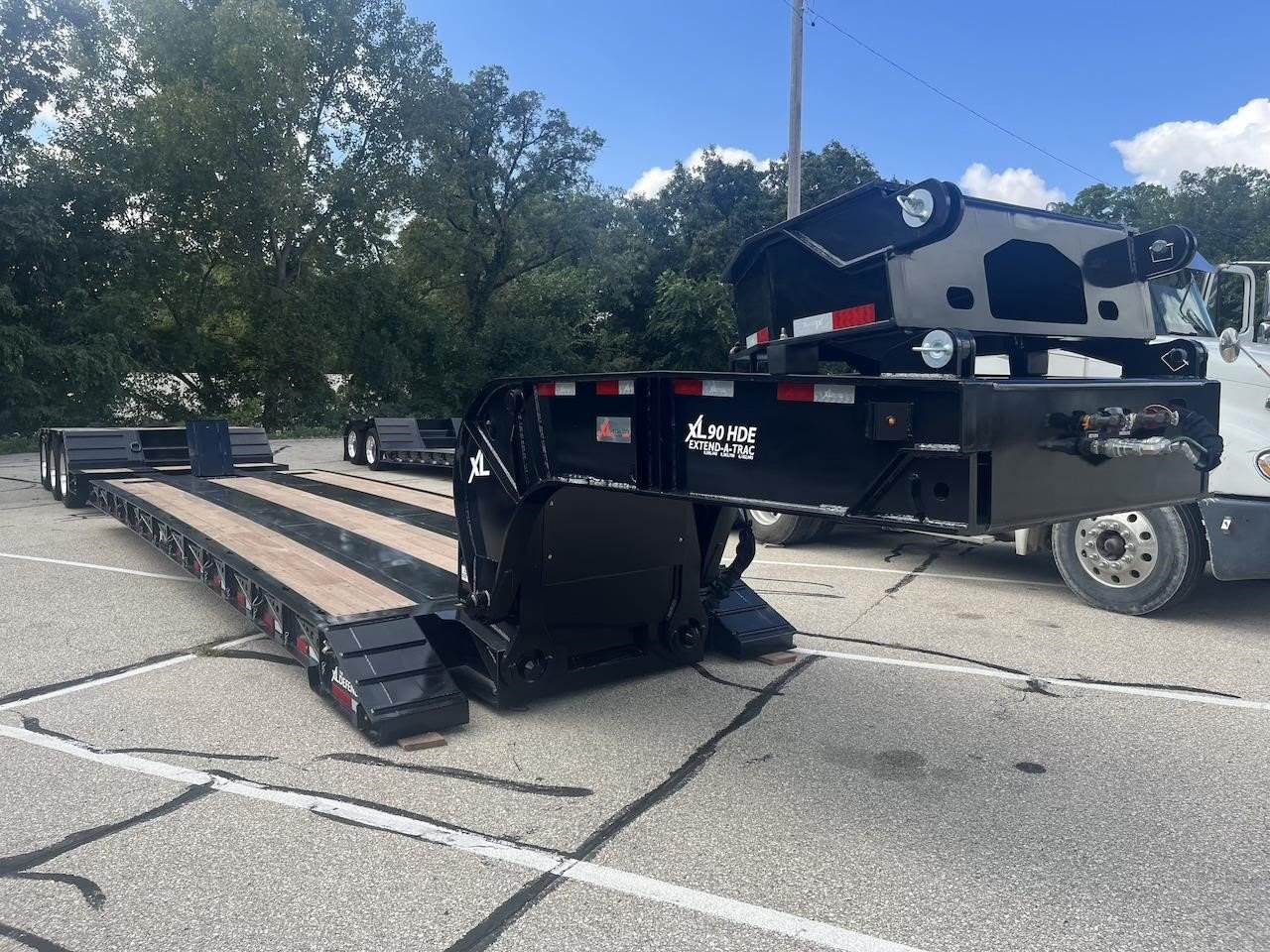

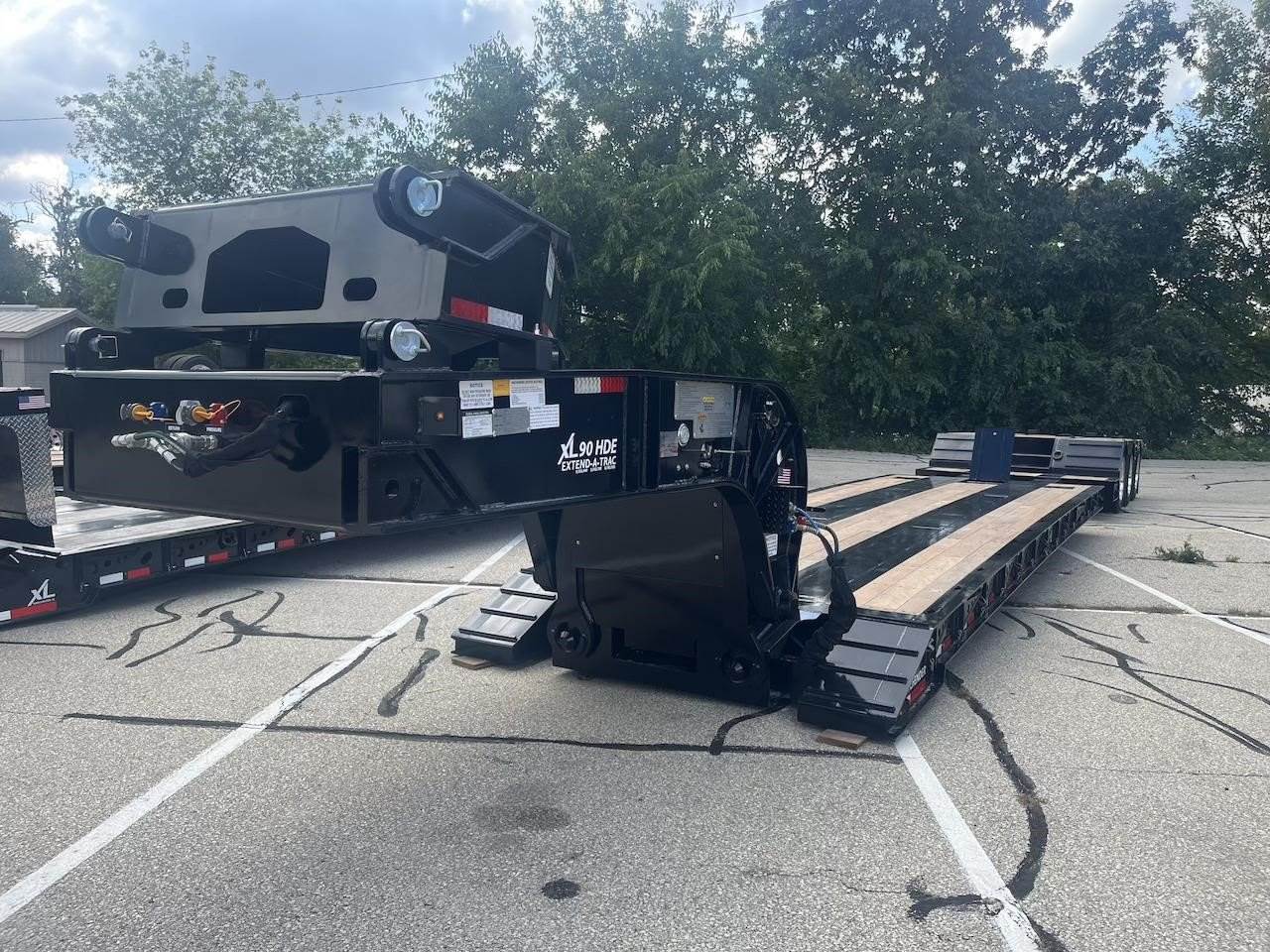

Gooseneck
10' 5" narrow neck
16" king pin setting
84" swing clearance
Honda pony motor
36" flip neck extension

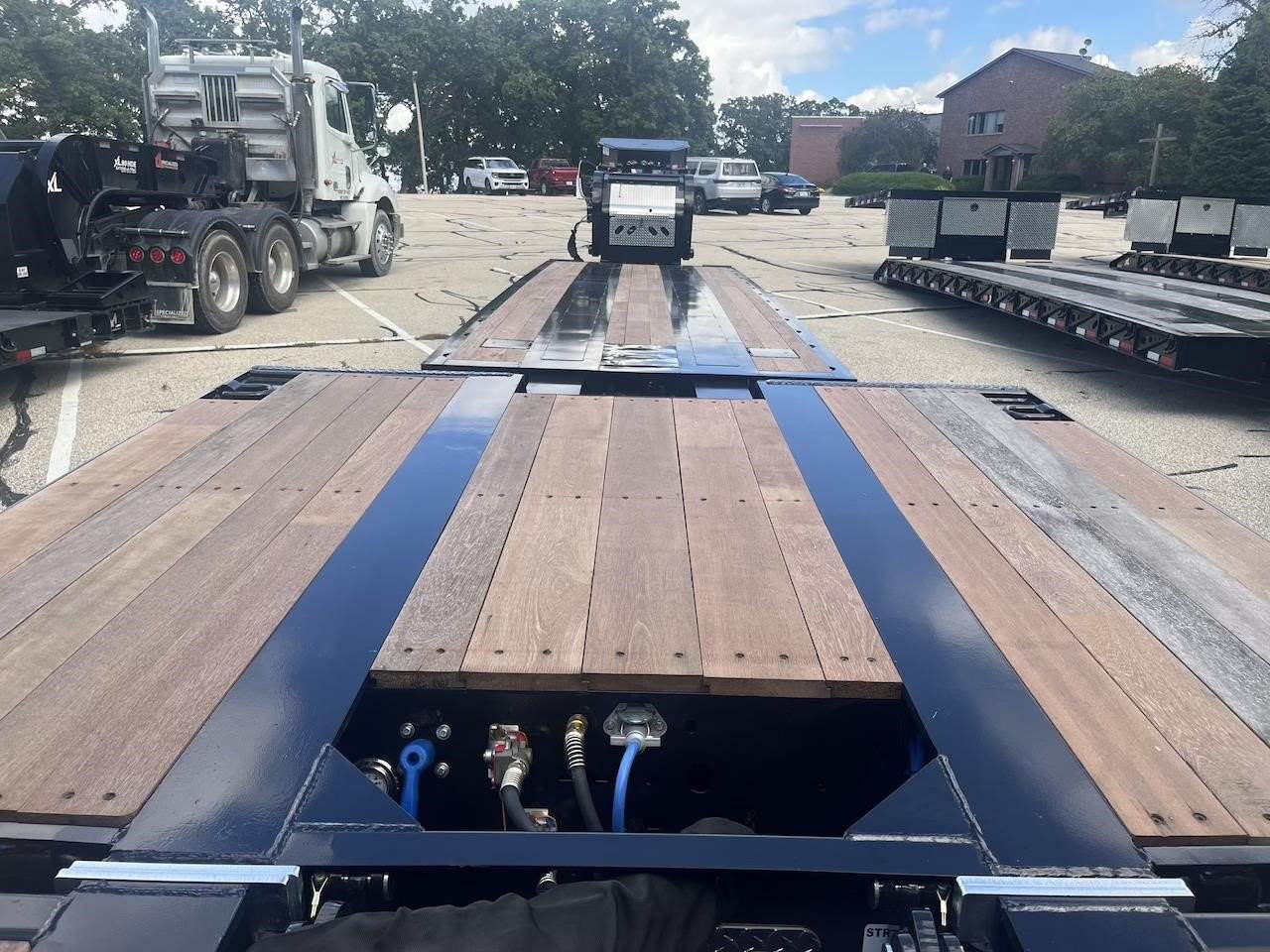

Main Deck:
33' 7" well extends to 59' 11" - includes 30" mini deck
20" loaded deck height w/ 6" ground clearance
1 1/18" apitong decking
X-members: 6" JR. I-beams on 12" alternating centers
(8) bent D-rings per side
Chain drops on 24" centers
Removable swingout outriggers on 24" centers
Ramps: tapers to 4"
2 extra clearance lights per side

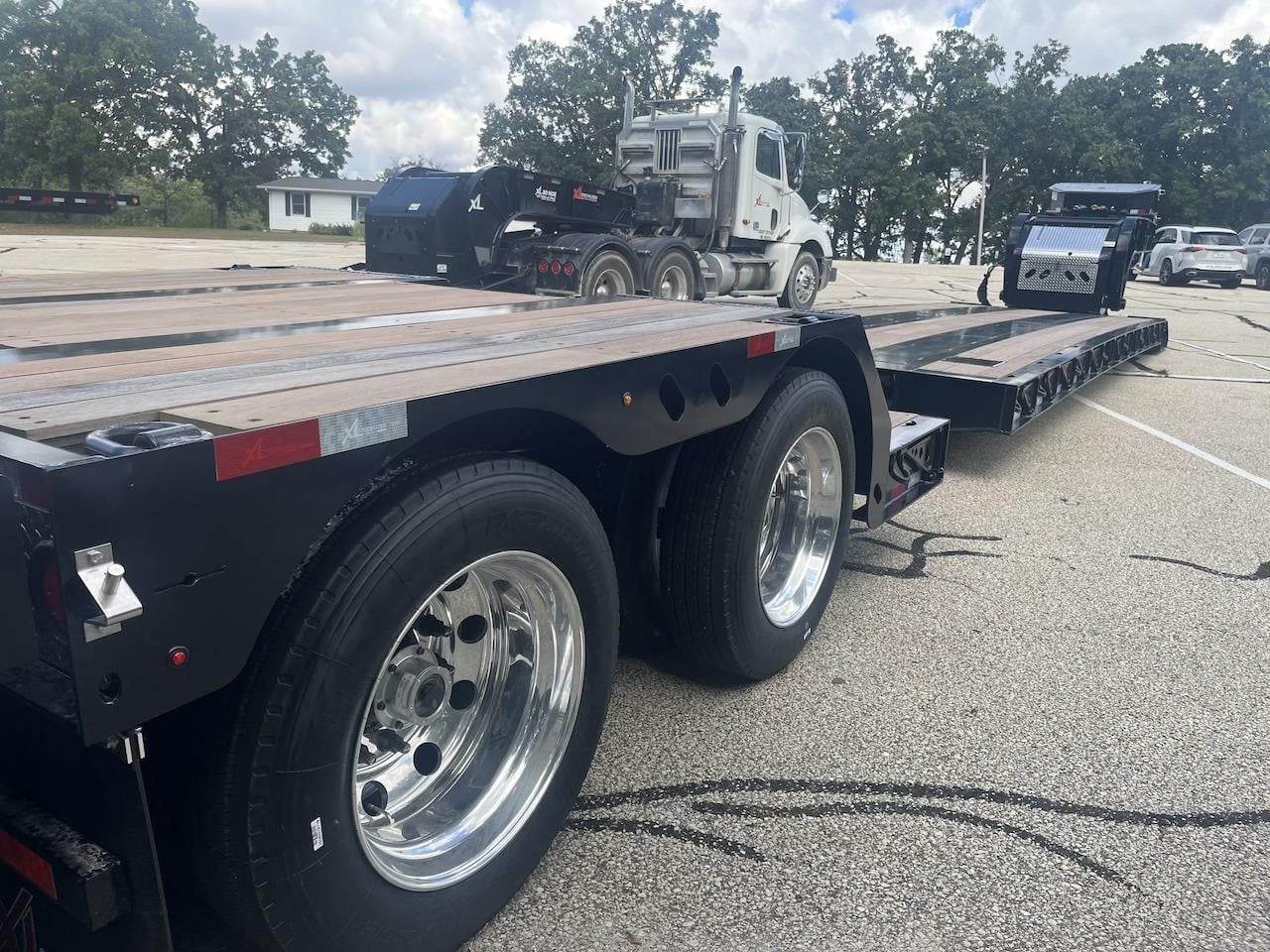

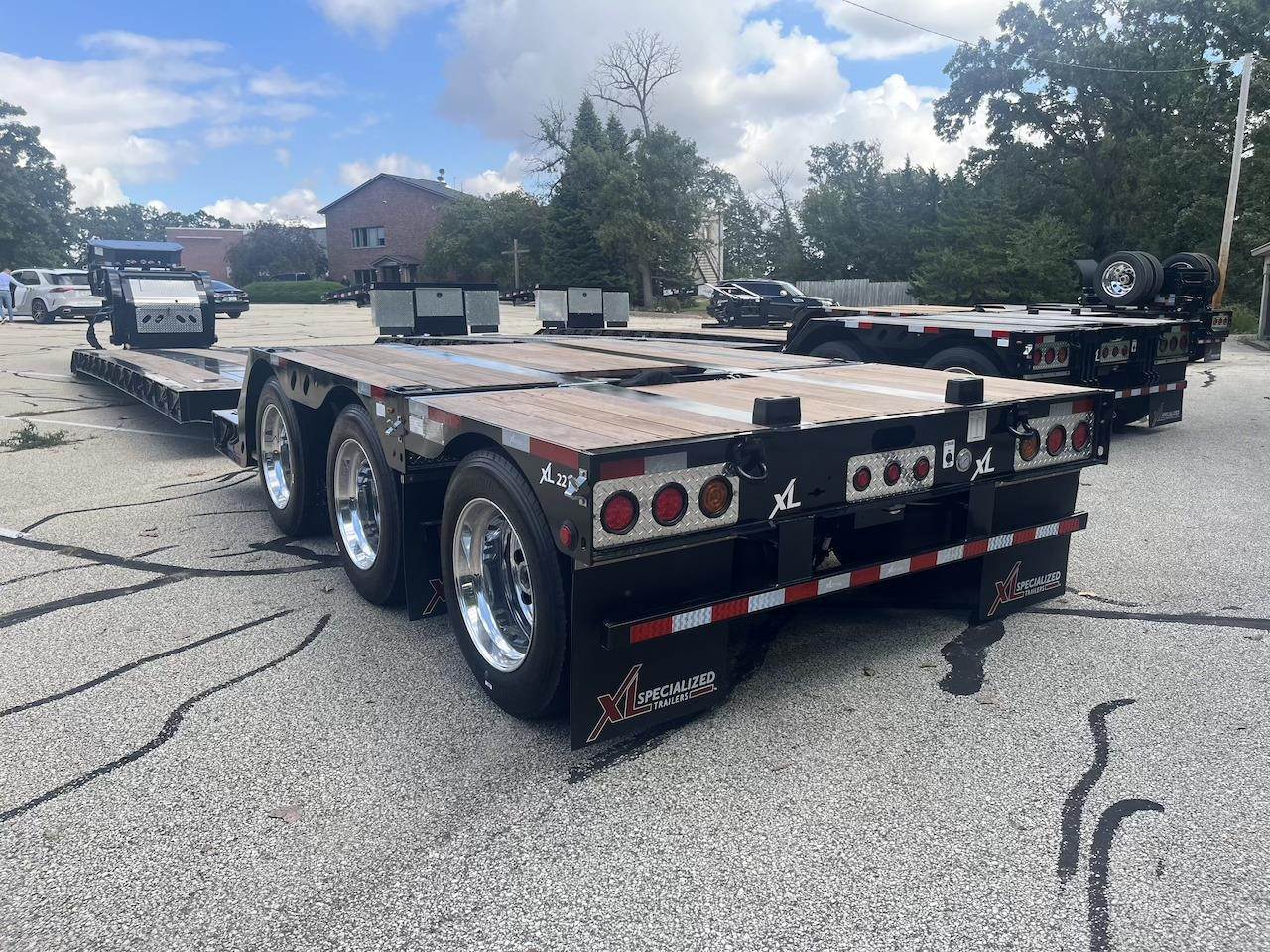

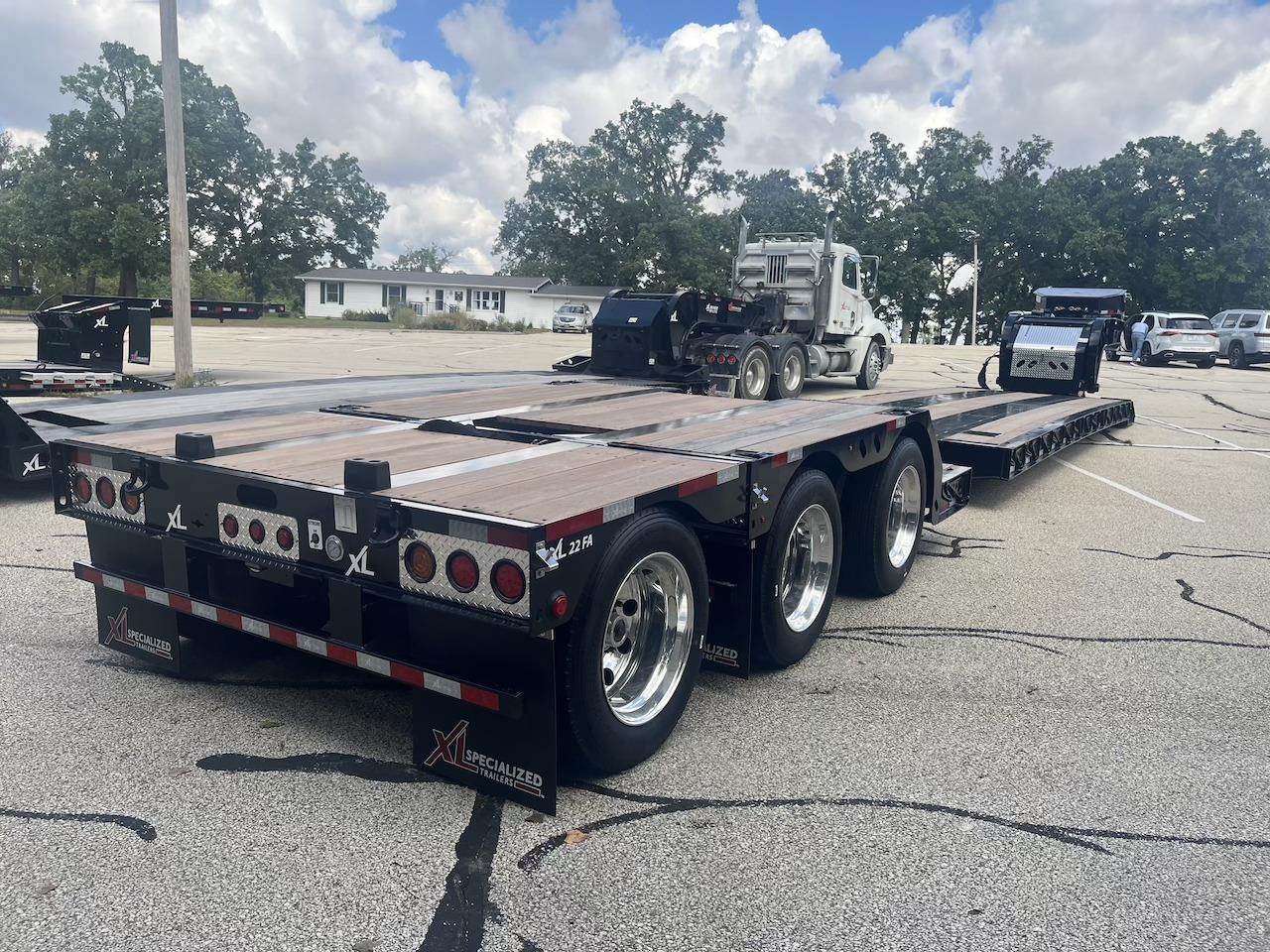

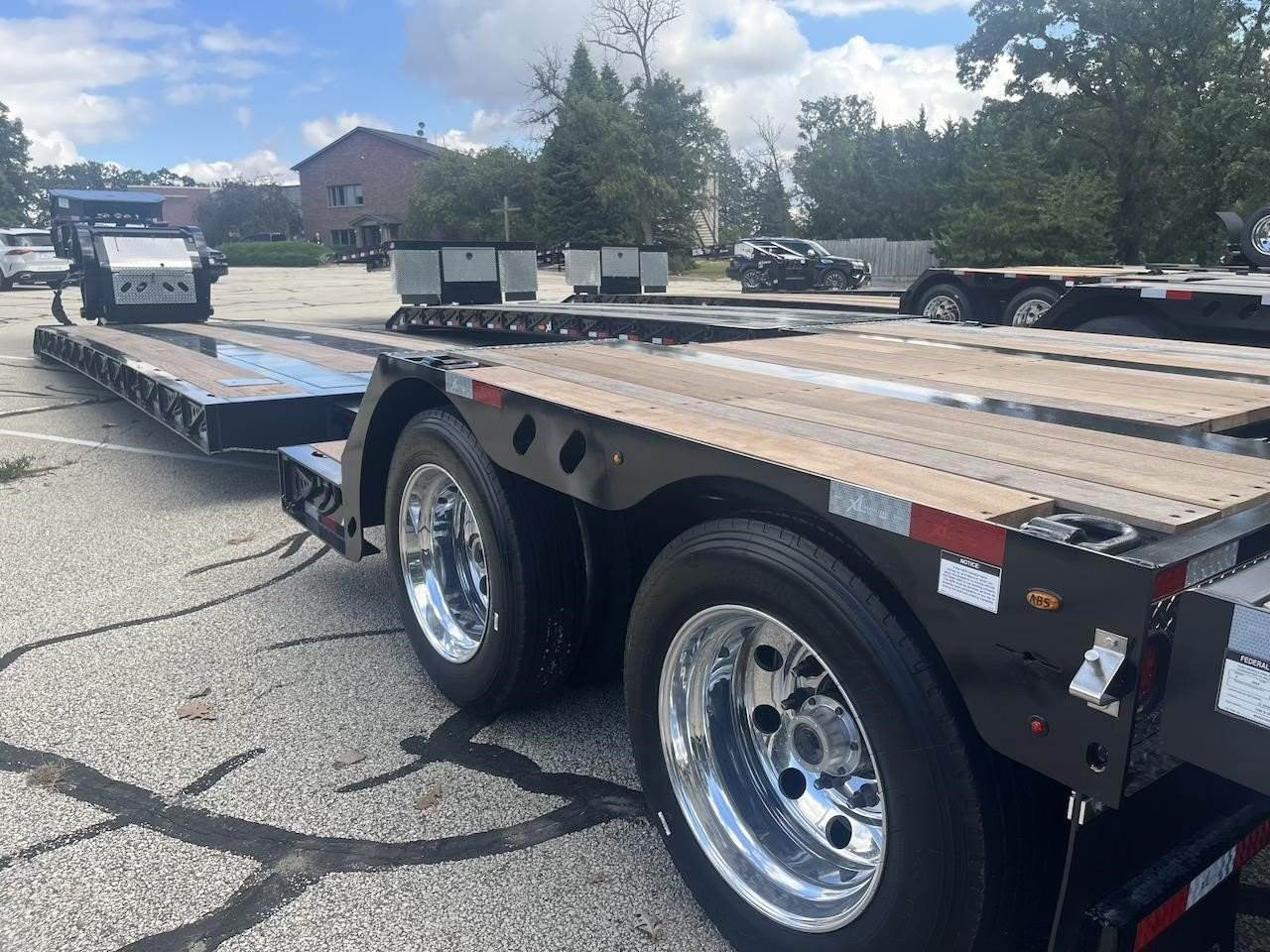

Rear Deck:
9'
40" loaded deck height
(2) axle trailer
54" axle spacing
ABS: 4S2M Spring brakes on 2 axles
Tires: 255 / 70R / 22.5
Outside aluminum wheels (shown w/steel wheels)
Hub Pilot/ outboard drums
Electrical: 12V sealed Grote system with (3) taillight aluminum package
4" amber strobe with switch to make 3 STT
1 1/8" apitong decking flush, covered wheels
1 pair of pan style D-rings- one in each corner
(2) stake pockets in tail channel
2 pair of flag holders
Manual ride height control
Frame Reinforcement, air, electric and brackets for 2 axle booster
Raise lower valve
Extension stops on 24" centers
Liquid filled air gauge

(1) Intermediate flip axle
Length: 54"
40" loaded deck height
54" axle spacing
255/70R/22.5
Outside aluminum wheels
Outboard drums
Electrical: 12V sealed Grote system with (3) taillight aluminum package
4" amber strobe with switch to make 3 STT
one pair of flag holders
(2) stake pockets in tail channel
Frame Reinforcement, air, electric and brackets for 2 axle booster

(1) standard flip axle
Length: 54"
40" loaded deck height
54" axle spacing
255/70R/22.5
Outside aluminum wheels
Outboard drums
Electrical: 12V sealed Grote system with (3) taillight aluminum package
4" amber strobe with switch to make 3 STT
one pair of flag holders
(2) stake pockets in tail channel
PRICE INCLUDES FET

FOB Manchester, IA
***These trailers can be shipped nationwide***
