2026 XL Specialized 53x102 Tandem Axle Steel Lowboy Trailer - Air Ride, Fixed Axle

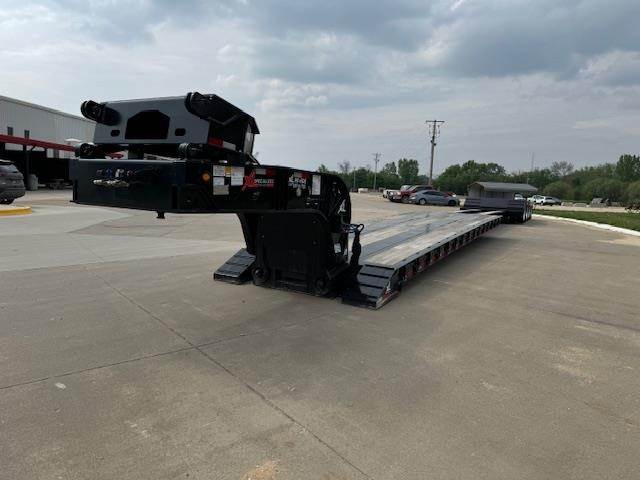

NEW 2026 XL Specialized 53' XL90 HDE 45 ton hydraulic RGN stretch

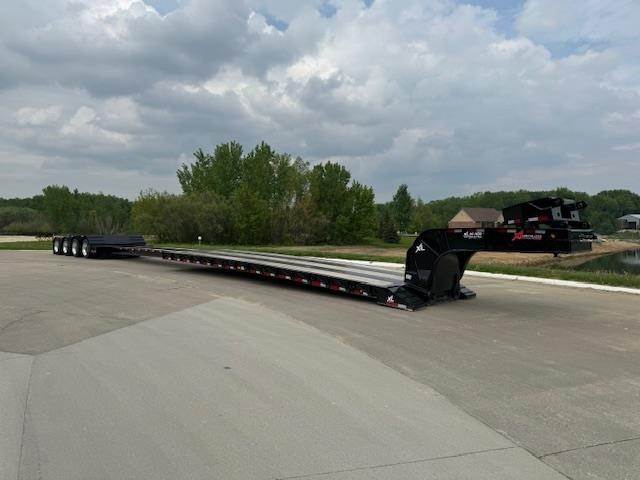

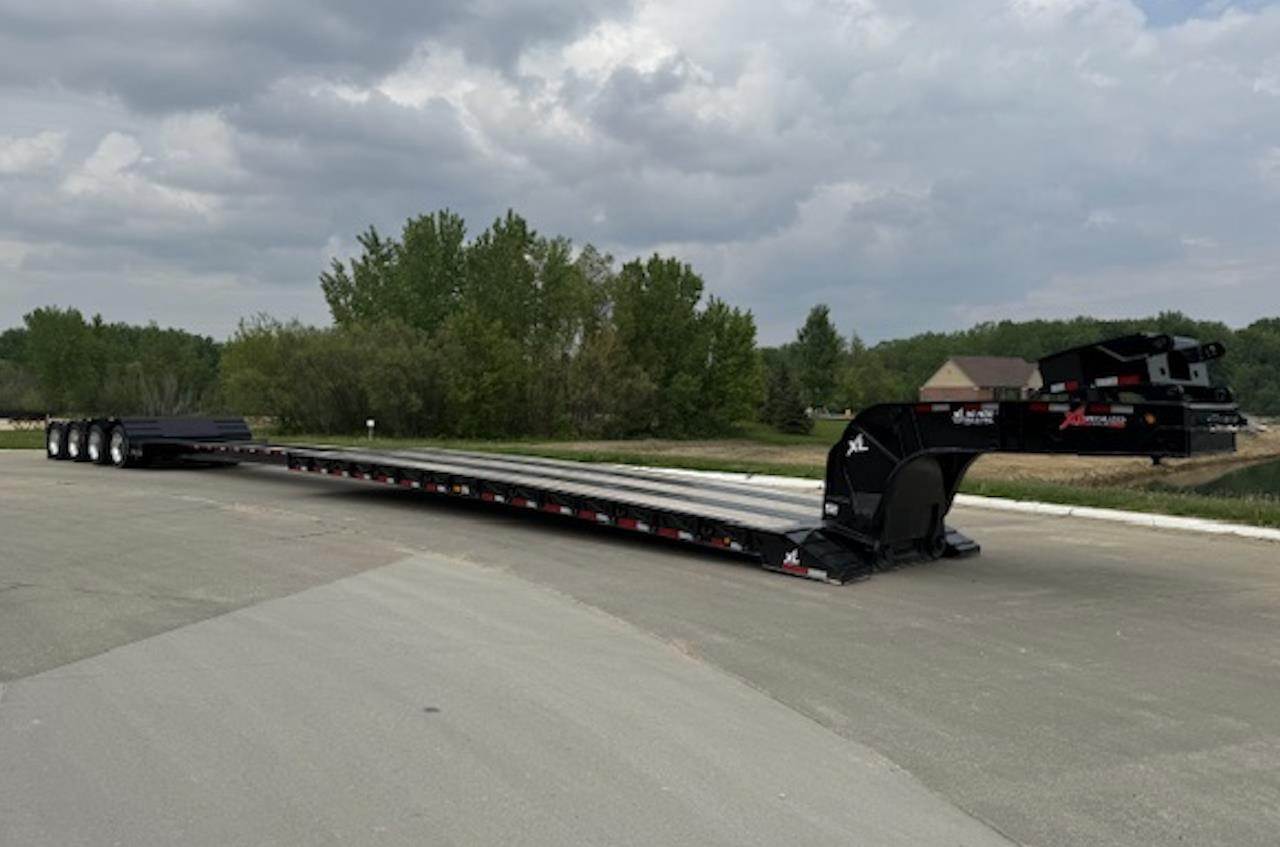

***Shown with (2) optional flip axles, not included in listed price***

Trailer overall length: 53'
Width: 102"
90,000 LB DISTRIBUTED; 70,000 LB IN 10' CLOSED

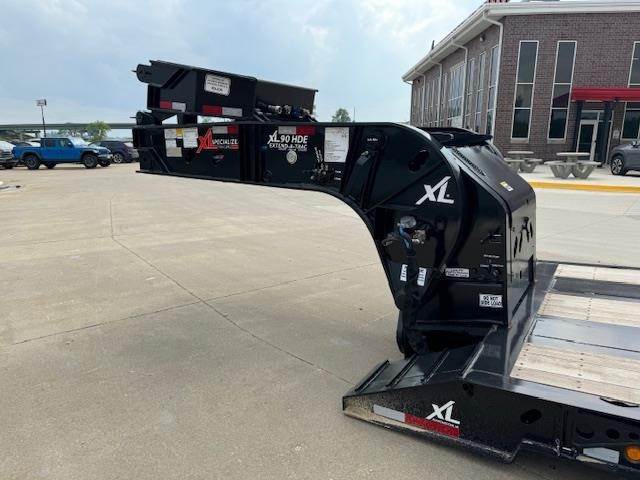

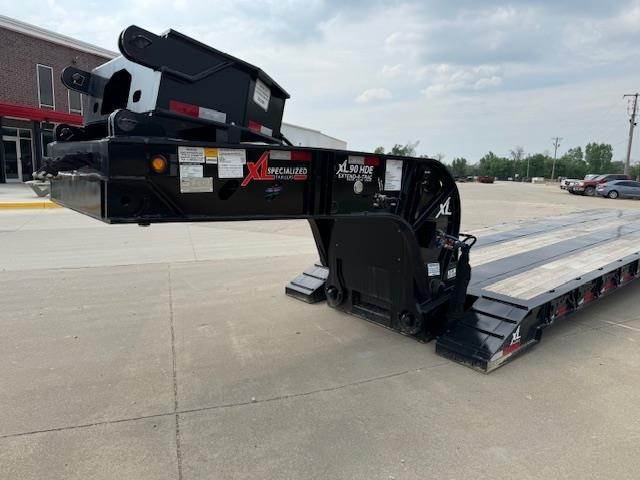

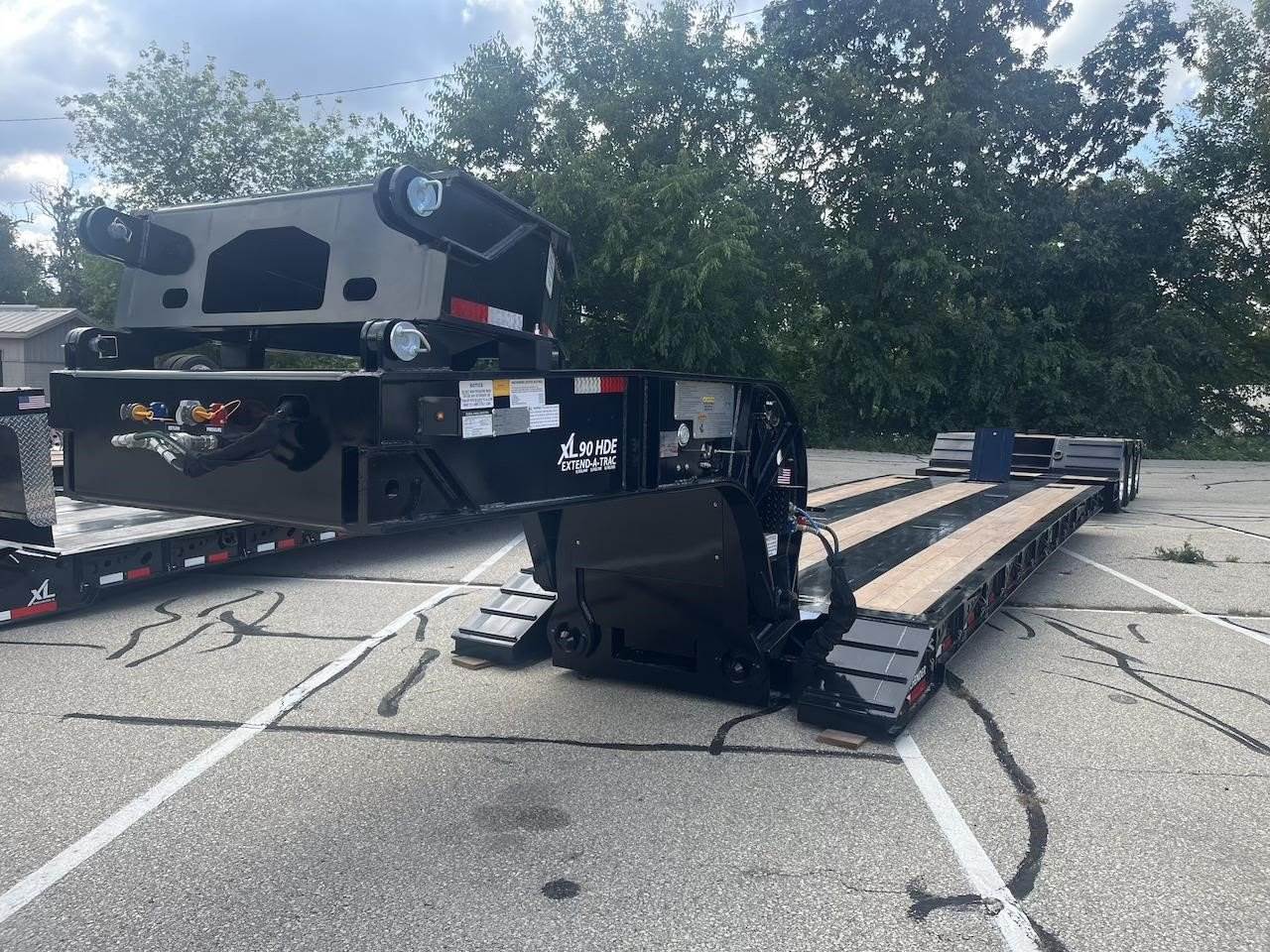

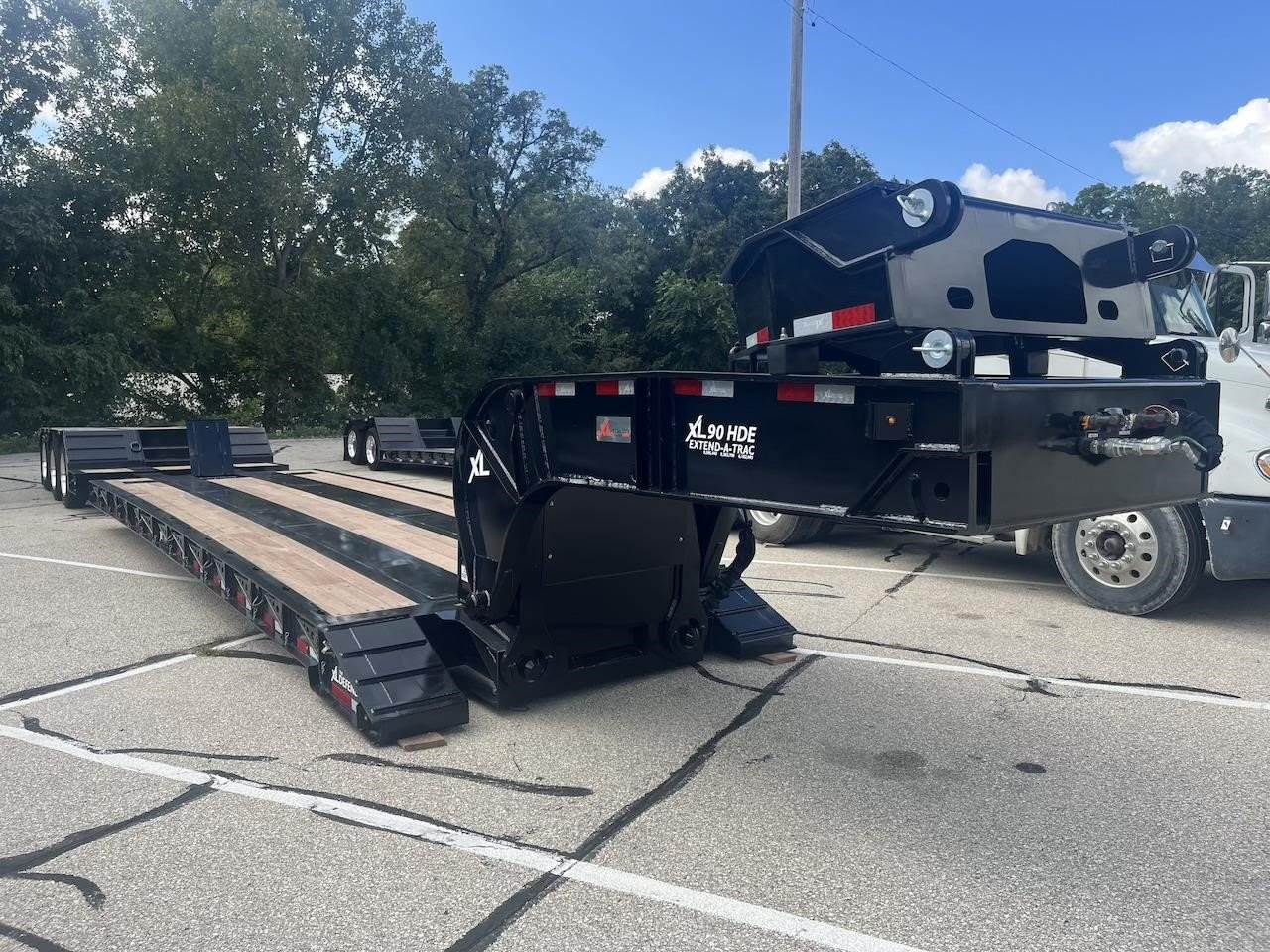

Classic neck
10' 5" narrow neck
16" king pin setting
84" swing clearance

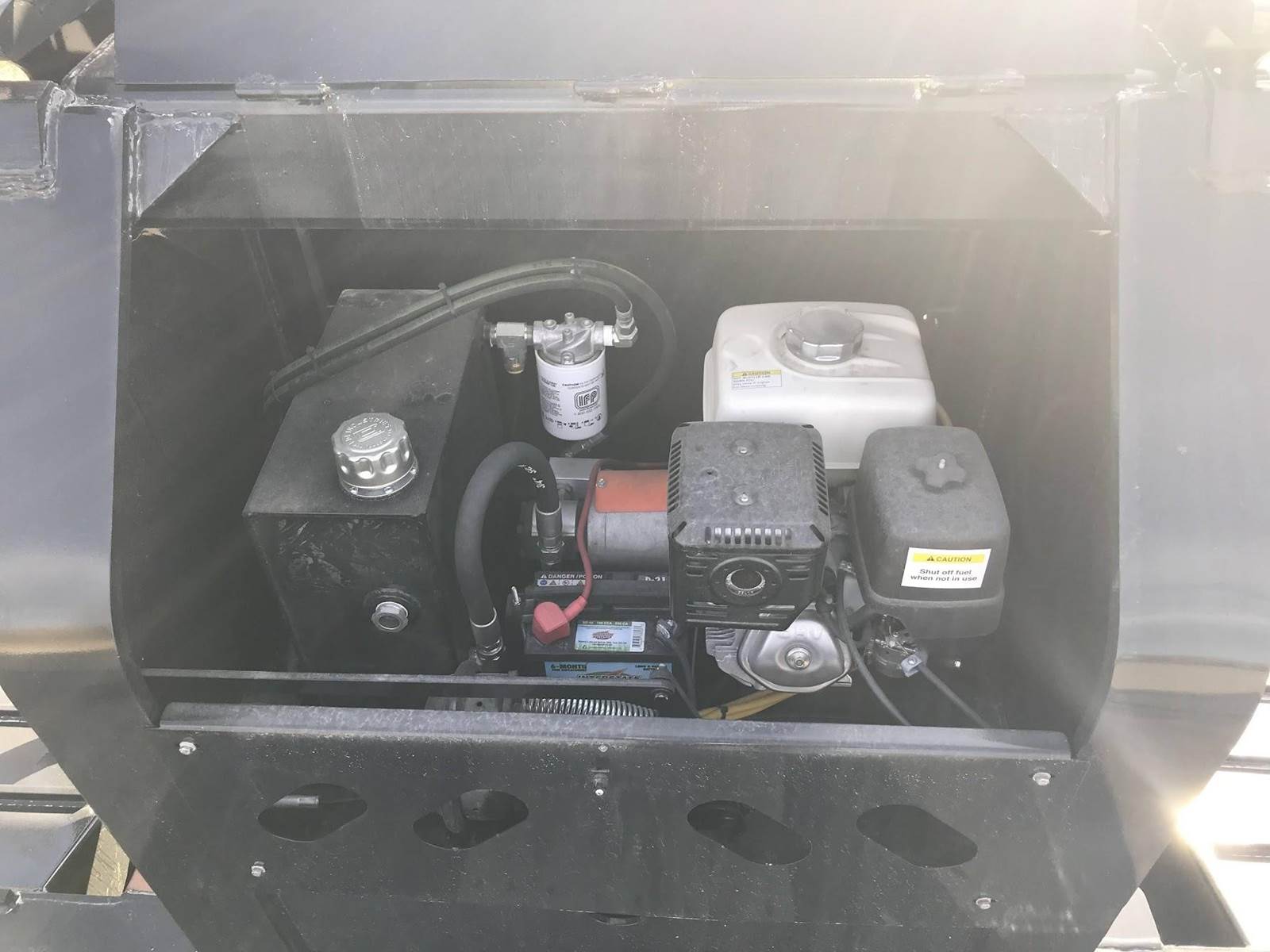

Honda pony motor, dual hydraulics
36" flip neck extension

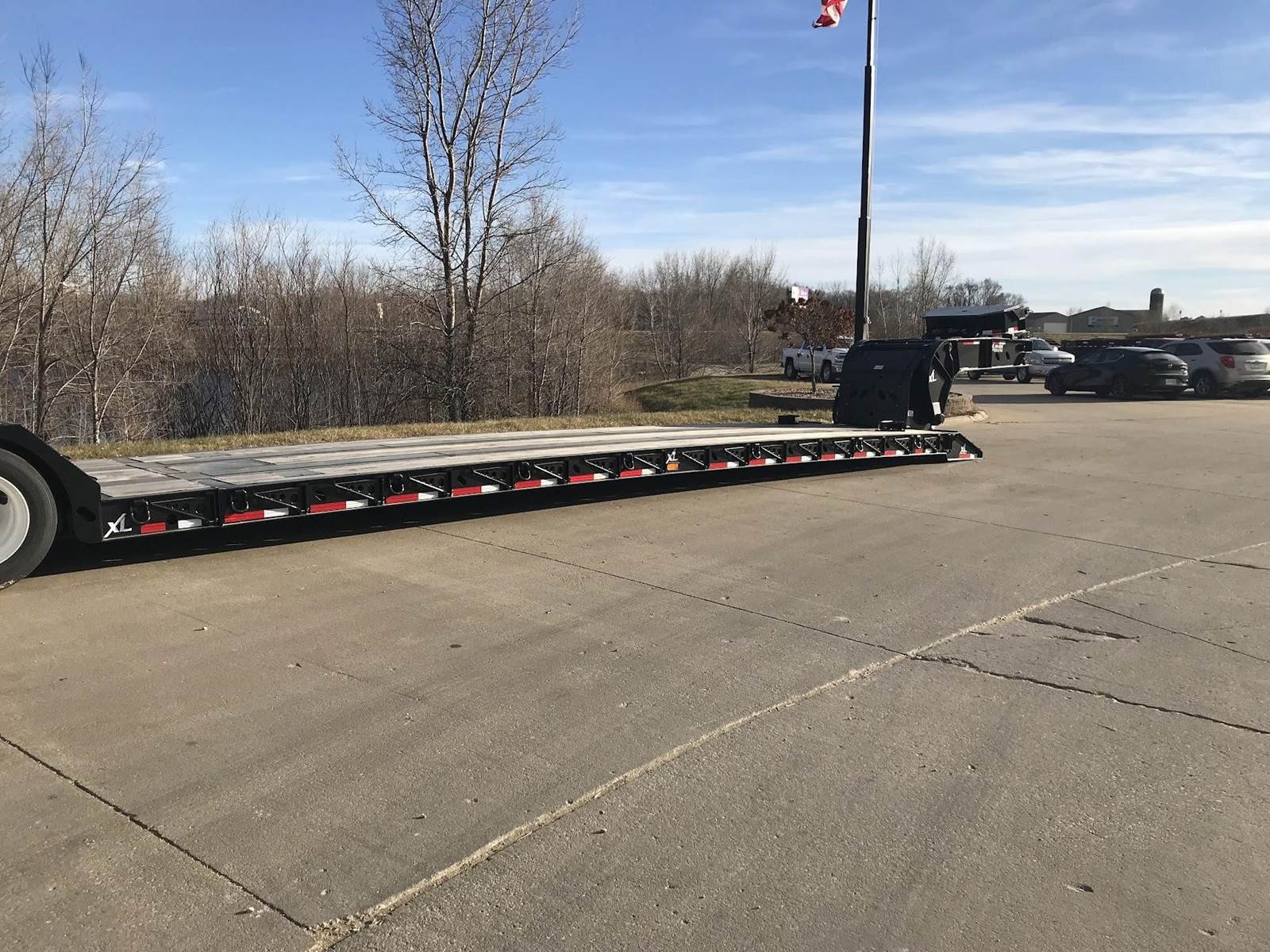

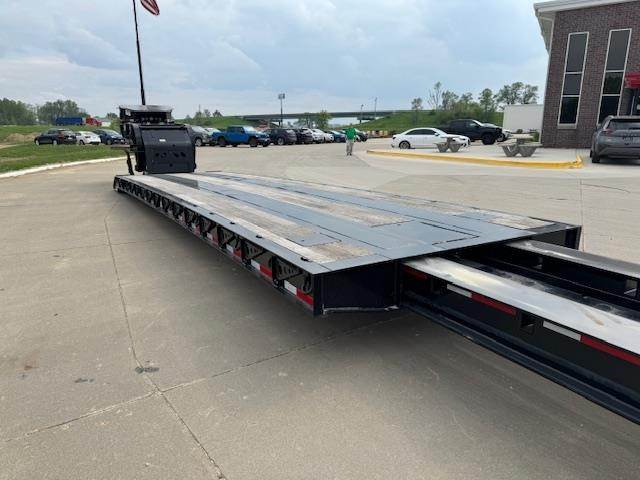

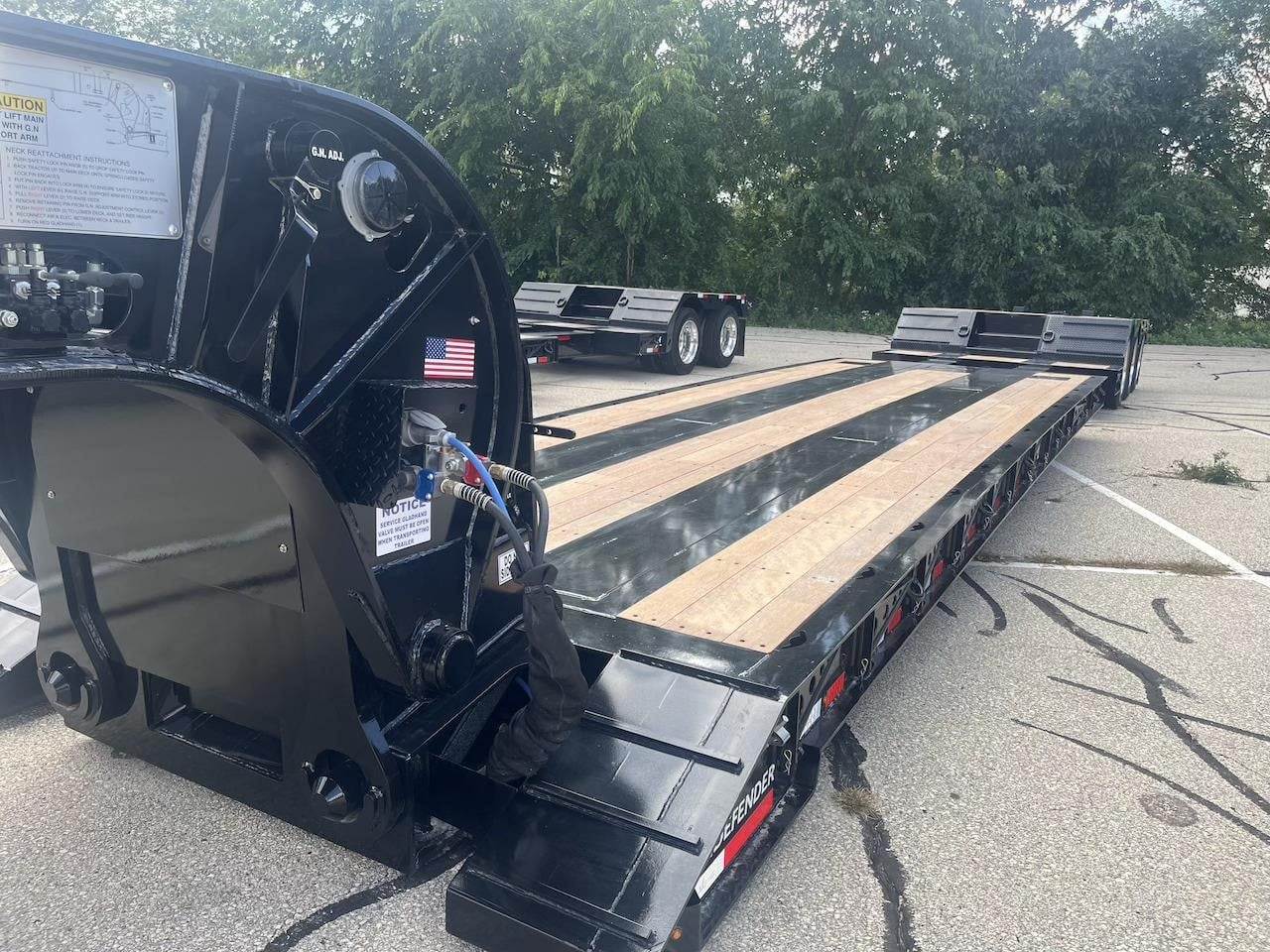

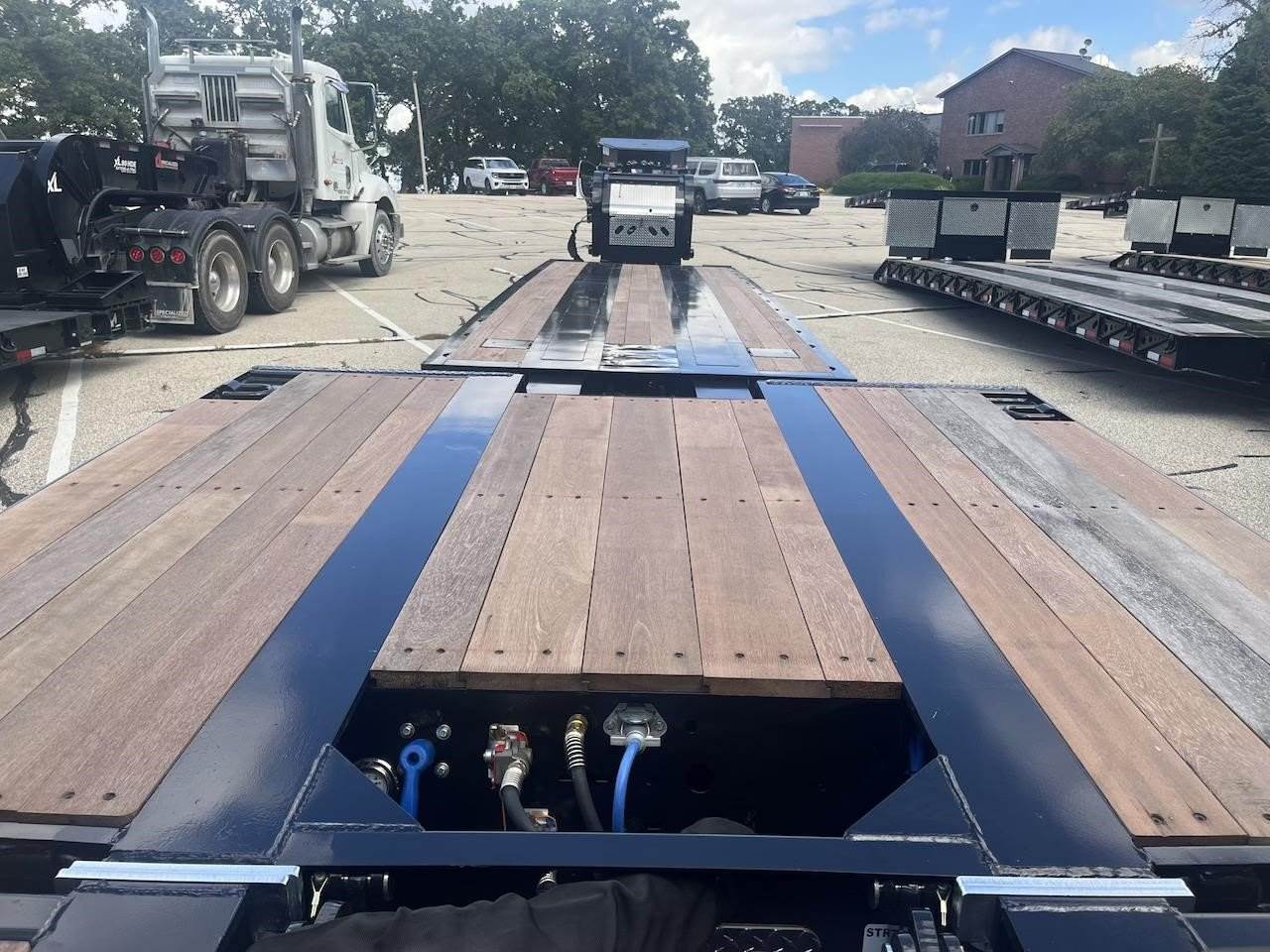

Main Deck:

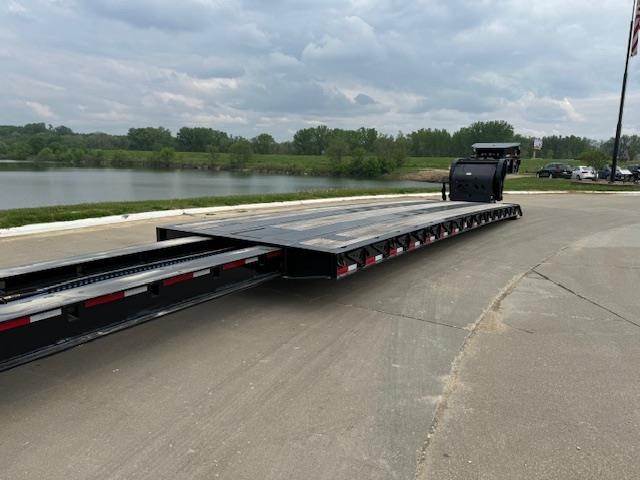

33' 7" well extends to 59' 11" - includes 30" stationary deck
20" loaded deck height w/ 6" ground clearance

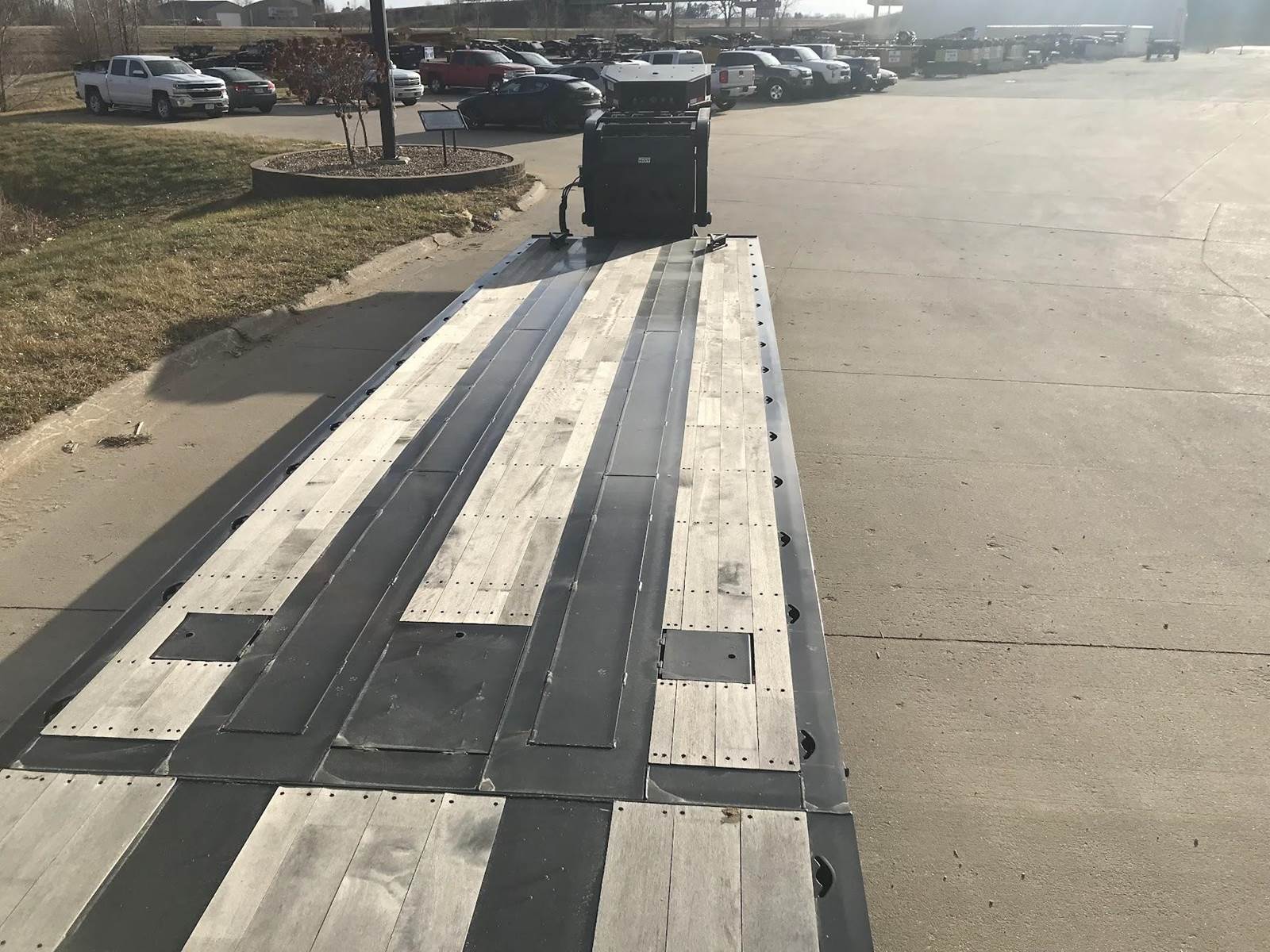

1 1/18" apitong decking flush, covered center
X-members: 6" JR. I-beams on 12" alternating centers
(8) bent D-rings per side
Chain drops on 24" centers

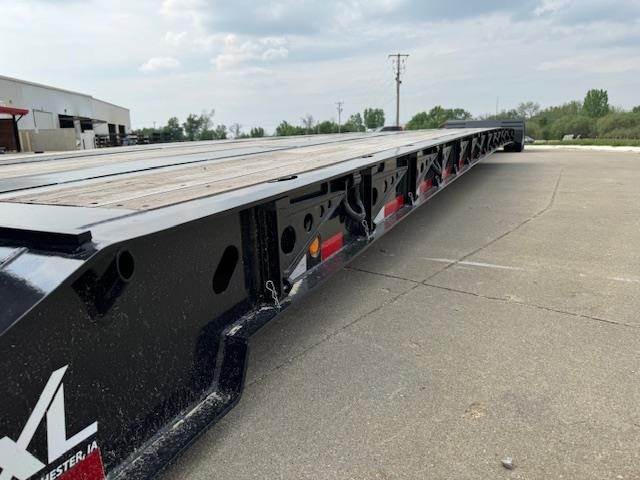

Removable swingout outriggers on 24" centers
Ramps: tapers to 4"
2 extra clearance lights per side on main deck

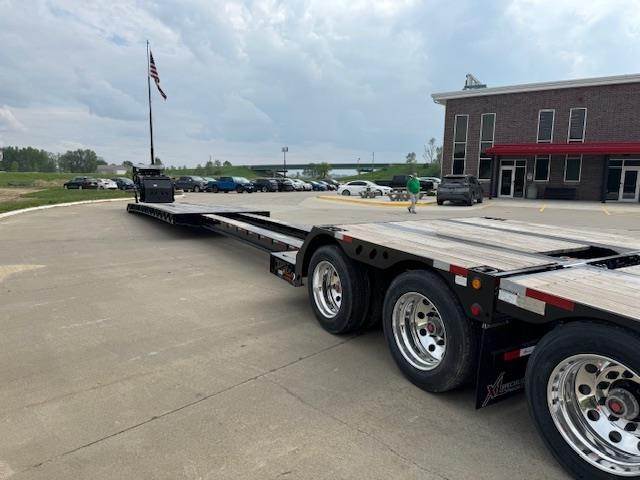

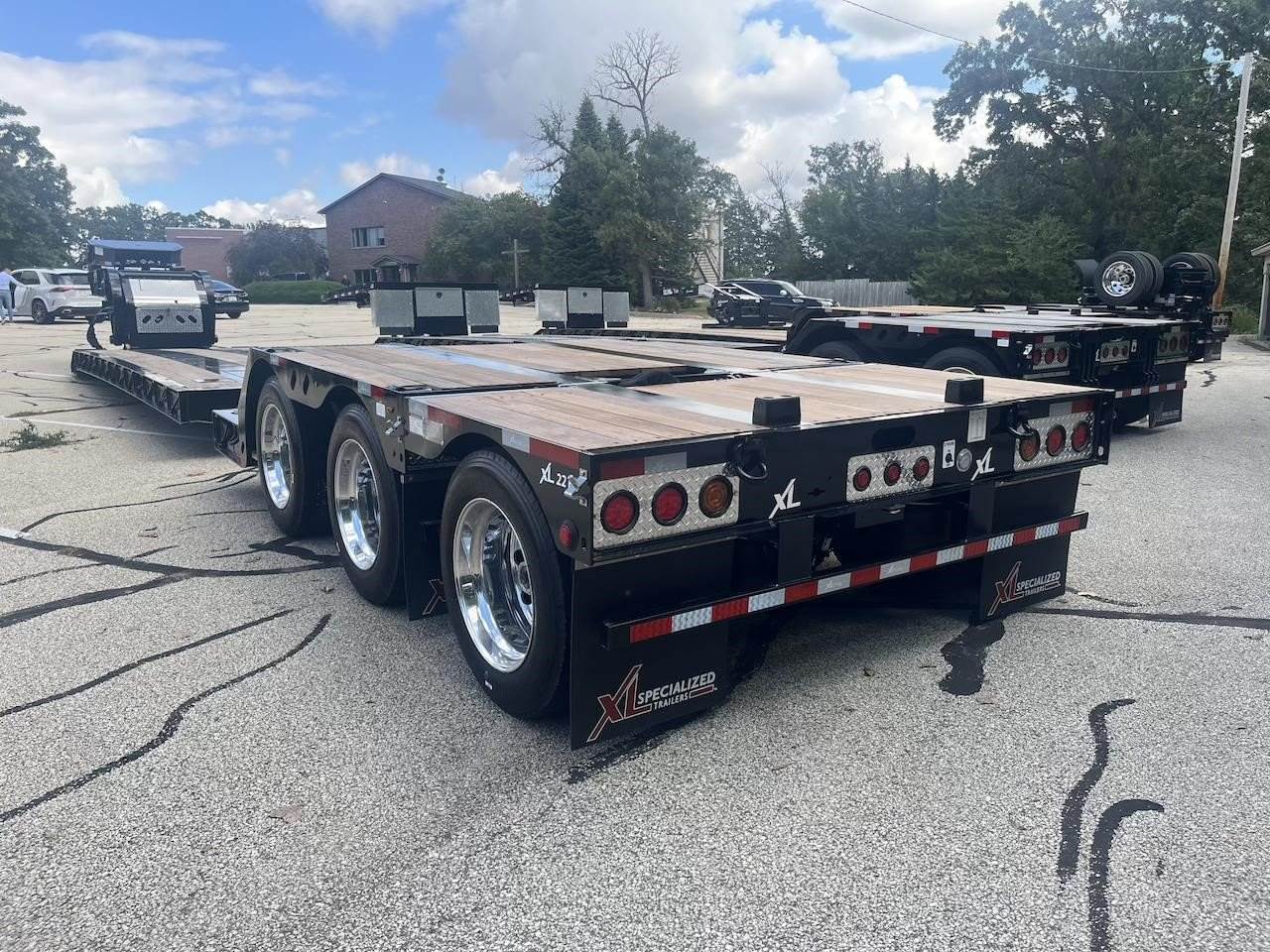

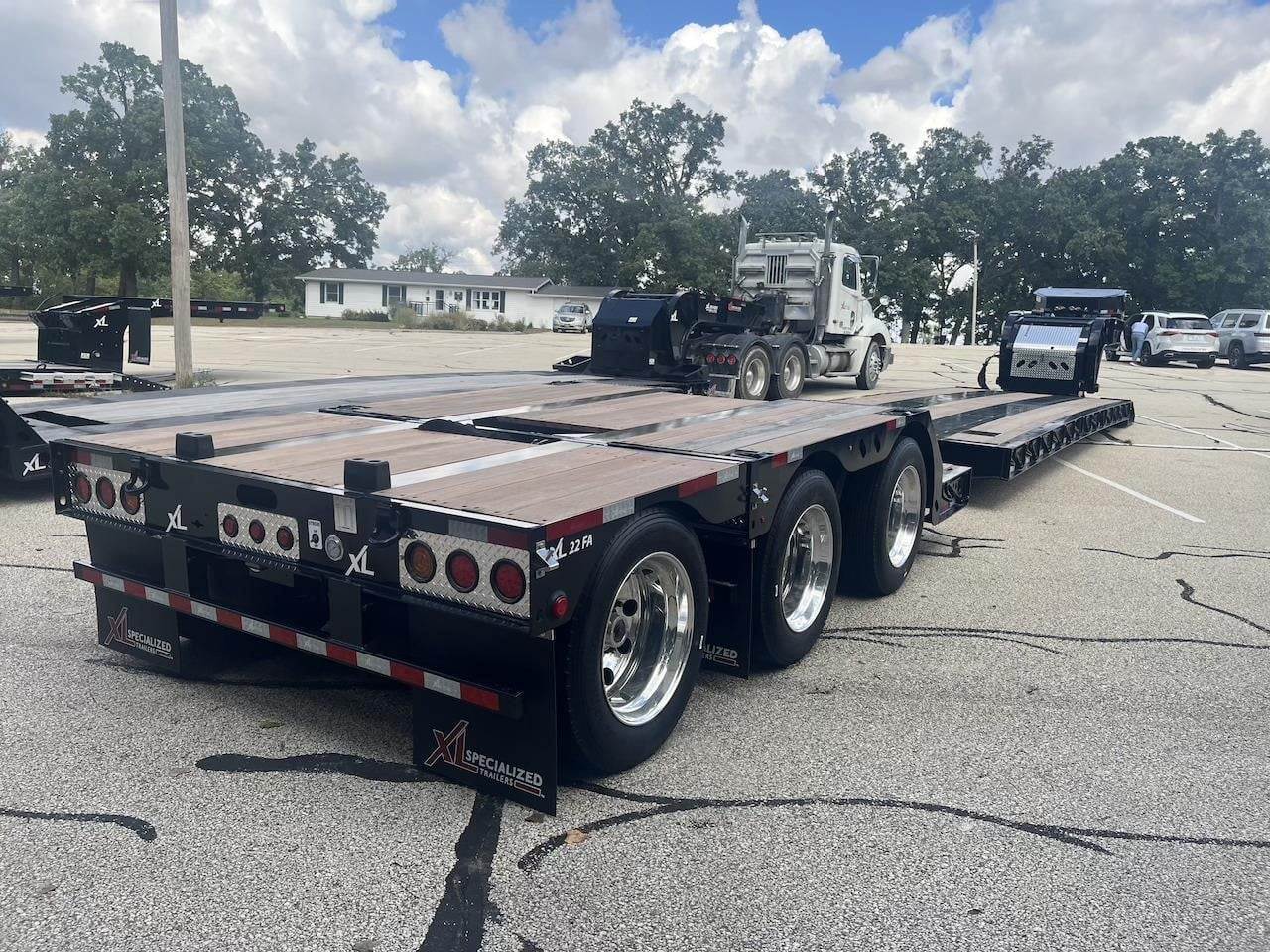

Rear Deck:
9'
40" loaded deck height

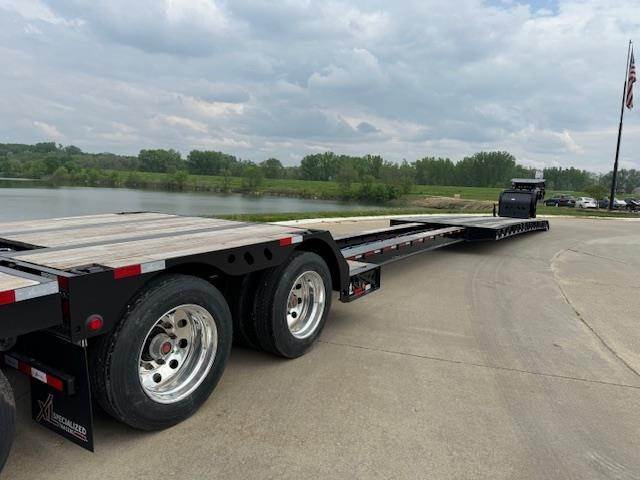

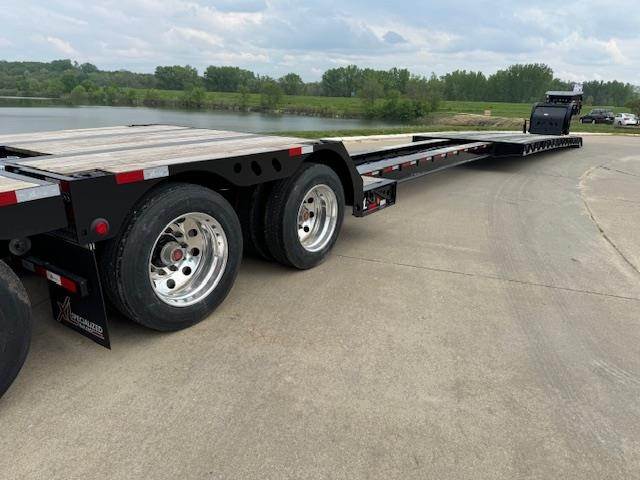

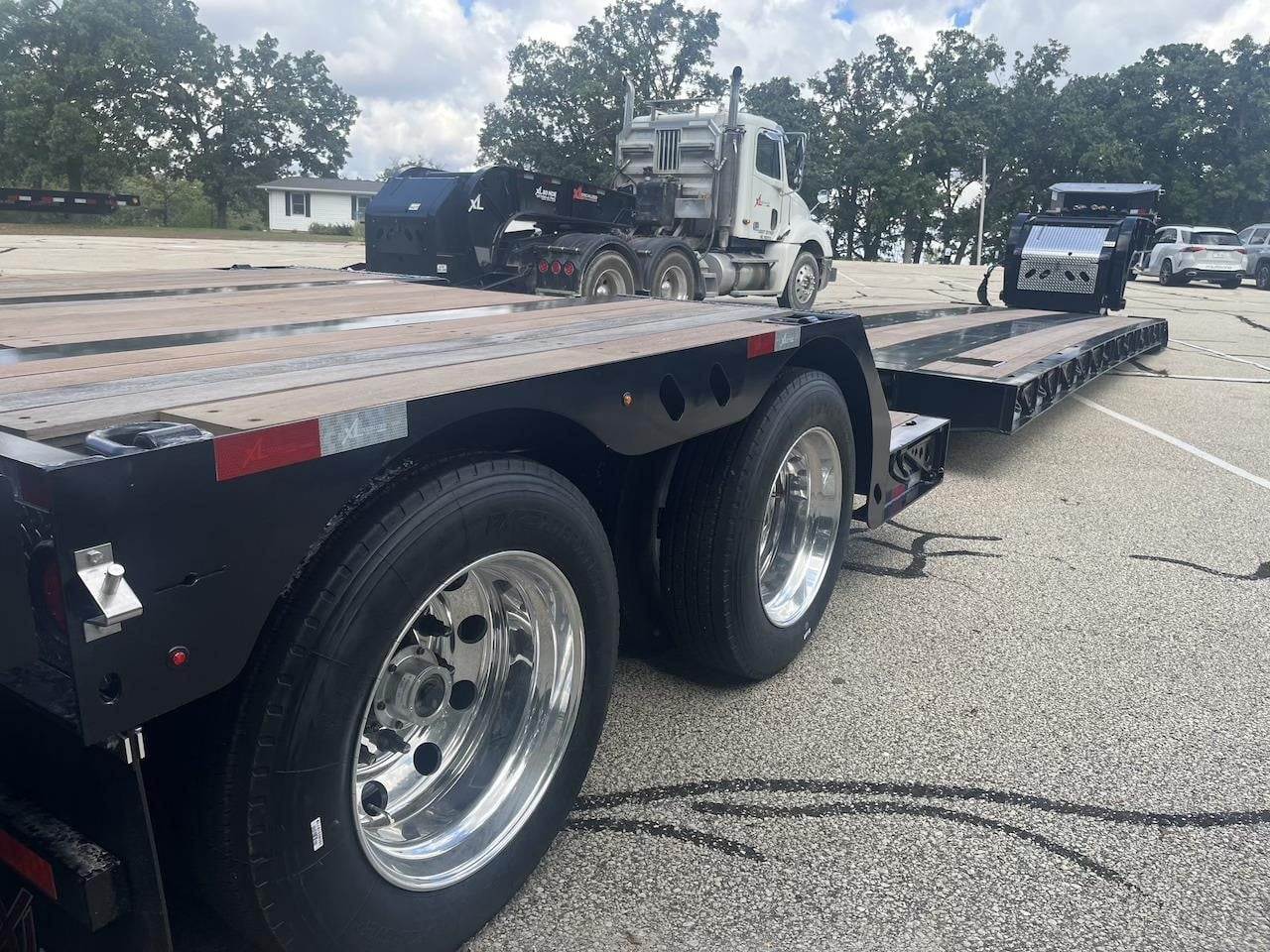

(2) axle trailer
54" axle spacing
ABS: 4S2M Spring brakes on 2 axles
Tires: 255 / 70R / 22.5
Outside aluminum wheels
Hub Pilot/ outboard drums

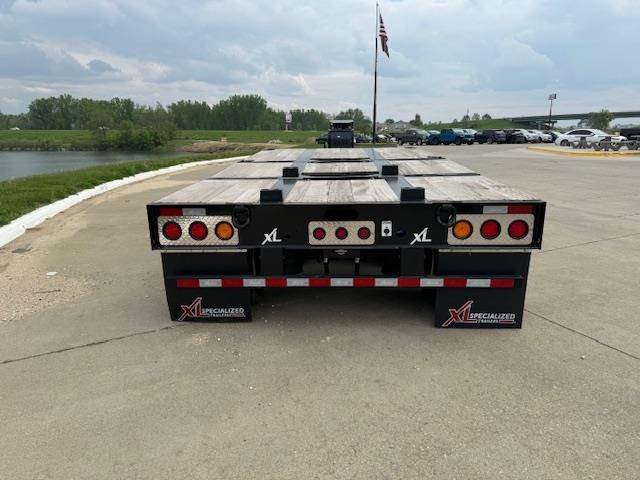

Electrical: 12V sealed Grote system with (3) taillight aluminum package
4" amber strobe to be used as 3rd tail light
1 1/8" apitong decking flush, covered wheels
1 pair of pan style D-rings- one in each corner
(2) bent D-rings in tail channel
2 pair of flag holders
Manual ride height control
Prepped for 2 axle booster
Prepped for flush mount hydraulic flip axle

Raise lower valve
Extension stops on 24" centers
Liquid filled air gauge


FOB Valley Park (St. Louis), MO
***These trailers can be shipped nationwide***
***Can be purchased with flip axles. Contact your salesman for additional details***
***Pictures may not represent actual specs, contact us for details***
