2026 XL Specialized 180 DGE PERIMETER Lowboy Trailer

NEW 2026 XL 180DGE Perimeter Trailer: Double Gooseneck Expandable
180,000 lb. distributed Capacity

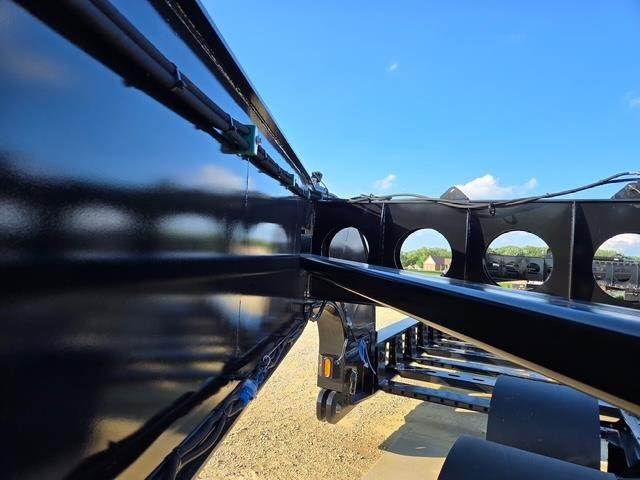

• Expands from 12 foot wide to 20 foot wide outside beams, 10’ 2” to 18’ 2” inside beams

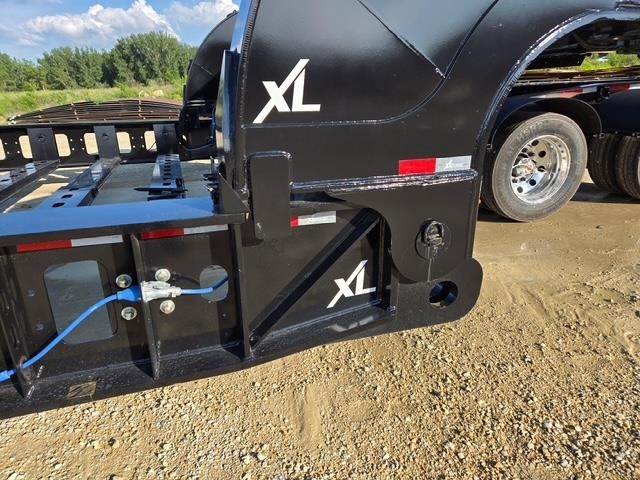

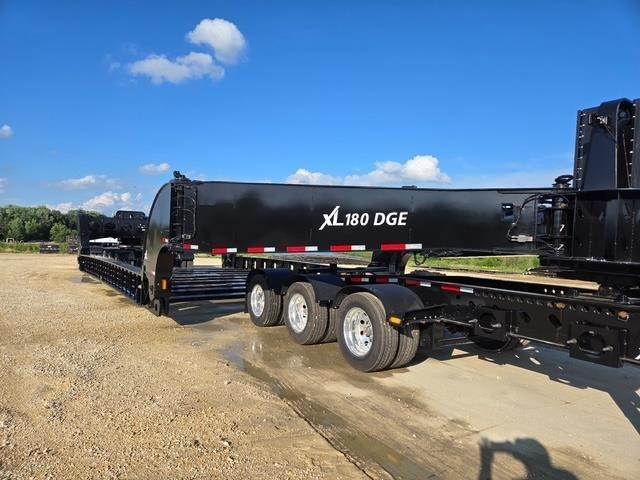

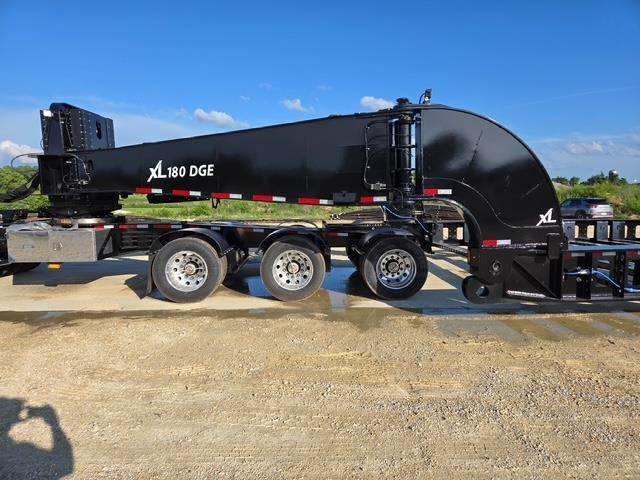

• 24’ 8” front and rear gooseneck
• 36” travel hatbox front and rear
• Cross braces have individual cylinders for easy adjustment and reduced set up time

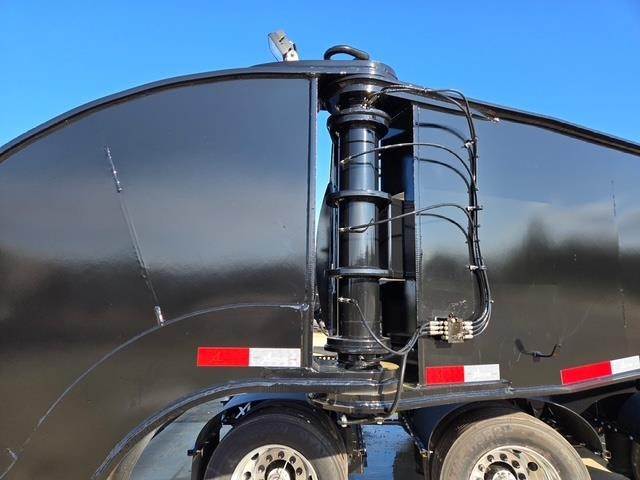

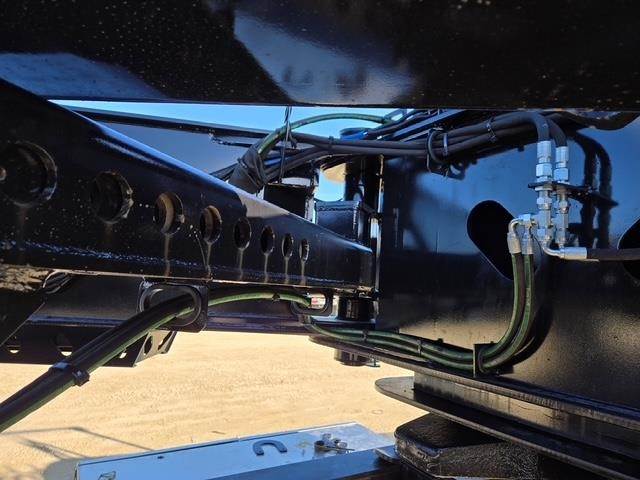

• Remote grease points for all pins in gooseneck
• Overall height is less than 9-feet 10-inches for easier loading

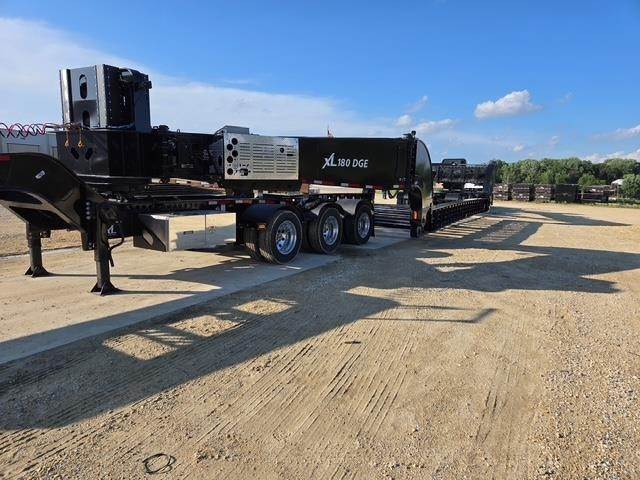

• Front and rear Honda IGX SCUs with remote start
• 2 Wireless remote controls, 7 functions for the front gooseneck to operate remote start on SCU,
cross braces, and hatbox. 10 function remote for rear gooseneck to operate remote start on SCU,
cross braces, hat box, and steering for dolly. Manual controls in front and rear neck control boxes.
• Single person ease of operation with remotes.

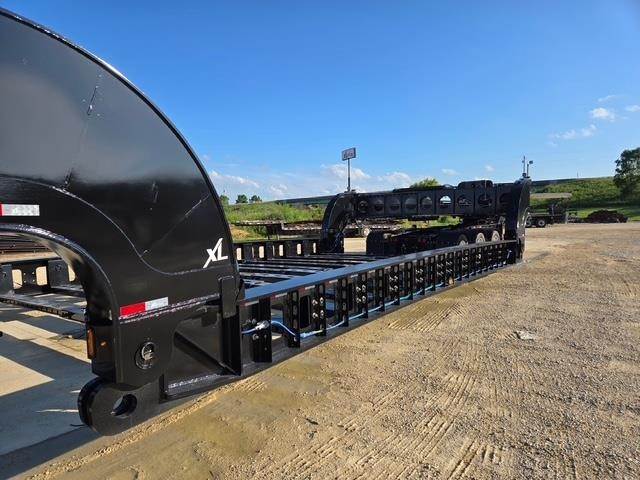

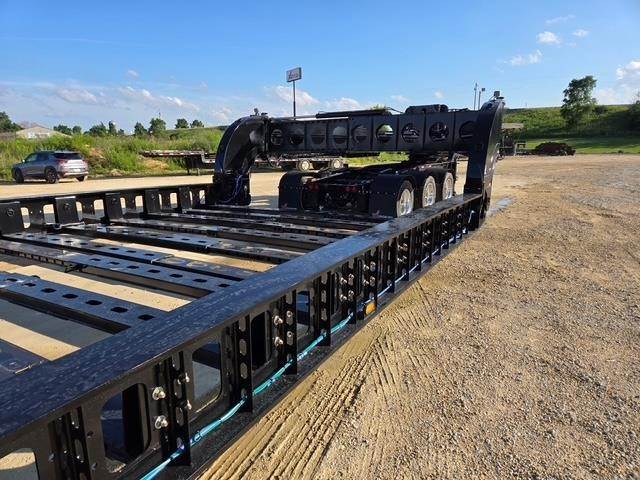

• base model includes 30’ outside rail deck with 4” crossmembers for an 8” loaded deck height with
4” of ground clearance
• Includes 6ea 4” x 12” crossmembers rated at 30,000lbs each

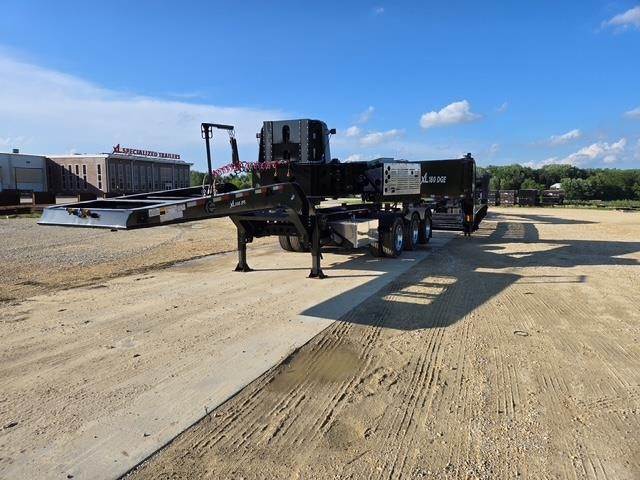

• 3 axle jeep with 3.5” KP 5th wheel
• 5th wheel slide is built into frame beams for ease of operation and lower height

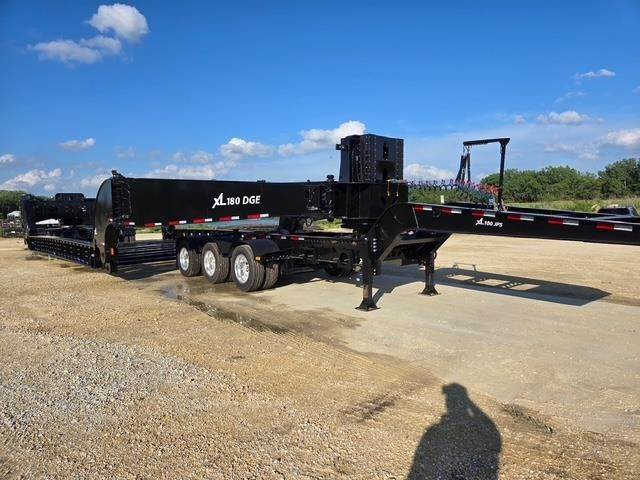

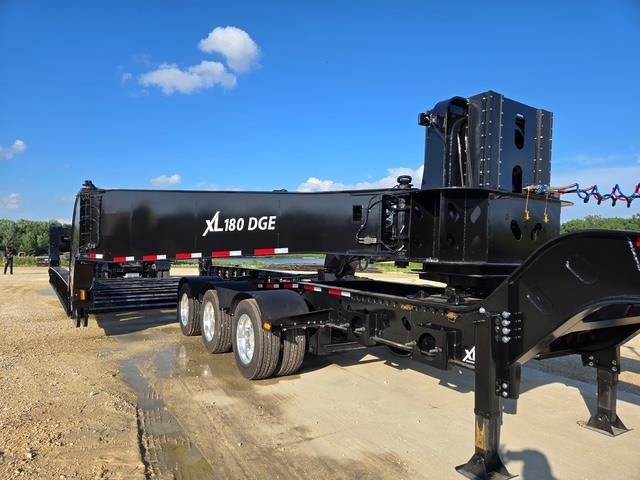

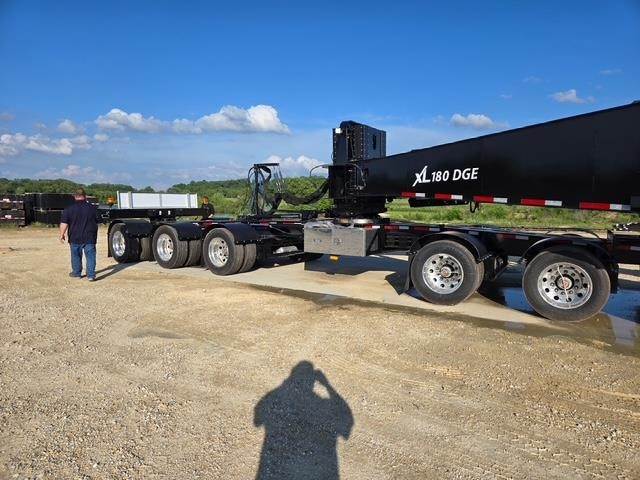

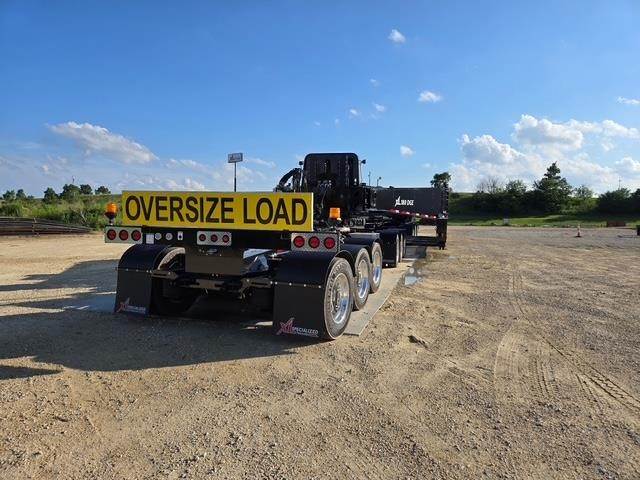

• 6 axle straight frame, rear steer dolly with load bolster connection to neck
• 140 deg total load bolster rotation
• 2 function remote for manual override for steering on dolly
• Fabricated steel dunnage blocks for hat box with storage
• Additional deck inserts from 5’ to 30’ available
• Additional 4” crossmembers for 8” LDH and 6” crossmembers for 10” LDH
The newly redesigned XL 180DGE was designed with and for the end users, every detail of design and
operation was engineered with input from multiple end user reviews. Details as small as light position to
expansion operation and deck insert connections and shims. XL put every resource available to build the
best double gooseneck trailer system available on the market.
