Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!

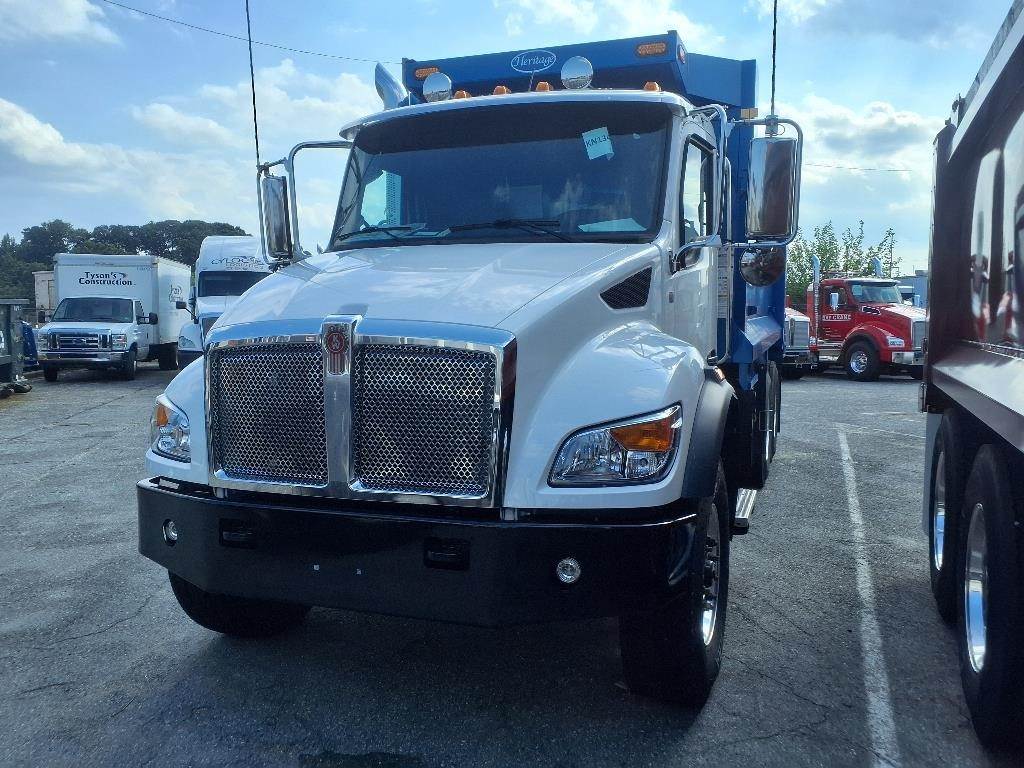

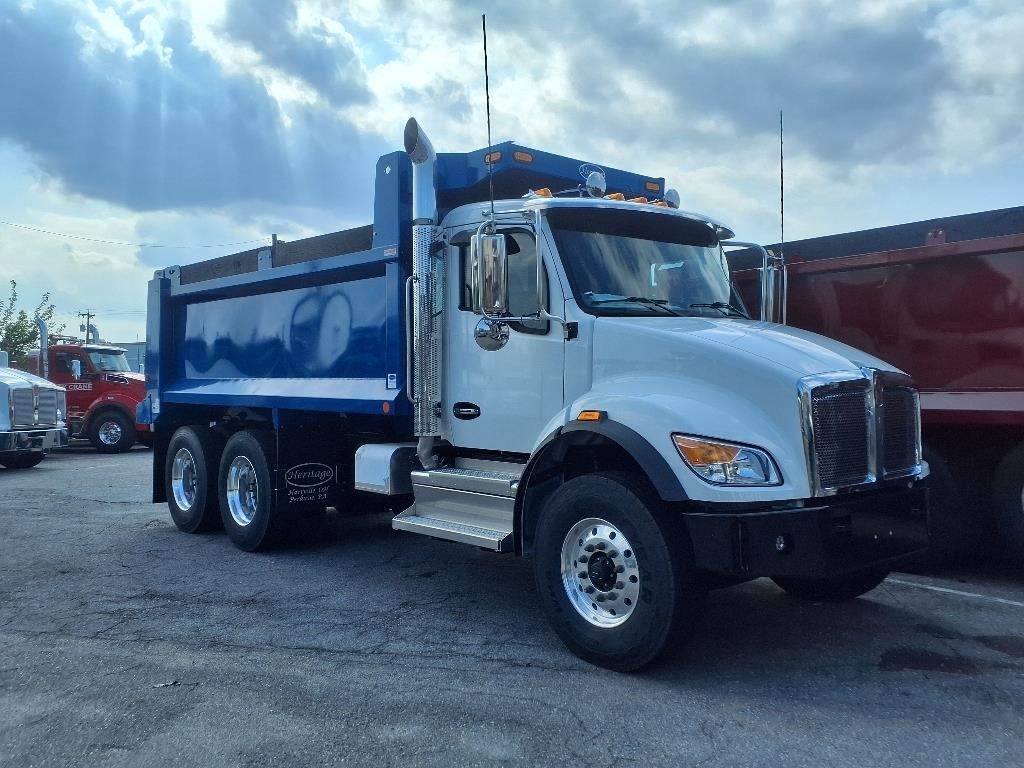

Model Year: 2025
Model: T480
Engine: PACCAR PX-9, 380 HP @ 1600 RPM, 1250 lb-ft Torque @ 1200 RPM, Engine Brake

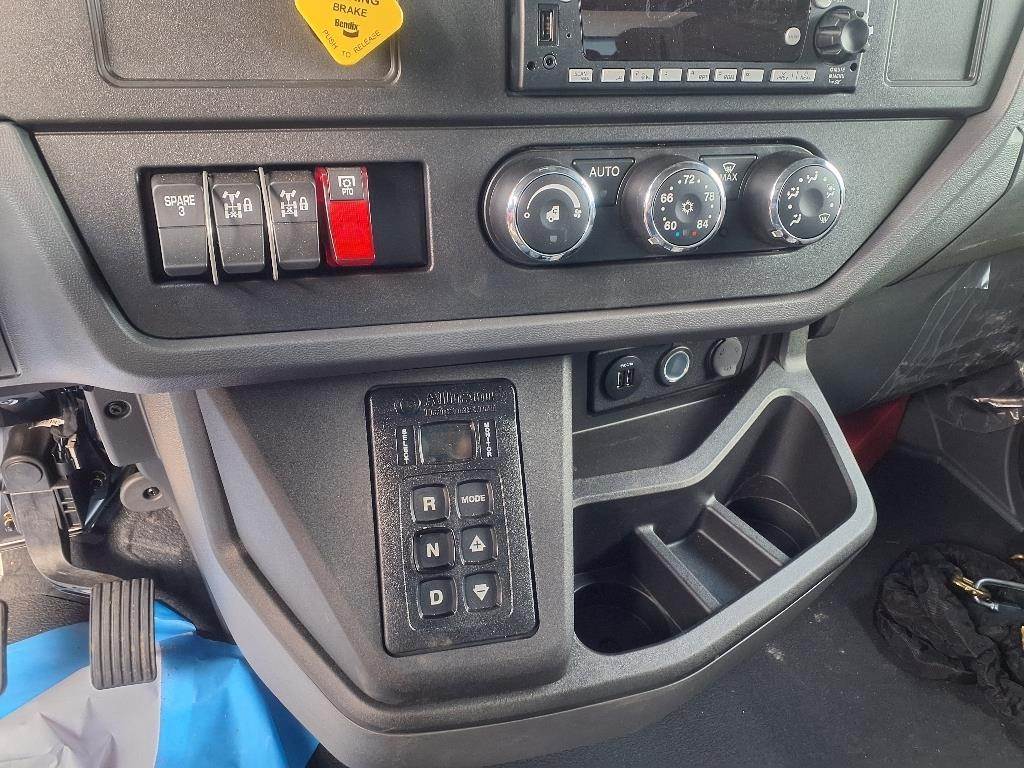

Transmission: Allison 4500RDS, 6-speed Automatic with PTO
Front Axle: Dana Spicer D2000, 20,000 lbs
Rear Axle: Meritor RT46-160P, 46,000 lbs Dual
Rear Suspension: Chalmers 854-46-H, 46,000 lbs Dual, 54" Air Suspension
Gross Vehicle Weight Rating (GVWR): 66,000 lbs
Wheelbase: 202 inches
Cab-to-Axle: 132.5 inches
Rear Axle Ratio: 5.38
Front Brakes: Bendix ES 16.5x6 Drum Brakes
Rear Brakes: Bendix ES S-Cam 16.5x7 Drum Brakes
Wheels: Front: Alcoa 89U63 22.5x9 Ultra One High Polish, Rear: Alcoa 98U63 24.5x8.25 Ultra One High Polish

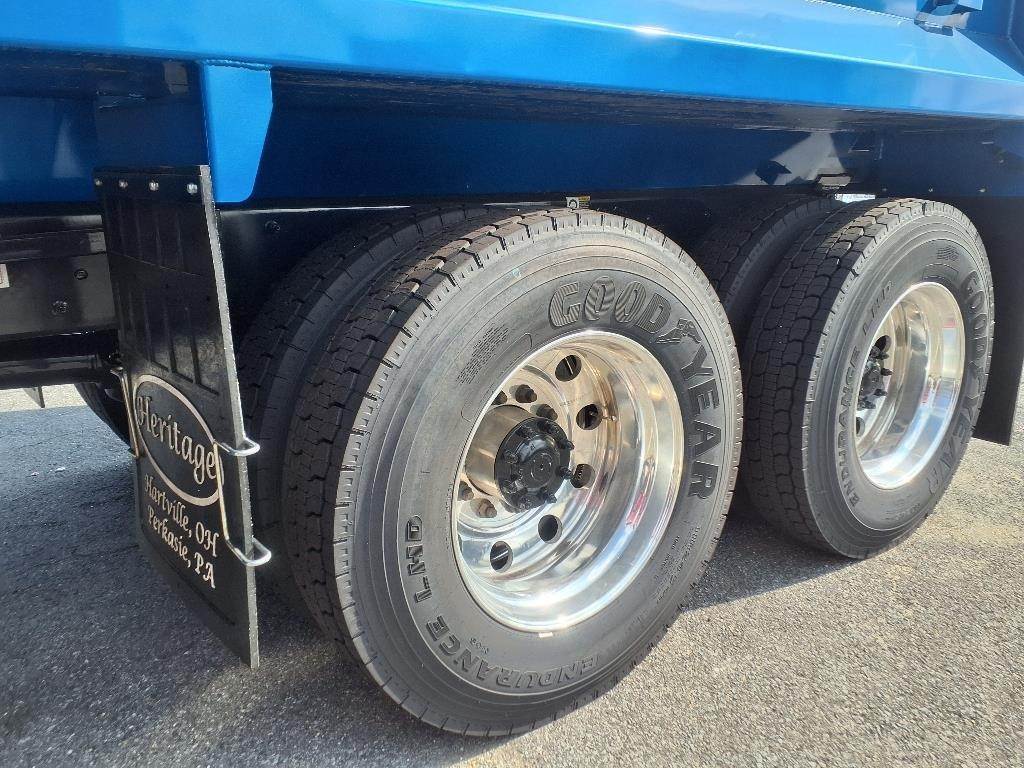

Tires: Front: Goodyear G289 WHA 315/80R22.5 20PR, Rear: Goodyear Endurance LHD 11R24.5 14PR
Fuel Tank: 80 US gallon D-shape aluminum with polished finish
DEF Tank: 15 gallon large round
Exterior Color: White
Interior: Gray foam backing cloth headliner with gray visor

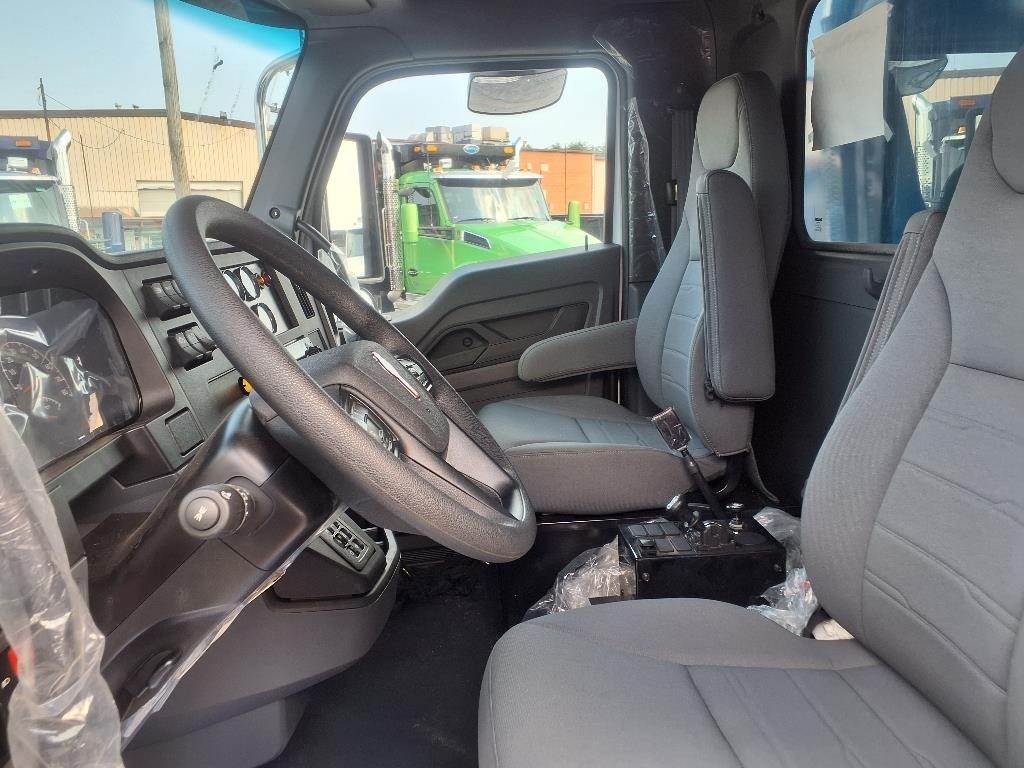

Driver Seat: Kenworth air seat high back tough cloth with dual armrest and cover

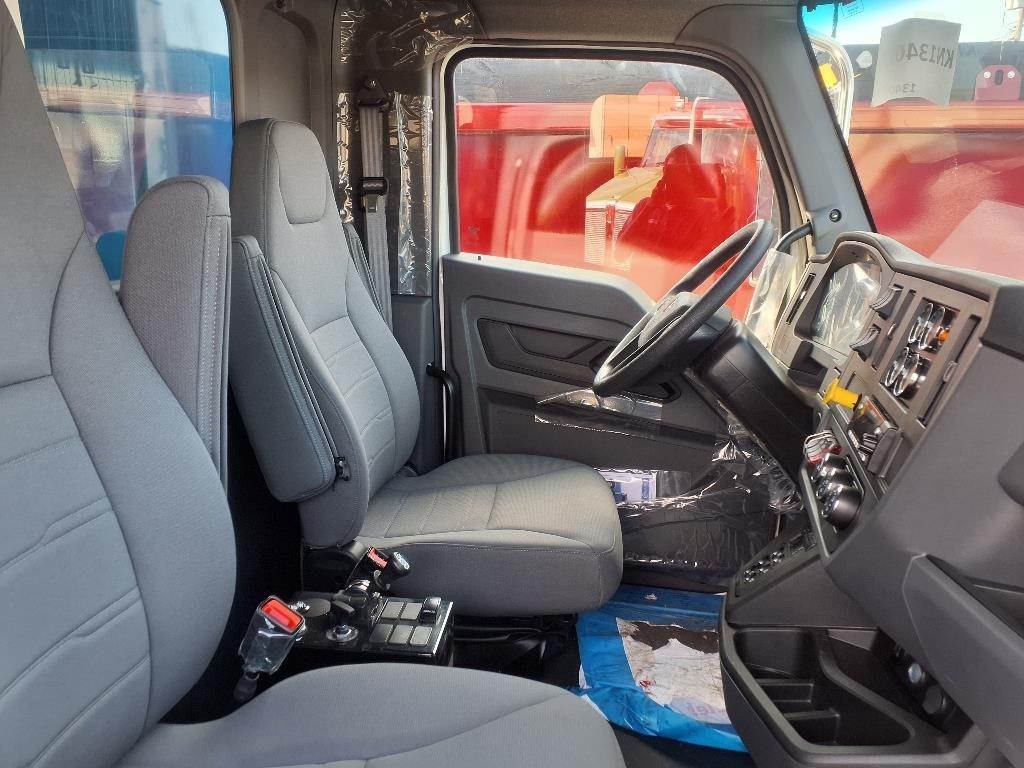

Passenger Seat: Kenworth toolbox high back tough cloth with dual armrests
Radio: Kenworth DEA710 AM/FM/WB/USB with Bluetooth

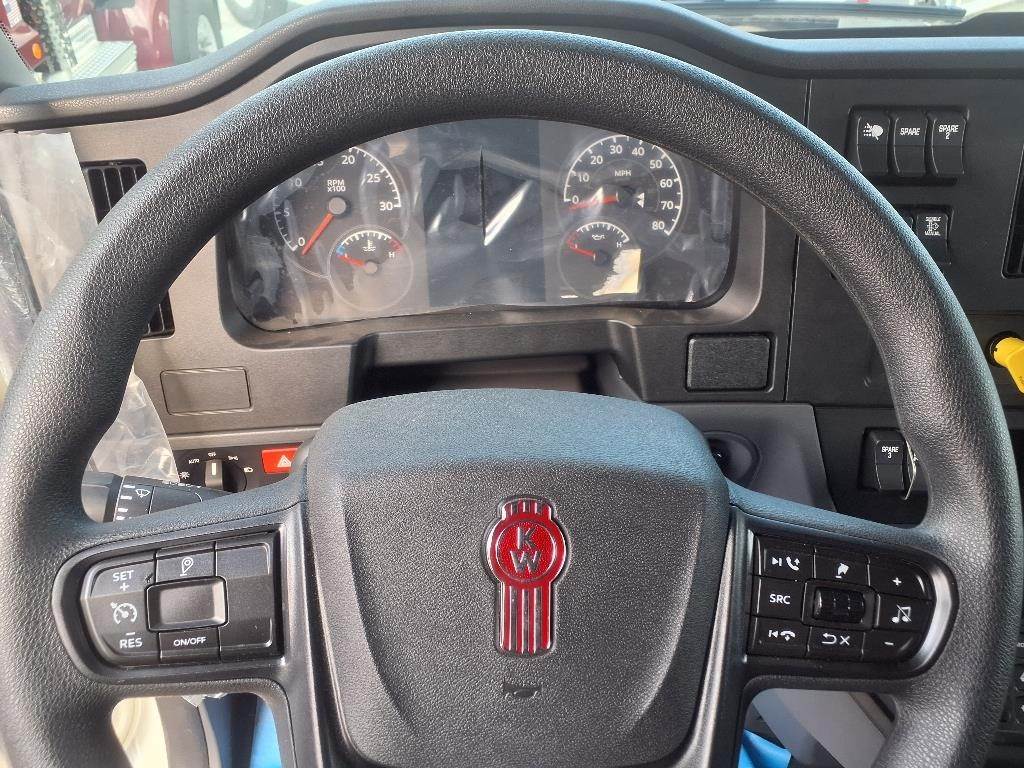

Additional Features: Chrome hood crown, dual aero chrome mirror shells, heated power mirrors, air horn covers, exterior stainless steel sunvisor, Kenworth TruckTech+ remote diagnostics, 7" display main instrument package, air conditioning with auto temperature control, tilt/telescoping steering column, Kenworth Smart Wheel, CB radio installation kit, dual air horns, polished aluminum fuel tank and straps.

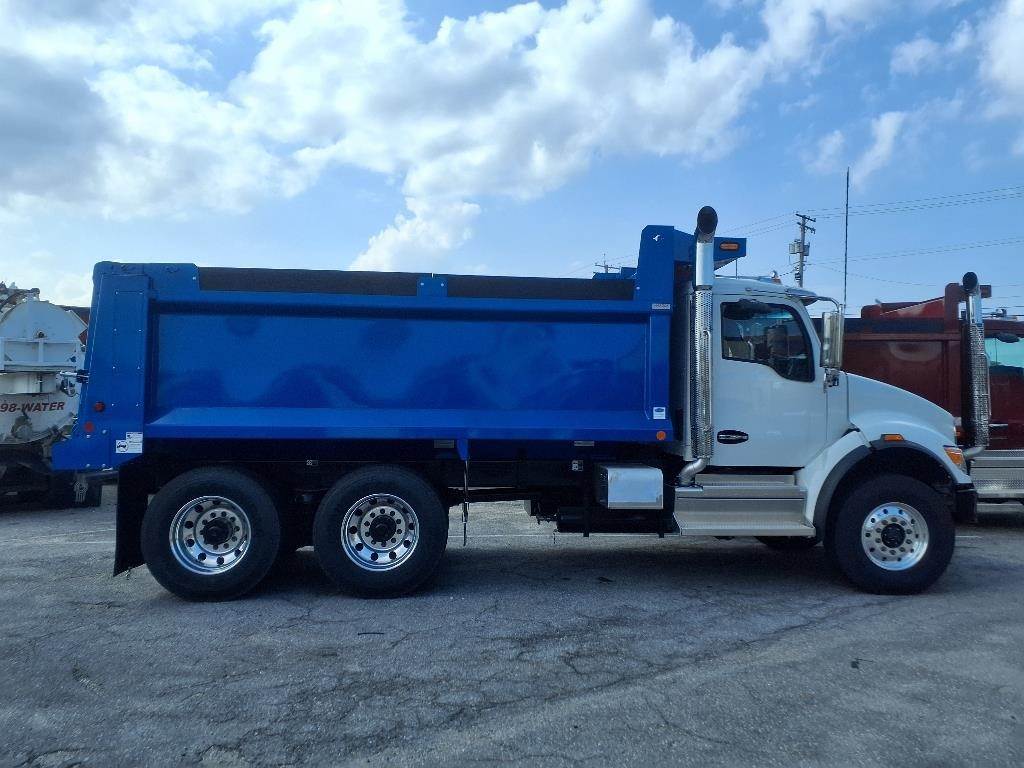

Body Specifications
Model: Heritage Steel Smooth Side
Serial Number: HS-11389
Length: 16 feet
Width: 99 inches (standard width)
Sides
Height: 48 inches
Material: 5/32" AR-450 steel
Side Posts: Front post only
Rear Post: 3/16" material
Top Rail: Formed 5/32" AR-450
Sideboards: 2" x 8" board on each side
Floor
Material: 3/16" AR-450 steel
Longsills: 3/16" formed
Crossmembers: None
Bottom Rail: Formed
Bulkhead
Material: 5/32" AR-450 steel for trunnion style hoist
Cab Shield: 30 inches narrowed on both sides, 10 gauge material, 6 inch face

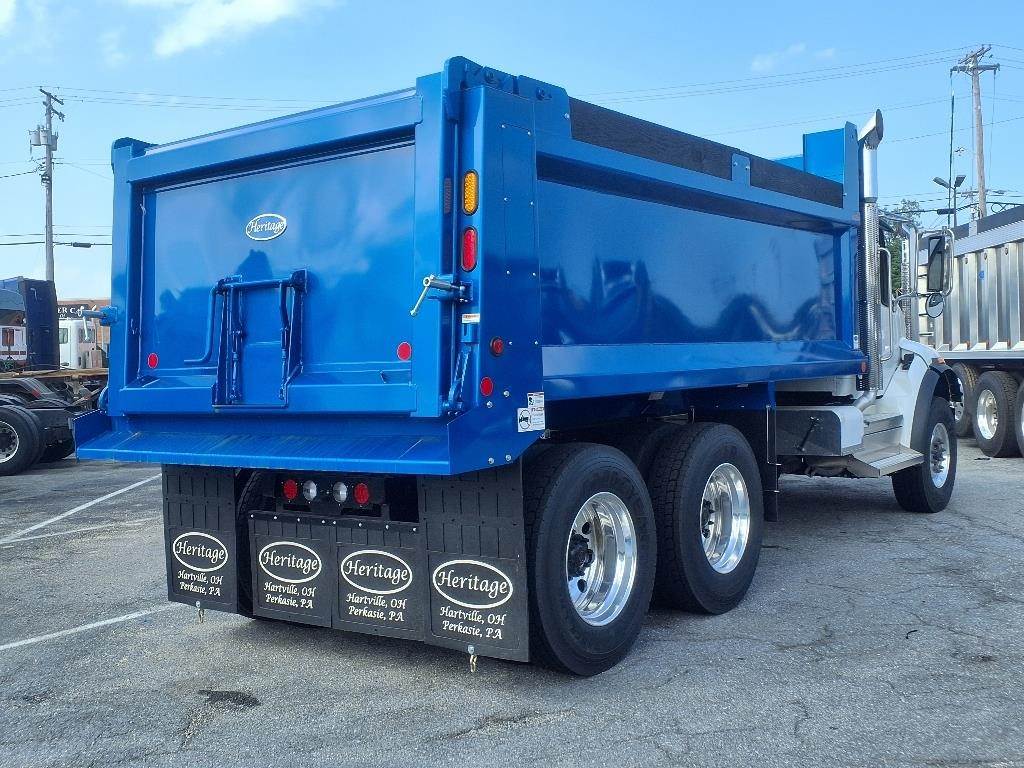

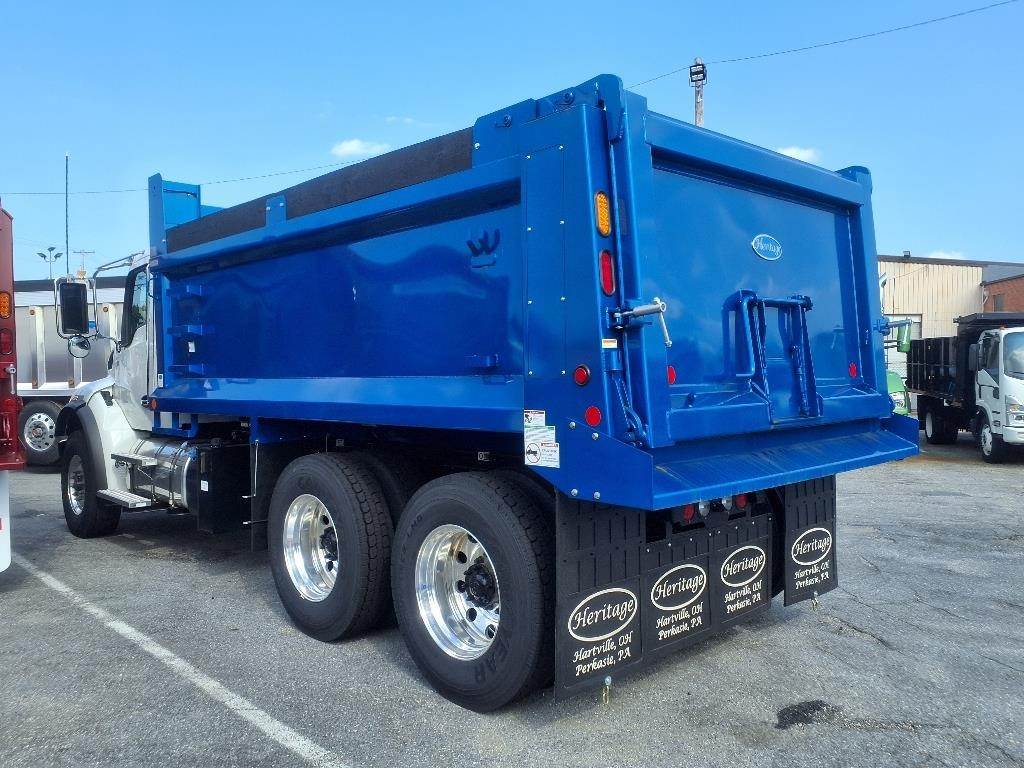

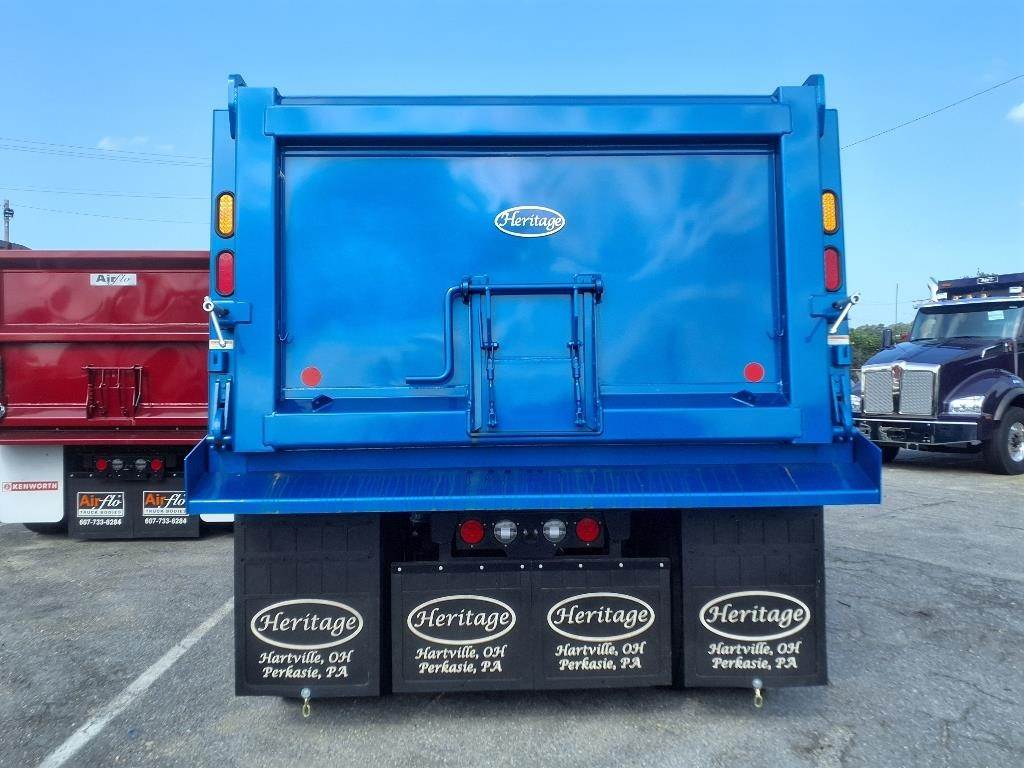

Tailgate
Height: 54 inches
Material: 3/16" AR-450 steel
Slope: 6 inches
Number of Panels: Single panel with horizontal bracing only
Top Hinge: Overslung with air operated hi-lift
Tailgate Chains: Installed
Controls: Air tailgate operation
Coal Door: Installed in center of tailgate
Salt Locks: Installed, one on each side
Tailgate Options: Air operated hi-lift with cylinders in rear post with access panels
Hydraulics
Front Hoist: Binotto B3C 6.5-4-150 Trunnion mount telescopic hoist
PTO: Hotshift PTO for Allison Automatic transmission
Pump: Direct mount pump with shifter valve
Pump Control: Feathering valve air control

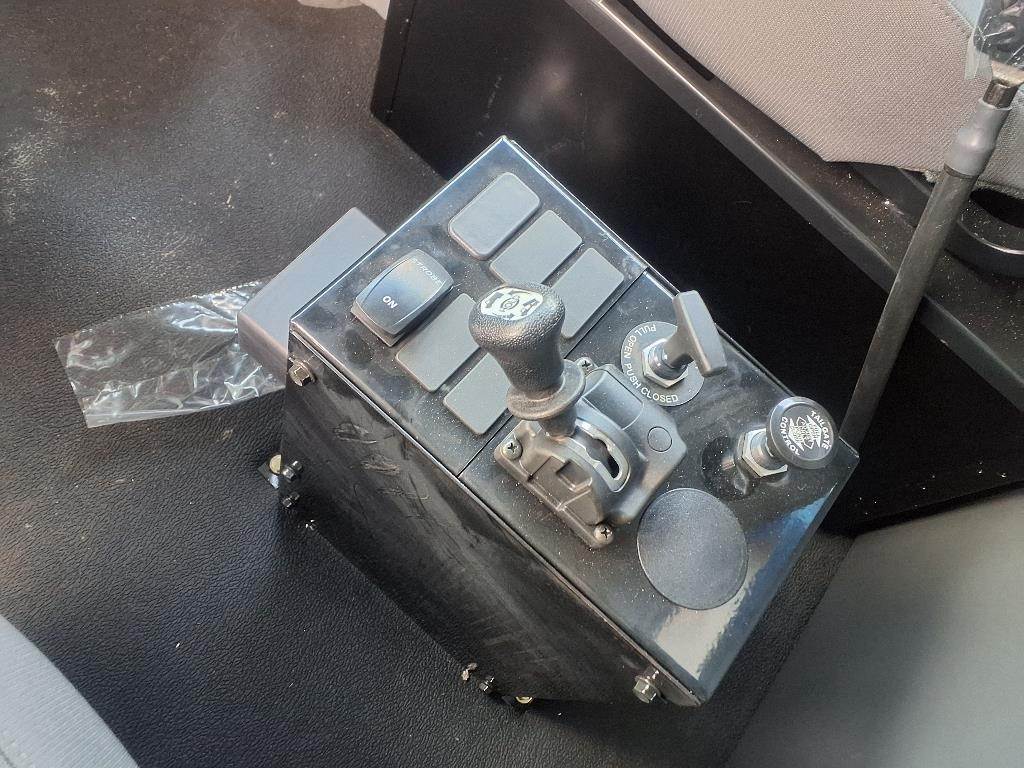

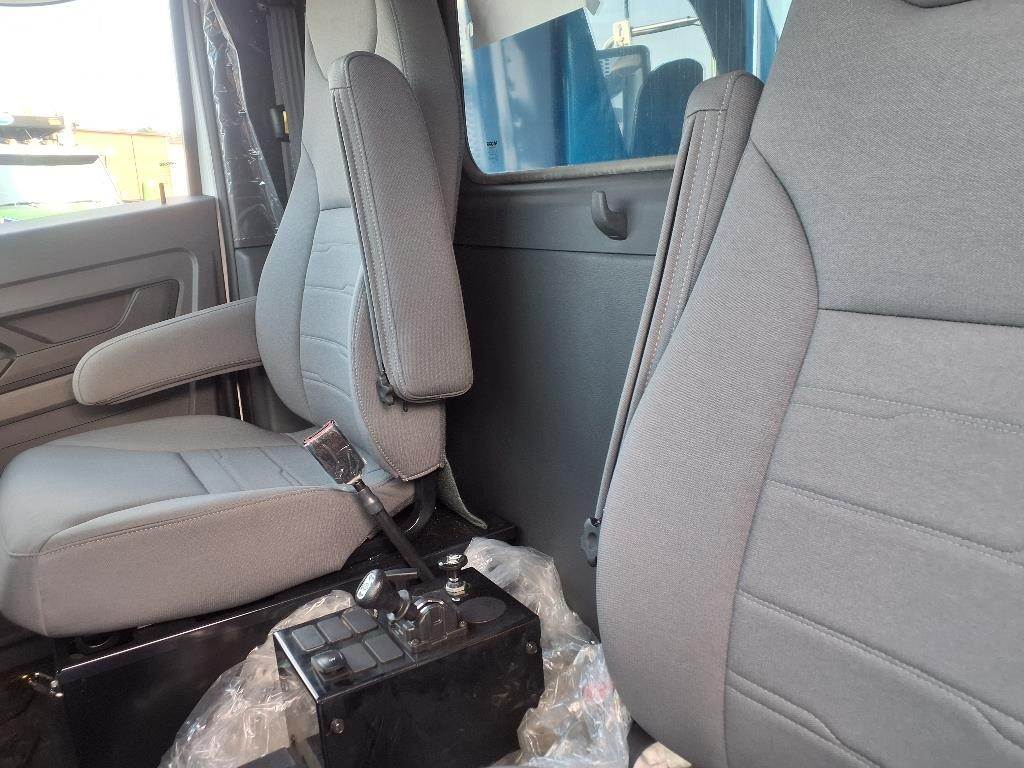

Tower: Between seats for body and strobe control
Pump Kickout Switch: Installed at rear

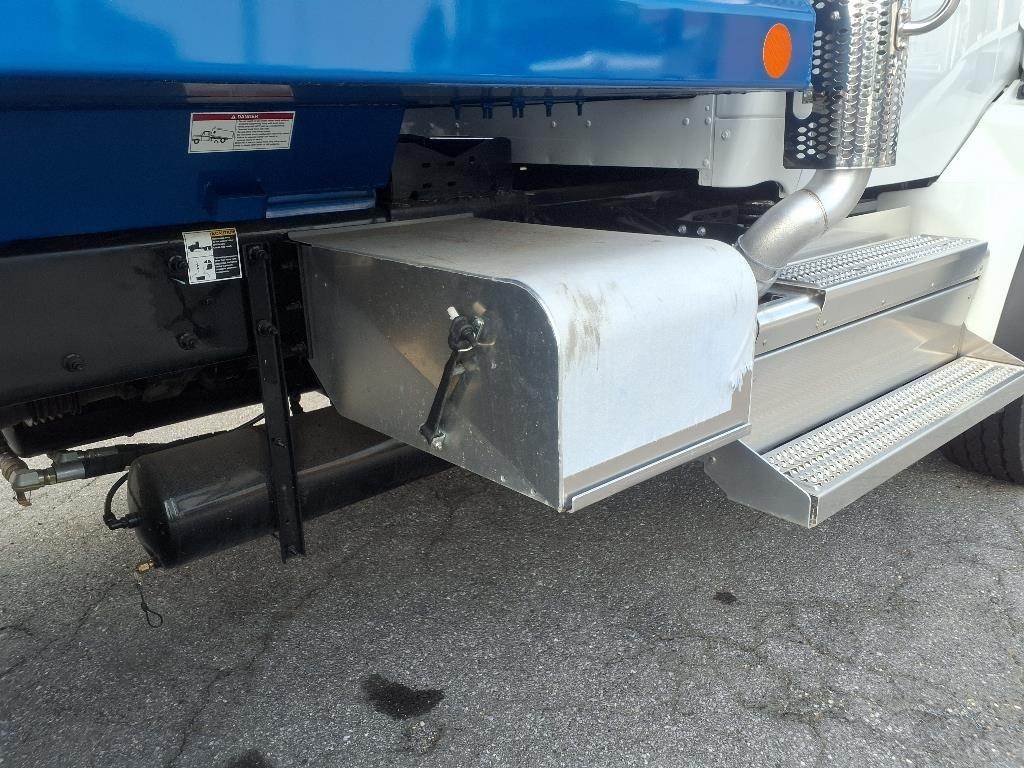

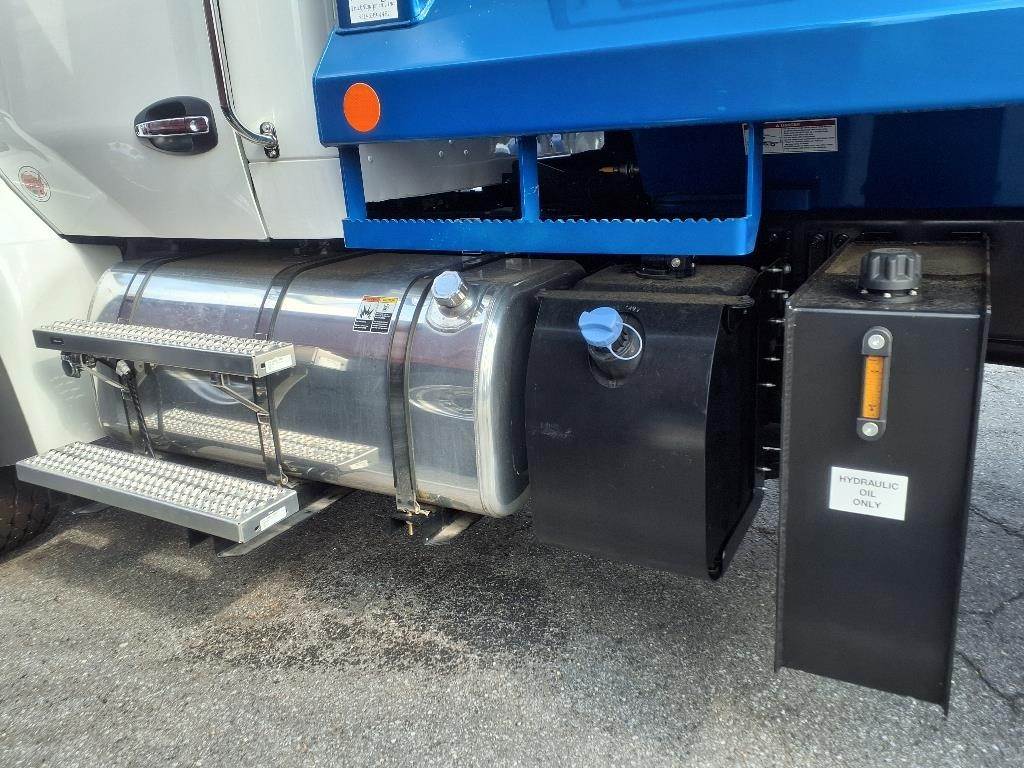

Hydraulic Tank: Steel, mounted on side of frame

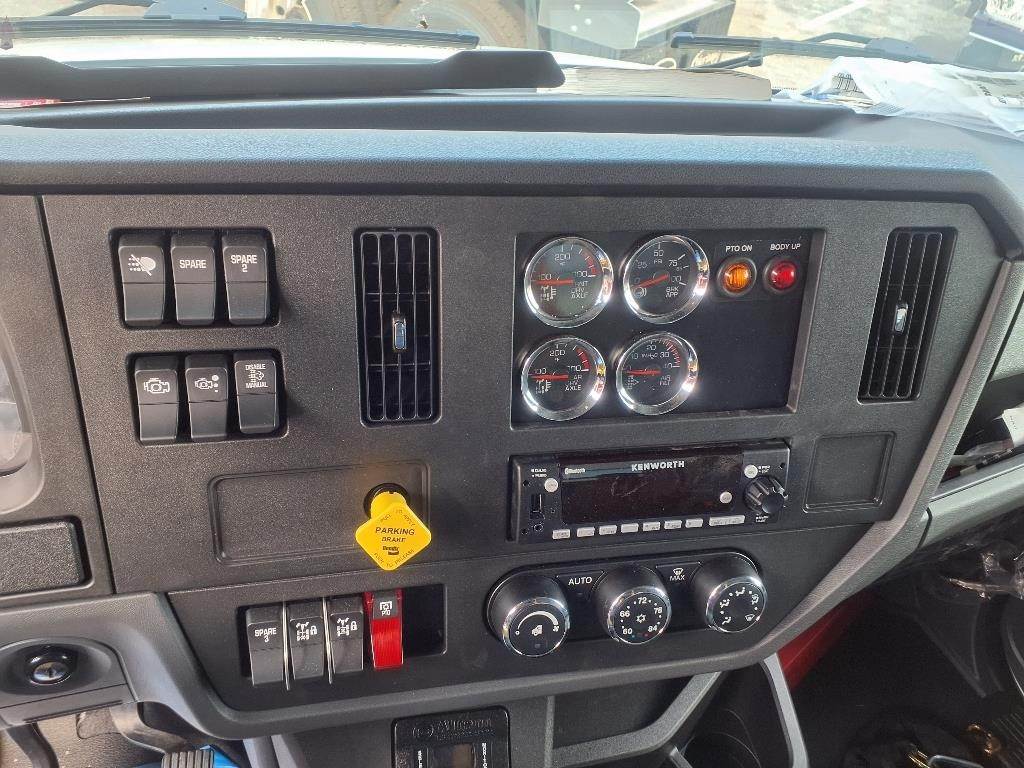

System: 3-line system with shutoff valves, PTO engaged and body-up lights in dash
Lights
Body Lights: LED light package
Rear Stop/Turn/Tail: In rear post
Front Marker Lights: None
Front Strobes: Two in front of cab shield, one on each side
Rear Strobes: One in each rear post
Specifications & Options
Ladders: Front panel on driver's side with one step below bottom rail
Inside Steps: Front only
Tarp Bar: None
Mud Flaps - Front: Heritage flaps, 30 inch length with anti-sail brackets
Mud Flaps - Rear: Heritage flaps, full across rear with hooks on straps and chains on flaps
Shovel Holder: Rear of body driver's side
Rear Apron: 8 inch bolt-on
Vibrator: None
Paint
Body Finish: Sandblast, prime, and paint body one standard color - L0347EY Sovereign Blue
Boards: Black
Chassis
Rear Chassis Lights: Reuse Kenworth rear chassis lights, ID cluster on hinge
Exhaust Stack: No changes
ICC Bumper: None
Rear Tow Hooks: None
Deckplate: None
Pintle Hitch Assembly: None
Body Prop: Installed
Back-up Alarm: Installed
