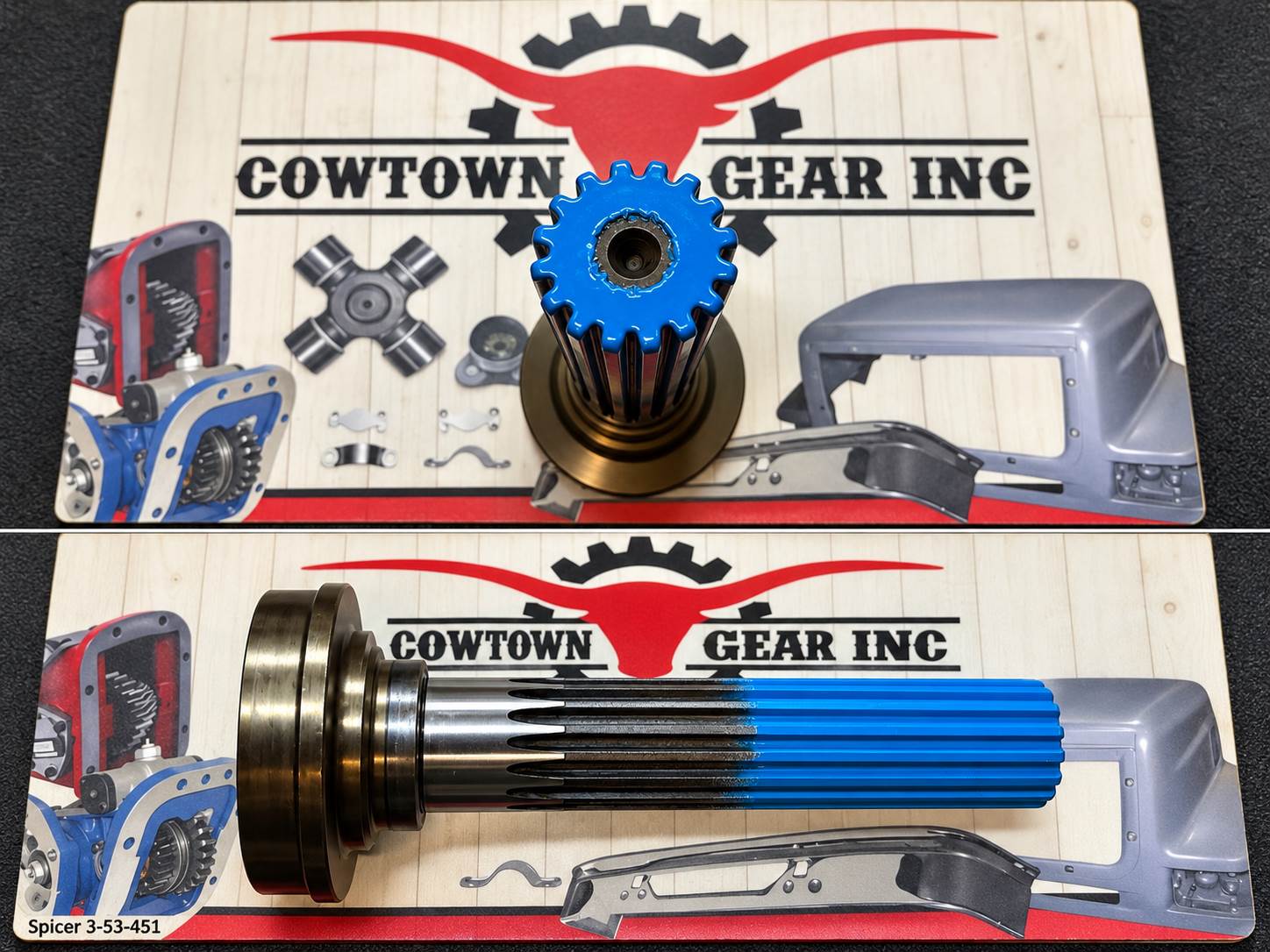

The Dana Spicer 3-53-451 Stub Shaft is an obsolete OEM splined midship tube/stub shaft designed for heavy-duty driveshaft applications. [1, 2, 3] Specifications Spline Size: 1.562-inch (1 9/16 in) major diameter with 16 splines Spline Length: 5.938 inches Tube Compatibility: Designed for 3.500-inch diameter by 0.083-inch wall steel tubing Bearing Diameter: 1.575 inches End of Spline to Weld: 8.531 inches End of Spline to Bearing Shoulder: 7.470 inches
ALL SALES FINAL
NO REFUNDS
NO RETURNS
